[shortdesc]Firewall, 1RU, 39 Gbps, 18x GE RJ45, 4x 10GE SFP+, 480GB SSD, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Series	FortiGate 120G Series
SKU	FG-121G-BDL-950-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 1 Year
Form Factor	Rack Mount, 1 RU
Internal Storage	1x 480 GB SSD
Firewall Throughput	39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP packets)
IPS Throughput	5.3 Gbps
Network Interfaces	18x GE RJ45 ports (including 1x MGMT port, 1x HA port, 16x switch ports), 8x GE SFP slots, 4x 10GE SFP+ slots
Power Supply	Dual non-swappable AC PSU (1+1 redundancy)
Dimensions (H x W x L)	1.73 x 17 x 10 inches (44 x 432 x 254 mm)
Weight	12.17 lbs (5.52 kg)

[/properties]

[specifications]

System Performance — Enterprise Traffic Mix
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
Firewall Latency	3.17 μs
Firewall Throughput (Packets Per Second)	42 Mpps
Application Control Throughput	6.7 Gbps
SSL Inspection Throughput	3 Gbps
System Capacity
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	140,000
Firewall Policies	10,000
VPN Performance
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Max)	500
Interfaces & Connectivity
GE RJ45 Ports	16x Hardware Accelerated Ports
GE RJ45 Management / HA Ports	1 / 1
GE SFP Slots	8x Hardware Accelerated Slots
10 GE SFP+ Slots	4x Hardware Accelerated 10 GE SFP+ FortiLink Slots (default)
USB Ports	1
Console Port	1x RJ45
Power & Environment
Power Input	100–240V AC, 50–60 Hz
Power Consumption (Average / Max)	43 W / 47 W
Heat Dissipation	159 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	49 dBA
Compliance & Certifications	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; Certifications: USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

1 GE SFP SX/LX/RJ45 Transceivers, 10 GE SFP+ RJ45/LR/ER/SR Transceivers, 10 GE SFP+ Passive Direct Attach Cables (1m, 3m, 5m)

[/accesories]

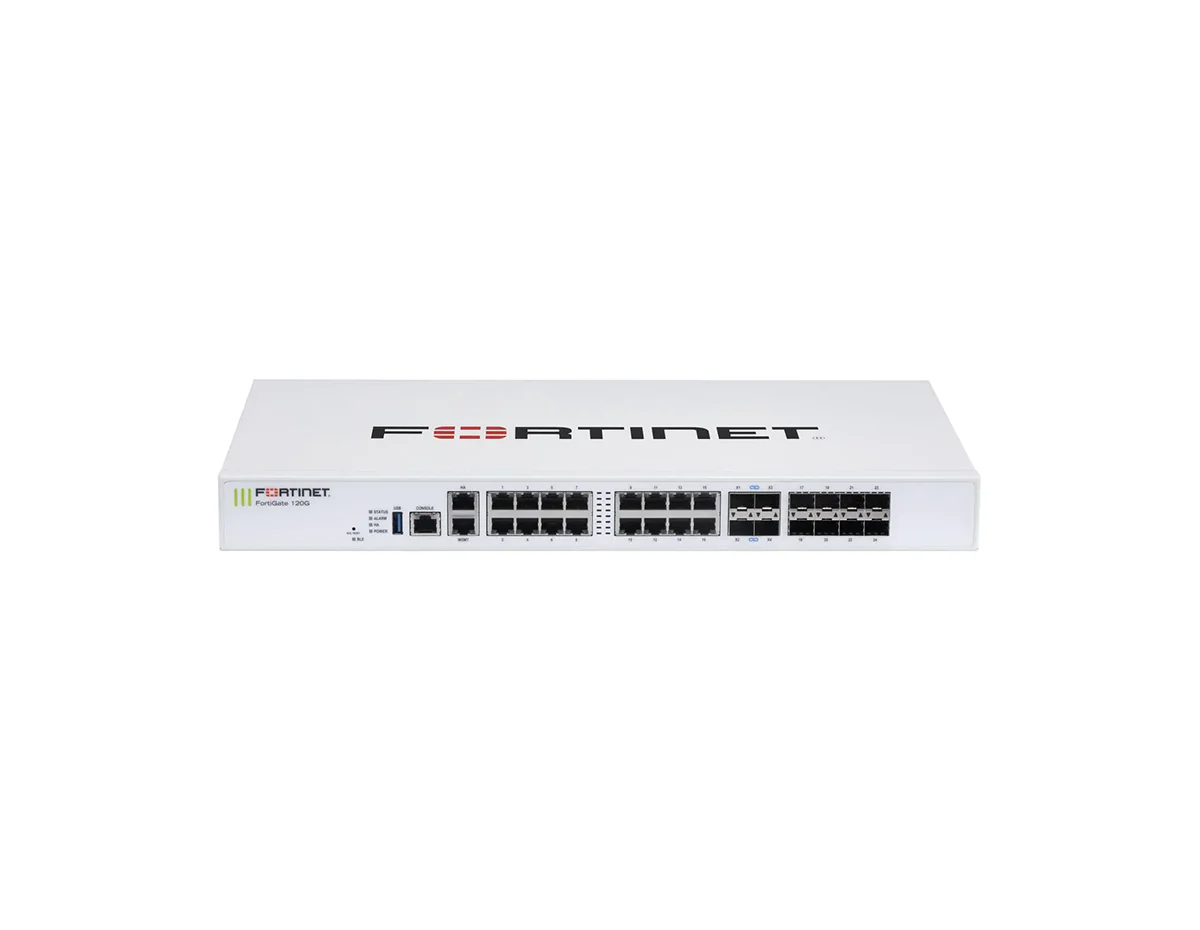

The Fortinet FortiGate 121G next-generation firewall combines AI-powered security with 480 GB of onboard SSD storage for integrated local storage. Powered by Fortinet’s secure SD-WAN ASIC SP5 and purpose-built security processing, this appliance enables high-speed networking and threat protection without compromising performance. It is designed to deliver deep visibility into users, devices, and applications while protecting networks from ransomware, malware, and zero-day threats.

Built for resilience and scalability, the FortiGate 121G features dual non-swappable AC power supplies and a diverse set of connectivity options, including 4x 10 GE SFP+ FortiLink slots and multiple GE RJ45 and SFP ports. This configuration supports secure SD-WAN and network segmentation, making it an ideal solution for distributed enterprises and branch offices that require robust security, integrated storage, and high availability.

This FG-121G-BDL-950-12 bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 1 Year.

Integrated storage and SP5 ASIC performance for secure, data-rich networking.

• Onboard Storage: Includes a 480 GB SSD for integrated local storage.
• Unparalleled Performance: Powered by the secure SD-WAN ASIC SP5 to deliver 39 / 39 / 28 Gbps firewall throughput and 3.17 μs latency (64 byte UDP packets).
• Advanced Threat Protection: Delivers 5.3 Gbps IPS throughput and 2.8 Gbps Threat Protection throughput.
• Redundant Power: Features dual built-in non-swappable AC power supplies (1+1 redundancy) to support continuous operation.
• Flexible Connectivity: Equipped with 18x GE RJ45 ports, 8x GE SFP slots, and 4x 10GE SFP+ FortiLink slots for high-speed connectivity.
• Secure SD-WAN: Unified operating system and security fabric support secure SD-WAN with accelerated application identification and steering.

Ideal Use Cases

• Distributed Enterprises: Branch locations requiring integrated local storage and high-speed secure connectivity.
• Compliance-Heavy Sectors: Deployments where on-device storage is required.
• Secure SD-WAN: WAN edge transformation with integrated security and performance monitoring.
• Hybrid Network Security: Consistent policy enforcement across on-premise and cloud-connected segments.

Technical Specifications Summary

• Enterprise Mix Security: IPS 5.3 Gbps; NGFW 3.1 Gbps; Threat Protection 2.8 Gbps
• Firewall Performance: 39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP packets); 42 Mpps; 3.17 μs latency (64 byte UDP packets)
• VPN: IPsec VPN 35 Gbps (512 byte); SSL-VPN 1.5 Gbps; 2,000 gateway-to-gateway tunnels; 16,000 client-to-gateway tunnels; 500 recommended concurrent SSL-VPN users
• SSL Inspection: 3 Gbps SSL inspection throughput (IPS, avg. HTTPS)
• Interfaces: 16x GE RJ45 accelerated ports plus 1x GE RJ45 MGMT and 1x GE RJ45 HA; 8x GE SFP accelerated slots; 4x hardware accelerated 10 GE SFP+ FortiLink slots (default); 1x RJ45 console; 1x USB
• Capacity: 3 million concurrent TCP sessions; 140,000 new sessions/second; 10,000 firewall policies
• Storage: 1x 480 GB SSD onboard
• Power: Dual non-swappable AC PSU (1+1 redundancy); 100–240V AC 50–60 Hz; 43 W avg / 47 W max; 159 BTU/h
• Physical & Environment: Rack mount 1RU; 1.73 x 17 x 10 in (44 x 432 x 254 mm); 12.17 lbs (5.52 kg); 0°C to 40°C operating; 10% to 90% non-condensing; 49 dBA
• Compliance & Certifications: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiGate 121G (FG-121G-BDL-950-12) today for integrated storage and enterprise-grade protection with 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
