[shortdesc]Firewall, 1RU, SP5 ASIC, 480GB SSD, up to 39 Gbps firewall, 18x GE RJ45 + 8x GE SFP + 4x 10GE SFP+, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Series	FortiGate 120G Series
SKU	FG-121G-BDL-809-60
Bundle / Subscription	FortiCare Premium + FortiGuard Enterprise Protection (5 Year)
Form Factor	Rack Mount, 1RU
Internal Storage	1 x 480 GB SSD
Firewall Throughput	39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP packets)
IPS Throughput	5.3 Gbps
Network Interfaces	18x GE RJ45 (including 1x MGMT, 1x HA, 16x switch), 8x GE SFP, 4x 10GE SFP+
Power Supply	Dual non-swappable AC power supplies (1+1 redundancy)
Dimensions (H x W x L)	1.73 x 17 x 10 inches (44 x 432 x 254 mm)
Weight	12.17 lbs (5.52 kg)

[/properties]

[specifications]

System Performance — Enterprise Traffic Mix
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
Firewall Latency (64 byte UDP packets)	3.17 μs
Firewall Throughput (Packets Per Second)	42 Mpps
Application Control Throughput (HTTP 64K)	6.7 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	3 Gbps
System Capacity
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	140,000
Firewall Policies	10,000
VPN Performance
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
Interfaces & Connectivity
GE RJ45 Ports	16x Hardware Accelerated Ports
GE RJ45 Management / HA Ports	1 / 1
GE SFP Slots	8x Hardware Accelerated Slots
10 GE SFP+ Slots	4x FortiLink Slots (Hardware Accelerated)
USB Ports	1
Console Port	1x RJ45
Power & Environment
Power Input	100–240V AC, 50–60 Hz
Power Consumption (Average / Max)	43 W / 47 W
Heat Dissipation	159 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	49 dBA
Compliance & Certifications	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

1 GE SFP Transceivers: FN-TRAN-SX, FN-TRAN-LX, FN-TRAN-GC; 10 GE SFP+ Transceivers: FN-TRAN-SFP+GC, FN-TRAN-SFP+LR, FN-TRAN-SFP+ER, FN-TRAN-SFP+SR, FN-TRAN-SFP+BD27, FN-TRAN-SFP+BD33; 10 GE SFP+ Passive Direct Attach Cables: FN-CABLE-SFP+1 (1m), FN-CABLE-SFP+3 (3m), FN-CABLE-SFP+5 (5m)

[/accesories]

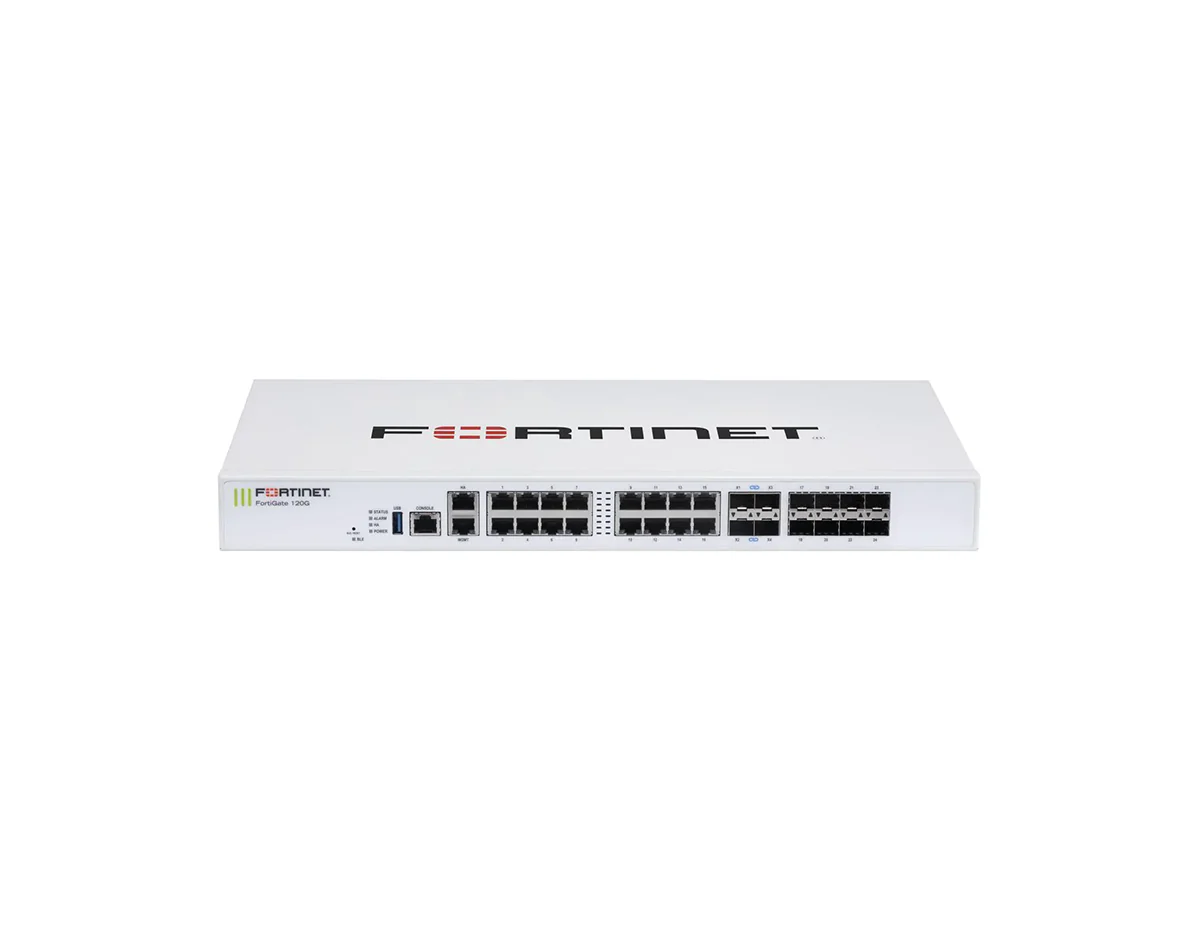

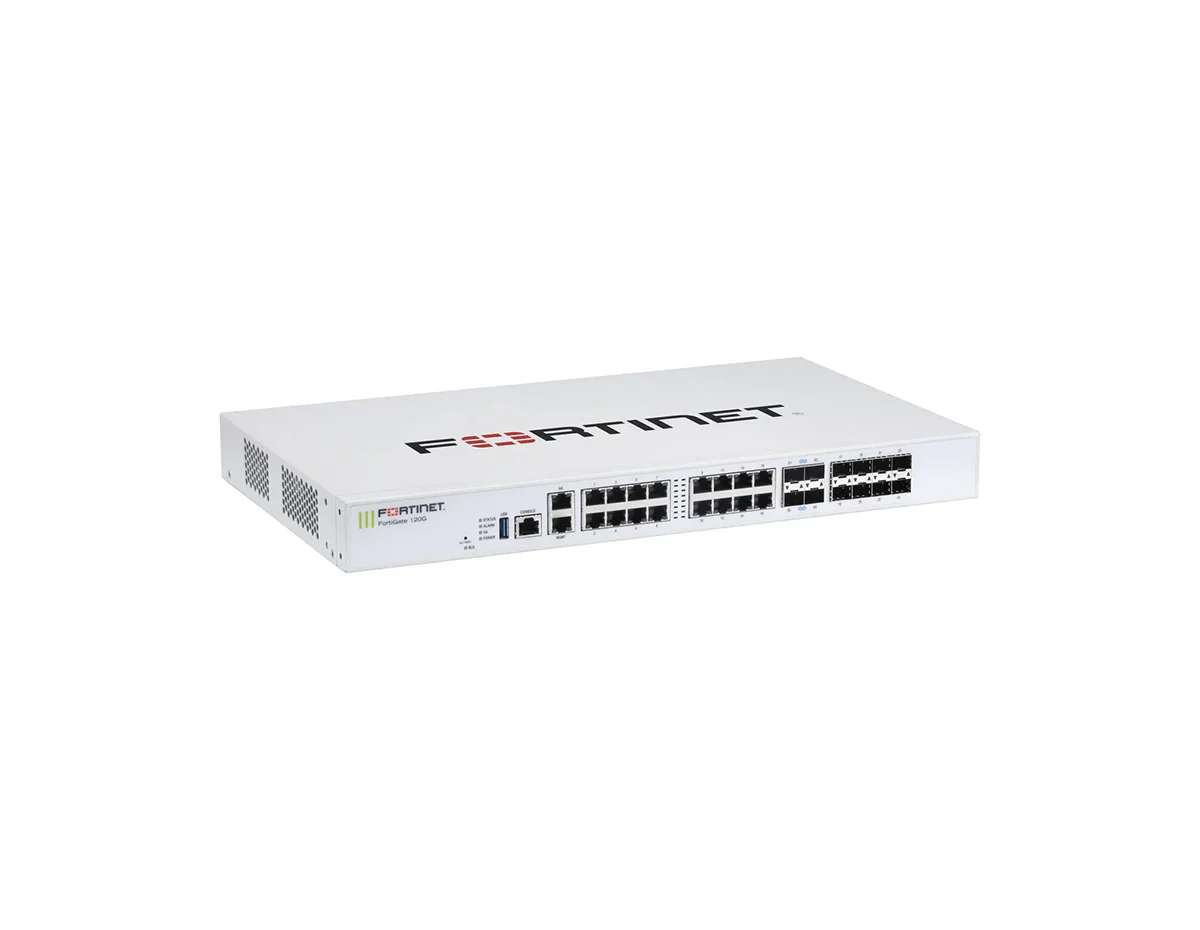

The Fortinet FortiGate 121G next-generation firewall combines advanced AI-powered security with 480 GB of onboard SSD storage. Powered by Fortinet’s secure SD-WAN ASIC SP5 and purpose-built security processing, this appliance enables high-speed networking and threat protection without compromising performance. It is designed to deliver deep visibility into users, devices, and applications while protecting networks from ransomware, malware, zero days, and sophisticated AI-powered cyberattacks.

Built for resilience and scalability, the FortiGate 121G features dual non-swappable AC power supplies and a diverse set of connectivity options, including 4x 10 GE SFP+ FortiLink slots and multiple GE RJ45 and SFP ports. This configuration supports secure SD-WAN deployments and network segmentation, making it an ideal solution for distributed enterprises and branch environments that require robust security and high availability.

This FG-121G-BDL-809-60 bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 5 Year.

Integrated storage and SP5 ASIC performance for secure, data-rich networking.

• Onboard Storage: Includes a 480 GB SSD for onboard storage.
• Unparalleled Performance: Powered by the secure SD-WAN ASIC SP5 to deliver up to 39 Gbps firewall throughput and ultra-low 3.17 μs latency (64-byte UDP).
• Advanced Threat Protection: Provides 5.3 Gbps IPS and 2.8 Gbps Threat Protection throughput to help defend against complex network attacks.

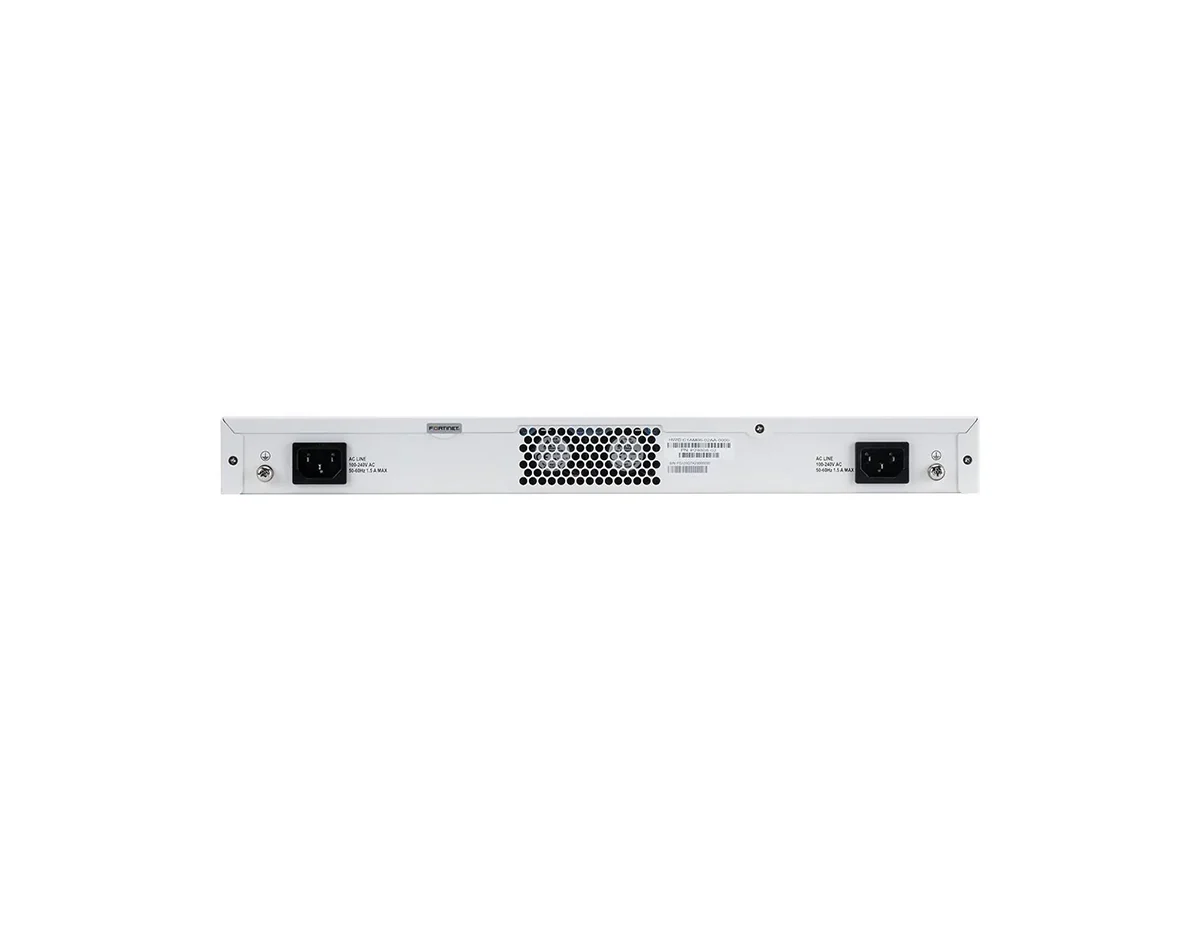

• Redundant Power: Features dual built-in AC power supplies (1+1 redundancy) to help support continuous operation in mission-critical environments.
• Flexible Connectivity: Equipped with 18x GE RJ45 ports, 8x GE SFP slots, and 4x 10GE SFP+ slots for high-speed uplink and switching.
• Secure SD-WAN: Unified operating system and security fabric support scalable SD-WAN with accelerated application steering.

Ideal Use Cases

• Distributed Enterprises: Branch locations requiring high-speed secure connectivity.
• Secure SD-WAN: WAN edge transformation with integrated security and performance monitoring.
• Universal ZTNA: Policy enforcement for application access across distributed users and applications.
• Hybrid Network Security: Consistent policy enforcement across network segments.

Technical Specifications Summary

• Security Performance (Enterprise Mix): IPS 5.3 Gbps; NGFW 3.1 Gbps; Threat Protection 2.8 Gbps
• Firewall Performance: 39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP); 42 Mpps; 3.17 μs latency (64 byte UDP)
• VPN: IPsec VPN 35 Gbps (512 byte); SSL-VPN 1.5 Gbps; 2,000 gateway-to-gateway tunnels; 16,000 client-to-gateway tunnels
• SSL-VPN Scale: 500 concurrent SSL-VPN users (recommended maximum, tunnel mode)
• Ports: 16x GE RJ45 + 1x GE RJ45 MGMT + 1x GE RJ45 HA; 8x GE SFP; 4x 10 GE SFP+ FortiLink; 1x RJ45 console; 1x USB
• SSL Inspection: 3 Gbps (IPS, avg. HTTPS); 2,100 CPS; 315,000 concurrent sessions (IPS, avg. HTTPS)
• Application & Wireless: Application Control 6.7 Gbps (HTTP 64K); CAPWAP 35 Gbps (HTTP 64K)
• Capacity: 3 million concurrent TCP sessions; 140,000 new sessions/second; 10,000 firewall policies
• Power & Environment: 100–240V AC, 50–60 Hz; 43 W avg / 47 W max; 159 BTU/h; 0°C to 40°C operating; 10% to 90% non-condensing; 49 dBA
• Physical & Compliance: 1RU; 1.73 x 17 x 10 in (44 x 432 x 254 mm); 12.17 lbs (5.52 kg); FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiGate 121G (FG-121G-BDL-809-60) today for integrated storage and enterprise-grade threat protection with 5 Year FortiCare Premium and FortiGuard Enterprise Protection.
