[shortdesc] Firewall, 1RU rackmount, 18x GE RJ45, 8x GE SFP, 4x 10GE SFP+, 39 Gbps throughput, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Product Series	FortiGate 120G Series
SKU	FG-120G-BDL-809-60
Bundle / Subscription	Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (5-Year Contract)
Form Factor	Rack Mount, 1 RU
Firewall Throughput	39 Gbps
IPS Throughput	5.3 Gbps
Network Interfaces	18x GE RJ45, 8x GE SFP, 4x 10GE SFP+
Power Supply	Dual Non-Swappable AC (1+1 Redundancy)
Dimensions (H x W x L)	1.73 x 17 x 10 inches (44 x 432 x 254 mm)
Weight	12.17 lbs (5.52 kg)

[/properties]

[specifications]

System Performance
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
Firewall Throughput (UDP)	39 / 39 / 28 Gbps (1518 / 512 / 64 byte packets)
Firewall Latency	3.17 µs
Firewall Throughput (Packets Per Second)	42 Mpps
Application Control Throughput	6.7 Gbps
System Capacity
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	140,000
Firewall Policies	10,000
VPN Performance
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Max)	500
Interfaces & Connectivity
GE RJ45 Ports	16x Hardware Accelerated Ports
GE RJ45 Management / HA Ports	1 / 1
GE SFP Slots	8x Hardware Accelerated Slots
10 GE SFP+ Slots	4x FortiLink Slots (Hardware Accelerated)
USB Ports	1
Console Port	1x RJ45
Power & Environment
Power Input	100–240VAC, 60–50Hz
Power Consumption (Average / Max)	38 W / 40 W
Heat Dissipation	138 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	20% to 90% non-condensing
Noise Level	49 dBA
Compliance & Certifications	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI; USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

1 GE SFP SX/LX/RJ45 Transceivers, 10 GE SFP+ RJ45/LR/ER/SR Transceivers, 10 GE SFP+ Passive Direct Attach Cables (1m, 3m, 5m)

[/accesories]

The FortiGate 120G-BDL-809-60 next-generation firewall combines AI-powered security and machine learning to deliver threat protection at scale, bundled with FortiCare Premium and FortiGuard Enterprise Protection for 5 years. Powered by the SP5 ASIC and Fortinet’s purpose-built security processing, this appliance delivers high performance while maintaining deep visibility into applications, users, and devices. It supports advanced edge protection, secure networking capabilities, and encrypted traffic inspection without becoming a performance bottleneck.

Designed for converged networking and security, the FortiGate 120G integrates secure SD-WAN and NGFW capabilities into a single consolidated platform. With high-density port configurations—including 10GE SFP+ and GE SFP slots—it supports flexible connectivity for hybrid IT networks. The device also features dual built-in non-hot swappable AC power supplies for 1+1 redundancy, making it a strong fit for enterprise edge deployments that require reliability and speed.

Secure networking with AI-powered protection and unparalleled SPU performance.

• High-Performance Threat Protection: Delivers 2.8 Gbps of Threat Protection throughput to help block malicious content and sophisticated attacks.
• Accelerated Networking: Features the SP5 ASIC which accelerates firewall processing, delivering up to 39 Gbps throughput and 3.17 µs latency.

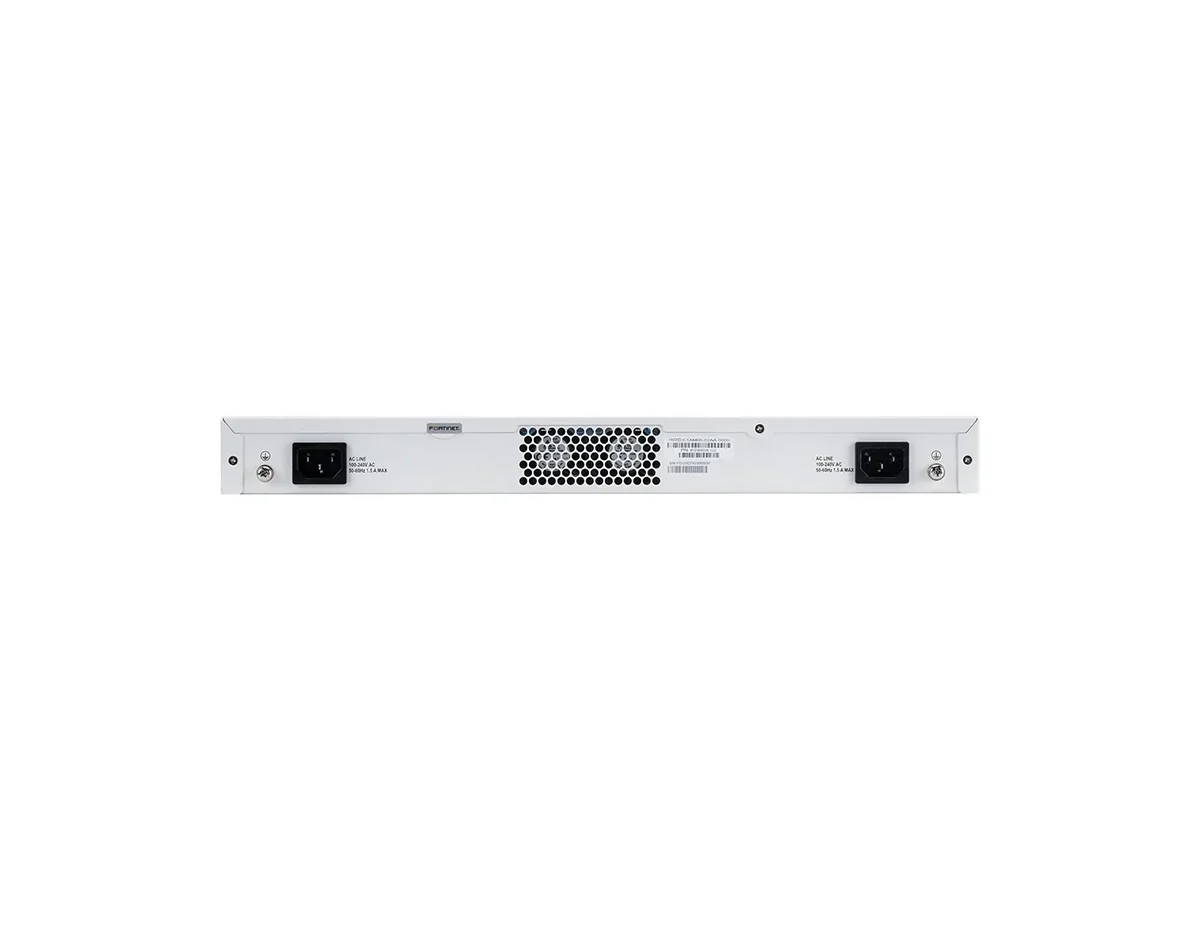

• Integrated Dual Power: Equipped with dual non-swappable AC power supplies for 1+1 redundancy.

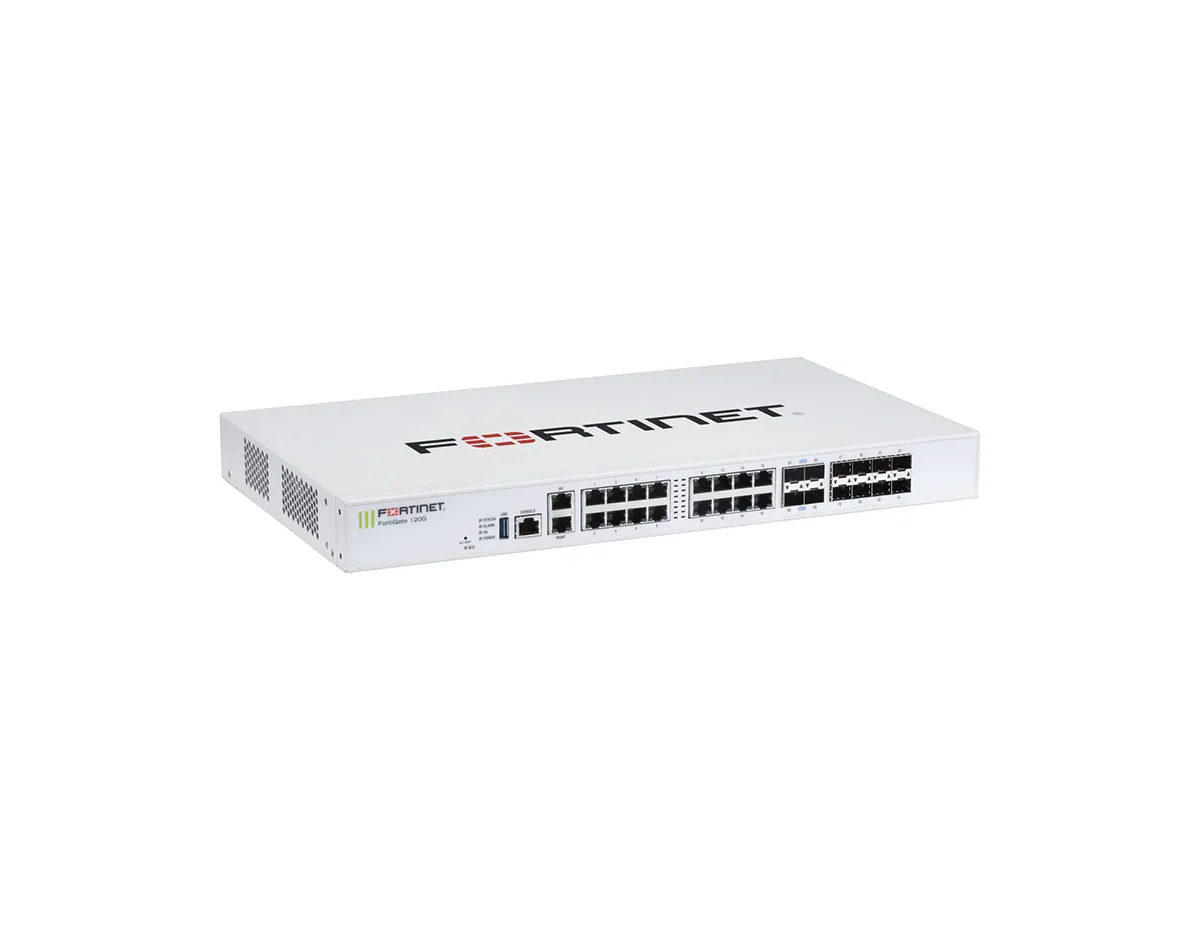

• Comprehensive Connectivity: Provides 18x GE RJ45 ports, 8x GE SFP slots, and 4x 10GE SFP+ slots for versatile network integration.
• Secure SD-WAN: One OS and unified security and management framework transforms and secures WANs for hybrid working models and cloud-first WAN use cases.
• Encrypted Traffic Inspection: Provides 3 Gbps SSL inspection throughput (IPS, avg. HTTPS) for visibility into encrypted traffic.

Ideal Use Cases

• Next Generation Firewall (NGFW): AI-powered security services to secure web, content, and devices and protect networks from modern threats.
• Secure SD-WAN: Converged networking and security to transform and secure WANs with improved quality of experience and operational efficiencies.
• Universal ZTNA: Controls, verifies, and facilitates user access to applications, reducing lateral threats by granting access only to validated users.
• Hybrid Mesh Firewall: Extends consistent policy enforcement and threat protection across network segments in hybrid IT networks.

Technical Specifications Summary

• IPS Throughput: 5.3 Gbps
• NGFW Throughput: 3.1 Gbps
• Threat Protection Throughput: 2.8 Gbps
• Firewall Throughput: 39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP packets)
• Firewall Latency: 3.17 µs (64 byte UDP packets)
• SSL Inspection Throughput: 3 Gbps (IPS, avg. HTTPS)
• IPsec VPN Throughput: 35 Gbps (512 byte)
• SSL-VPN Throughput / Users: 1.5 Gbps; 500 concurrent users (recommended max)
• Concurrent Sessions / New Sessions: 3 Million (TCP); 140,000 per second (TCP)
• Interfaces: 18x GE RJ45, 8x GE SFP, 4x 10GE SFP+
• Power Input / Consumption: 100–240VAC, 60–50Hz; 38 W / 40 W (average / max)
• Physical / Environment: Rack Mount, 1RU; 1.73 x 17 x 10 in (44 x 432 x 254 mm); 12.17 lbs (5.52 kg); 0°C to 40°C; 20% to 90% non-condensing
