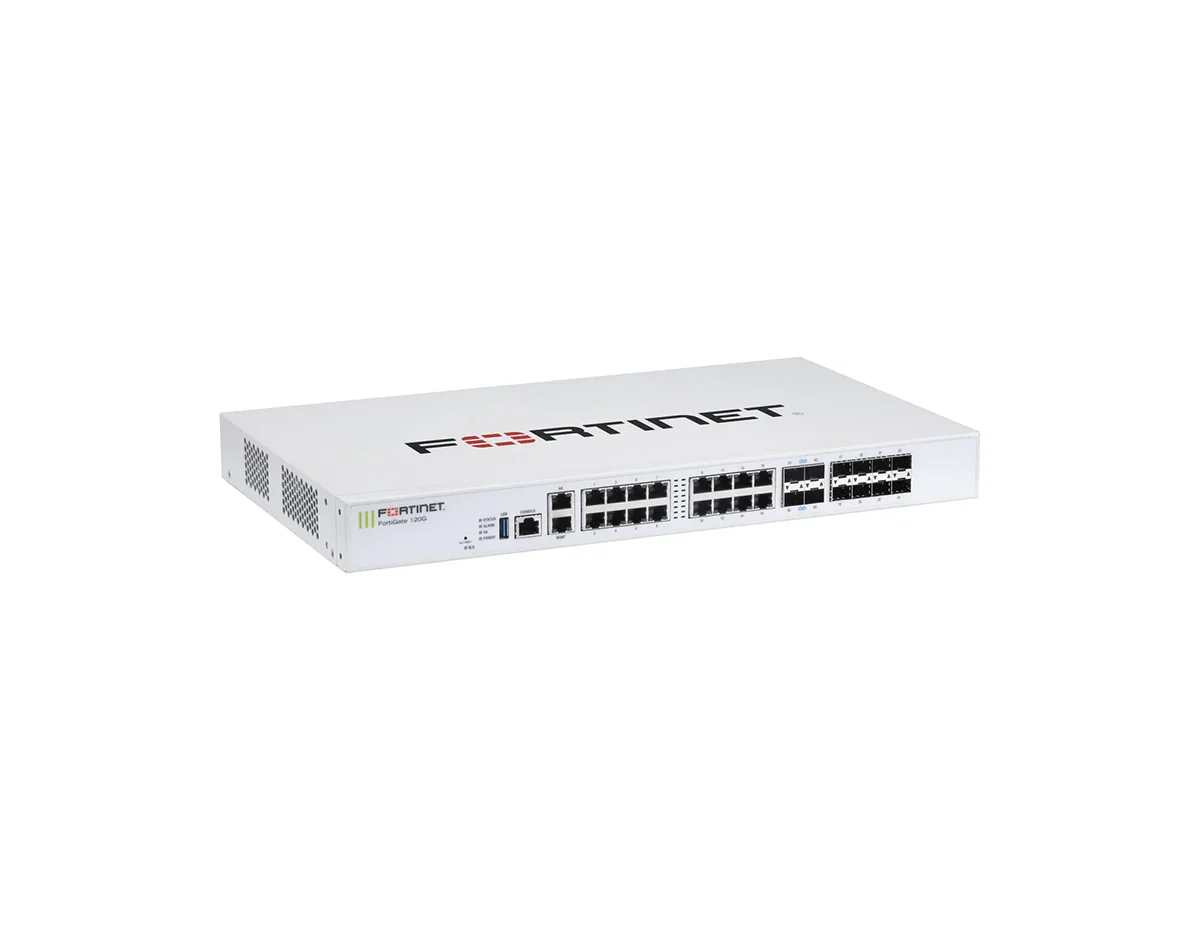

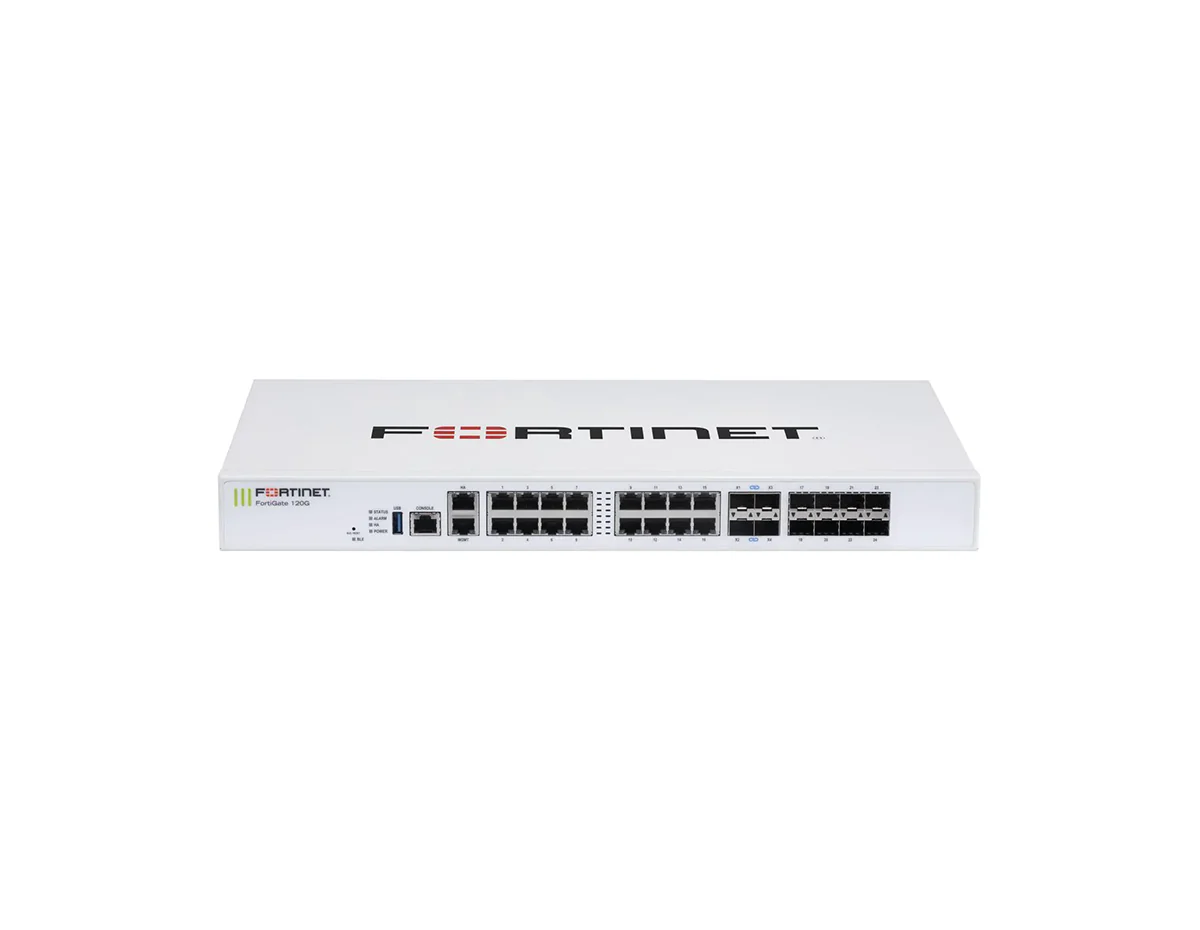

[shortdesc] Firewall, 1RU rackmount, 16x GE RJ45, 8x GE SFP, 4x 10GE SFP+, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Product Series	120G Series
SKU	FG-120G-BDL-809-12
Bundle / Subscription	Firewall plus FortiCare Premium and FortiGuard Enterprise Protection (1-Year Contract)
Form Factor	Rack Mount, 1RU
Firewall Throughput	39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP packets)
IPS Throughput	5.3 Gbps
Network Interfaces	16x GE RJ45 (switch), 1x GE RJ45 MGMT, 1x GE RJ45 HA, 8x GE SFP, 4x 10GE SFP+ FortiLink
Power Supply	Dual Non-Swappable AC (1+1 Redundancy)
Dimensions (H x W x L)	1.73 x 17 x 10 inches (44 x 432 x 254 mm)
Weight	12.17 lbs (5.52 kg)

[/properties]

[specifications]

System Performance
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
Firewall Latency	3.17 µs
Firewall Throughput (Packets Per Second)	42 Mpps
Application Control Throughput	6.7 Gbps
System Capacity
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	140,000
Firewall Policies	10,000
VPN Performance
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Max)	500
Interfaces & Connectivity
GE RJ45 Ports	16x Hardware Accelerated Ports
GE RJ45 Management / HA Ports	1 / 1
GE SFP Slots	8x Hardware Accelerated Slots
10 GE SFP+ Slots	4x FortiLink Slots (Hardware Accelerated)
USB Ports	1
Console Port	1x RJ45
Power & Environment
Power Input	100-240VAC, 60-50Hz
Power Consumption (Average / Max)	38 W / 40 W
Heat Dissipation	138 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	20% to 90% non-condensing
Noise Level	49 dBA
Compliance & Certifications	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI, USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

1 GE SFP SX/LX/RJ45 Transceivers, 10 GE SFP+ RJ45/LR/ER/SR Transceivers, 10 GE SFP+ Passive Direct Attach Cables (1m, 3m, 5m)

[/accesories]

The FortiGate 120G-BDL-809-12 next-generation firewall combines AI-powered security and machine learning to deliver robust threat protection at scale, bundled with FortiCare Premium and FortiGuard Enterprise Protection for 1 year. Powered by the SP5 ASIC and Fortinet’s purpose-built SPU architecture, this appliance provides superior performance over traditional CPU-based firewalls, ensuring your network remains secure without becoming a bottleneck. It offers deep visibility into applications, users, and devices, enabling automated protection against sophisticated cyberattacks, including ransomware and zero-day threats.

Designed for converged networking and security, the FortiGate 120G seamlessly integrates secure SD-WAN and NGFW capabilities into a single consolidated platform. With high-density port configurations—including 10GE SFP+ and GE SFP slots—it supports flexible connectivity for hybrid IT networks. The device also features dual built-in non-hot swappable power supplies for mission-critical redundancy, making it an ideal solution for enterprise edge deployments that demand both reliability and speed.

Secure networking with AI-powered protection and unparalleled SPU performance.

• High-Performance Threat Protection: Delivers 2.8 Gbps of Threat Protection throughput to help block malicious content and sophisticated attacks.
• Accelerated Networking: Features the SP5 ASIC which accelerates firewall functions, delivering up to 39 / 39 / 28 Gbps throughput and reducing latency to 3.17 µs.
• Integrated Dual Power: Equipped with dual non-swappable AC power supplies to ensure continuous operation and redundancy for critical network environments.
• Comprehensive Connectivity: Provides 16x GE RJ45 switch ports plus dedicated MGMT and HA ports, 8x GE SFP slots, and 4x 10GE SFP+ FortiLink slots for versatile network integration.
• Secure SD-WAN: Unified OS and security framework transforms WANs, providing superior quality of experience and operational efficiencies.
• Encrypted Traffic Inspection: Delivers up to 3 Gbps SSL inspection throughput (IPS, average HTTPS) for visibility into encrypted traffic.

Ideal Use Cases

• Enterprise Edge Security: Robust perimeter defense with deep visibility for distributed enterprise networks.
• Secure SD-WAN Deployments: Optimizing WAN connectivity and security for branch offices and hybrid working models.
• Internal Network Segmentation: Preventing lateral movement of threats by enforcing consistent policy across network segments.
• Hybrid Mesh Firewall: Extending security consistency across on-premise and hybrid cloud environments.

Technical Specifications Summary

• IPS Throughput: 5.3 Gbps
• NGFW Throughput: 3.1 Gbps
• Threat Protection Throughput: 2.8 Gbps
• Firewall Throughput: 39 / 39 / 28 Gbps (1518 / 512 / 64 byte UDP packets)
• Firewall Latency: 3.17 µs (64 byte UDP packets)
• Firewall Throughput (Packets Per Second): 42 Mpps
• IPsec VPN Throughput: 35 Gbps (512 byte)
• SSL-VPN Capacity: 1.5 Gbps; 500 concurrent users (recommended maximum, tunnel mode)
• SSL Inspection: 3 Gbps (IPS, avg. HTTPS); 2100 CPS; 315,000 concurrent sessions
• Session Capacity: 3M concurrent sessions (TCP); 140,000 new sessions/second (TCP)
• Interfaces: 16x GE RJ45, 1x MGMT, 1x HA, 8x GE SFP, 4x 10GE SFP+ FortiLink; USB: 1; Console: 1x RJ45
• Power / Physical: 100-240VAC, 60-50Hz; 38 W / 40 W; 1RU; 1.73 x 17 x 10 in (44 x 432 x 254 mm); 12.17 lbs (5.52 kg)

Upgrade Your Network Security

Deploy the FortiGate 120G-BDL-809-12 today for enterprise-grade protection and high-speed performance.
