[shortdesc] NGFW security appliance, 20 Gbps firewall throughput, 10G SFP+ interfaces, dual AC power supplies, 480 GB SSD [/shortdesc]

[properties]

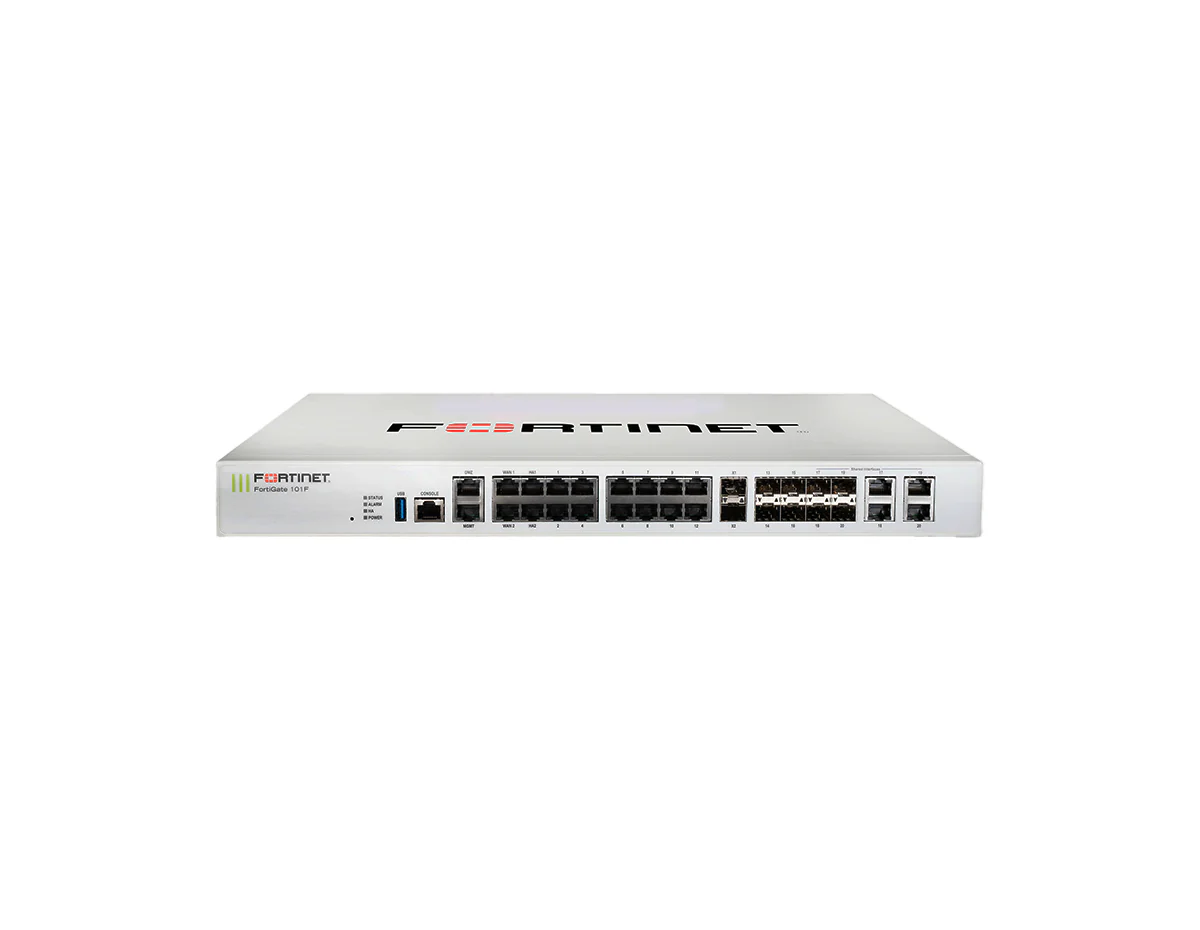

Model	Fortinet FortiGate 101F
SKU	FG-101F
Product Type	Next-Generation Firewall (NGFW)
Form Factor	Rack Mountable, 1RU
Processor	FortiASIC SOC4
Onboard Storage	480 GB SSD
Ethernet Ports	22 x GE RJ45 ports (including 2 x WAN, 1 x DMZ, 1 x Mgmt, 2 x HA, and 16 x switch ports)
SFP Ports	4 x GE SFP slots
10G Uplinks	2 x 10 GE SFP+ FortiLink slots
USB Ports	1 x USB 3.0 port
Console Port	1 x RJ-45 Console port
Power Supply	Dual built-in AC power supplies
Redundant Power	Yes (1+1 redundancy)
Operating System	FortiOS

[/properties]

[specifications]

IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
Firewall Throughput	20 Gbps (1518 byte UDP)
Firewall Latency	4.97 microseconds
Concurrent Sessions	1.5 million
New Sessions per Second	56,000
IPsec VPN Throughput	11.5 Gbps
SSL VPN Throughput	1 Gbps
Concurrent SSL VPN Users	500 (recommended maximum)
Virtual Domains (VDOMs)	10 / 10
Maximum FortiAPs	128 total / 64 tunnel
Maximum FortiSwitches	32
Dimensions (H x W x D)	1.7 x 17 x 10 inches
Weight	7.56 lbs (3.43 kg)
Operating Temperature	32 to 104 degrees Fahrenheit
Humidity	10% to 90% non-condensing
Certifications	FCC Part 15 B Class A, CB, cUL, UL, RCM, BSMI

[/specifications]

[accesories]

Included	Hardware Unit, Rack Mount Kit, Console Cable
Optional Transceivers	1GE SFP and 10GE SFP+ transceiver modules
Optional Cables	10GE SFP+ Direct Attach Cables (1 m, 3 m, 5 m)

[/accesories]

High-Performance NGFW for Branch and Campus Networks

The Fortinet FortiGate 101F is a next generation firewall designed for mid sized enterprises, distributed branches, and campus deployments that require advanced security without performance compromise. Powered by Fortinet SPU technology and FortiOS, the FortiGate 101F delivers deep inspection, secure SD WAN, and encrypted traffic protection at scale while maintaining ultra low latency.

Key Benefits & Features

• Advanced Threat Protection: AI and machine learning powered FortiGuard services protect against malware, ransomware, zero day exploits, and encrypted threats across all traffic.
• Exceptional Performance: Delivers up to 20 Gbps firewall throughput and 1 Gbps threat protection throughput using hardware accelerated inspection.
• Secure SD WAN Integration: Built in SD WAN enables intelligent application steering, WAN path control, and improved user experience for hybrid networks.
• High Density Connectivity: Multiple GE RJ45 ports, SFP slots, and dual 10G SFP+ FortiLink interfaces support flexible network architectures.
• Enterprise Resilience: Dual internal AC power supplies and high availability support ensure continuous operation in mission critical environments.

Ideal Use Cases

• Enterprise branch and campus firewall deployments
• Secure SD WAN edge for distributed organizations
• High performance IPS and SSL inspection environments
• Network segmentation and zero trust access enforcement
• Organizations consolidating security and networking

Technical Specifications

• Firewall Throughput: Up to 20 Gbps
• NGFW Throughput: Up to 1.6 Gbps
• Threat Protection Throughput: Up to 1 Gbps
• IPsec VPN Throughput: Up to 11.5 Gbps
• Interfaces: 22 x GE RJ45, 4 x GE SFP, 2 x 10G SFP+
• Onboard Storage: 480 GB SSD
• Form Factor: 1U rack mount
• Power Supplies: Dual AC redundant

Secure Your Network Without Compromise

Deploy the Fortinet FortiGate 101F to gain enterprise grade protection, scalable performance, and simplified security operations. Order today and strengthen your network edge with confidence.
