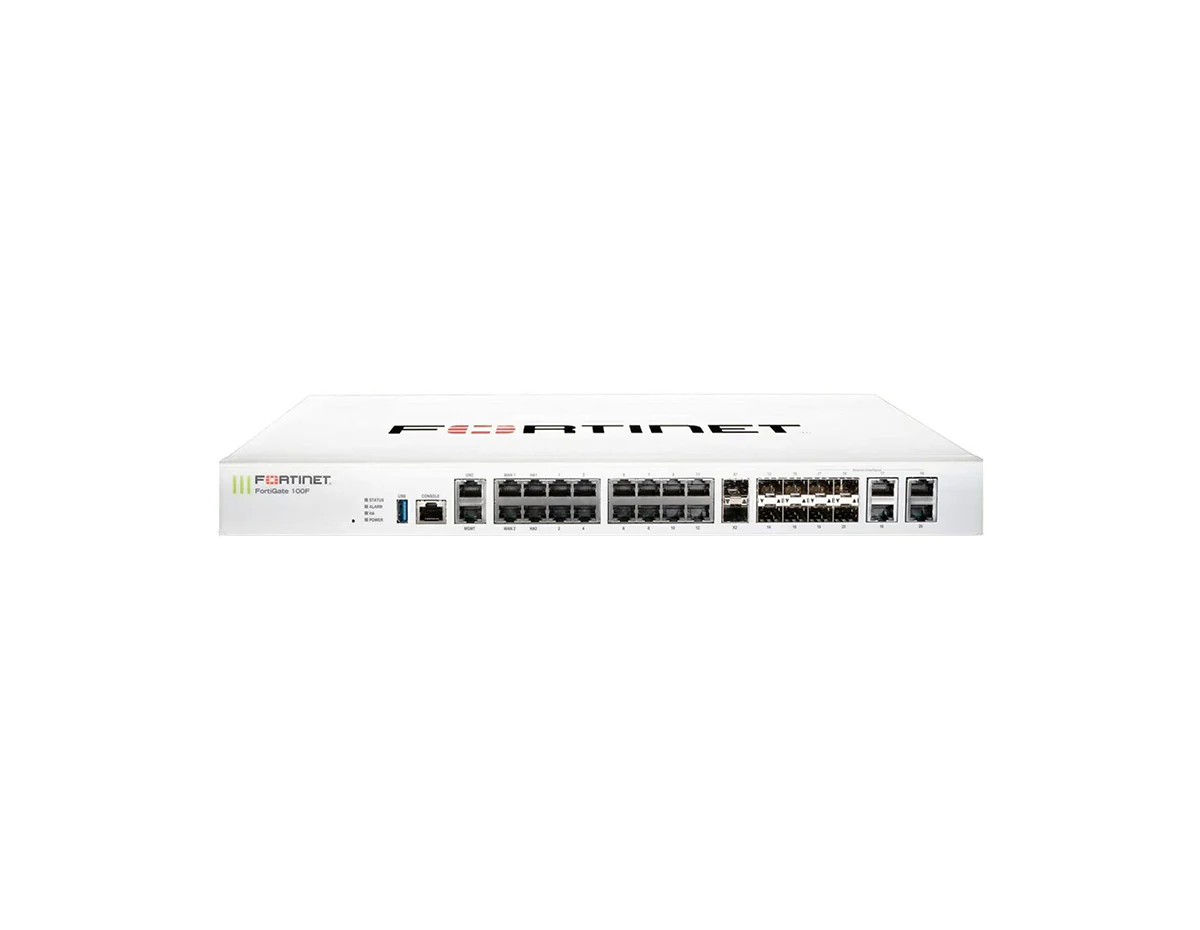

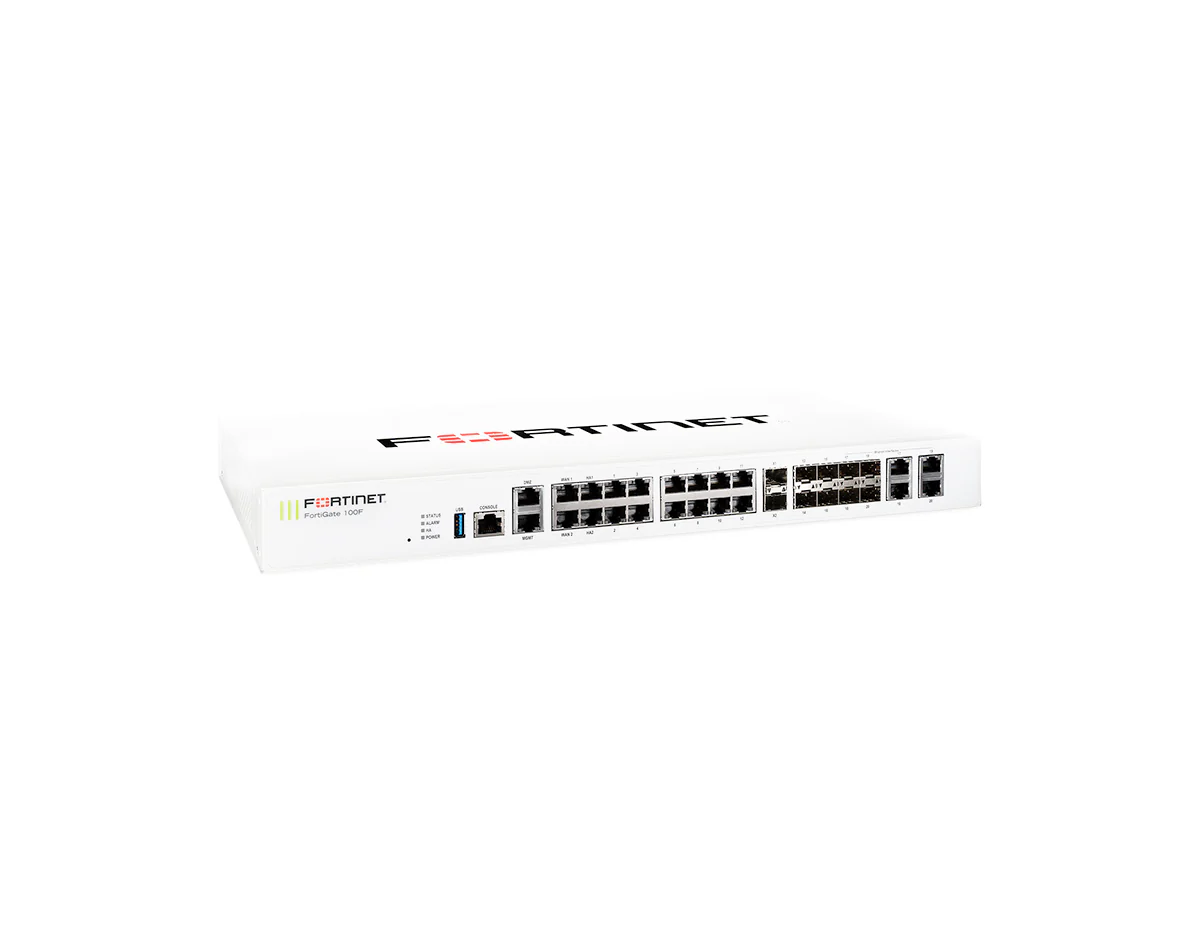

Fortinet FG-100F-BDL-950-36 Firewall
[shortdesc]
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
[properties]
| Properties | FG-100F-BDL-950-36 |
| Description |
22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy
|
| Product Family | Mid Range Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/DMZ/HA Ports | 1/2/1 |
| GE RJ45/SFP Shared Media Pairs | 4 |
| GE RJ45 WAN Port | 2 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 3 Years |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 4.97 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56.000 |
| Firewall Policies | 10.000 |
| IPsec VPN Throughput (512 byte packets) | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 16000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 500 |
| SSL Inspection Throughput | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135000 |
| Application Control Throughput | 2.2 Gbps |
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
| CAPWAP Throughput | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.73 x 17 x 10 |
| Form Factor | Rack Mount, 1 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
|
| Certifications | USGv6/IPv6 |
[/specifications][accesories]
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
| FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/ SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
[/accesories]
Fortinet FG-100F-BDL-950-36 Firewall
The FortiGate FG-100F is a NGFW that is suitable for mid-sized to large enterprises at the branch or campus level. It is equipped with Fortinets industry-leading SPU processor which offers comprehensive security that traditional firewalls cannot provide. The FG-100F provides network segmentation and SD-WAN security technologies makes it optimal for hybrid networks. It delivers fast, real-time traffic inspection and high-quality user experience.
The appliance comes with a 3-year subscription of 24x7 FortiCare support and FortiGuard UTM (Unified Threat Protection).
Key Features
- Firewall throughput: 15 Mpps
- Stackable
- Redundant power supplies
- Reduced power consumption
Please see the above tabs for the specification and compatible accessories.
