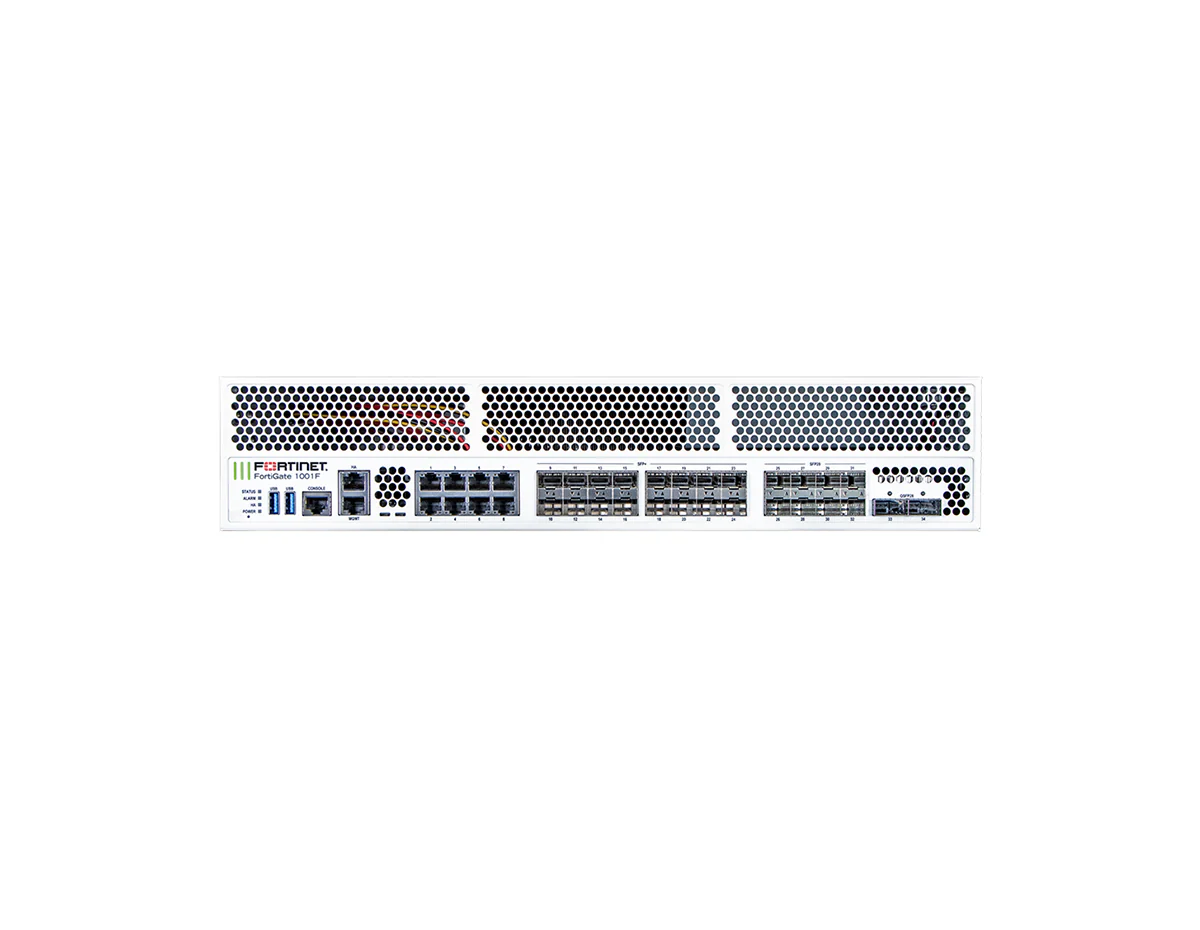

[shortdesc]FortiGate 1001F Firewall, 2RU, 2x100GE, 8x25GE, 19 Gbps IPS, 960GB SSD, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Series	FortiGate 1000F Series
Model / SKU	FG-1001F-BDL-950-36
Bundle / Subscription	Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year)
Form Factor	Rack Mount, 2RU
Threat Protection Throughput	13 Gbps
Network Interfaces	2x 100 GE QSFP28 / 40 GE QSFP+ slots, 8x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 16x 10 GE SFP+ / GE SFP slots, 8x 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 ports, 1x GE RJ45 management port, 1x 2.5 GE / GE HA port
Internal Storage	960 GB (2x 480 GB SSD)
Dimensions (H x W x L)	3.5 x 17.44 x 17.63 inches (88.9 x 443 x 447.4 mm)
Weight	22.71 lbs (10.3 kg)
Power Input	100–240 VAC, 50/60 Hz (Dual AC Supplies Included)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	19 Gbps
NGFW Throughput	15 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 134 Gbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 196 / 134 Gbps
Firewall Latency (64 byte, UDP)	3.45 µs
Firewall Throughput (Packet Per Second)	201 Mpps
Concurrent Sessions (TCP)	7.5 Million
New Sessions/Second (TCP)	650,000
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	5.3 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg HTTPS)	10 Gbps
Application Control Throughput (HTTP 64K)	44 Gbps
Virtual Domains (Default / Maximum)	10 / 250
Hardware & Interfaces
100 GE QSFP28 / 40 GE QSFP+ Slots	2
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	8
10 GE SFP+ / GE SFP Slots	16
10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 Slots	8
2.5 GE / GE HA Port	1
GE RJ45 Management Port	1
USB Ports (Client / Server)	2 / 2
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
AC Current (Maximum)	6A @ 120VAC, 3A @ 240VAC
Power Consumption (Average / Maximum)	215 W / 415 W
Heat Dissipation	1229 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	66.7 dBA
Forced Airflow	Front to Back
Dimensions & Weight / Certifications
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Accessories	Dual AC Power Supplies; 2x SFP SX Transceivers
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG400F-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR-BIDI, LR), 100 GE QSFP28 Transceivers (SR, LR, DR, ER, BIDI, CWDM4), Direct Attach Cables (SFP28, QSFP28, QSFP28 breakout to 4x SFP28)

[/accesories]

The FortiGate 1001F Series combines high-performance threat protection with ultra-fast 100GE and 25GE connectivity for data centers and hybrid IT environments. Powered by AI/ML-driven FortiGuard services and custom SPU NP7/CP9 processors, this Next-Generation Firewall delivers 19 Gbps of IPS throughput and includes 960GB of onboard SSD storage.

The FortiGate 1001F Series is a high-performance Next-Generation Firewall (NGFW) designed to secure data centers and hybrid IT architectures at scale. By consolidating security and networking into a single platform, the FG-1001F protects the network edge with industry-leading throughput and low latency. It features dedicated 100GE QSFP28 and 25GE SFP28 slots, eliminating the need for additional bridging devices and simplifying network design for high-speed cores.

This bundle includes Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year).

Powered by Fortinet’s patented SPU NP7 and CP9 processors, the FG-1001F delivers hardware-accelerated performance for critical functions including IPsec VPN, SSL inspection, and VXLAN termination. This model includes 960GB of onboard SSD storage (2x 480GB). With integrated ZTNA enforcement and AI/ML-powered FortiGuard services, the FortiGate 1001F helps maintain consistent protection against sophisticated cyber threats.

High-Performance Security for Data Centers with Integrated Storage

• 960GB Onboard Storage: Includes dual 480GB SSDs for onboard storage on the appliance.
• 100GE & 25GE Connectivity: Features multiple 100 GE QSFP28 and 25 GE SFP28 slots to handle high-speed traffic demands and simplify network segmentation.
• AI/ML-Powered FortiGuard Services: Designed to help combat known, unknown, and zero-day threats, including emerging AI-based threats.
• Hardware Acceleration: Utilizes custom SPU NP7 and CP9 ASICs to deliver up to 198 / 196 / 134 Gbps firewall throughput (UDP) and ultra-low latency of 3.45 µs (64-byte, UDP).
• Integrated ZTNA: Provides integrated Zero Trust Network Access enforcement within an NGFW solution to control and verify user access.
• Power & Efficiency: 215 W average and 415 W maximum power consumption, with 80Plus compliant power supplies.

• Enterprise Data Centers: Ideal for high-speed segmentation and core network protection requiring 100GE interfaces.
• Hybrid Mesh Firewalls: Weaves security deep into data centers and across hybrid IT environments to protect any edge at any scale.
• High-Speed Edge Security: Supports diverse connectivity options including 10GE, 25GE, and 100GE for flexible deployment in evolving networks.
• Encrypted Traffic Inspection: Offloads resource-intensive SSL/TLS 1.3 decryption to dedicated SPUs to maintain performance visibility.

• IPS Throughput: 19 Gbps
• NGFW Throughput: 15 Gbps
• Threat Protection Throughput: 13 Gbps
• Firewall Throughput: IPv4 198 / 196 / 134 Gbps (1518/512/64 byte, UDP); IPv6 198 / 196 / 134 Gbps (1518/512/86 byte, UDP)
• SSL Inspection Throughput: 10 Gbps (IPS, avg HTTPS)
• VPN Throughput: 55 Gbps (IPsec, 512 byte); supports up to 20,000 gateway-to-gateway and 100,000 client-to-gateway IPsec tunnels
• Network Interfaces: 2x 100 GE QSFP28 / 40 GE QSFP+ slots, 8x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 16x 10 GE SFP+ / GE SFP slots, 8x 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 ports, 1x GE RJ45 management port, 1x 2.5 GE / GE HA port
• Power / Physical: 215 W average / 415 W maximum; 3.5 x 17.44 x 17.63 in (88.9 x 443 x 447.4 mm); 22.71 lbs (10.3 kg)

Upgrade Your Network Security

Secure your data center with the Fortinet FG-1001F-BDL-950-36 bundle.
