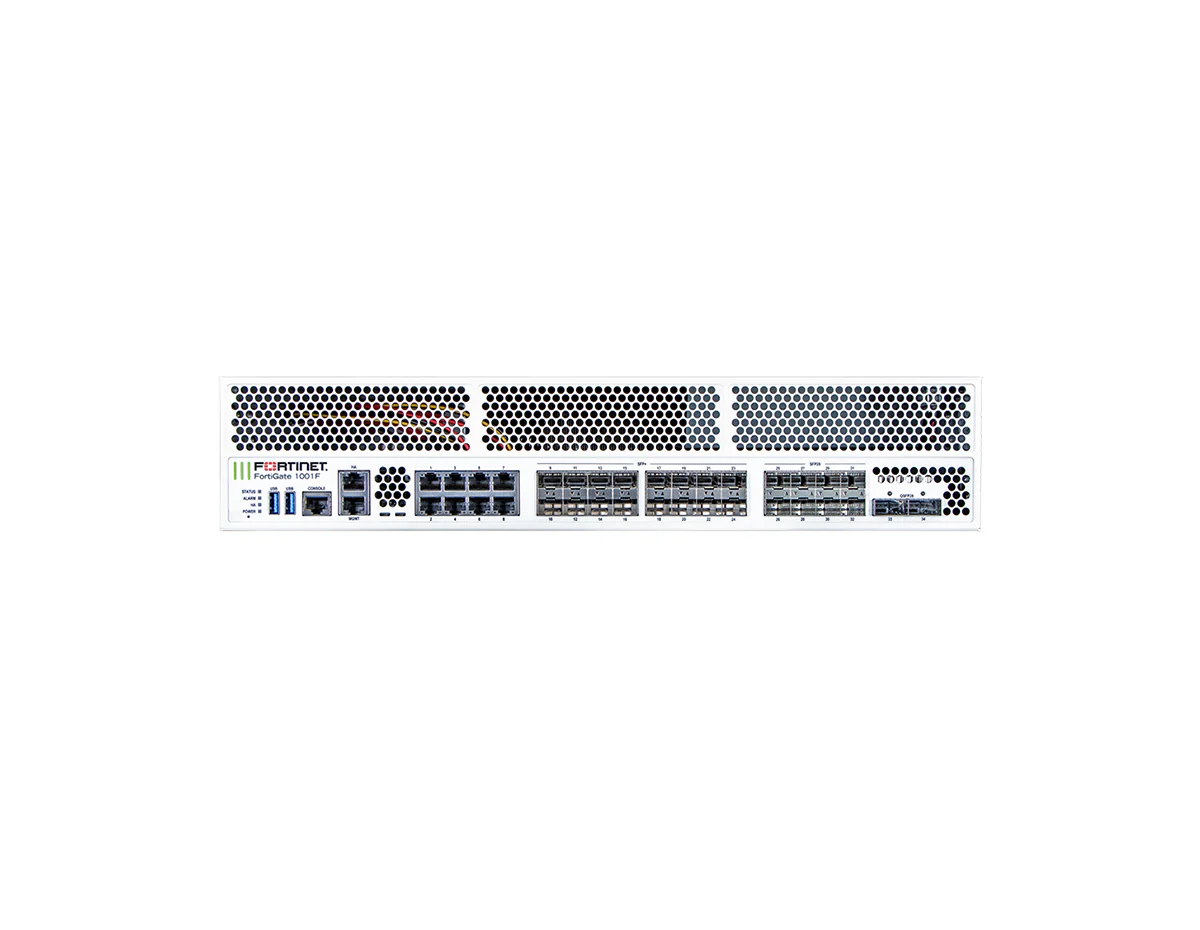

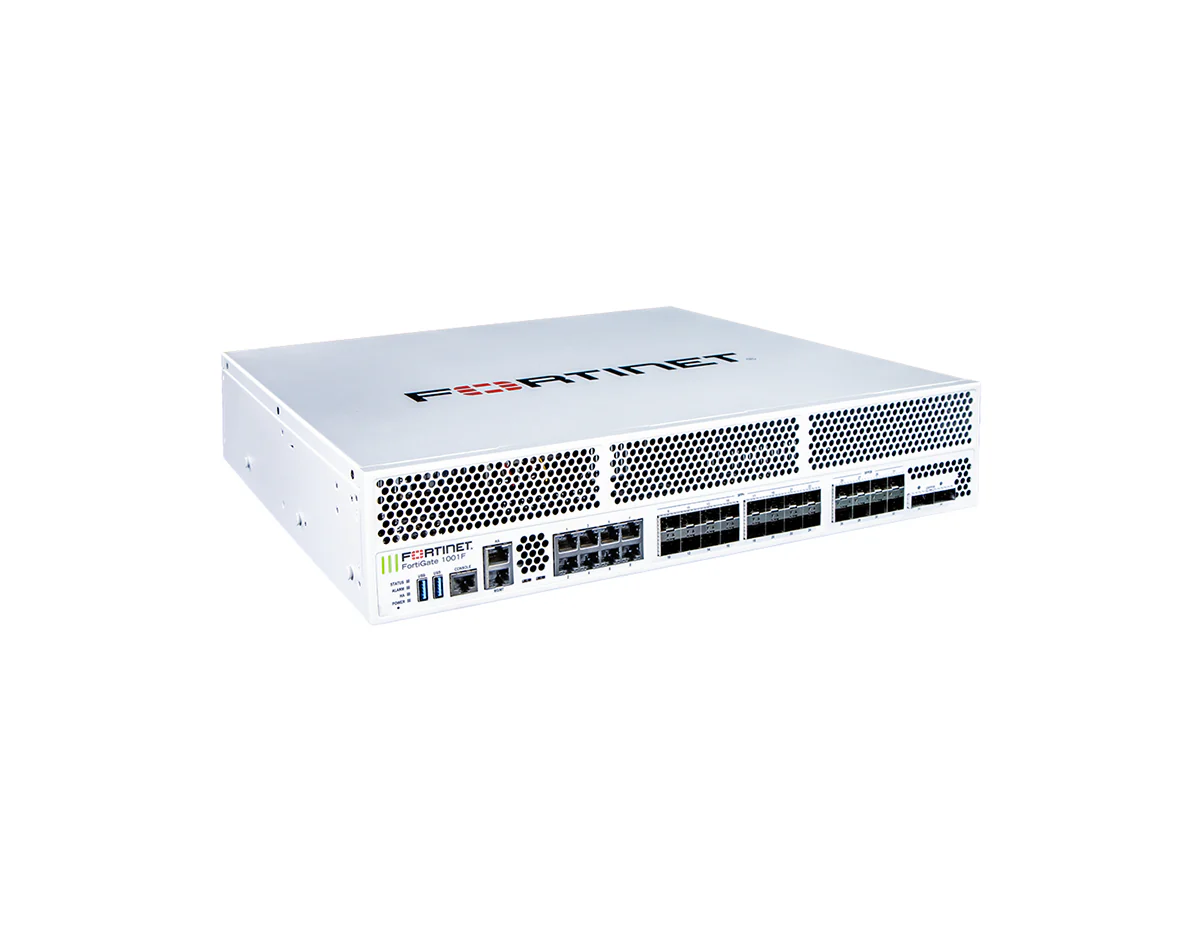

[shortdesc]FortiGate FG-1001F Firewall, 2RU rack mount, 2x 100GE QSFP28, 8x 25GE SFP28, 960GB SSD, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Series	FortiGate 1000F Series
Model / SKU	FG-1001F-BDL-950-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year)
Form Factor	Rack Mount, 2RU
Threat Protection Throughput	13 Gbps
Network Interfaces	2x 100 GE QSFP28 / 40 GE QSFP+ slots, 8x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 16x 10 GE SFP+ / GE SFP slots, 8x 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 ports, 1x GE RJ45 management port, 1x 2.5 GE / GE HA port
Internal Storage	960 GB (2x 480 GB SSD)
Dimensions (H x W x L)	3.5 x 17.44 x 17.63 inches (88.9 x 443 x 447.4 mm)
Weight	22.71 lbs (10.3 kg)
Power Input	100–240 VAC, 50/60 Hz (Dual AC Supplies Included)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	19 Gbps
NGFW Throughput	15 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 134 Gbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 196 / 134 Gbps
Firewall Latency (64 byte, UDP)	3.45 µs
Firewall Throughput (Packet Per Second)	201 Mpps
Concurrent Sessions (TCP)	7.5 Million
New Sessions/Second (TCP)	650,000
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	5.3 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg HTTPS)	10 Gbps
Application Control Throughput (HTTP 64K)	44 Gbps
Virtual Domains (Default / Maximum)	10 / 250
Hardware & Interfaces
100 GE QSFP28 / 40 GE QSFP+ Slots	2
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	8
10 GE SFP+ / GE SFP Slots	16
10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 Slots	8
2.5 GE / GE HA Port	1
GE RJ45 Management Port	1
USB Ports (Client / Server)	2 / 2
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
AC Current (Maximum)	6A @ 120VAC, 3A @ 240VAC
Power Consumption (Average / Maximum)	215 W / 415 W
Heat Dissipation	1229 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	66.7 dBA
Forced Airflow	Front to Back
Dimensions & Weight / Certifications
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Accessories	Dual AC Power Supplies; 2x SFP SX Transceivers
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG400F-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR-BIDI, LR), 100 GE QSFP28 Transceivers (SR, LR, DR, ER, BIDI, CWDM4), Direct Attach Cables (SFP28, QSFP28, QSFP28 breakout to 4x SFP28)

[/accesories]

The FortiGate 1001F Series combines high-performance threat protection with ultra-fast 100GE and 25GE connectivity for data centers and hybrid IT environments. Powered by AI/ML-driven FortiGuard services and custom SPU NP7/CP9 processors, this Next-Generation Firewall delivers 19 Gbps of IPS throughput and includes 960GB of onboard SSD storage for local logging and reporting.

The FortiGate 1001F Series is a high-performance Next-Generation Firewall (NGFW) designed to secure data centers and hybrid IT architectures at scale. By consolidating security and networking into a single platform, the FG-1001F protects the network edge with industry-leading throughput and low latency. It features dedicated 100GE QSFP28 and 25GE SFP28 slots, eliminating the need for additional bridging devices and simplifying network design for high-speed cores.

This bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year).

Powered by Fortinet’s patented SPU NP7 and CP9 processors, the FG-1001F delivers hardware-accelerated performance for critical functions including IPsec VPN, SSL inspection, and VXLAN termination. This model distinguishes itself with 960GB of onboard SSD storage (2x 480GB), enabling robust local logging, reporting, and data retention without relying on external storage solutions. With integrated ZTNA enforcement and AI/ML-powered FortiGuard services, the FortiGate 1001F ensures consistent, coordinated protection against sophisticated cyber threats.

High-Performance Security for Data Centers with Integrated Storage

• 960GB Internal Storage: Includes dual 480GB SSDs for efficient local logging and reporting directly on the appliance.
• 100GE & 25GE Connectivity: Features multiple 100 GE QSFP28 and 25 GE SFP28 slots to handle hyperscale traffic demands and simplify network segmentation.
• AI-Powered Protection: Leverages FortiGuard Labs' AI/ML services to block known and unknown threats, including ransomware and zero-day attacks, in real time.
• Hardware Acceleration: Utilizes custom SPU NP7 and CP9 ASICs to deliver up to 198 / 196 / 134 Gbps firewall throughput (UDP) and ultra-low latency of 3.45 µs (64-byte, UDP).
• Integrated ZTNA: Provides the industry's first NGFW with built-in Zero Trust Network Access enforcement to control and verify user access seamlessly.
• Energy Efficient Design: Uses 80Plus compliant power supplies to support lower operating costs, with 215 W average and 415 W maximum power consumption.

• Enterprise Data Centers: Ideal for high-speed segmentation and core network protection requiring 100GE interfaces.
• Hybrid Mesh Firewalls: Weaves security deep into data centers and across hybrid IT environments to protect any edge at any scale.
• High-Speed Edge Security: Supports diverse connectivity options including 10GE, 25GE, and 100GE for flexible deployment in evolving networks.
• Encrypted Traffic Inspection: Offloads resource-intensive SSL/TLS 1.3 decryption to dedicated SPUs to maintain performance visibility.

• IPS Throughput (Enterprise Mix): 19 Gbps
• NGFW Throughput (Enterprise Mix): 15 Gbps
• Threat Protection Throughput (Enterprise Mix): 13 Gbps
• Firewall Throughput: IPv4 198 / 196 / 134 Gbps (1518/512/64 byte, UDP); IPv6 198 / 196 / 134 Gbps (1518/512/86 byte, UDP)
• IPsec VPN Throughput: 55 Gbps (512 byte); up to 20,000 gateway-to-gateway and 100,000 client-to-gateway IPsec tunnels
• SSL Performance: SSL inspection throughput 10 Gbps (IPS, avg HTTPS); SSL-VPN throughput 5.3 Gbps; up to 10,000 concurrent SSL-VPN users (tunnel mode)
• Session Capacity: 7.5 million concurrent sessions (TCP); 650,000 new sessions/second (TCP); 100,000 firewall policies
• Interfaces: 2x 100GE QSFP28/40GE QSFP+, 8x 25GE SFP28/10GE SFP+/GE SFP, 16x 10GE SFP+/GE SFP, 8x 10GE/5GE/2.5GE/GE/100M RJ45, 1x GE RJ45 management, 1x 2.5GE/GE HA
• Storage and Power: 960 GB (2x 480 GB SSD); dual AC power supplies (100–240 VAC, 50/60 Hz)
• Physical and Environmental: 3.5 x 17.44 x 17.63 in (88.9 x 443 x 447.4 mm); 22.71 lbs (10.3 kg); 66.7 dBA; 10% to 90% non-condensing

Upgrade Your Network Security

Secure your data center with the Fortinet FG-1001F-BDL-950-12 bundle.
