[shortdesc]Firewall, 2x 100GE QSFP28, 8x 25GE SFP28, 960GB SSD, 19 Gbps IPS, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Series	FortiGate 1000F Series
Model / SKU	FG-1001F-BDL-809-12
Bundle / Subscription	Firewall appliance + FortiCare Premium + FortiGuard Enterprise Protection (1 Year)
Form Factor	Rack Mount, 2RU
Threat Protection Throughput	13 Gbps
Network Interfaces	2x 100 GE QSFP28 / 40 GE QSFP+ slots, 8x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 16x 10 GE SFP+ / GE SFP slots, 8x 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 ports, 1x GE RJ45 management port, 1x 2.5 GE / GE HA port
Internal Storage	960 GB (2x 480 GB SSD)
Dimensions (H x W x L)	3.5 x 17.44 x 17.63 inches (88.9 x 443 x 447.4 mm)
Weight	22.71 lbs (10.3 kg)
Power Input	100–240 VAC, 50/60 Hz (Dual AC Supplies Included)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	19 Gbps
NGFW Throughput	15 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 134 Gbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 196 / 134 Gbps
Firewall Latency (64 byte, UDP)	3.45 µs
Firewall Throughput (Packet Per Second)	201 Mpps
Concurrent Sessions (TCP)	7.5 Million
New Sessions/Second (TCP)	650,000
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	5.3 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg HTTPS)	10 Gbps
Application Control Throughput (HTTP 64K)	44 Gbps
Virtual Domains (Default / Maximum)	10 / 250
Hardware & Interfaces
100 GE QSFP28 / 40 GE QSFP+ Slots	2
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	8
10 GE SFP+ / GE SFP Slots	16
10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 Slots	8
2.5 GE / GE HA Port	1
GE RJ45 Management Port	1
USB Ports (Client / Server)	2 / 2
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
AC Current (Maximum)	6A @ 120VAC, 3A @ 240VAC
Power Consumption (Average / Maximum)	215 W / 415 W
Heat Dissipation	1229 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	66.7 dBA
Forced Airflow	Front to Back
Dimensions & Weight / Certifications
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Accessories	Dual AC Power Supplies; 2x SFP SX Transceivers
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG400F-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR-BIDI, LR), 100 GE QSFP28 Transceivers (SR, LR, DR, ER, BIDI, CWDM4), Direct Attach Cables (SFP28, QSFP28, QSFP28 breakout to 4x SFP28)

[/accesories]

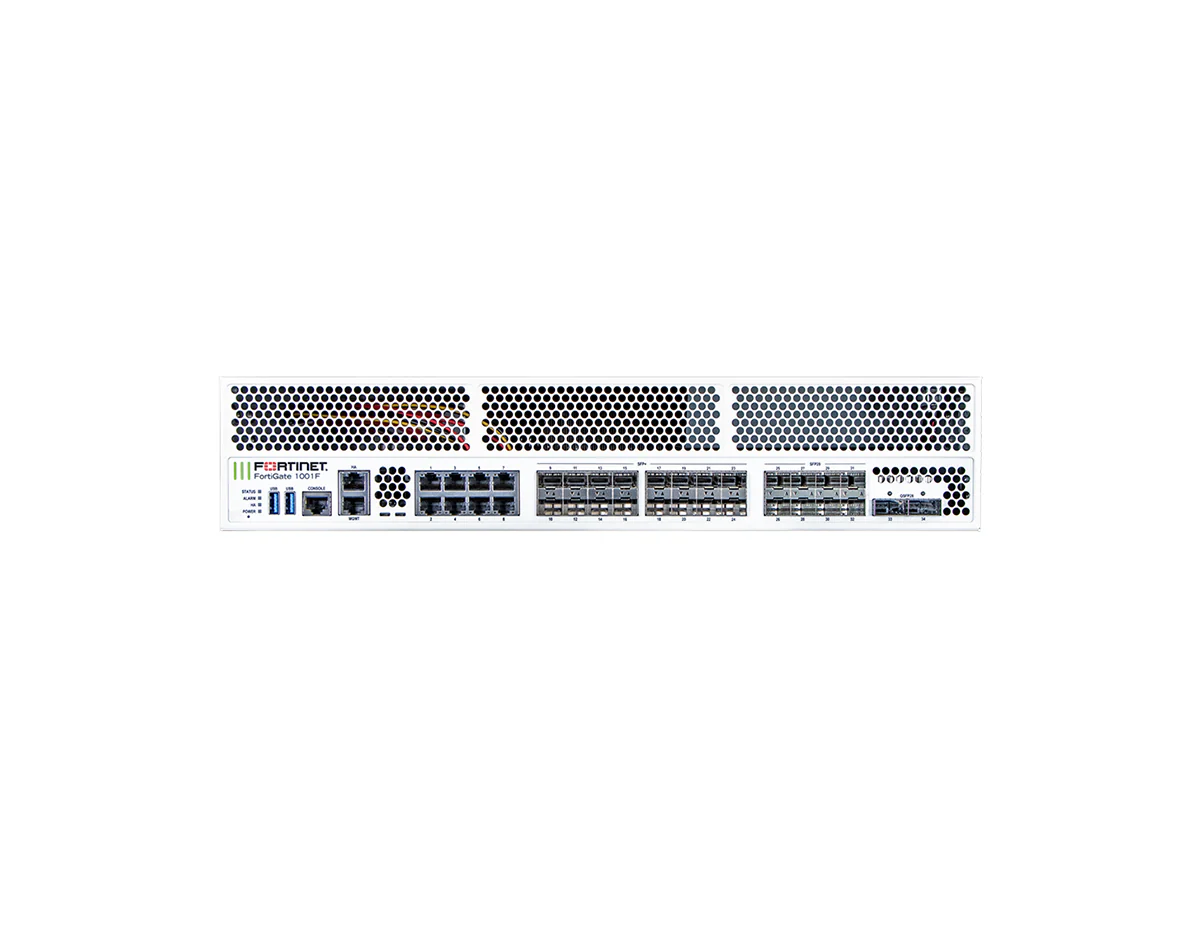

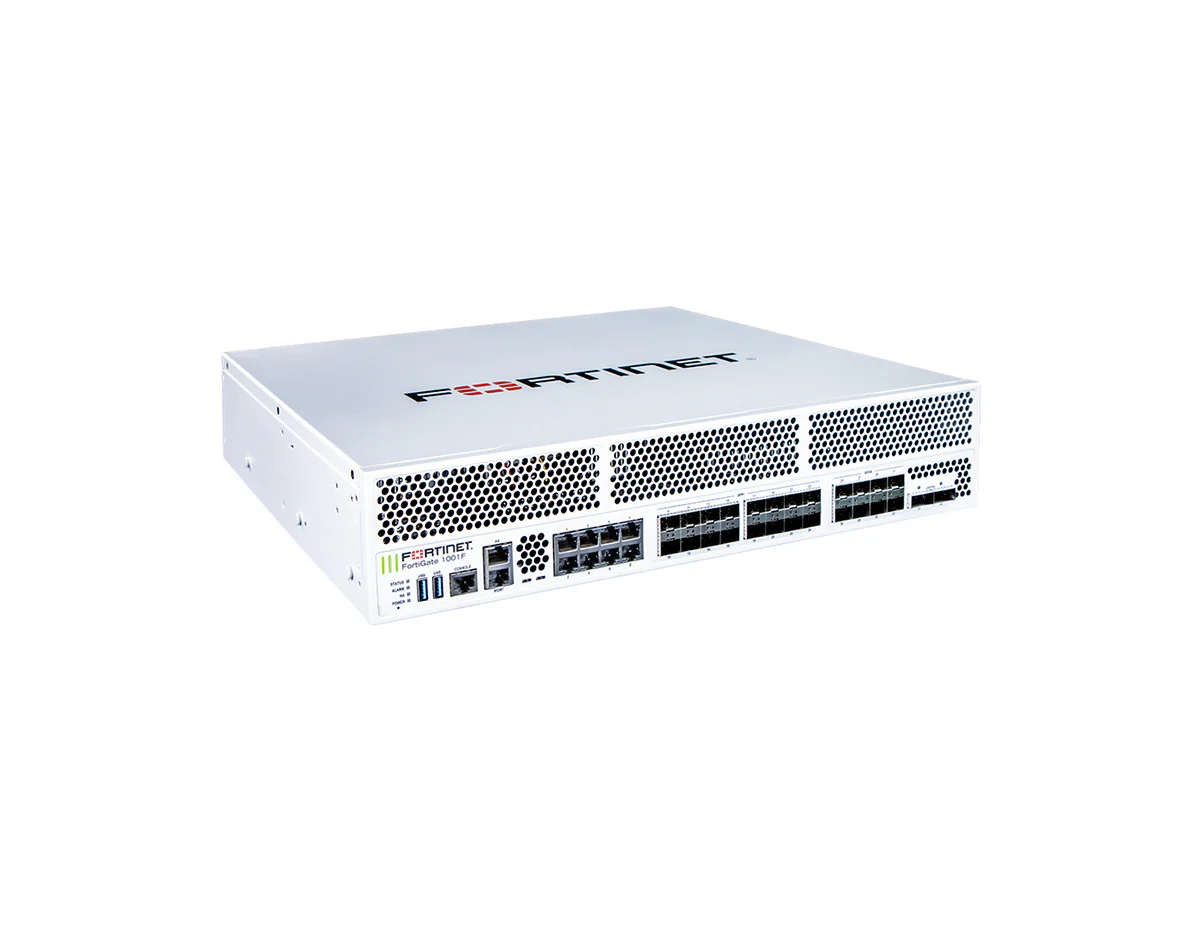

The FortiGate 1001F Series is a high-performance Next-Generation Firewall (NGFW) designed to secure data centers and hybrid IT architectures at scale. By consolidating security and networking into a single platform, the FG-1001F protects the network edge with high throughput and low latency. It features dedicated 100GE QSFP28 and 25GE SFP28 slots, simplifying network designs without relying on additional devices to bridge desired connectivity.

This bundle includes the FortiGate 1001F appliance plus FortiCare Premium and FortiGuard Enterprise Protection (1 Year).

Powered by Fortinet’s patented SPU NP7 and CP9 processors, the FG-1001F delivers hardware-accelerated performance for critical functions including IPsec VPN and SSL inspection. This model distinguishes itself with 960GB of onboard SSD storage (2x 480GB) to support local log storage on the appliance. With integrated ZTNA enforcement and AI/ML-powered FortiGuard Services, the FortiGate 1001F helps deliver consistent, coordinated protection across your distributed network.

High-Performance Security for Data Centers with Integrated Storage

• 960GB Internal Storage: Includes dual 480GB SSDs (2x 480GB) for onboard storage.
• 100GE & 25GE Connectivity: 2x 100 GE QSFP28 / 40 GE QSFP+ slots and 8x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, plus 16x 10 GE SFP+ / GE SFP slots and 8x 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 ports.
• AI-Powered Security Services: Uses AI/ML-based FortiGuard Services for coordinated threat protection across use cases.
• Hardware Acceleration: Built on Fortinet SPU NP7 and CP9 processors for high-performance inspection and secure connectivity.
• Integrated ZTNA Enforcement: Integrated zero trust network access (ZTNA) enforcement within an NGFW solution to control and verify user access to applications.
• Power Efficiency: 80Plus compliant power supply efficiency rating with dual AC power supplies.

• Enterprise Data Centers: Ideal for high-speed segmentation and core network protection requiring 100GE interfaces.
• Hybrid Mesh Firewalls: Weaves security deep into data centers and across hybrid IT environments to protect any edge at any scale.
• High-Speed Edge Security: Supports diverse connectivity options including 10GE, 25GE, and 100GE for flexible deployment in evolving networks.
• Encrypted Traffic Inspection: Real-time SSL inspection (including TLS 1.3) provides visibility into users, devices, and applications.

• IPS Throughput (Enterprise Traffic Mix): 19 Gbps
• NGFW Throughput (Enterprise Traffic Mix): 15 Gbps
• Threat Protection Throughput (Enterprise Traffic Mix): 13 Gbps
• Firewall Throughput: IPv4 198 / 196 / 134 Gbps (1518/512/64 byte, UDP) and IPv6 198 / 196 / 134 Gbps (1518/512/86 byte, UDP)
• Firewall Latency: 3.45 µs (64 byte, UDP)
• Firewall Throughput: 201 Mpps
• VPN Performance: IPsec VPN 55 Gbps (512 byte); SSL-VPN 5.3 Gbps; supports up to 20,000 gateway-to-gateway and 100,000 client-to-gateway IPsec tunnels
• SSL Inspection Throughput: 10 Gbps (IPS, avg HTTPS); up to 10,000 concurrent SSL-VPN users (tunnel mode)
• Onboard Storage: 960 GB (2x 480 GB SSD)
• Power and Thermals: 215 W average / 415 W maximum; 1229 BTU/h heat dissipation; 6A @ 120VAC, 3A @ 240VAC
• Physical and Compliance: 3.5 x 17.44 x 17.63 in (88.9 x 443 x 447.4 mm), 22.71 lbs (10.3 kg); FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Secure your data center with the Fortinet FG-1001F-BDL-809-12 bundle.
