[shortdesc]Firewall, 2RU, 198 Gbps, 2x100GE/8x25GE/16x10GE, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Name	FortiGate 1000F
SKU	FG-1000F-BDL-809-60
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (5 Year)
Form Factor	Rack Mount, 2 RU
Firewall Throughput (IPv4)	198 Gbps
Interfaces	2x 100 GE QSFP28, 8x 25 GE SFP28, 16x 10 GE SFP+, 8x 10 GE BASE-T RJ45, 1x GE RJ45 MGMT, 1x 2.5 GE HA
Power Input	100–240 VAC, 50/60 Hz
Dimensions (H x W x L)	88.9 mm x 443 mm x 447.4 mm (3.5 in x 17.44 in x 17.63 in)
Weight	9.95 kg (21.94 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Certifications	FCC Part 15 Class A, CE, RCM, VCCI, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance & Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte UDP)	198 / 196 / 134 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte UDP)	198 / 196 / 134 Gbps
Firewall Latency (64 byte UDP)	3.45 µs
Firewall Throughput (Packets Per Second)	201 Mpps
IPS Throughput	19 Gbps
NGFW Throughput	15 Gbps
Threat Protection Throughput	13 Gbps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	5.3 Gbps
SSL Inspection Throughput (IPS, avg HTTPS)	10 Gbps
Application Control Throughput (HTTP 64K)	44 Gbps
Concurrent Sessions (TCP)	7.5 Million
New Sessions/Second (TCP)	650,000
Firewall Policies	100,000
IPsec VPN Tunnels (Gateway-to-Gateway)	20,000
Virtual Domains (Default / Max)	10 / 250
Hardware Specifications
100 GE QSFP28 / 40 GE QSFP+ Slots	2
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	8
10 GE SFP+ / GE SFP Slots	16
10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 Ports	8
Management / HA Ports	1x GE RJ45 MGMT, 1x 2.5 GE / GE HA
USB / Console Ports	2x USB, 1x Console
Trusted Platform Module (TPM)	Included
Environment & Power

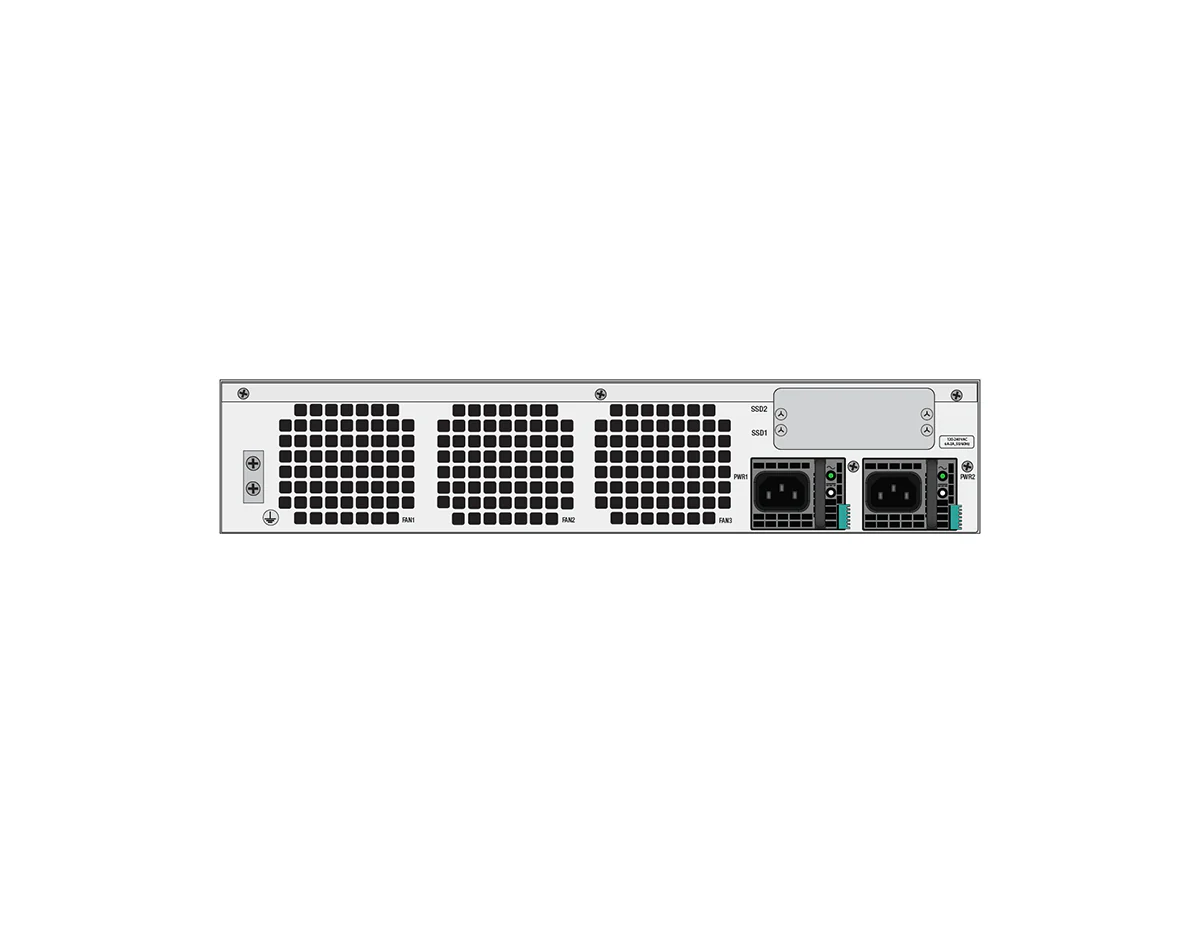

Power Supply	Dual AC (Hot Swappable), 100-240VAC, 50/60 Hz
Power Consumption (Average / Max)	210 W / 408 W
Heat Dissipation	1211 BTU/h
Noise Level	66.7 dBA
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Included Accessories	2x SFP SX Transceivers
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG400F-PS; power cable SP-FGPCOR-XX sold separately), 100 GE QSFP28 Transceivers, 25 GE SFP28 Transceivers, 10 GE SFP+ Transceivers

[/accesories]

The FortiGate 1000F Series delivers ultra-high-performance Next-Generation Firewall (NGFW) capabilities designed for large enterprises and service providers. Powered by Fortinet’s patented SPU NP7 and CP9 hardware acceleration, the FG-1000F achieves breakthrough speeds with up to 198 Gbps of firewall throughput and 19 Gbps of IPS performance. This appliance serves as the foundation for a robust Hybrid Mesh Firewall architecture, weaving deep security into data centers and across hybrid IT environments to protect any edge at any scale.

The FortiGate 1000F Series is engineered for hyperscale security, offering deep visibility and protection for data centers and hybrid IT architectures. Utilizing Fortinet’s custom SPU NP7 network processors, the 1000F delivers offloaded performance for VXLAN, IPsec, and firewall functions, ensuring that security never becomes a network bottleneck. The appliance supports native 100 GE connectivity to simplify network designs without relying on additional bridges or switches.

Integrated with AI/ML-powered FortiGuard Services, the FG-1000F detects and prevents known and unknown attacks, including ransomware and zero-day threats. It features the industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, automatically verifying user access to applications for a seamless and secure user experience.

This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (5 Year).

Hyperscale Security with Patented SPU Acceleration

• Unrivaled Performance: Delivers 198 Gbps firewall throughput and ultra-low latency via SPU NP7 and CP9 hardware acceleration.
• High-Speed Connectivity: Features 2x 100 GE QSFP28 and 8x 25 GE SFP28 slots to support high-bandwidth network segmentation and core data center requirements.
• Integrated ZTNA: Controls and verifies user access to applications directly within the firewall, reducing lateral threats and complexity.
• Efficient Power Usage: Energy-efficient design consumes 210 W on average, lowering the total cost of ownership (TCO).
• SSL Inspection: Provides 10 Gbps of SSL inspection throughput to maintain visibility into encrypted traffic (including TLS 1.3) without compromising performance.

• Next-Generation Firewall (NGFW): Protects against sophisticated AI-powered cyberattacks with natively integrated security services.
• Segmentation: Bridges physical and virtual domains with ultra-scalable, low-latency VXLAN segmentation.
• Secure SD-WAN: Transforms WANs with a unified security and management framework for superior quality of experience (QoE).
• Mobile Security: Offers high-performance CGNAT and IPv6 migration options for 4G, 5G, and IoT environments.

• IPv4 Firewall Throughput: 198 / 196 / 134 Gbps (1518 / 512 / 64 byte UDP)
• IPS Throughput: 19 Gbps
• NGFW Throughput: 15 Gbps
• Threat Protection Throughput: 13 Gbps
• IPsec VPN Throughput: 55 Gbps (512 byte)
• SSL-VPN Throughput: 5.3 Gbps
• Firewall Latency: 3.45 µs (64 byte UDP)
• Concurrent Sessions: 7.5 Million
• Power Consumption: 210 W average / 408 W max
• Form Factor: Rack Mount, 2RU

Upgrade Your Network Security

Deploy the FG-1000F-BDL-809-60 bundle to pair FortiGate 1000F hardware with FortiCare Premium + FortiGuard Enterprise Protection (5 Year).
