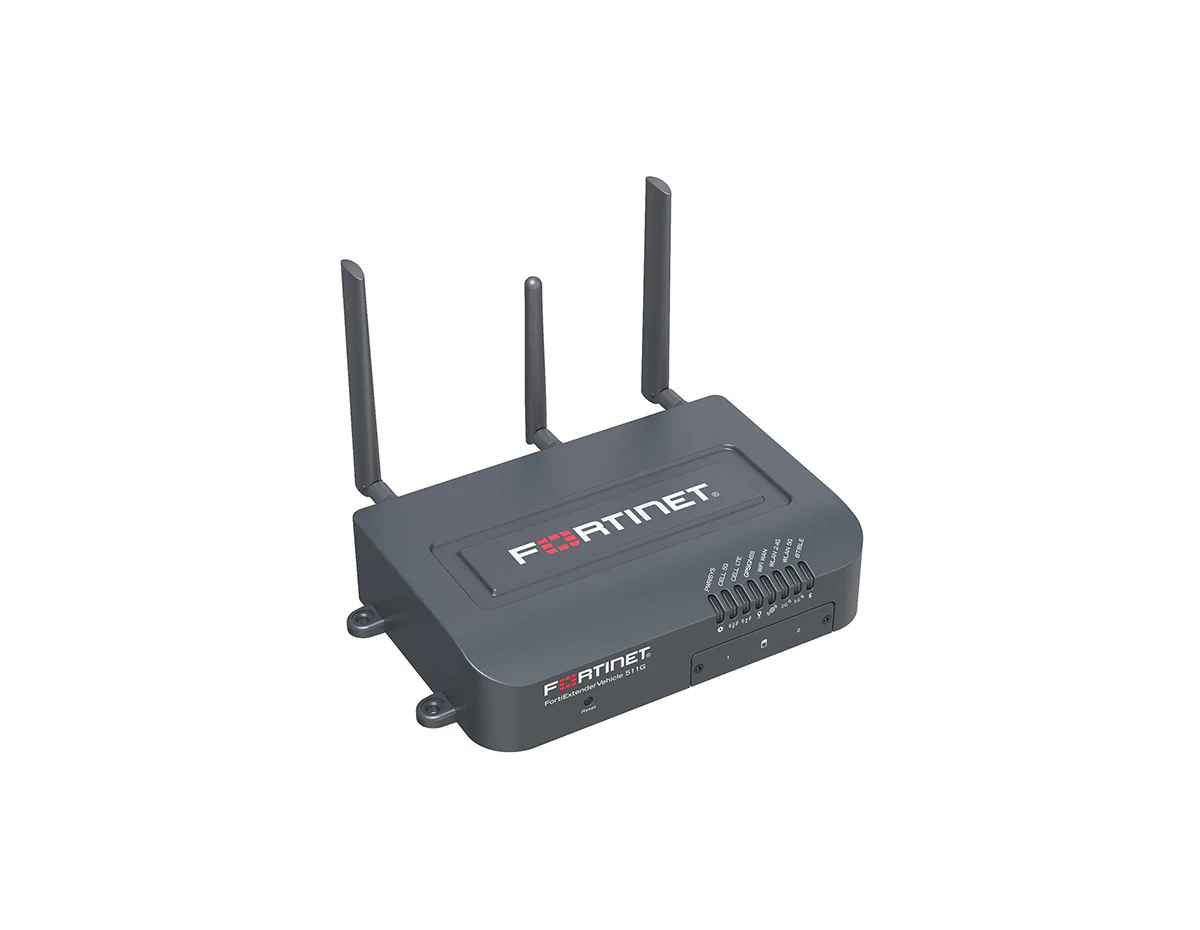

Fortinet FortiExtender FEV-511G-A Rugged Wireless Router
[shortdesc]5G Sub-6 GHz WWAN, Wi-Fi 6 and Bluetooth 5.0, Dual SIM, 1x 2.5GbE WAN plus 4x GbE LAN, IP64 Rugged Vehicle-Grade Design[/shortdesc]
[properties]
| Brand | Fortinet |
| Model | FortiExtender Vehicle 511G |
| SKU | FEV-511G-A |
| Product Type | Rugged Wireless WAN Router |
| Cellular Technology | 5G NR Sub-6 GHz, 4G LTE, 3G |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Bluetooth 5.0 |
| Ethernet Ports | 1 × 2.5GbE WAN, 4 × 1GbE LAN |
| SIM Support | Dual SIM (Micro-SIM 3FF) |
| Mounting Options | Desktop, Wall mount, DIN Rail (DIN rail clip required) |
| Ingress Protection | IP64 |
| Operating Temperature | -40°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (H × W × L) | 192 × 130 × 45 mm (7.6 × 5.1 × 1.8 in) |
| Weight | 0.96 kg |
| Power Input | 7–50V DC |
[/properties]
[specifications]
| Processor | IPQ6010 Quad-Core ARM Cortex-A53 @ 1.8 GHz |
| Internal Modem | Telit FN990A28-HP |
| 5G NR Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Wi-Fi Configuration | 2×2 MIMO, dual-band 2.4 GHz and 5 GHz |
| Maximum Wi-Fi Throughput | Up to 1800 Mbps |
| IPsec VPN Throughput (Wired) | Up to 850 Mbps |
| IPsec VPN Throughput (LTE/5G) | Up to 400 Mbps |
| LAN Extension (VxLAN over IPsec) | Up to 600 Mbps |
| LAN to LAN Throughput | Up to 950 Mbps |
| LAN to WAN NAT Throughput | Up to 940 Mbps |
| USB Port | 1 × USB 2.0 Type-A |
| Console Port | DB-9 Serial Console |
| Antenna Configuration | 7 antennas (4 × 5G/LTE, 1 × GNSS, 2 × Wi-Fi) |
| Certifications | FCC, IC, CE, RED, UL/CSA, PTCRB, MIL-STD-810H |
[/specifications]
[accesories]
| Included | FortiExtender Vehicle 511G unit; User documentation |
| Optional – Vehicle Antennas | FANT-5IN1-TG-5M-FEV; FANT-7IN1-TG-5M-FEV |
| Optional – Mounting | DIN rail mounting clip (required for DIN rail installation) |
[/accesories]
High-Performance 5G Connectivity for Mission-Critical Mobility
The Fortinet FortiExtender Vehicle 511G is a ruggedized wireless WAN router engineered for reliable, high-speed connectivity in vehicles and harsh operational environments. Designed to extend secure network access over cellular networks, it combines 5G, LTE, and legacy 3G support with integrated Wi-Fi 6 to deliver consistent performance for mobile and remote deployments. Seamless integration with Fortinet infrastructure enables centralized visibility and control while maintaining resilient connectivity on the move.
Key Benefits & Features
- Advanced 5G and LTE WWAN: Dual SIM cellular design with support for 5G NR SA and NSA, LTE, and 3G ensures reliable broadband access across global carrier networks.
- Integrated Wi-Fi 6 and Bluetooth: Concurrent dual-band 802.11ax Wi-Fi with Bluetooth 5.0 provides local wireless access and device connectivity inside vehicles or mobile sites.
- Rugged Vehicle-Grade Design: IP64-rated enclosure with resistance to shock, vibration, temperature extremes, and humidity for demanding mobile deployments.
- High-Speed Ethernet Interfaces: One 2.5GbE WAN port and four Gigabit LAN ports support high-throughput wired connectivity for onboard systems.
- Centralized Fortinet Management: Operates as an extension of FortiGate environments, enabling unified policy enforcement, monitoring, and secure LAN extension.
Ideal Use Cases
- Fleet vehicles requiring continuous and secure mobile connectivity
- Public safety, transportation, and emergency response deployments
- Mobile command centers and field service vehicles
- Industrial and OT environments with moving assets
- Temporary or remote sites without fixed broadband access
Technical Specifications
- Cellular Technology: 5G NR SA and NSA, 4G LTE, 3G
- Wi-Fi: Wi-Fi 6 (802.11ax), 2x2 MIMO, dual-band 2.4 GHz and 5 GHz
- Ethernet Ports: 1x 2.5GbE WAN, 4x 1GbE LAN
- SIM Support: Dual Micro-SIM
- Throughput: Up to 3.4 Gbps 5G downlink, 400 Mbps IPsec VPN over 5G
- Processor: Quad-core ARM A53 at 1.8 GHz
- Power Input: 7 to 50 VDC vehicle power systems
- Operating Temperature: -40°C to 70°C
- Form Factor: Desktop or wall-mountable vehicle design
Reliable 5G Networking for Mobile Operations
Deploy secure, high-speed mobile connectivity with the Fortinet FortiExtender Vehicle 511G. Order today and keep your vehicles and remote assets connected without compromise.
