[shortdesc] Dual LTE CAT-12 modems, 4x SIM slots, Wi-Fi 5 and Bluetooth, GPS GNSS, 1x GE WAN and 4x GE LAN [/shortdesc]

[properties]

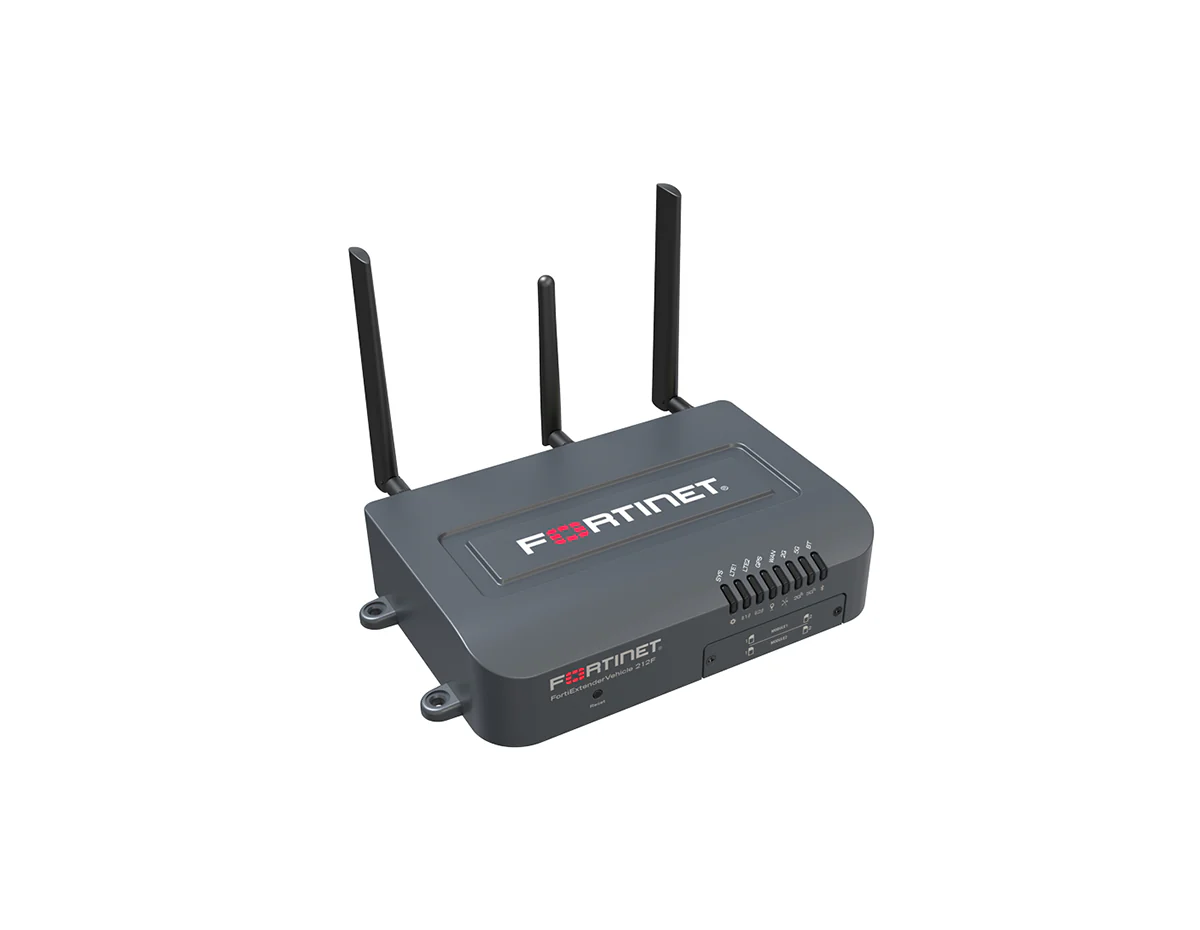

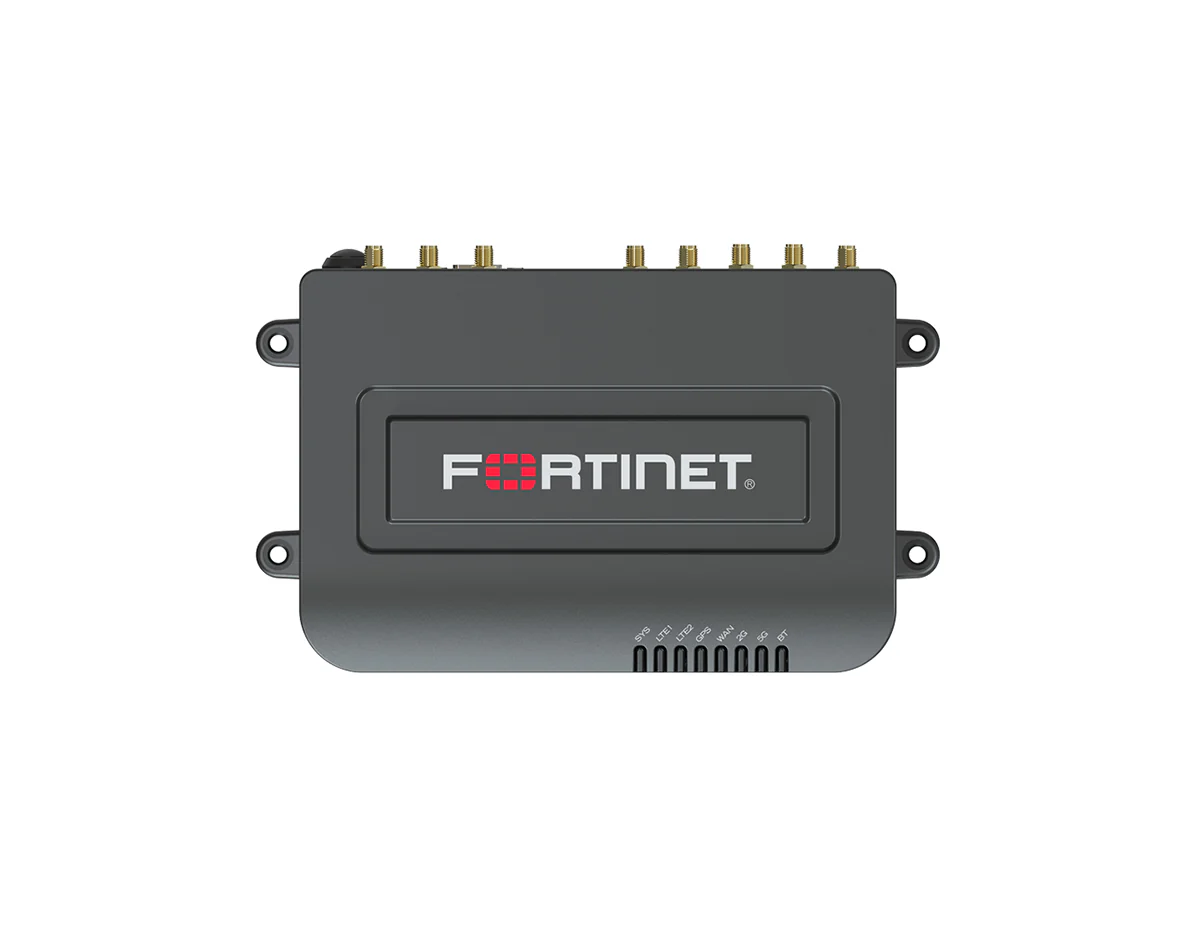

Model	FortiExtender Vehicle 212F-AM
SKU	FEV-212F-AM
Product Type	Rugged Broadband Wireless WAN Router
Deployment Type	Vehicle and OT applications
Cellular Technology	3G / 4G LTE CAT-12
Modem Configuration	2x Dual SIM 3G/4G LTE CAT-12 M.2 Modules
Maximum LTE Throughput	600 Mbps downlink / 150 Mbps uplink
Ethernet Ports	1x GE WAN, 4x GE LAN RJ45
Wi-Fi	2x2 2.4/5 GHz 802.11 a/b/g/n/ac (Wi-Fi 5)
Bluetooth	Bluetooth (2.4 GHz, max 10 dBm)
GNSS / GPS	Integrated GPS/GNSS with dedicated antenna port
SIM Type	4x Micro-SIM (3FF)
Mounting Options	Desktop, Wall-mountable, Vehicle mount
Ingress Protection	IP64
Power Input	7–36 V DC (12 V / 24 V vehicle battery systems)
Average Power Consumption	17.88 W
Maximum Power Consumption	22.74 W
Operating Temperature	−40 °C to 70 °C
Humidity	5% to 95% (non-condensing)
Dimensions (H × W × D)	45 × 130 × 182 mm
Weight	0.97 kg

[/properties]

[specifications]

LTE Category	LTE CAT-12
Supported LTE Bands (North America)	Bands 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 14, 18, 19, 20, 26, 29, 30, 32, 41, 42, 43, 46, 48, 66
3G Bands	UMTS / HSPA+ Bands 1, 2, 4, 5, 6, 8, 9, 19
Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac Wave 2
MIMO	2x2 MIMO (Wi-Fi and LTE)
LAN Switching Performance	930 Mbps (LAN-LAN Layer 2)
NAT Throughput	930 Mbps (LAN-WAN Layer 3)
IPsec VPN Throughput	120 Mbps (Wired and LTE)
LAN Extension (VxLAN over IPsec)	90 Mbps
USB Ports	1x USB 2.0 Type-A
Antenna Connectors	SMA (LTE MAIN, AUX, GPS)
Shock / Vibration	MIL-STD-810H, SAE J1455
Rail Certification	EN 50155 Class S1
Certifications	FCC, IC, CE, PTCRB, GCF, IEC/EN 62368-1

[/specifications]

[accesories]

Included in the box	FortiExtender Vehicle 212F-AM unit, 2x Wi-Fi antennas, 1x Bluetooth antenna
External LTE Antenna	Required, not included in the box
Optional Vehicle Antennas	FANT-5IN1-TG-5M-FEV, FANT-7IN1-TG-5M-FEV
PoE Injectors	GPI-115, GPI-130

[/accesories]

Reliable Dual-LTE Connectivity for Vehicles and OT Networks

The Fortinet FortiExtender Vehicle 212F-AM is a semi-rugged broadband wireless WAN router engineered for vehicles and operational technology (OT) environments across North America. Designed for continuous connectivity while in motion and in harsh conditions, it combines dual internal LTE CAT-12 modems, intelligent SIM failover, and integrated Wi-Fi to deliver resilient mobile networking where wired broadband is unavailable or unreliable.

Seamlessly integrated into the Fortinet Security Fabric, the 212F-AM appears as a native interface in FortiOS, allowing centralized visibility, policy enforcement, and SD-WAN optimization through FortiGate or FortiManager. This makes it ideal for enterprises that require secure, manageable, and high-availability cellular connectivity at the network edge.

Key Benefits & Features

• Dual LTE CAT-12 Modems: Active-active or failover cellular connectivity with up to 600 Mbps downlink per modem for high availability and load balancing.
• Quad SIM Intelligence: Two SIM slots per modem (4 total) allow for automatic carrier switching based on signal strength, link health, or data policy to maintain critical uptime.
• Integrated Wi-Fi and Bluetooth: 2x2 dual-band 802.11ac Wi-Fi plus Bluetooth for local wireless access and device connectivity.
• Fortinet Security Fabric Ready: Managed directly from FortiGate and FortiManager with SD-WAN support and unified policy control.
• Rugged Vehicle-Grade Design: IP64-rated enclosure certified for shock, vibration (MIL-STD-810H), temperature extremes, and mobile deployments.

Ideal Use Cases

• Fleet vehicles and public safety transport networks
• Mobile command centers and emergency response units
• Industrial and OT connectivity in remote locations
• Temporary branch offices and pop-up sites
• Retail kiosks and mobile point-of-sale deployments

Technical Specifications

• Cellular Technology: Dual LTE CAT-12 modems, 3G fallback
• SIM Support: 4x Micro-SIM slots (Dual SIM per modem) with intelligent failover
• Ethernet Ports: 1x Gigabit WAN, 4x Gigabit LAN RJ45
• Wireless: 2x2 dual-band Wi-Fi 802.11a/b/g/n/ac Wave 2
• Bluetooth: Integrated Bluetooth radio
• Location Services: GPS/GNSS with dedicated antenna port
• Power Input: 7 to 36V DC vehicle power systems
• Operating Temperature: -40°C to 70°C
• Ingress Protection: IP64 rated enclosure

Build a resilient mobile network edge

Deploy secure, always-on connectivity wherever your operations move. Order the FortiExtender Vehicle 212F-AM today.
