[shortdesc] AI-driven DDoS mitigation, 80 Gbps inspected throughput, 10 inline port-pairs, 10GE and 40GE or 100GE interfaces, rack-mount appliance [/shortdesc]

[properties]

Model	FortiDDoS 2000E
Manufacturer	Fortinet
Manufacturer Part Number	FDD-2000E
Product Line	FortiDDoS
Product Type	DDoS Protection Appliance
Port Configuration	10 port-pairs DDoS defence ports
Interface Types	8 x 10 GE SFP+ or GE SFP, 2 x 40 GE QSFP+ or 100 GE QSFP28
Optical Bypass	2-link optical bypass module (SM DR/LR/ER/ZR 1310/1550 nm)
Management Ports	2 x GE RJ45
Storage	960 GB SSD
Form Factor	2U Rack-mountable
Power Supply	Dual redundant AC power supplies

[/properties]

[specifications]

Inspected Throughput	80 Gbps
Inspected Packet Throughput	75 Mpps
Maximum Mitigation Capacity	280 Gbps
SYN Flood Mitigation	55 Mpps (SYN In + Cookie Out)
Simultaneous TCP Connections	25 million
Simultaneous Sources	25 million
Latency	<50 microseconds maximum, <10 microseconds typical
DDoS Mitigation Response Time	Sub-one-second mitigation for all attacks
Advanced Mitigation	DNS, NTP, DTLS, IKE, QUIC
DNS / NTP Queries per Second	12M / 6M
Input Voltage	100–240V AC, 50–60 Hz
Power Consumption	314 W average / 580 W maximum
Operating Temperature	0 C to 40 C (32 F to 104 F)
Storage Temperature	-25 C to 70 C (-13 F to 158 F)
Humidity	20% to 90% non-condensing
Dimensions (H x W x D)	3.5 x 17.24 x 22.05 in (88 x 438 x 560 mm)
Weight	44.0 lb (20.0 kg)
Safety Certifications	FCC Class A Part 15, UL, CB, cUL, RCM, VCCI, CE

[/specifications]

[accesories]

Optional Transceivers	1 GE SFP, 10 GE SFP+, 40 GE QSFP+, 100 GE QSFP28 transceivers (compatible Fortinet modules)
Optional Cables	QSFP+/QSFP28 and SFP+/SFP direct attach cables (various lengths)

[/accesories]

Autonomous Inline Defense Against Modern DDoS Attacks

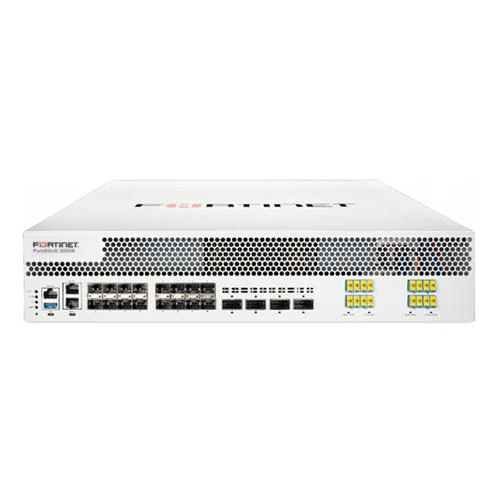

The Fortinet FortiDDoS 2000E is a purpose-built DDoS protection appliance designed to stop large-scale, multi-vector attacks without manual intervention. Using a massively parallel architecture and autonomous machine learning, FortiDDoS 2000E inspects 100 percent of inbound and outbound traffic to detect and mitigate attacks from the first packet. It operates inline and invisibly, with no IP or MAC address in the data path, ensuring business continuity while attacks are neutralized in real time.

Key Benefits & Features

• Autonomous Machine Learning Detection: Builds adaptive baselines from hundreds of thousands of traffic parameters to stop known and zero-day DDoS attacks without signature updates.
• 80 Gbps Inspected Mitigation Capacity: Delivers up to 80 Gbps and 75 Mpps of inspected mitigation, with maximum mitigation capacity reaching 280 Gbps.
• Inline Optical Bypass Design: Ten port-pairs with optical bypass ensure traffic continuity during power loss or maintenance.
• Advanced DNS and NTP Protection: Fully inspects DNS and NTP queries and responses to stop reflection and amplification attacks from the first packet.
• Hybrid On-Premise and Cloud Integration: Open signaling APIs allow coordination with upstream cloud-based DDoS mitigation services when attacks exceed local link capacity.

Ideal Use Cases

• Internet service providers and telecom networks
• Data centers and colocation facilities
• Large enterprises with public-facing services
• Financial institutions and online platforms
• MSSPs delivering managed DDoS protection

Technical Specifications

• Inspected Throughput: 80 Gbps / 75 Mpps
• Maximum Mitigation Capacity: Up to 280 Gbps
• Port Configuration: 10 port-pairs including 8 x 10GE SFP+ or SFP and 2 x 40GE QSFP+ or 100GE QSFP28
• Optical Bypass: Dual-link optical bypass module supported
• Storage: 960 GB SSD
• Management Ports: 2 x GE RJ45
• Form Factor: 2U rack-mount appliance
• Power Supply: Dual redundant AC power supplies
