[shortdesc] AI-driven DDoS mitigation, 10 port-pairs up to 100GE, 40 Gbps inspected throughput, 280 Gbps max mitigation, 2U rackmount [/shortdesc]

[properties]

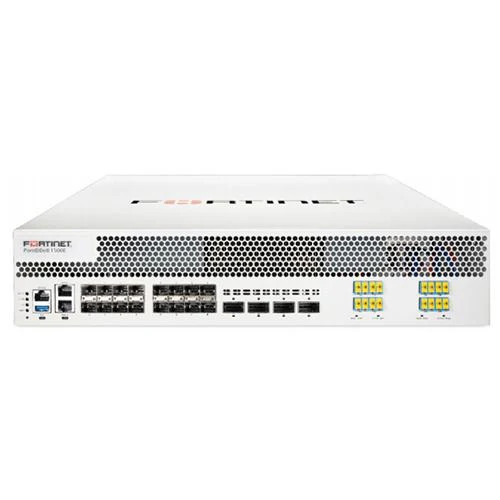

Model	FortiDDoS 1500E
Manufacturer	Fortinet
Product Type	DDoS Protection Appliance
Product Line	FortiDDoS
Port Pairs	10 DDoS defence port pairs
Network Interfaces	8 pairs x 10 GE SFP+ or GE SFP; 2 pairs x 40 GE QSFP+ or 100 GE QSFP28
Management Ports	2 x GE RJ45
Optical Bypass	2-link optical bypass module (SM DR/LR/ER/ZR 1310 nm / 1550 nm)
Storage	960 GB SSD
Form Factor	Rack-mountable
Rack Unit	2U
Power Supply	Dual redundant AC power supply

[/properties]

[specifications]

Maximum Inspected Throughput	40 Gbps
Inspected Packet Throughput	38 Mpps
Maximum Mitigation Capacity	280 Gbps
SYN Flood Mitigation	27 Mpps (SYN In + Cookie Out)
Simultaneous TCP Connections	12 million
Simultaneous Sources	24 million
DDoS Mitigation Response Time	First packet to under 2 seconds
Advanced Mitigation	DNS, NTP, DTLS, IKE, and QUIC
DNS / NTP Queries per Second	12 M / 6 M
Latency	<50 µs maximum
Input Voltage	100–240 V AC, 50–60 Hz
Power Consumption	314 W average / 580 W maximum
Operating Temperature	0 C to 40 C (32 F to 104 F)
Storage Temperature	-20 C to 70 C (-4 F to 158 F)
Humidity	20% to 90% non-condensing
Dimensions (H x W x D)	3.5 x 17.24 x 22.05 in (88 x 438 x 560 mm)
Weight	44.0 lb (20.0 kg)
Certifications	FCC Class A Part 15, UL, cUL, CB, RCM, VCCI, CE

[/specifications]

[accesories]

Optional Transceivers	1 GE SFP; 10 GE SFP+; 40 GE QSFP+; 100 GE QSFP28
Optional Cables	10 GE SFP+ DAC; 40 GE QSFP+ DAC; 100 GE QSFP28 DAC

[/accesories]

Autonomous AI-Driven Defense for High-Impact DDoS Attacks

The Fortinet FortiDDoS 1500E is a purpose-built DDoS protection appliance designed to defend large attack surfaces with zero manual intervention. Using a massively parallel machine-learning architecture, it inspects 100% of Layer 3, 4, and 7 traffic in real time, detecting and mitigating attacks from the first packet. Unlike signature-based systems, FortiDDoS 1500E builds adaptive behavioral baselines, ensuring accurate protection against both known and zero-day DDoS threats without performance compromise.

Key Benefits & Features

• 100% Packet Inspection: Full bidirectional inspection of all L3, L4, and L7 packets ensures precise detection even for small-packet and multi-vector attacks.
• Autonomous Machine Learning: Continuously analyzes hundreds of thousands of parameters to establish normal traffic baselines and instantly mitigate anomalies.
• High-Capacity Mitigation: Supports up to 40 Gbps inspected throughput and up to 280 Gbps maximum mitigation for large-scale volumetric attacks.
• Invisible Inline Deployment: Operates without IP or MAC addresses in the data path, remaining completely transparent to attackers.
• Advanced DNS and NTP Protection: Stops DNS and NTP reflection floods from the first packet, supporting up to 12 million DNS QPS and 6 million NTP QPS.

Ideal Use Cases

• Internet service providers and carriers protecting backbone infrastructure
• Large enterprises with public-facing applications and services
• Data centers and hosting providers requiring always-on DDoS mitigation
• Financial institutions with strict uptime and security requirements
• Managed security service providers offering DDoS protection services

Technical Specifications

• DDoS Defense Ports: 10 port-pairs (8 x 10GE SFP+/SFP, 2 x 40GE QSFP+ or 100GE QSFP28)
• Inspected Throughput: 40 Gbps / 38 Mpps
• Maximum Mitigation: Up to 280 Gbps
• Storage: 960 GB SSD
• Form Factor: 2U rack-mountable appliance
• Power Supply: Dual redundant AC, hot-swappable
• Management: Dedicated RJ45 management ports, RESTful API
• Mitigation Response Time: First packet to under two seconds

Secure Your Network Against Massive DDoS Attacks

Deploy the Fortinet FortiDDoS 1500E to gain autonomous, high-capacity protection for your most critical network assets. Order today.
