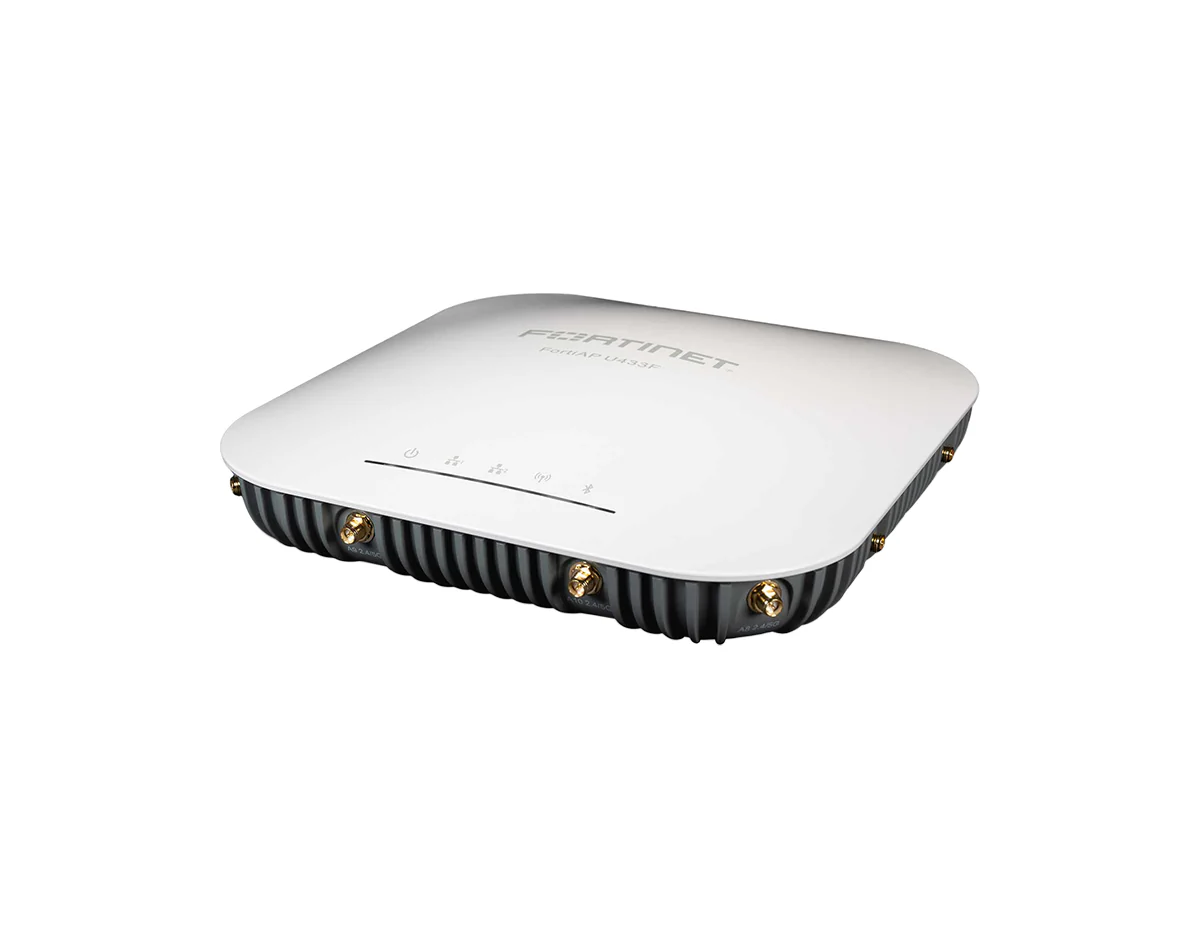

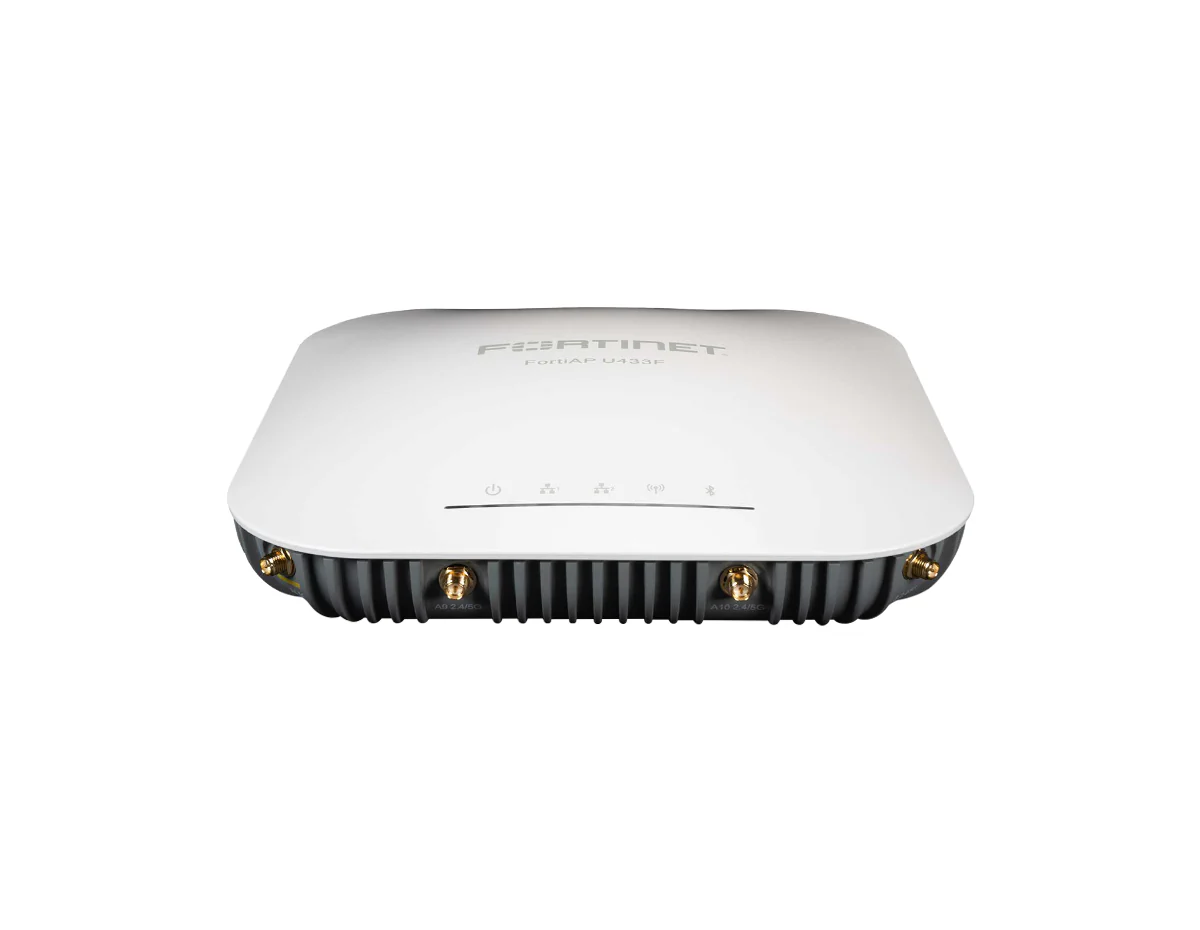

Fortinet FAP-U433F-A Access Point
[shortdesc]
- Indoor Wireless Universal AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), external antennas included, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130. Optional DC power adaptor SKU SP-FAP43F-PAX-5. Region Code A
[properties]
| Properties | FAP-U433F-A |
| Description | Indoor Wireless UTP AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), external antennas included, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP43F-PA-X-5 |
| Product Family | Fortinet Indoor Universal Wireless AP |
| Product Type | Access Points |
| Hardware Type | Indoor AP |
| Number of Radios | 3 + 1 BLE |
| Number of Antennas | 10 Internal (RP-SMA) + 1 BLE Internal |
| Antenna Type and Peak Gain | Dipole 3.5 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz)* | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities | 5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64/256/1024 QAM) |
| Radio 2 Capabilities | 2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64/256/1024 QAM) |
| Radio 3 Capabilities | 2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) |
| Maximum Data Rate | Radio 1 up to 4,804 Mbps Radio 2 up to 4,804 Mbps Radio 3 up to 300 Mbps |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Interfaces | 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) | Dual redundant PoE power ports with support for IEEE 802.3at or dual 802.3af power |
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist |
| Maximum Tx Power | Radio 1 5 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2 2.4 GHz 26 dBm / 398 mW (4 chains combined)* 5 GHz 24 dBm / 251 mW (4 chains combined)* Radio 3 2.4 GHz 22 dBm / 158 mW (2 chains combined)* |
| Per Radio Client Capacity | Up to 512 per Radio1 and Radio2 |
| Cellular Co-existence | Yes |
[/properties] [specifications]
| Advanced 802.11 Features | Transmit Beam Forming (TxBF) Low-Density Parity Check (LDPC) Encoding Maximum Likelihood Demodulation (MLD)Maximum Ratio Combining (MRC) A-MPDU and A-MSDU Packet Aggregation OFDMA 2.4 GHz OFDMA Spatial Reuse (BSS Coloring) HE-MU-MIMO UL-MU-MIMO 802.11ax mode UL-MU-MIMO DL-MU-MIMO Enhanced Target Wake Time (TWT) ZeroWait DFS /Agile DFS |
| Dimensions in. | 8.46 x 8.46 x 2.26 |
| Power Consumption (Max) | 24.5 W |
| Operating Temperature | -32–122°F (0–50°C) |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz Wi-Fi 6 |
| Certifications | Wi-Fi Alliance Certified |
| DFS:FCC, IC, CE, Japan, Taiwan, Korea Brazil |
[/specifications] [accesories]
| Mounting Options | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kits for Ceiling, T-Rail, and Wall, 10x dipole antennas |
[/accesories] The FortiAP-U family offers a wide range of models with the additional flexibility of dual 5 GHz support for WiFi 6 APs. Perfect for everything from a large campus to hundreds of branch locations the FortiAP-U family has a variety of form factors and performance levels. FortiAP-U access points are managed centrally by the integrated WLAN controller of any FortiGate security appliance, through the FortiAP Cloud provisioning and management portal, or through standalone controllers (FortiWLC). Protect your LAN Edge from the campus to the branch with these high-capacity capable APs.
This product has been discontinued.
