[shortdesc] Wi-Fi 6 802.11ax tri-radio outdoor AP, 4x4 MIMO, 2.5 Gigabit Ethernet, IP67 ruggedized, UL Class 1 Div 2, 5 external N-Type antennas. [/shortdesc]

[properties]

Model	FortiAP-432FR
Manufacturer Part Number	FAP-432FR-A
Product Type	Outdoor Wireless Access Point
Wireless Standard	IEEE 802.11a/b/g/n/ac/ax
Wi-Fi Generation	Wi-Fi 6 (802.11ax)
Radio Configuration	Tri-radio (2.4 GHz, 5 GHz, Scanning)
Antenna Type	External N-Type Omni-Directional
Number of Antennas	5 External N-Type + 1 Internal BLE
Ethernet Interfaces	1× 2.5 Gigabit RJ45, 1× Gigabit RJ45
Bluetooth / IoT	BLE + Zigbee
Ingress Protection	IP67
Environment	Indoor / Outdoor / Industrial
Hazardous Location Rating	UL Class 1 Division 2
Mounting Options	Wall Mount, Pole Mount

[/properties]

[specifications]

Radio 1	2.4 GHz 802.11b/g/n/ax, 4x4 MIMO
Radio 2	5 GHz 802.11a/n/ac/ax, 4x4 MIMO
Radio 3	2.4 / 5 GHz (Dedicated Scanning)
Aggregate Throughput	Up to 3.55 Gbps
Spatial Streams	4
Simultaneous SSIDs	16 (14 if background scanning enabled)
Power over Ethernet	802.3at
Power Consumption	25 W
Security Protocols	WPA, WPA2, WPA3, WPA3-PSK, WEP
Certifications	FCC, IC, CE, UKCA, IEC 60529, Class I Division 2
Operating Bands	2.4 GHz, 5 GHz
Management	FortiGate Managed or FortiEdge Cloud

[/specifications]

[accesories]

Included	FortiAP-432FR Access Point; External Dual-Band Antennas; Wall and Pole Mounting Kit
Optional – Power	802.3at PoE Injector; AC Adapter

[/accesories]

Industrial-Grade Wireless for Hazardous and Outdoor Environments

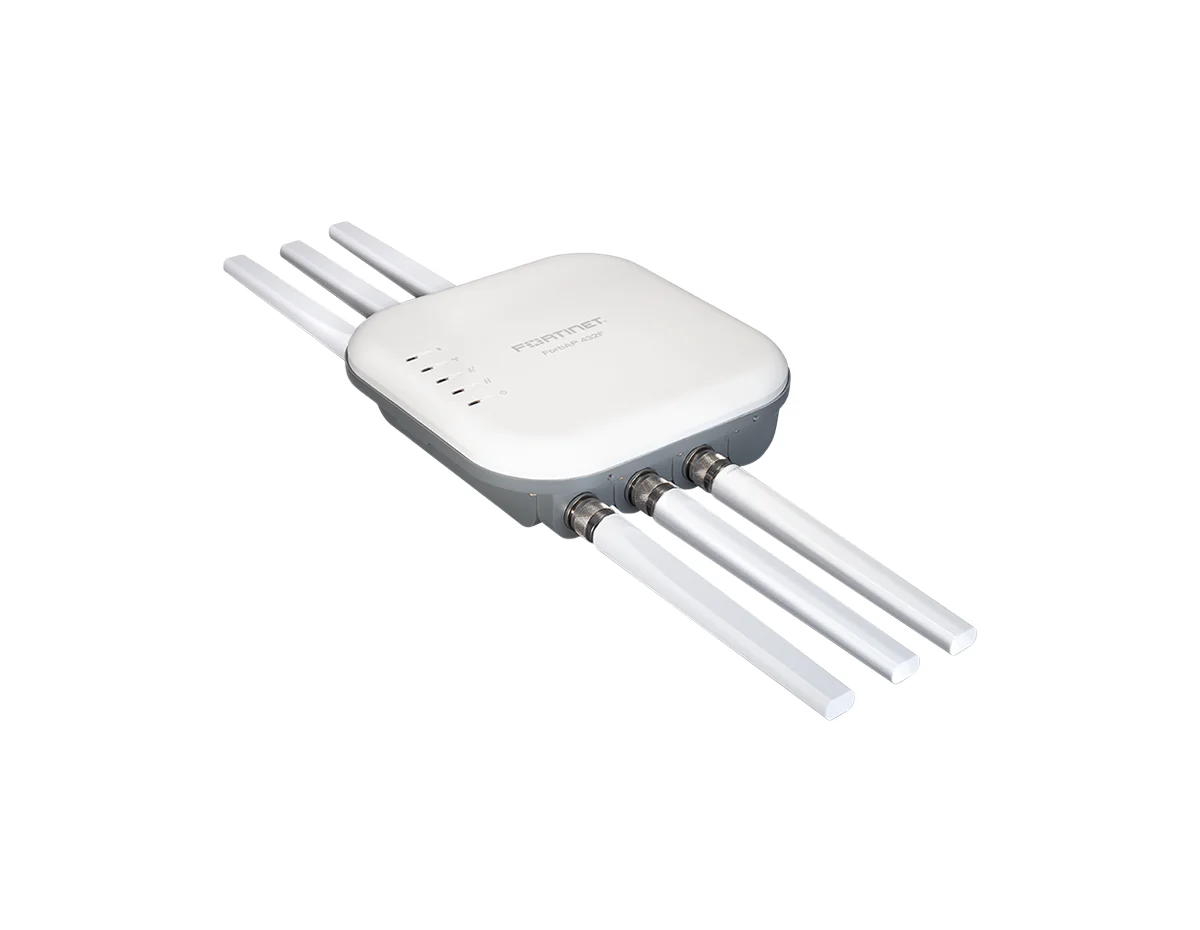

The Fortinet FortiAP-432FR-A is a ruggedized Wi-Fi 6 outdoor access point engineered for industrial, hazardous, and mission-critical deployments. Designed to operate reliably in extreme environments, it combines high-performance 4x4 wireless connectivity with enterprise-grade security and Fortinet Security Fabric integration.

With a tri-radio architecture supporting concurrent client access and continuous background scanning, the FortiAP-432FR-A ensures optimal performance, visibility, and reliability in environments where uptime and safety are critical.

Key Benefits & Features

• Tri-Radio Wi-Fi 6 Architecture: Dedicated radios for 2.4 GHz and 5 GHz client access with an additional monitoring radio enable continuous RF scanning for rogue AP detection without sacrificing performance.
• Ruggedized Industrial Design: IP67-rated enclosure and UL Class 1 Division 2 certification allow safe deployment in oil and gas, manufacturing, and transportation sites where hazardous conditions may exist.

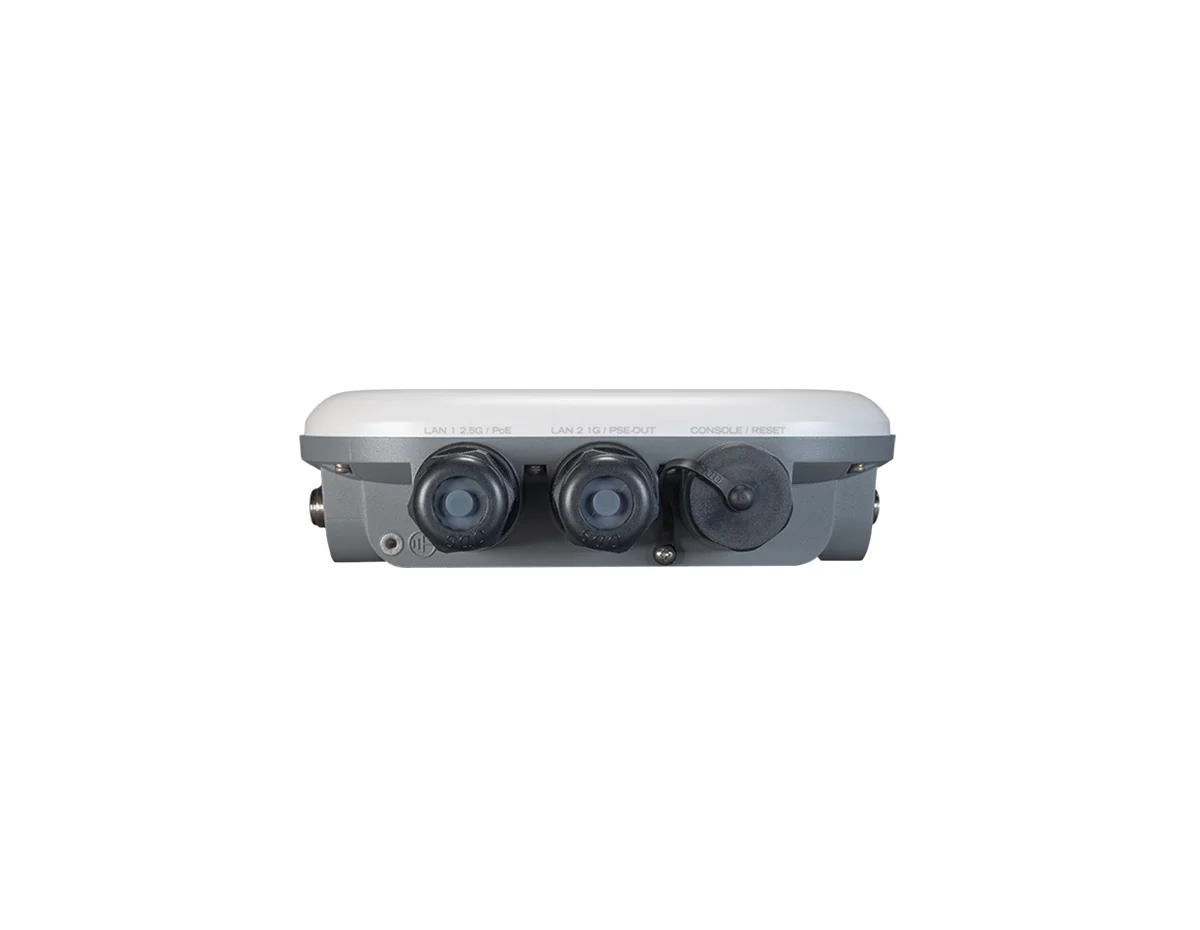

• High-Speed Connectivity: Features a 2.5 Gigabit Ethernet uplink port to support high-throughput Wi-Fi 6 speeds, plus a secondary Gigabit Ethernet port for flexible connectivity.
• Integrated Bluetooth and Zigbee: Built-in BLE and Zigbee radio supports location services, asset tracking, and IoT applications.
• Standardized Power: Supports IEEE 802.3at Power over Ethernet (PoE) for simplified installation.

Ideal Use Cases

• Oil and gas facilities and refineries
• Industrial manufacturing plants
• Transportation hubs and rail infrastructure
• Outdoor industrial campuses and yards
• Hazardous or regulated environments requiring certified hardware

Technical Specifications

• Wireless Standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Radio Configuration: Tri-radio (2.4 GHz + 5 GHz + Scan)
• MIMO: 4x4 MU-MIMO
• Ethernet Ports: 1x 2.5GbE RJ45, 1x 1GbE RJ45
• Antennas: 5x External N-Type omni-directional antennas, 1x Internal BLE
• Ingress Protection: IP67 rated enclosure
• Certifications: UL Class 1 Division 2, FCC, CE, IEC standards
• Power Consumption: 25 W (Max)

Deploy Industrial Wi-Fi with Confidence

Choose the Fortinet FortiAP-432FR-A for secure, high-performance wireless in the most demanding environments. Order today.
