[shortdesc] WiFi 6 tri-radio, 2x2 MU-MIMO, Bluetooth 5.2 LE, ZigBee, dual Gigabit Ethernet, PoE powered, outdoor rated. [/shortdesc]

[properties]

Model	FortiAP 234F
SKU	FAP-234F-A
Product Type	Wireless Access Point
Wireless Standard	Wi-Fi 6 (IEEE 802.11ax)
Frequency Bands	2.4 GHz, 5 GHz
Radio Configuration	Tri-radio design (2.4 GHz, 5 GHz, Scanning)
MIMO Technology	2x2 MU-MIMO
Wireless Technologies	Wi-Fi, Bluetooth 5.2 LE, ZigBee
Ethernet Ports	2 × 10/100/1000Base-T RJ-45
Console Port	1 × RS-232 (RJ-45)
Antenna Type	Internal Directional Patch
Mounting Type	Wall / Pole mountable
Power Method	Power over Ethernet (PoE)
Ruggedized Design	Indoor / Outdoor
Ingress Protection	IP67
Color	Gray, White
Dimensions (W × D × H)	8.6 × 12.4 × 1.7 in
Weight	2.88 lb

[/properties]

[specifications]

Wireless Protocols	802.11a/b/g/n/ac/ax
Maximum Throughput	574 Mbps (2.4 GHz), 1201 Mbps (5 GHz)
Channel Access Method	OFDMA
Encryption	WEP, WPA, WPA2, WPA3, TLS, TTLS
Authentication Methods	EAP-TLS, EAP-TTLS, PEAP, MS-CHAP v2, SSID
Wireless Clients Capacity	Up to 512 clients per Wi-Fi radio
IoT Compatibility	Yes
IoT Technologies	Bluetooth Low Energy (LE), ZigBee
Operating Temperature	-40 °F to 140 °F
Operating Humidity	10% to 90% (non-condensing)
MTBF	More than 10 years
Compliance Standards	FCC, RoHS, EU Low Voltage Directive
Wi-Fi Certification	Wi-Fi CERTIFIED 6

[/specifications]

[accesories]

Included

Pole mount kit included; Wall mount kit included; PoE injector included

[/accesories]

Enterprise-Grade Outdoor Wi-Fi 6 for Demanding Environments

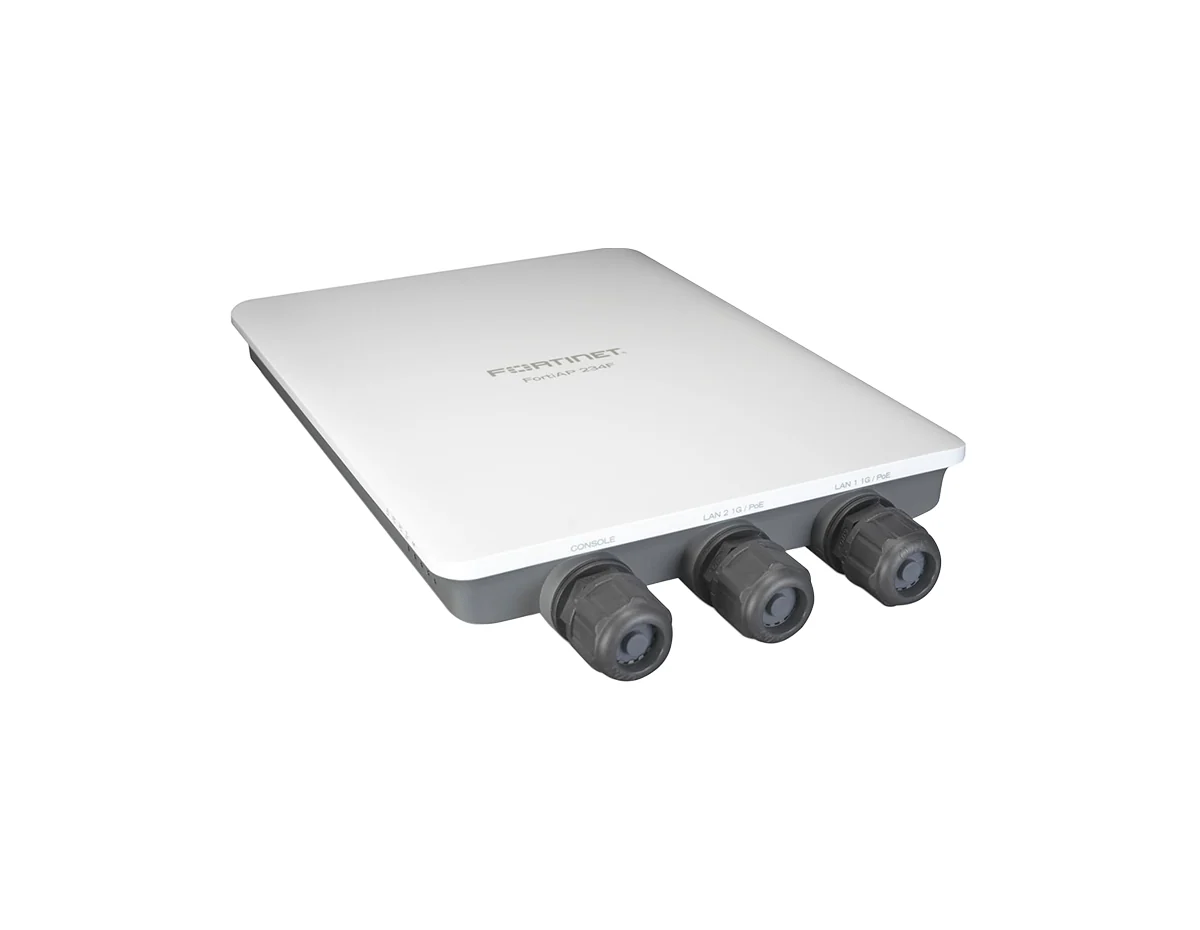

The Fortinet FortiAP 234F is a high-performance outdoor wireless access point designed to deliver secure and reliable Wi-Fi 6 connectivity in challenging environments. Built with a tri-radio architecture and integrated Bluetooth and ZigBee support, it enables high-density client access while supporting IoT and location-based services. Seamless integration with FortiGate or FortiAP Cloud allows centralized management and consistent security enforcement across wired and wireless networks.

Key Benefits & Features

• Tri-Radio Architecture: Dedicated radios enable simultaneous client access, scanning, and monitoring without performance impact.
• Wi-Fi 6 Performance: 2x2 MU-MIMO with OFDMA improves efficiency, capacity, and throughput in high-density deployments.
• Integrated IoT Support: Built-in Bluetooth 5.2 LE and ZigBee radios support beacons, asset tracking, and smart building use cases.
• Dual Gigabit Ethernet Ports: Two 10/100/1000 RJ45 ports support flexible uplinks and redundancy.
• Outdoor Ready Design: Ruggedized enclosure rated for harsh conditions with pole and wall mount kit included.

Ideal Use Cases

• Outdoor campus and enterprise Wi-Fi coverage
• Warehouses, logistics centers, and industrial sites
• Hospitality venues, stadiums, and public spaces
• Retail locations with IoT and location analytics
• Branch offices requiring centralized security control

Technical Specifications

• Wireless Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Maximum Throughput: Up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz
• Radio Configuration: 2.4 GHz 2x2 MU-MIMO, 5 GHz 2x2 MU-MIMO, plus dedicated third scanning radio
• IoT Technologies: Bluetooth 5.2 LE and ZigBee
• Ethernet Interfaces: 2x Gigabit Ethernet RJ45 plus RJ45 console port
• Power: Power over Ethernet (PoE) supported; PoE injector included
• Antenna Type: Internal directional antennas
• Mounting: Wall and pole mount kit included

Deploy Secure Outdoor Wi-Fi Without Compromise

Upgrade your outdoor wireless infrastructure with Fortinet FortiAP 234F and gain performance, security, and scalability in one platform. Order today.
