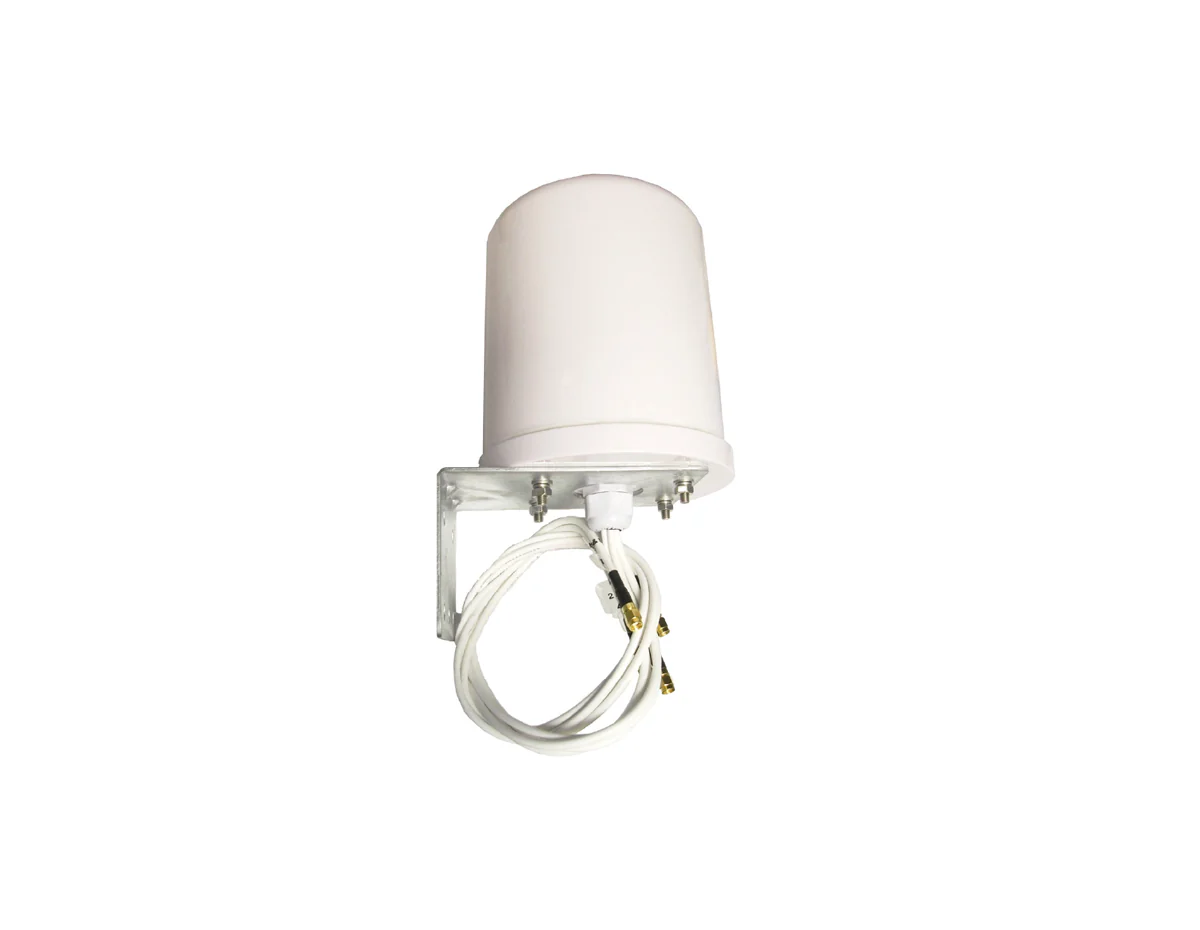

Fortinet FANT-04ABGN-0606-O-R 6 dBi Dual Band Wi-Fi Omni Antenna
[shortdesc]6 dBi gain, dual band 2.4 and 5 GHz, omnidirectional coverage, indoor and outdoor use, 4 RP-SMA connectors[/shortdesc]
[properties]
| Model | FANT-04ABGN-0606-O-R |
| Brand | Fortinet |
| Product Type | Wi-Fi Omni-Directional Antenna |
| Frequency Range | 2400–2500 MHz, 5150–5850 MHz |
| Antenna Gain | 6 dBi (2.4 GHz), 6 dBi (5 GHz) |
| Directivity | Omni-directional |
| Polarization | Vertical |
| Connector Type | 4 × RP-SMA Male |
| Impedance | 50 ohms |
| Environment | Indoor / Outdoor |
| Mounting Method | Mast or Wall Mount |
| Operating Temperature | −40°F to +158°F (−40°C to +70°C) |
| Dimensions (W × H) | 5.9 in × 7 in (14.99 cm × 17.78 cm) |
| Weight | 2.64 lbs (1.2 kg) |
[/properties]
[specifications]
| Bandwidth | 100 MHz (2.4 GHz), 700 MHz (5 GHz) |
| Horizontal Beamwidth | 360° (2.4 GHz / 5 GHz) |
| Vertical Beamwidth | 20° (2.4 GHz), 45° (5 GHz) |
| VSWR | ≤ 2.0 (2.4 GHz), ≤ 2.0 (5 GHz) |
| Isolation | ≤ −15 dB |
| Maximum Input Power | 10 Watts |
| Lightning Protection | Not DC Grounded |
| Wind Load Rating | 134 mph (216 km/h) |
| Pigtail Length | 36 in (91.44 cm) with connector |
| Mast Diameter Support | 1.37 in – 1.97 in (3.48 cm – 5.0 cm) |
[/specifications]
[accesories]
| Included in the Box | L-Bracket for Mast and Wall Mounting (included in the box) |
[/accesories]
Consistent Omnidirectional Coverage for Demanding Environments
The Fortinet FANT-04ABGN-0606-O-R is a ruggedized dual band Wi-Fi omnidirectional antenna designed to extend and stabilize wireless coverage in challenging indoor and outdoor environments. Optimized for Fortinet FortiAP access points, this antenna delivers uniform 360 degree signal distribution while maintaining strong performance in areas exposed to dust, moisture, and temperature extremes.
With a 6 dBi gain across both 2.4 GHz and 5 GHz bands, the FANT-04ABGN-0606-O-R improves signal reach and reliability for warehouses, manufacturing floors, campuses, and outdoor installations where standard internal antennas fall short.
Key Benefits & Features
- 6 dBi Omnidirectional Gain: Enhances Wi-Fi coverage radius while maintaining even signal distribution across large open spaces.
- Dual Band Operation: Supports both 2.4 GHz and 5 GHz frequencies for modern enterprise wireless networks.
- Industrial Grade Design: Built to withstand harsh environments including dust, moisture, and wide temperature ranges.
- Four RP-SMA Connectors: Designed for multi-radio FortiAP deployments with flexible port mapping.
- Flexible Mounting Options: Includes L-bracket for mast or wall mounting to support diverse installation scenarios.
Ideal Use Cases
- Warehouses and logistics centers
- Manufacturing and industrial facilities
- Outdoor Wi-Fi coverage zones
- Large open indoor spaces
- Enterprise FortiAP deployments requiring external antennas
Technical Specifications
- Frequency Range: 2400–2500 MHz and 5150–5850 MHz
- Antenna Gain: 6 dBi
- Polarization: Vertical
- Horizontal Beamwidth: 360 degrees
- Vertical Beamwidth: 20 degrees at 2.4 GHz, 45 degrees at 5 GHz
- Connectors: 4 × RP-SMA male
- Pigtail Length: 36 inches
- Operating Temperature: −40°F to 158°F (−40°C to 70°C)
- Mounting: Mast or wall mount with included L-bracket
Upgrade Your Wireless Coverage Today
Deploy reliable enterprise Wi-Fi with the Fortinet FANT-04ABGN-0606-O-R. Order today.
