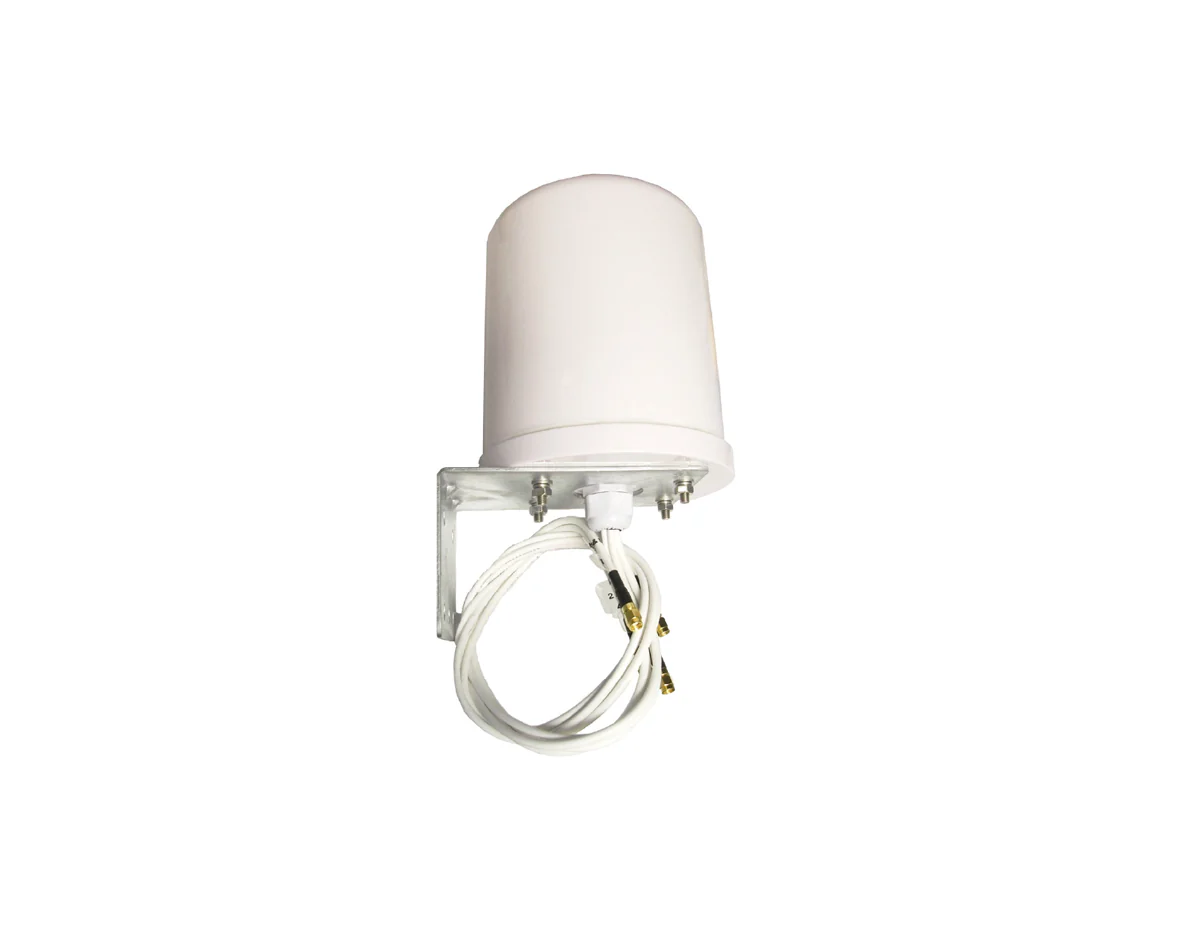

Fortinet FANT-04ABGN-0606-O-N 6 dBi Omnidirectional Antenna
[shortdesc]6 dBi gain, dual-band Wi-Fi, omnidirectional coverage, outdoor rated design, wall or mast mounting, N-type connectors[/shortdesc]
[properties]
| Brand | Fortinet |
| Model | FANT-04ABGN-0606-O-N |
| Product Type | Wi-Fi Omni-Directional Antenna |
| Frequency Range | 2400–2500 MHz; 5150–5850 MHz |
| Antenna Gain | 6 dBi (2.4 GHz); 6 dBi (5 GHz) |
| Directivity | Omni-directional |
| Polarization | Vertical |
| Connector Type | 4 × N-Type Male |
| Cable Length | 36 in (91.44 cm) |
| Nominal Impedance | 50 Ohm |
| Maximum Power | 10 W |
| Mounting Method | Mast or Wall Mount |
| Environment | Indoor / Outdoor |
| Operating Temperature | -40°F to +158°F (-40°C to +70°C) |
| Wind Load Rating | 134 mph (216 km/h) |
| Dimensions (W × H) | 5.9 in × 7 in (14.99 cm × 17.78 cm) |
| Weight | 2.64 lbs (1.2 kg) |
[/properties]
[specifications]
| Frequency Bands | 2.4 GHz / 5 GHz |
| Bandwidth | 100 MHz (2.4 GHz); 700 MHz (5 GHz) |
| Vertical Beamwidth | 20° (2.4 GHz); 45° (5 GHz) |
| Horizontal Beamwidth | 360° |
| VSWR | ≤ 2.2 (2.4 GHz); ≤ 2.0 (5 GHz) |
| Isolation | ≤ -15 dB |
| Lightning Protection | Not DC Grounded |
| Ingress Protection | Not specified (Ruggedized for Dust/Moisture) |
[/specifications]
[accesories]
| Included | L-Bracket for Mast and Wall Mounting (included in the box) |
[/accesories]
Extend FortiAP Wireless Coverage in Demanding Environments
The Fortinet FANT-04ABGN-0606-O-N is a ruggedized omnidirectional antenna designed to enhance wireless coverage for FortiAP deployments in indoor and outdoor environments. Built for reliability in harsh conditions, it delivers consistent signal performance across large areas such as warehouses, manufacturing floors, campuses, and outdoor facilities.
With dual-band support and a 6 dBi gain, this antenna improves signal reach and stability while maintaining full compatibility with a wide range of Fortinet FortiAP and FortiAP Universal Series access points.
Key Benefits & Features
- 6 dBi Omnidirectional Gain: Provides uniform 360-degree horizontal coverage, ideal for broad-area wireless deployments.
- Dual-Band Frequency Support: Operates across 2.4 GHz and 5 GHz bands for flexible Wi-Fi network design.
- Outdoor-Ready Construction: Engineered to withstand moisture, dust, temperature extremes, and high wind conditions.
- Flexible Mounting Options: Includes an L-bracket for secure wall or mast installation.
- Enterprise FortiAP Compatibility: Designed specifically for Fortinet access points and Universal Series models.
Ideal Use Cases
- Warehouses and logistics centers
- Manufacturing and industrial facilities
- Outdoor campus or yard coverage
- Large indoor open spaces
- Enterprise FortiAP wireless expansions
Technical Specifications
- Antenna Type: Omnidirectional
- Antenna Gain: 6 dBi
- Frequency Range: 2400–2500 MHz, 5150–5850 MHz
- Connectors: 4 × N-Type Male
- Cable Length: 36 inches
- Polarization: Vertical
- Operating Temperature: -40°F to 158°F
- Mounting: Wall or mast mount
Upgrade Your Wireless Reach Today
Designed for performance and durability, the Fortinet FANT-04ABGN-0606-O-N is the ideal antenna upgrade for professional FortiAP deployments. Order today.
