[shortdesc] 5× Gigabit RJ45, 4× PoE+ ports, 65W budget, fanless, cloud-managed, VLAN support [/shortdesc]

[properties]

Model	TP-Link Omada ES205GP
Product Type	5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Ports	5× 10/100/1000 Mbps RJ45 (Ports 1–4 PoE+ 802.3af/at compliant)
PoE Budget	65 W total, up to 30 W per port
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
MAC Address Table	8K
Packet Buffer	4 Mbit
Jumbo Frame	15 KB
Form Factor	Desktop / Wall Mount
Cooling	Fanless
Housing	Metal casing
Power Input	53.5VDC / 1.31A via external adapter
Surge Protection	±6 kV
Physical Security	Lock slot
Dimensions (W × D × H)	100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)
Weight	Not specified by manufacturer
Operating Temperature	0 – 40°C (32 – 104 °F)
Storage Temperature	−40 – 70°C (−40 – 158 °F)
Operating Humidity	10–90% non-condensing
Storage Humidity	5–90% non-condensing

[/properties]

[specifications]

PoE Features	802.3af/at PoE+; 4 ports; PoE Auto Recovery; up to 250 m PoE transmission (speed downgraded to 10 Mbps)
QoS	Port-based, 802.1p, DSCP QoS; 8 priority queues; WRR scheduling; bandwidth control; storm control
Layer 2 Features	Static Link Aggregation, Loop Prevention/Detection, 802.3x Flow Control, Port Mirroring (1:1, N:1), LLDP
L2 Multicast	IGMP Snooping v1/v2/v3, Fast Leave
VLAN	Port-based VLAN, MTU VLAN, 802.1Q Tag VLAN (max 32 groups, 4K VID)
Management	Web-based GUI, DHCP Client, Cable Diagnostics, Device Discovery, Batch Config & Firmware Upgrade, Unified Config
Controller Support	Omada Cloud-Based, Omada Hardware, Omada Software Controller
Zero-Touch Provisioning	Yes (Omada Cloud-Based Controller required)
Cloud Access	Yes (requires Omada Controller)
Switching Method	Store-and-Forward
Certifications	FCC, CE, RoHS

[/specifications]

[accesories]

Included in the Box

ES205GP Switch; Power Adapter; Power Cord; Rubber Feet; Installation Guide

[/accesories]

Compact Power and Intelligent Management for Modern Networks

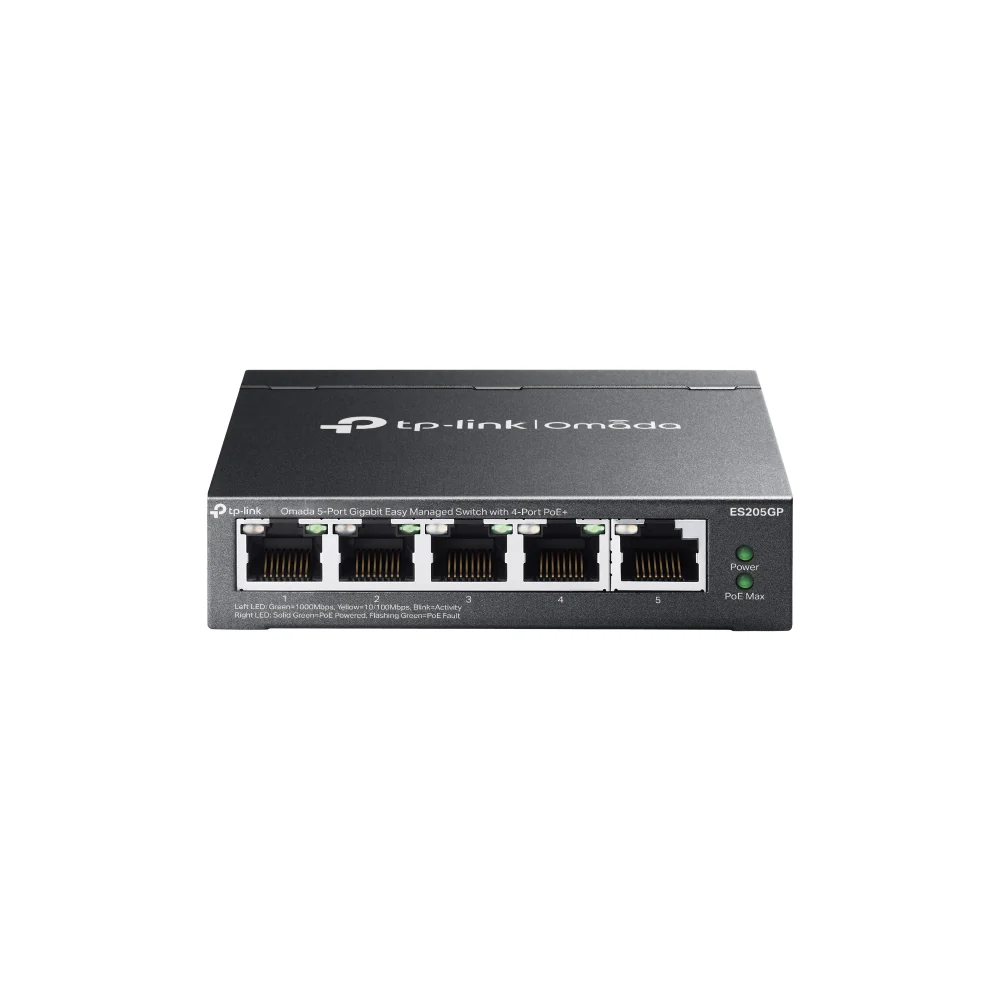

The TP-Link Omada ES205GP is a 5-port Gigabit easy managed switch with 4 PoE+ ports and a total 65W power budget, delivering up to 30W per port. Designed for SMBs, surveillance setups, and wireless deployments, it integrates with the Omada SDN for centralized management via controller and app, enabling efficient, scalable rollouts.

Key Benefits & Features

• 4× PoE+ Ports: Power IP cameras, APs, and VoIP phones with up to 30W per port and 65W total budget.
• Centralized Cloud Management: Manage via Omada App, web, or hardware/software controllers; Zero-Touch Provisioning available with the Omada Cloud-Based Controller.
• Reliable Surveillance Networking: Supports up to 250m PoE transmission, PoE auto recovery, VLAN, and IGMP snooping.
• Quiet Fanless Design: Silent, compact metal casing with desktop or wall-mount flexibility.
• Enhanced Security & QoS: Port isolation, traffic prioritization, storm control, and robust L2 features.

Ideal Use Cases

• Deploying IP camera systems for offices, retail, or small campuses
• Powering wireless access points for extended Wi-Fi coverage
• Providing PoE connectivity for VoIP telephony solutions
• Small business networks requiring cost-effective managed switching
• Silent and compact deployments in workspaces or meeting rooms

Technical Specifications

• Ports: 5× 10/100/1000 Mbps RJ45 (4× PoE+)
• PoE Standard: IEEE 802.3af/at, 65W total, 30W per port
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.4 Mpps
• MAC Address Table: 8K
• Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB
• QoS: Port-based/802.1p/DSCP with 8 queues
• VLAN Support: MTU, port-based, 802.1Q (up to 32 groups)
• Dimensions: 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

Upgrade Your Network with ES205GP Today

Deliver reliable Gigabit performance and PoE flexibility in one compact design. Order now and simplify your network deployment.
