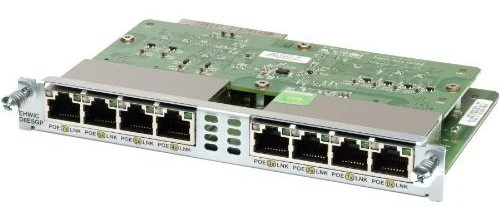

Cisco EHWIC-D-8ESG-P Interface Card
- Switch
- 8 x 10/100/1000 (PoE)
- plug-in module
- PoE
[properties]
| Properties | Cisco EHWIC-D-8ESG-P Dual Mode 8-Port Gigabit Ethernet Interface Card |
| Description | 8-port Gigabit Ethernet enhanced HWIC providing both SFP and RJ-45 connectivity with Layer 3 routing support |
| Product Type | Enhanced High-Speed WAN Interface Card (EHWIC) |
| Compatibility | Compatible with Cisco ISR G2 platforms: 1941, 2900, and 3900 Series |
| Mount Type | Internal router EHWIC slot (single-wide) |
[/properties] [specifications]
| Ports | 8 x 10/100/1000 Mbps (RJ-45) |
| Performance | Supports up to 800 Mbps bidirectional throughput |
| QoS Features | WRED, 802.1p priority, CAR, HQoS, ACLs, NBAR |
| Ethernet Standards | IEEE 802.3z, 802.3ab, 802.1Q, 802.1p, 802.3x flow control |
| Frame Support | Jumbo frames up to 9576 bytes |
| Network Management | SNMP, RMON, NetFlow, IP SLA |
| Dimensions | 2.1 x 7.9 x 12.2 cm |
| Operating Temperature | 0°C to 40°C |
| Humidity | 10% to 90% non-condensing |
[/specifications] [accesories]
| Included Items | EHWIC-D-8ESG-P card only (included in the box) |
| Compatible Devices | Cisco ISR G2 routers (2911, 2921, 2951, 3900 series) |
| Optional Accessories | Gigabit Ethernet SFP modules (GLC-T, GLC-SX-MM, GLC-LH-SM) |
[/accesories]
Cisco EHWIC-D-8ESG-P Interface Card
The Cisco EHWIC-D-8ESG-P is an 8-port Gigabit Ethernet interface module designed for use with Cisco 1900, 2900, and 3900 series ISR routers. With Power over Ethernet (PoE) capabilities, this module simplifies network infrastructure by combining switching and routing functionalities into a single device. It is an ideal solution for small to medium-sized businesses and branch offices looking to integrate IP phones, cameras, and wireless access points without requiring separate power sources.
Key Features:
- 8 x 10/100/1000Base-T Ethernet Ports: Provides high-speed Ethernet connectivity for various network devices.
- Power over Ethernet (PoE) Support: Supports both standard PoE (15.4W) and enhanced PoE (20W) to power devices such as IP phones and access points.
- Layer 2 Switching: Features VLAN support, spanning tree, and MAC address learning for advanced network segmentation.
- Energy Efficiency: Integrates Cisco EnergyWise technology for per-port power monitoring and reduced power consumption.
- Enhanced Security: Offers 802.1X authentication, port security, and VLAN-based security protocols to safeguard your network.
Technical Overview:
- Recommended for: Small to medium-sized businesses and branch offices.
- Ports: 8 x RJ-45 10/100/1000Base-T Ethernet ports.
- PoE Power Budget: Supports 15.4W PoE and 20W ePoE.
- Switching Capacity: Supports VLANs, Quality of Service (QoS), and secure MAC addresses.
- Energy Efficiency: Includes Cisco EnergyWise technology for power monitoring.
You can check the related tab for the EHWIC-D-8ESG-P datasheet.
