[shortdesc] LTE Cat4, GNSS GPS, Bluetooth 5.1, PoE-In, Gigabit Ethernet, eSIM Nano SIM [/shortdesc]

[properties]

Model	MikroTik KNOT Embedded LTE4 Global
Product Code	EG25-G&KNe
Product Type	Industrial LTE Gateway
CPU	ARM 32-bit 800 MHz
RAM	256 MB DDR
Storage	256 MB NAND
Operating System	RouterOS v7 (License level 3)
Ethernet Ports	1 x Gigabit Ethernet
LTE Category	Cat 4 (150 Mbps downlink, 50 Mbps uplink)
SIM Slots	Nano SIM, eSIM
Bluetooth	Bluetooth 5.1
GNSS Support	GPS, Galileo, Glonass, BDS, QZSS
MIMO	2x2 DL, 1x1 UL
RF Connector	SMA female
GPIO	Sensor-ready GPIO (24V tolerant)
Mounting	DIN rail mounting supported
Power Input	PoE-In, USB Type-C
PoE-In Standard	802.3af/at
Input Voltage	PoE-In 12–57 V, USB Type-C 5 V
Max Power Consumption	6 W
Dimensions	90 x 70 x 22 mm
Operating Temperature	-40C to +70C

[/properties]

[specifications]

LTE Modem	EG25-G
TAC	01673800
LTE FDD Bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 28
LTE TDD Bands	38, 39, 40, 41
3G Category	R8 (42.2 Mbps DL, 5.76 Mbps UL)
3G Bands	1, 2, 4, 5, 6, 8, 19
2G Category	Class 12
2G Bands	2, 3, 5, 8
Bluetooth Features	Long Range Bluetooth, Extended Advertising support
Networking Features	VPN, Firewall, SMS control, Remote management
Use Cases	IoT gateway, LTE backup, asset tracking, industrial automation

[/specifications]

[accesories]

Included	5V 0.8A Power Adapter; K-91 Fastening Set
Note	External antennas required (models match your environment)

[/accesories]

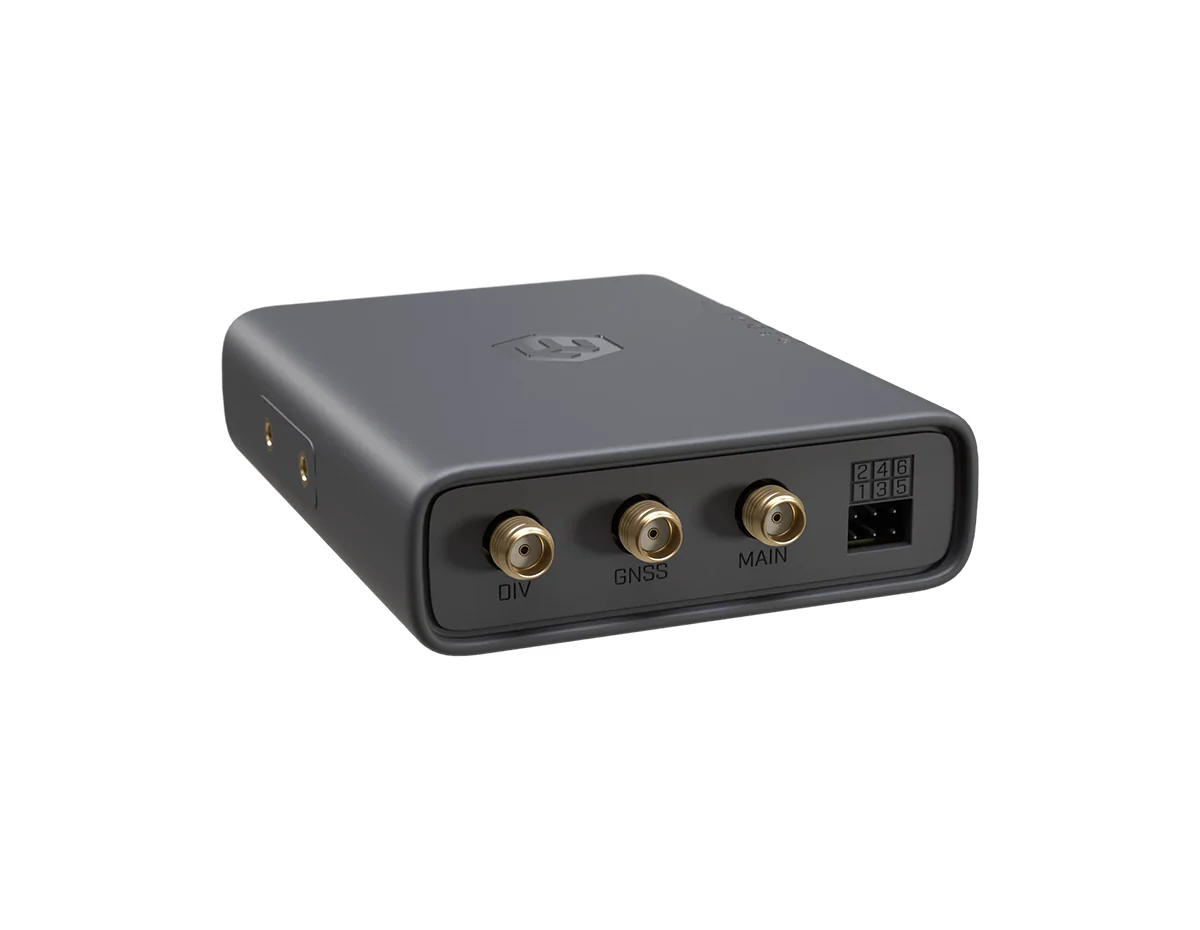

Compact Industrial LTE Gateway for Smart IoT Deployments

The MikroTik KNOT Embedded LTE4 Global (EG25-G) is a compact yet powerful industrial LTE gateway built for IoT, automation, and remote connectivity. Designed for tight installation spaces, it combines LTE Cat4, Bluetooth, and GNSS into a single device. Powered by RouterOS, it delivers advanced networking, secure remote management, and flexible deployment across industrial and smart infrastructure environments.

Key Benefits & Features

• LTE Cat4 Connectivity: Achieve up to 150 Mbps downlink and 50 Mbps uplink for reliable primary or backup connectivity across global LTE bands.
• Integrated GNSS Tracking: Supports GPS, Galileo, GLONASS, BDS, and QZSS for precise asset tracking and location-based applications.
• Bluetooth 5.1 IoT Integration: Built-in BLE scanner with long-range support enables seamless communication with sensors, tags, and other BLE devices.
• Flexible Power Options: Supports PoE-In 802.3af/at (12-57V) and USB Type-C (5V) powering, ensuring versatile deployment in industrial environments.
• RouterOS Advanced Features: Full networking stack including VPN, firewall, SMS control, and automation for enterprise-grade control.

Ideal Use Cases

• Industrial automation and control cabinet integration
• IoT gateway for BLE sensors and telemetry collection
• Retail kiosks, vending machines, and payment terminals
• Smart city infrastructure such as parking and metering
• LTE backup connectivity for critical Ethernet devices
• Vehicle or asset tracking with integrated GNSS

Technical Specifications

• CPU: ARM 32-bit 800 MHz
• RAM: 256 MB DDR
• Storage: 256 MB NAND
• LTE Category: Cat4 (150 Mbps DL, 50 Mbps UL)
• Ethernet Ports: 1x Gigabit Ethernet
• SIM Support: eSIM and Nano SIM dual-slot capability
• Bluetooth: Version 5.1 with Extended Advertising
• MIMO: 2x2 DL, 1x1 UL
• GPIO: Sensor-ready 24V tolerant header
• Operating Temperature: -40C to +70C

Deploy Reliable IoT Connectivity Anywhere

Upgrade your industrial network with a compact, high-performance LTE gateway. Order today and enable secure, scalable IoT connectivity.
