The Zebra DS3678-SR3U42A0SFW is an ultra-rugged wireless 1D/2D barcode scanner featuring Bluetooth 4.0, up to 100,000 scans per charge, and IP67 sealing. Enjoy unstoppable scanning performance in any environment.

[/shortdesc]

[specifications] [/specifications]

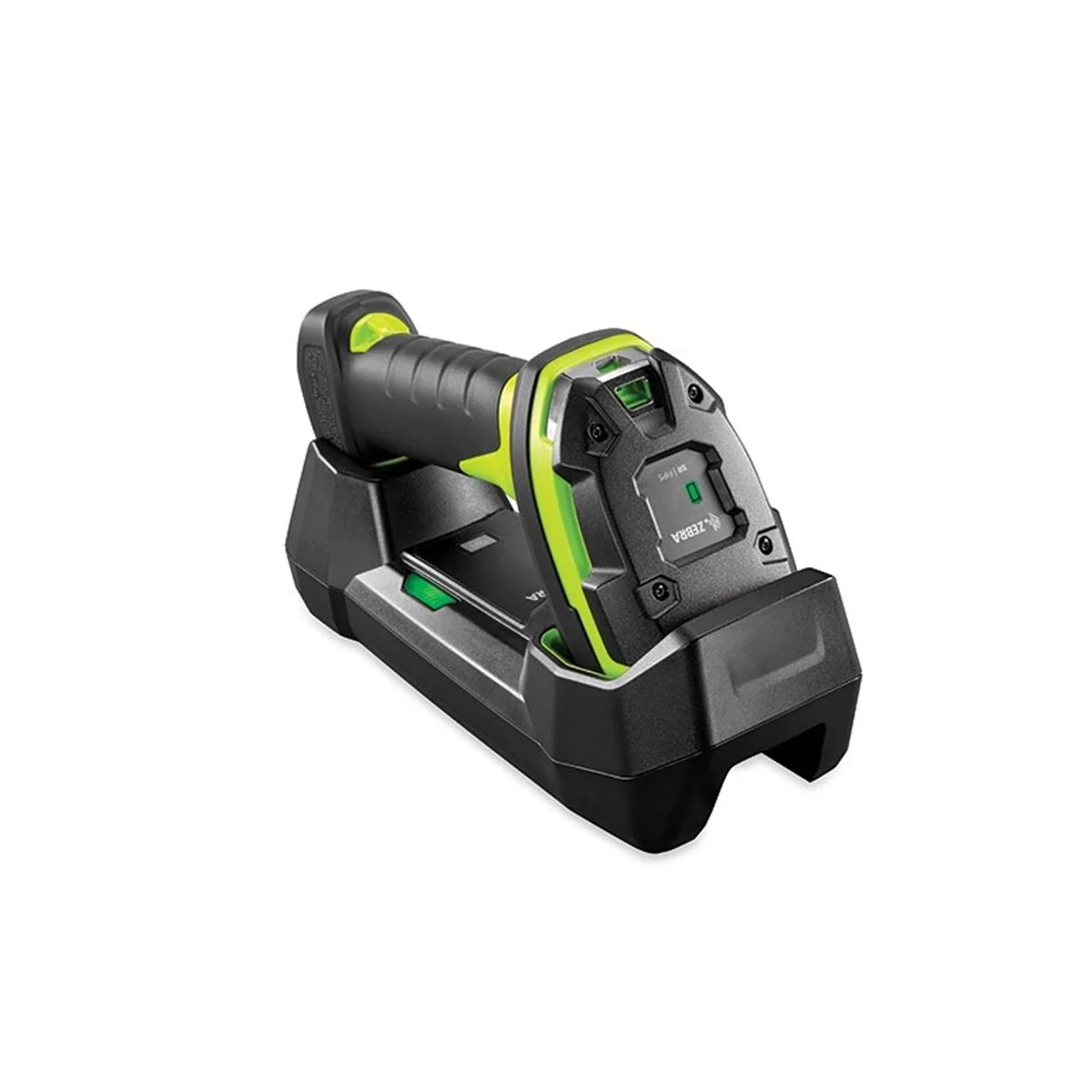

Zebra DS3678-SR3U42A0SFW Ultra-Rugged Wireless Barcode Scanner

The Zebra DS3678-SR3U42A0SFW is a high-performance cordless barcode scanner engineered for the toughest industrial environments. Designed with advanced 1D/2D imaging capabilities, it delivers lightning-fast and accurate scanning of printed or on-screen barcodes from near contact to 1.5 meters. With unmatched durability, it can withstand 8-foot drops to concrete and 5,000 tumbles, and offers IP67 sealing for full dust and water protection. Equipped with Bluetooth 4.0, a smart PowerPrecision+ battery, and Zebra’s exclusive Wi-Fi Friendly Mode, this scanner ensures maximum uptime and seamless integration into warehouse or manufacturing operations.

Key Features:

• Advanced 1D/2D barcode capture with superior range and speed
• Bluetooth 4.0 (Low Energy) with Wi-Fi Friendly Mode
• Ultra-rugged IP67 sealing – drop-proof, dustproof, and waterproof
• 5,000 tumbles and 8 ft. (2.4 m) drop rating for maximum durability
• PowerPrecision+ 3100 mAh Li-Ion battery — 100,000+ scans per charge
• Supports up to 20 barcodes in one scan with Multi-code capability
• Digimarc® support for digital watermark barcode scanning
• Triple feedback: LED, beeper, and vibration for scan confirmation
• USB cradle with IP65 rating and industrial-grade charging contacts
• Supports Zebra DataCapture DNA tools, 123Scan, and Network Connect

Technical Specifications:

• Scanner Type: Cordless 2D Imager
• Connectivity: Bluetooth 4.0 LE, USB (via cradle)
• Sensor Resolution: 1280 x 960 pixels
• Skew/Pitch/Roll: ±60° / ±60° / 360°
• Decode Capabilities: 1D, 2D, Digimarc, IUID parsing
• Print Contrast (PCS): ≥ 15%
• Scan Range: Up to 60 inches (depends on barcode type)
• Battery: PowerPrecision+ 3100 mAh Li-Ion (removable)
• Scans per Charge: 100,000+
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Humidity: 5% – 95% non-condensing
• Drop Spec: 2.4 m (8 ft) to concrete
• Tumble Spec: 5,000 tumbles @ 1 m
• Sealing: Scanner IP67; Cradle IP65
• Dimensions: 18.5 cm x 7.6 cm x 14.2 cm
• Weight: 411 g
• Included: Scanner, USB cable, charging cradle
• Certifications: RoHS, EN 60950-1, FCC Part 15 Class B, IEC 62471, IP67 rated
