[shortdesc]

• Extended range scanning up to 70 feet, Bluetooth connectivity, PowerPrecision+ battery

[/shortdesc]

[properties]

Category	Details
Connectivity Technology	Wireless
Scanning Capability	1D, 2D
Barcode Symbology Supported	1D:
	Code 39
	Code 128
	Code 93
	Codabar/NW7
	Code 11
	MSI Plessey
	UPC/EAN, I 2 of 5
	Korean 3 of 5
	GS1 DataBar
	Base 32 (Italian Pharma)
	2D:
	PDF417
	Micro PDF417
	Composite Codes
	TLC-39
	Aztec
	DataMatrix
	MaxiCode
	QR Code
	Micro QR
	Chinese Sensible (Han Xin)
	Postal Codes
	DotCode
Digimarc	Digital watermark technology
IUID Support	Supports IUID parsing, ability to read and separate IUID fields per application requirement
Image Sensor Type	Imager
Scan Pattern	Omni-directional
Scanner Range	Extended Range
Scanning Distance	8.60"
Cable Type Included	USB
Field of View (Horizontal)	42°
Field of View (Vertical)	28°
Reading Angle (Skew)	60°
Reading Angle (Pitch)	60°
Reading Angle (Roll)	360°
Drop Specification	Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Minimum Print Contrast	15%
Minimum Element Resolution (DataMatrix)	10 mil

[/properties]

[specifications]

Category	Details
Physical Characteristics
Form Factor	Handheld
Rugged	Yes
Product Color	Industrial Green
Height	7.3"
Width	3"
Depth	5.6"
Weight (Approximate)	15.38 oz
Miscellaneous
Additional Information	USB Cable separate
Ingress Protection (IP) Rating	IP67, IP65

[/specifications]

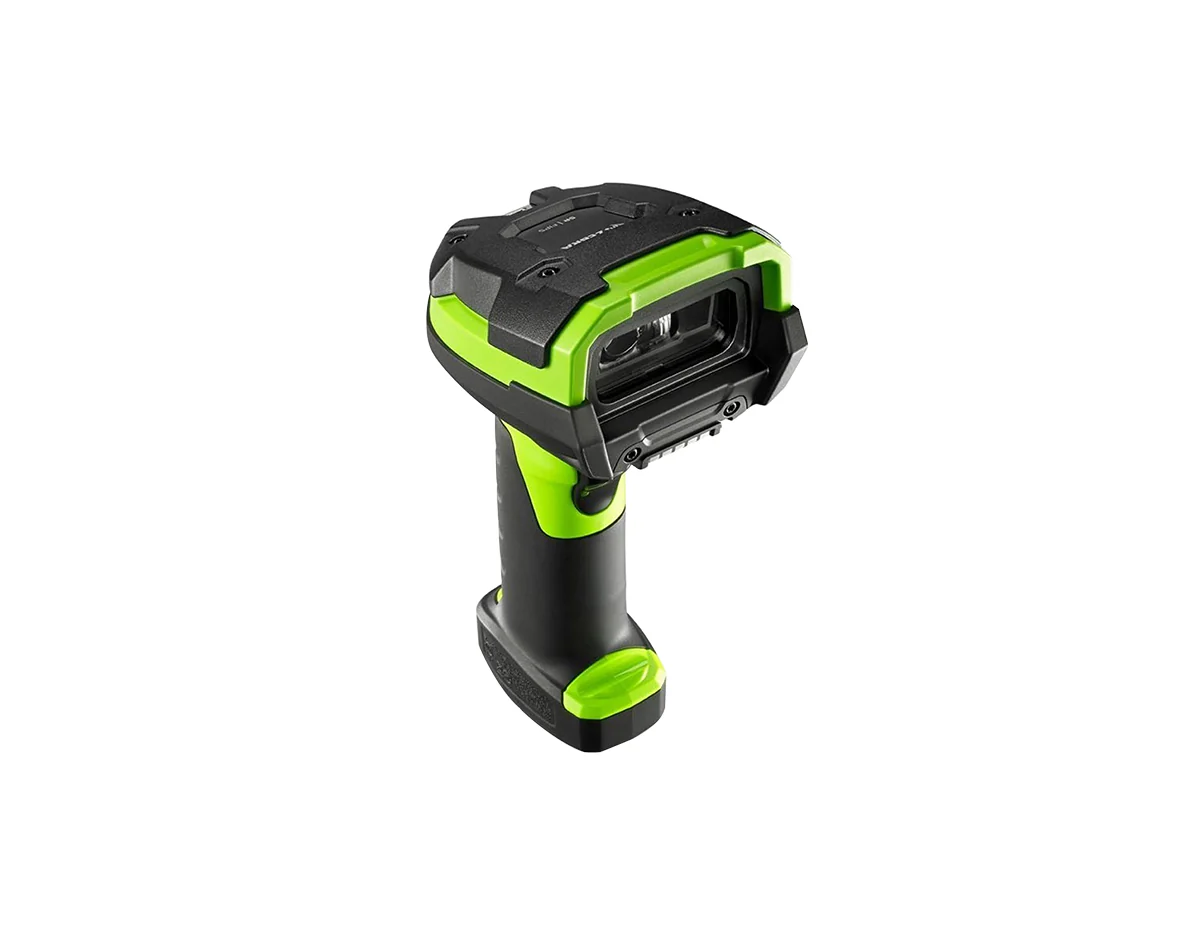

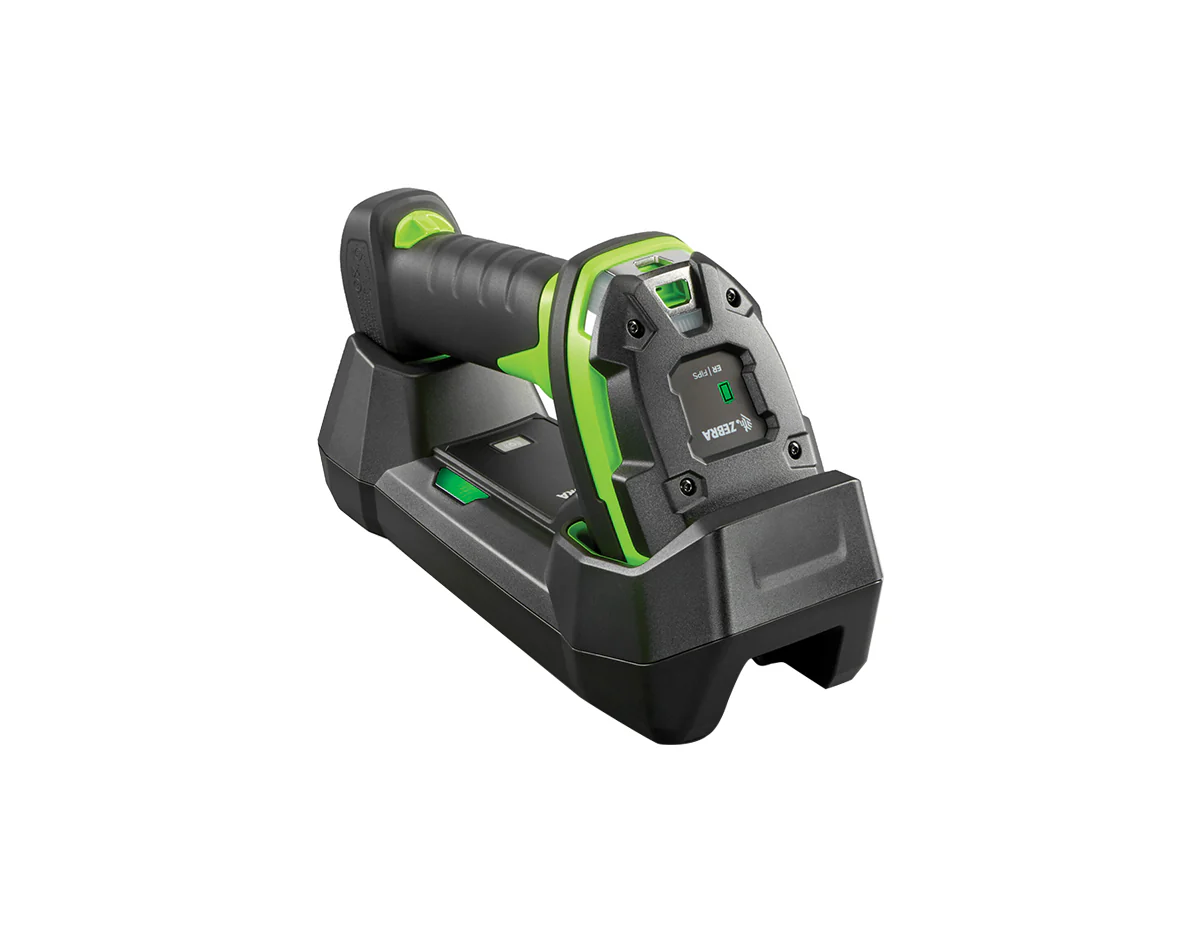

Zebra DS3678-ER3U42A2SVW Ultra-Rugged Barcode Scanner

The Zebra DS3678-ER3U42A2SVW is an ultra-rugged, cordless extended range 1D/2D imager scanner designed for industrial environments. Built to endure the toughest conditions, it captures barcodes from a near distance of 3 inches to as far as 70 feet. With superior scanning performance, it's perfect for warehouses and manufacturing settings where reliability and durability are crucial.

Product Highlights

• Extended range scanning up to 70 feet (21.4 meters)
• Unmatched rugged design with IP67 sealing
• Bluetooth connectivity for wireless freedom
• Freezer-ready and drop-resistant up to 8 feet (2.4 meters)
• Advanced PowerPrecision+ battery for longer operational time

Specifications

Category	Specifications
Scanning Range	3 inches to 70 feet (7.6 cm to 21.4 m)
Drop Specification	Survives drops from 8 feet (2.4 meters) onto concrete
Sealing	IP67 dustproof, waterproof up to 30 minutes
Connectivity	Bluetooth 4.0 (Low Energy)
Power	PowerPrecision+ battery with advanced management features
Operating Temperature	-22°F to 122°F (-30°C to 50°C)

Advanced Features

• Multi-code capturing up to 20 barcodes simultaneously
• Faster pick-list processing
• Ready for freezer environments with special accessories
• Industry-best management tools for easy configuration and monitoring
