[shortdesc] Ultra-rugged corded scanner for high-density 1D/2D barcodes. Features PRZM Intelligent Imaging, IP65/IP68 sealing, and 10 ft. (3 m) drop resistance. [/shortdesc]

[properties]

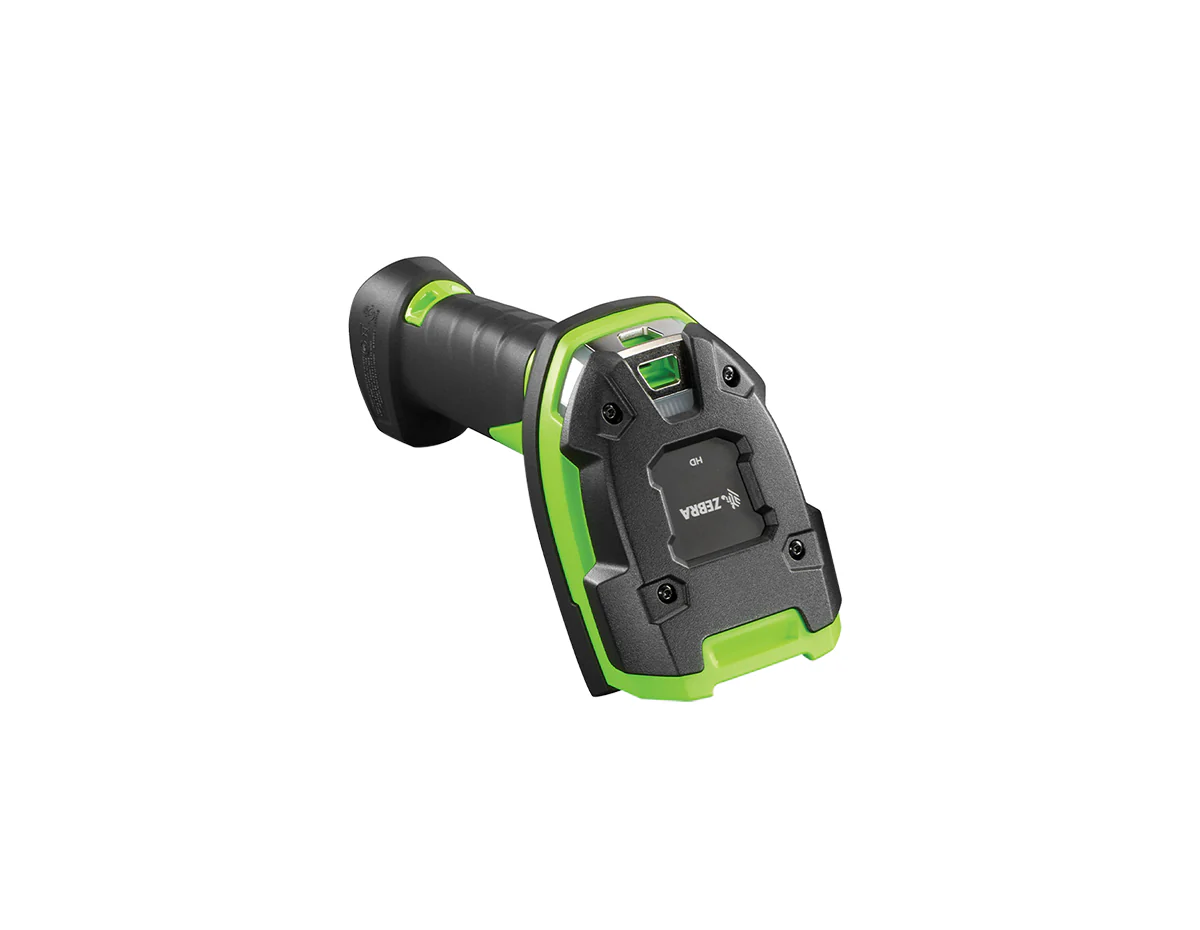

Model	Zebra DS3608-HD (Corded)
SKU	DS3608-HD3U4602VZW
Product Type	Ultra-Rugged Barcode Scanner
Scan Type	High-Density 1D/2D Imager
Image Sensor	1280 x 960 pixels
Aimer	655 nm laser
Illumination	Two warm white LEDs
Field of View	Horizontal 31 deg, Vertical 23 deg
Minimum Print Contrast	15% minimum reflective difference
Interfaces	USB, RS232, Keyboard Wedge
Industrial Ethernet	EtherNet/IP, Profinet, Modbus TCP, Std TCP/IP
Input Voltage	4.5 VDC min to 5.5 VDC max (Host Powered)
Operating Current	360 mA (RMS typical)
Standby Current	100 mA (RMS typical)
Dimensions	18.5 cm H x 7.6 cm W x 13.2 cm D
Weight	309 g
Color	Industrial Green
Drop Resistance	10 ft. (3 m) to concrete
Tumble Specification	7,500 tumbles at 1.0 m (3.3 ft)
Sealing	IP65 and IP68
Operating Temperature	-30 deg C to 50 deg C
Storage Temperature	-40 deg C to 70 deg C
Humidity	5% to 95% non-condensing
User Indicators	Direct decode indicator, LEDs, beeper, vibration

[/properties]

[specifications]

Scanning Technology	PRZM Intelligent Imaging
High-Density Support	Captures 3 mil codes barely visible to the naked eye
1D Symbologies	Code 39, Code 128, Code 93, Codabar, Code 11, MSI Plessey, UPC/EAN, GS1 DataBar
2D Symbologies	PDF417, Micro PDF417, DataMatrix, Aztec, QR Code, Micro QR, MaxiCode, Han Xin
Scanning Angles	Skew +/- 60 deg, Pitch +/- 60 deg, Roll +/- 360 deg
Decode Ranges (Typical)	Code 128 (3 mil): 5.1-7.6 cm; Code 128 (20 mil): 5.6-66.0 cm
Data Parsing	Label Parse+ for GS1 label data (expiration, lot numbers)
Multi-Code Support	Multi-Code Data Formatting (MDF) - up to 20 barcodes
Network Connectivity	Zebra Network Connect for Automation (Industrial Ethernet)
Management Tools	123Scan, Scanner Management Service (SMS)
Diagnostics	ScanSpeed Analytics and Remote Diagnostics
Safety Standards	IEC 60950-1, UL 60950-1, CAN/CSA-C22.2
EMI/RFI Compliance	EN 55022 (Class B), EN 55024, EN 61000-3-2/3
ESD Protection	+/- 25 KV air, +/- 10 KV direct/indirect discharge
Light Immunity	0 to 10,037 Foot Candles (Direct Sunlight)

[/specifications]

Unmatched Scanning Precision in Extreme Environments

The Zebra DS3608-HD is engineered for mission-critical operations where accuracy and durability are non-negotiable. Designed for manufacturing, electronics, and medical equipment production, it delivers first-time capture of ultra-dense barcodes while withstanding the harshest industrial conditions. Powered by Zebra’s PRZM Intelligent Imaging, it ensures consistent performance even on damaged, dirty, or low-quality codes.

Key Benefits & Features

• High-Density Barcode Capture: Specially optimized to read tiny and dense 1D and 2D barcodes, including 3 mil codes that are difficult to see with the naked eye.
• Ultra-Rugged Construction: The most indestructible design in its class, surviving 10 ft. (3 m) drops to concrete and 7,500 tumbles.
• Dual IP65/IP68 Sealing: Dustproof, spray-proof, and waterproof. This scanner can handle the force of jetting water and full submersion.
• PRZM Intelligent Imaging: Zebra exclusive technology that redefines imager performance, allowing for rapid-fire capture of barcodes under shrinkwrap or on high-gloss surfaces.
• Multi-Code Data Formatting: Increase throughput by capturing up to 20 barcodes with a single press of the scan trigger.
• Industrial Ethernet Support: Seamlessly connects to Industrial Ethernet networks without the need for third-party conversion equipment.

Ideal Use Cases

• Electronics and semiconductor manufacturing lines for track and trace
• Medical device production and component-level tracking
• Warehouse receiving and shipping in extreme temperature environments
• Industrial automation requiring direct connection to PLC systems
• Sub-assembly and quality control processes with high-density labels

Technical Specifications

• Scan Capability: 1D and 2D high-density barcodes and standard codes
• Imager Sensor: 1,280 x 960 pixels
• Drop Resistance: 10 ft. / 3 m to concrete

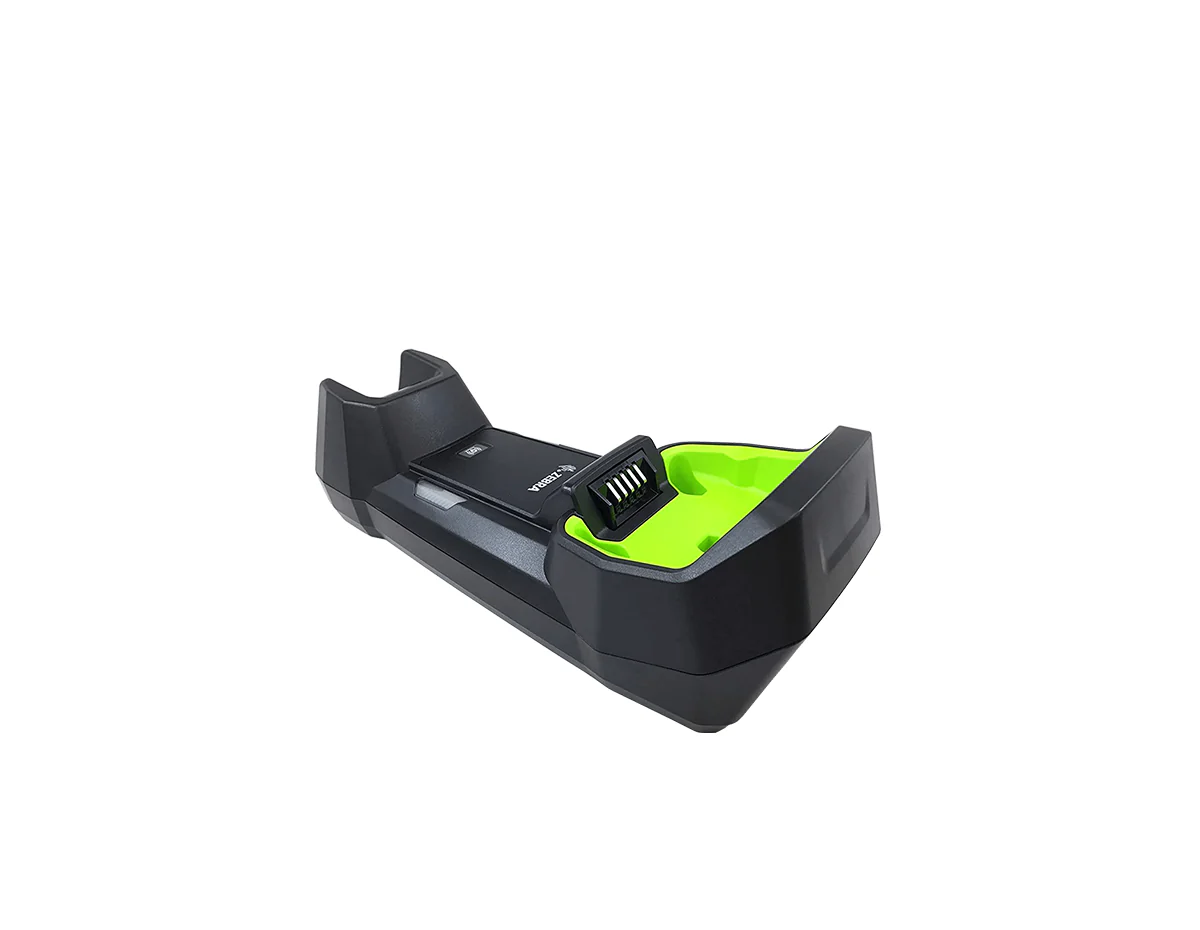

• Sealing: IP65 and IP68 (Scanner); IP65 (Cradle)
• Interfaces: USB, RS232, Keyboard Wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus)
• Scan Range: Up to 26 inches (66 cm) for 20 mil Code 128
• Operating Temperature: -30 deg C to 50 deg C (-22 deg F to 122 deg F)
• Tumble Rating: 7,500 3.3 ft. (1 m) tumbles
• Print Contrast: 15% minimum reflective difference
• Aimer: 655 nm laser

Maximize Accuracy and Uptime Today

Upgrade your operations with the Zebra DS3608-HD and ensure flawless scanning performance in any environment. Order today to eliminate errors and boost productivity.
