[shortdesc]

• Connectivity Technology: Cable, Scanning Capability: 1D/2D, Image Sensor Type: Imager

[/shortdesc]

[properties]

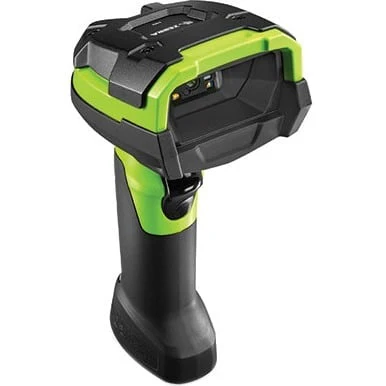

Product Name	Zebra DS3608-HD Barcode Scanner
Description	The Zebra DS3608-HD is an ultra-rugged, corded handheld scanner designed for high-density 1D/2D barcodes. It offers exceptional durability and performance for tough environments such as electronics manufacturing production lines.
Connectivity Technology	Cable
Scanning Capability	1D, 2D
Barcode Symbology Supported	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma); 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Image Sensor Type	Imager
Form Factor	Handheld
Color	Industrial Green
Height	7.3" (18.5 cm)
Width	3" (7.6 cm)
Depth	5.2" (13.2 cm)
Weight	10.90 oz (305 g)
Input Voltage	Host powered: 4.5 VDC min., 5.5 VDC max.; External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current	360 mA (RMS typical)
Standby Current	100 mA (RMS typical)
User Indicators	Direct decode indicator, LEDs, beeper, vibration

[/properties]

[specifications]

Scans per Full Charge	100,000+
Image Capture	Basic
Illumination	One (1) 660 nm LED
Aimer	610 nm LED
Imager Field of View	Horizontal: 42°, Vertical: 28°
Image Sensor Resolution	1,280 x 800 pixels
Minimum Print Contrast	15% minimum reflective difference
Skew/Pitch/Roll	Skew: ±60°, Pitch: ±60°, Roll: ±360°
Wireless Connectivity (Cordless)	Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
Data Rate	Bluetooth Classic: 3 Mbit/s (2.1 Mbit/s); Low Energy: 1 Mbit/s (0.27 Mbit/s)
Radio Range	Class 1: 300 ft. (100 m); Class 2: 30 ft. (10 m)
Decode Ranges
Code 128 (5 mil)	1.3-6.7 in. (3.3-17 cm)
Code 128 (20 mil)	2.8-28.0 in. (7.1-71.1 cm)
Code 128 (40 mil)	1.7-60.0 in. (4.4-152.4 cm)
Datamatrix (7.5 mil)	1.9-6.0 in. (4.8-15.2 cm)
Datamatrix (10 mil)	1.4-8.6 in. (3.5-21.8 cm)
Regulatory Compliance	Environmental: RoHS EN 50581: 2012; Electrical Safety: EN 60950-1, UL 60950-1, IEC 60950-1; LED Safety: IEC 62471: 2006 (Ed.1.0); EMI/RFI: EN 55022, EN 55024, EN 61000-6-2; Voltage Fluctuation: EN 61000-3-3; Medical Electrical Equipment: EN 60601-1-2

[/specifications]



Zebra DS3608-HD20003VZWW Barcode Scanner Overview

Unstoppable performance for high density 1D/2D barcodes. As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world's toughest environments - the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value - unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

Technical Information

• Connectivity Technology: Cable
• Scanning Capability: 1D, 2D
• Barcode Symbology Supported:
  • 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  • 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
• Image Sensor Type: Imager

Physical Characteristics

• Form Factor: Handheld
• Height: 7.3"
• Width: 3"
• Depth: 5.2"
• Weight (Approximate): 10.90 oz
