• Zebra DS3608-HD is a rugged wired barcode scanner designed to capture high-density 1D and 2D barcodes with precision. It features IP67 sealing, superior motion tolerance, and a durable design that withstands 8 ft drops, making it ideal for harsh industrial environments

[/shortdesc]

[specifications] [/specifications]

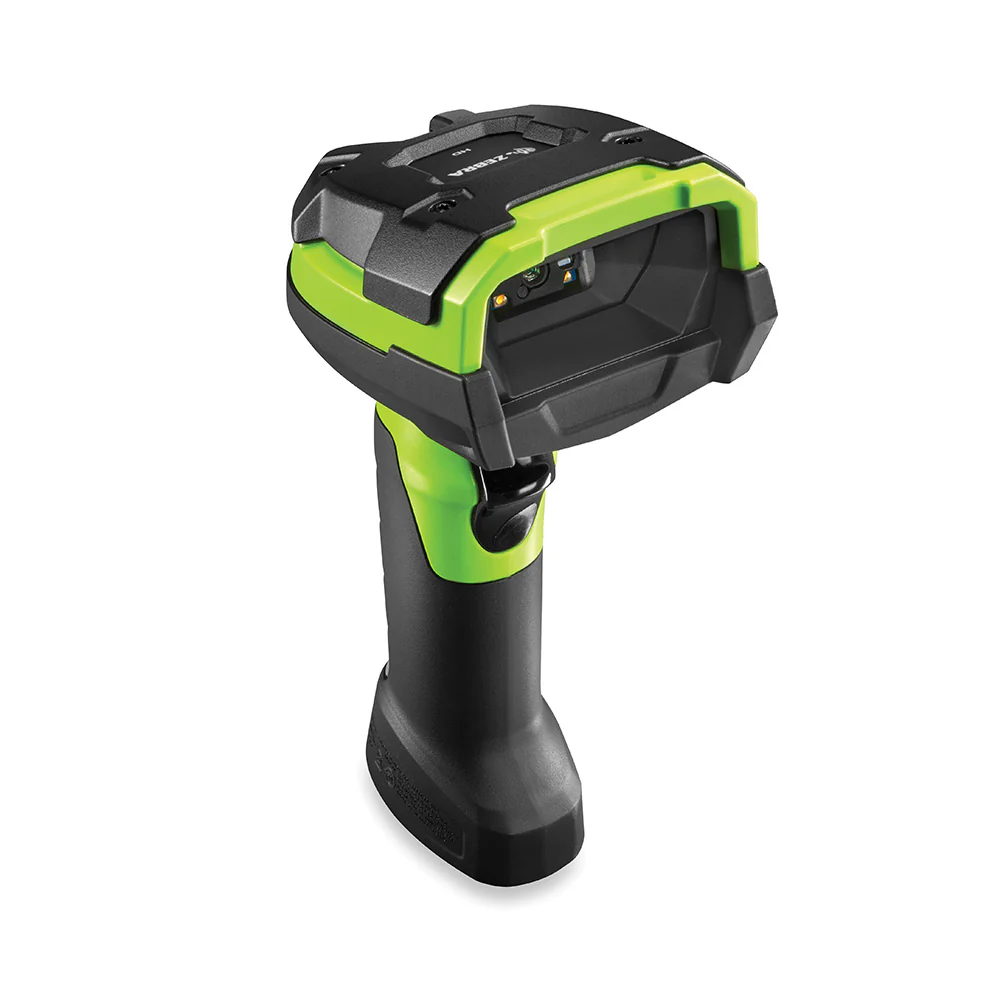

Zebra DS3608-HD Barcode Scanner Wired Rugged 1D/2D HD Imaging

The Zebra DS3608-HD is a high-performance industrial barcode scanner built for extreme reliability in manufacturing and warehouse environments. Engineered with a 1280 x 960 high-resolution sensor and Zebra’s advanced PRZM Intelligent Imaging technology, this scanner excels at capturing high-density 1D/2D barcodes even on small or poorly printed labels. With an ultra-rugged design and IP67-rated sealing, it survives 8 ft drops to concrete, resists dust and water ingress, and operates in temperatures ranging from -22°F to 122°F.

Ideal for electronics and medical equipment manufacturing, the DS3608-HD features wired USB connectivity for dependable performance. Its intuitive aim line, LED indicator, beeper, and vibration feedback ensure instant scan confirmation in noisy environments. With a scanning range up to 13.8 inches and support for a wide array of symbologies including Data Matrix, Micro QR, and PDF417, this scanner enables efficient data capture across diverse workflows.

Key Features:

• Superior Imaging: 1280 × 960 sensor and PRZM Intelligent Imaging for high-density barcode scanning
• Ultra-Rugged: Withstands 8 ft drops, 7500 tumbles, and is IP67-sealed for water and dust resistance
• Wired USB Connection: Delivers reliable, interference-free data transfer in demanding environments
• Wide Barcode Support: Scans 1D and 2D barcodes including QR, Data Matrix, PDF417, Micro QR, and more
• Multi-Feedback Alerts: Audible beeper, vibration, and bright LED ensure successful scans in noisy settings
• High Contrast Tolerance: Captures labels with as little as 15% print contrast
• Built for Harsh Conditions: Operates between -22°F to 122°F with humidity tolerance up to 95% non-condensing
• Ergonomic & Durable: Lightweight handheld form with rugged industrial green housing

Technical Specifications:

• Connectivity: Wired USB
• Sensor Resolution: 1280 x 960
• Drop Resistance: 8 ft (2.4 m) to concrete
• Scanning Distance: Up to 13.8 inches
• Minimum Bar Width: 3 mil
• Temperature Range: -22°F to 122°F (-30°C to 50°C)
• Humidity: 5% to 95% non-condensing
• Print Contrast: 15% minimum reflective difference
• Supported Symbologies: 1D, 2D, PDF417, QR, Micro QR, Data Matrix, Aztec, Codabar, MaxiCode, GS1, and more
• Weight: 10.9 oz (310 g)
• Dimensions: 7.3 in × 3 in × 5.2 in
• Sealing: IP67
• Color: Industrial green and black
• Compliance: RoHS, UL, FCC, VDE, EN, IEC certified
