[shortdesc]

• 1D/2D, Ultra-Rugged, Extended Range Imager, Zebra DataCapture DNA, IP67 Sealing, Corded

[/shortdesc]

[properties]

Properties	DS3608-ER20003VZWW
Description	Rugged, Digital Scanner, Extended Range, Corded, Industrial Green, Vibration Motor, FIPS
Product Family	ZEBRA 3600 ULTRA-RUGGED SERIES
Product Type	Barcode Scanner

[/properties] [specifications]

Specifications	DS3608-ER20003VZWW
Scanning
Type	Handheld bar code reader
Optical sensor resolution	1280 x 800 (1 Megapixel)
Scanner type	1D/2D
Sensor type	Imager
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C., Korean 3 of 5, GS1 DataBar
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39, DotCode
Wavelength	655 nm (Laser Aimer)
Tilt reading angle (Roll)	360°
Pitch reading angle	± 60°
Skew reading angle (Yaw)	± 60°
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RS-232, USB, Keyboard wedge, Industrial Ethernet (via protocols)
Performance
International Protection (IP) code	IP67
Protection features	Dust-resistant, Shock resistant, Water resistant, Spray proof
LED indicators	✓

[/specifications] [accesories]

Accessories
Cables	CBA-U46-S07ZAR - 7ft Shielded USB Straight Cable (Series A Connector) CBA-U47-S15ZAR Zebra 15ft Shielded USB Cable (Series A Connector) CBA-U45-S15ZAR - 15ft. Shielded USB Straight Cable (Power Plus Connector) CBA-U44-S15PAR - 15ft. Shielded USB Straight Cable (Series A Connector) CBA-U43-S07ZAR - 7ft. Shielded USB Straight Cable (Power Plus Connector) CBA-U42-S07PAR - 7ft. Shielded USB Straight Cable (Power Plus Connector) CBA-R71-C09ZAR - RS232 Coiled Cable (DB9 Female Connector, 9ft) CBA-R21-S15PAR - RS232 Straight Cable (DB9 Female Connector, 15ft) CBA-R07-S07PAR - RS232 Straight Cable (DB9 Female Connector, 7ft) CBA-M66-S15ZAR - Auto-Host Detect Straight Cable (15ft, 12v) CBA-M65-S07ZAR - Auto-Host Detect Straight Cable (7ft, 12v) Auto-Host Detect Straight Cable (Keyboard Wedge, 15ft) CBA-K63-S07PAR - Auto-Host Detect Cable CBA-UF2-C12ZAR - Shielded USB Coiled Cable (Series A Locking Connector) CBA-UF1-S07ZAR - Shielded USB Straight Cable (Series A Connector, 7ft, High Current) CBA-UF0-S07PAR - Shielded USB Straight Cable (Series A Connector, 7ft, Low Temp) CBA-RF3-C09ZAR- 9ft RS232 Coiled Cable CBA-RF2-C09ZAR - Zebra RS232 Coiled Cable (DB9 Female Connector, 9ft, Power Pin 9) CBA-RF1-C09PAR - RS232 Coiled Cable (DB9 Female Connector, 9ft, Low Temp) CBA-RF0-S07PAR - RS232 Straight Cable (DB9 Female Connector, 7ft, Requires 12v Power Supply) CBL-36-452A-01 - Forklift DC Power Supply Adaptor Cable CBL-DC-451A1-01 - DC Cable for 3600 Series Power Supply CBL-36-453A-01 - Filter Adapter Cable (DC Power Cord)
Cases/Holsters/Belts	21-52612-01R - Forklift Holder
Miscellaneous	50-15400-031 - Tool Balancer Pulley BRKT-MM0036W-00 - Vibrating Dampening Mounting Plate EA3600-T1CP-00 - 3600 Series Ethernet Adapter
Power Supplies	PWRS-14000-148R - 100-240 VAC Power Supply 23844-00-00R - AC Line Cord - US PWRS-14000-252R - DC Low Voltage Power Converter PWRS-14000-251R - DC High Voltage Power Converter Zebra Level VI AC/DC Power Supply Brick (PWR-BGA12V50W0WW)
Stands/Holders	STND-AS0036-07 - Adjustable Intellistand (Twilight Black)

[/accesories]

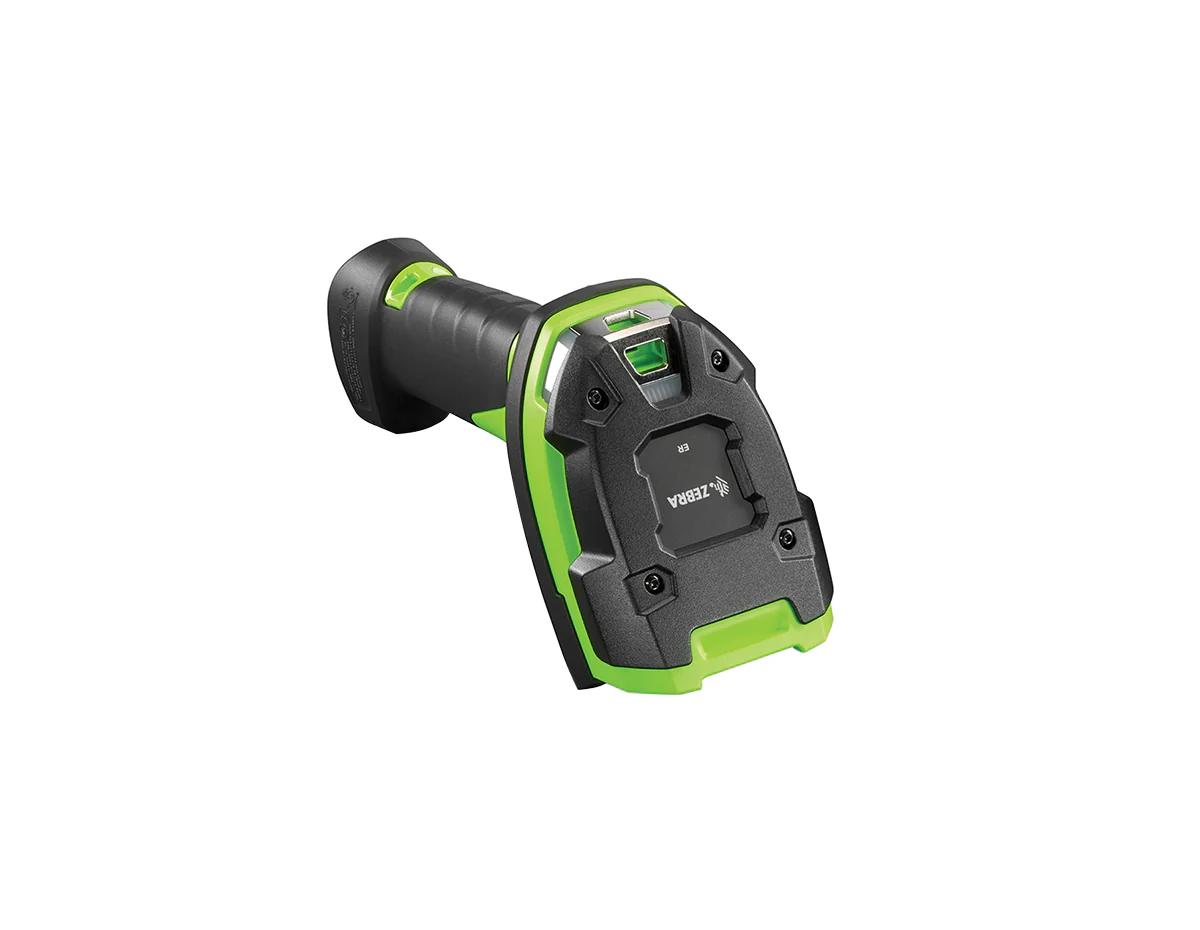

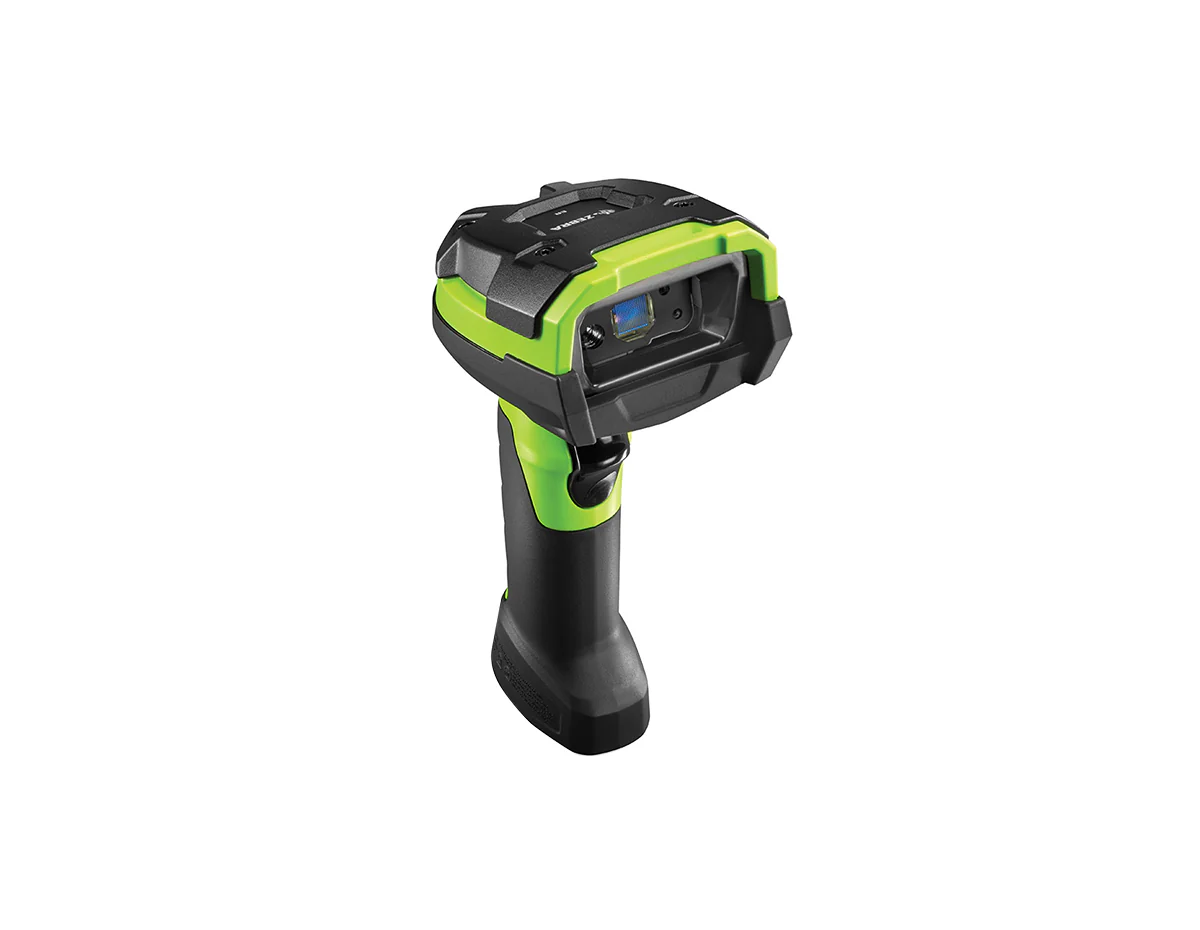

The Zebra DS3608-ER Barcode Scanner is engineered explicitly for extended-range 1D/2D barcode scanning, making it an ideal choice for warehouse and manufacturing settings. It is tailored to address the rigorous requirements of these environments, offering exceptional performance to boost operational efficiency. Crafted with materials that are resistant to extreme cold, the DS3608-ER is constructed using specialized plastics, cables, and components that maintain their durability even in freezing conditions, enabling use in freezers and outdoor yards. This corded model ensures continuous operation without the need for battery management.

Quick Specs:

• 1D/2D Imager
• Ultra-Rugged / IP67
• Zebra DataCapture DNA
• Corded Connectivity
• Extended Range (ER)

Please see the related tabs for the DS3608-ER20003VZWW properties, specifications and compatible accessories tables.
