• Fast scan speeds up to 35 ppm/70 ipm, Ultrasonic Double Feed Detection

[/shortdesc]

[properties]

Category	Details
Scanner Type	Sheetfed Scanner
Optical Resolution	600 DPI x 600 DPI (Horizontal x Vertical)
ADF Minimum Document Size	50.8 mm x 50.8 mm (Horizontal x Vertical)
ADF Maximum Document Size	215.9 mm x 609.6 mm (Horizontal x Vertical)
Paper Formats	A4 (21.0x29.7 cm), A5 (14.8x21.0 cm), A6 (10.5x14.8 cm), B5, B6, Letter, Postcard, Business cards, Plastic cards, Legal, Executive, A3 with stitching function
Scanning Color Depth	Input: 30 Bits Color / 10 Bits Monochrome, Output: 24 Bits Color / 8 Bits Monochrome
Ultrasonic Sensor	Yes
Category	General Office
Scanner Light Source	ReadyScan LED technology
Output Resolution	1200 DPI
Scan Speed	Scanning Speed: Monochrome: 35 pages/min; Color: 35 pages/min (A4, 200/300 dpi); Monochrome: 70 image/min; Color: 70 image/min (A4, 200/300 dpi)
Paper / Media Handling
Paper Setting Capacity	50 Sheets
Paper Weight	Auto loading: 27 - 413 g/m²
Automatic Document Feeder Type	Single pass dual scanning
Reliability Daily Duty Cycle	4,000 pages
Automatic Document Feed	50 pages
Duplex Scan	Yes

[/properties]

[specifications]

Category	Specifications
Type	Sheet-fed, one pass duplex color scanner
Sensor Type	Color Contact Image Sensor (CIS)
Light Source	RGB LED
Optical Resolution	600 dpi
Maximum Interpolated Resolution	1200 dpi
Color Scan Mode (Bit Depth)	30-bit input/24-bit output
Grayscale Scan Mode	10-bit input/8-bit output
Buttons	Double Feed Detect Skip, Slow Scan Mode, Scan, Stop
Auto Document Feeder	Capacity: 50 sheets paper; Document Size: 8.5" x 240" max., 2" x 2" min.; Paper Weight: 27 – 413 g/m²
Scan Speed (Letter-size)	35 ppm/70 ipm: 300 dpi Black & White, Color, Gray
Connectivity	SuperSpeed USB 3.0, optional Network Interface Unit (RJ-45, 10BaseT/100BaseTX)
Daily Duty Cycle	Up to 4,000 sheets scanned per day
Consumables	Roller assembly kit: 200,000 cycles
System Requirements	Windows® 7, 8/8.1, 10; Mac OS® X 10.6.8 – 10.11.x; Software requires Internet connection for download and installation.
Environmental Conditions	Temperature (Operating): 41 ° to 95 °F (5 ° to 35 °C); Storage: -13 ° to 140 °F (-25 ° to 60 °C); Humidity (Operating): 15 – 80% (no condensation)
Power Requirements	Voltage: AC 100-240 V; Power Consumption: Operation: 17 W; Sleep: 1.2 W; Ready: 9.2 W; Off: 0.1 W
Country of Origin	Indonesia
Weight and Dimensions (W x D x H)	Product only: 296 x 169 x 176 mm; 3.7 kg
Software Included	Epson Scan 2, Document Capture Software, NewSoft® Presto! BizCard® OCR, EMC® Captiva® ISIS (software requires Internet connection for download and installation)
Driver Support	TWAIN, ISIS
What’s in the Box	DS-530 Color Document Scanner, SuperSpeed USB cable, AC adapter and power cable
Eco Features	RoHS compliant
Ordering Information	DS-530 B11B226502; Network Interface Unit B12B808461; Carrier Sheets (5) B12B819051; Roller Assembly Kit B12B819031; Flatbed Scanner Dock B12B819011; Cleaning Kit B12B819291

[/specifications]

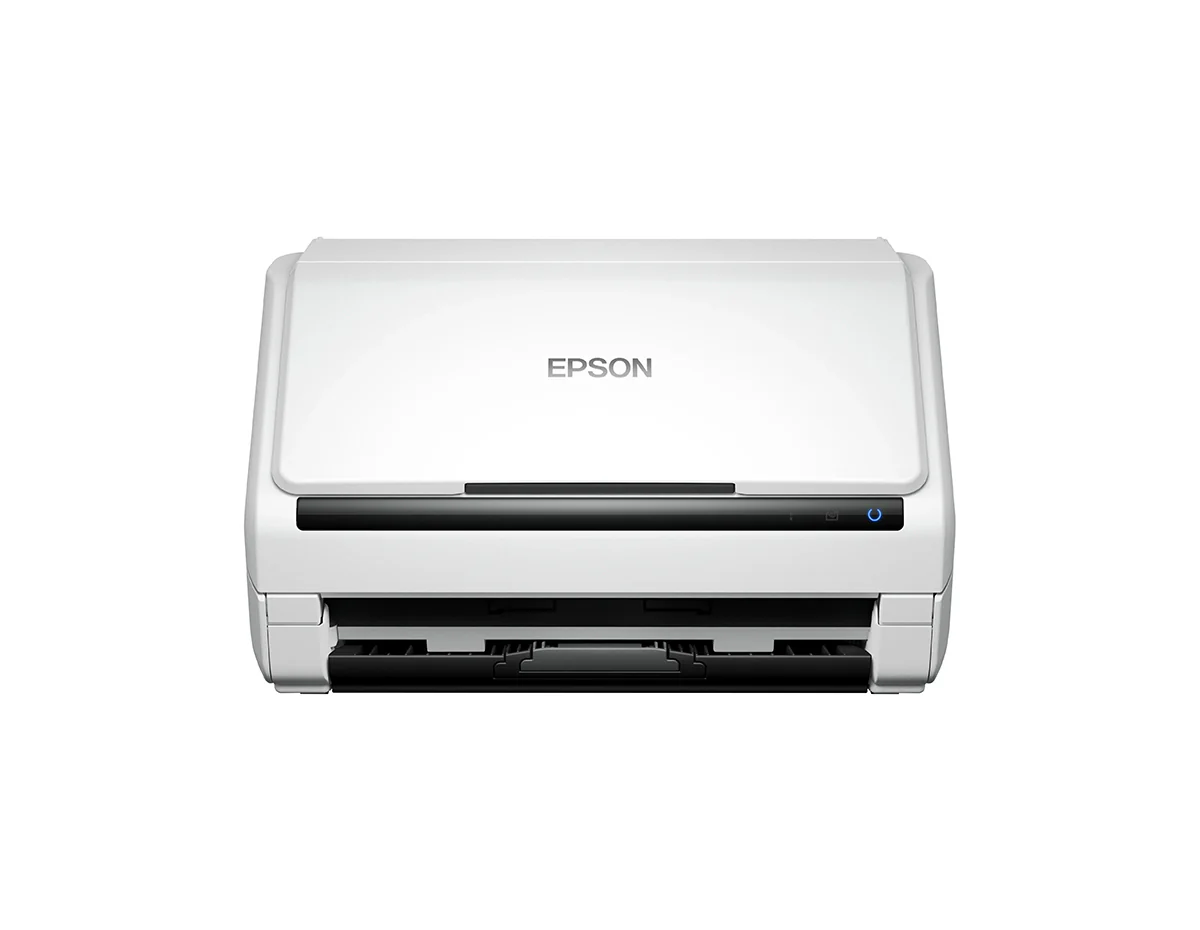

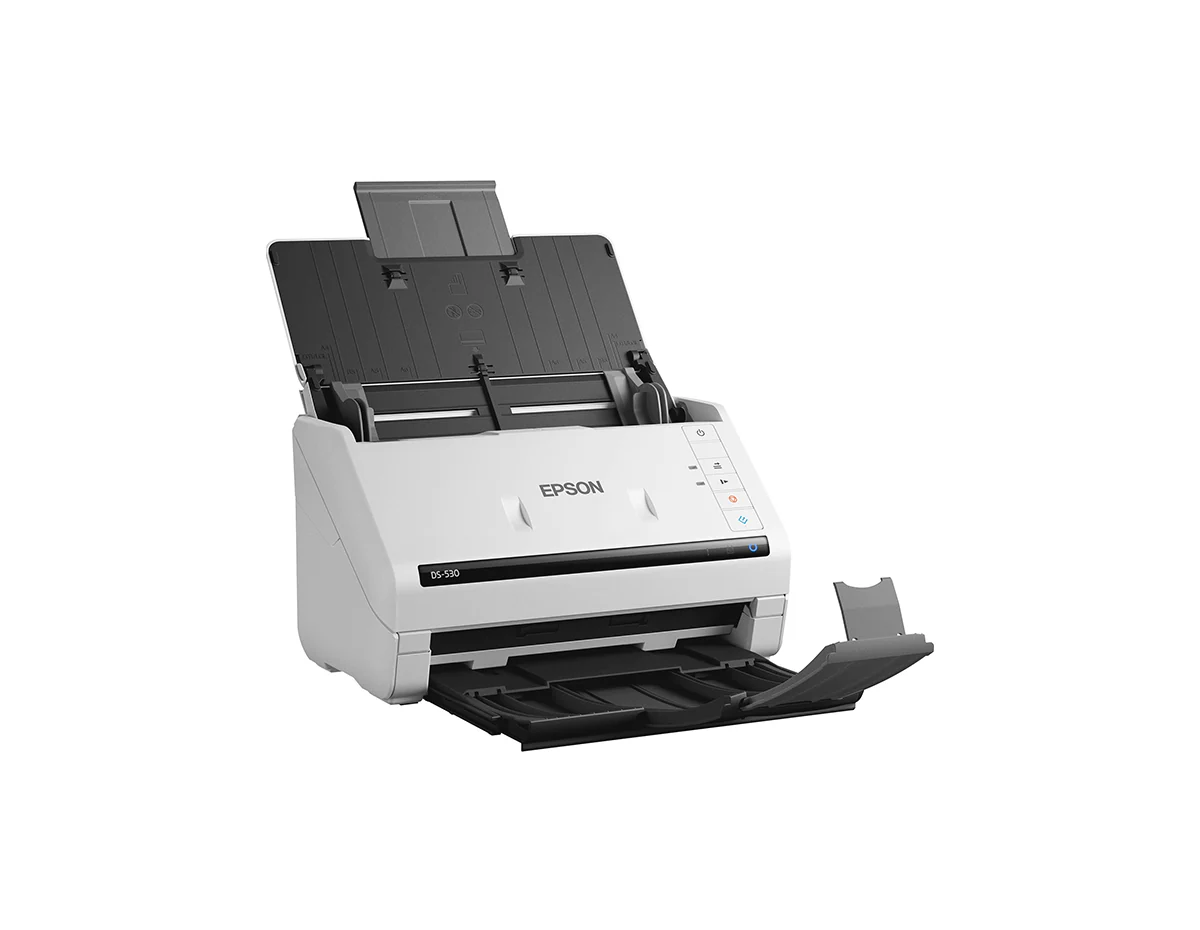

Epson DS-530 Color Duplex Document Scanner

The Epson DS-530 Color Duplex Document Scanner is a high-performance document scanner designed for efficient document management. With fast scan speeds of up to 35 ppm/70 ipm and seamless compatibility with document management systems, this scanner is an ideal choice for businesses looking for reliable and intelligent scanning solutions.

Product Highlights

• Fast scan speeds up to 35 ppm/70 ipm
• One-pass duplex scanning
• Seamless compatibility with TWAIN and ISIS drivers
• Dynamic Skew Correction with three sets of rollers
• Ultrasonic Double Feed Detection
• 50-page Auto Document Feeder (ADF)
• Enhanced features including Slow Speed Mode and programmable jobs
• Daily duty cycle of up to 4,000 sheets
• Scan to editable Word and Excel files or searchable PDF files
• Intelligent color and image adjustments
• Versatile paper handling for business and ID cards, single sheets, and extra-long pages
