[shortdesc]20-port switch, Gigabit Ethernet, SmartPro, PoE, Link Aggregation, VLAN, QoS, IPv6 support, Web smart management, Energy-efficient. [/shortdesc]

[properties]

Properties	DGS-1510-20
Description	Gigabit Stackable Smart Managed Switches
Product Family	DGS-1510 Series
Product Type	Switch
Advanced Features	• Physical stacking of up to 6 devices via two 10G ports • Ethernet Ring Protection Switching (ERPS) • Static Routing • Auto Surveillance VLAN • Auto Voice VLAN • Loopback Detection • LLDP/LLDP-MED
Security Features	Access Control List (ACL) • D-Link Safeguard Engine • BPDU Attack Protection • ARP Spoofing Prevention • IP-MAC-Port Binding • DoS Attack Prevention • Clientless MAC/Web Access Control

 [/properties] [specifications]

Specifications	DGS-1510-20
Technical Specifications
Hardware Version	A1
Port Standards & Functions	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation
Number of Ports	16 x 10/100/1000 Mbps, 2 x Gigabit SFP, 2 x 10G SFP+
Network Cables	UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex	Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed
Media Interface Exchange	Auto or configurable MDI/MDIX
Performance
Switching Capacity	76 Gbps
Transmission Method	Store-and-forward
MAC Address Table	Up to 16,384 entries per device
MAC Address Update	Up to 512 static MAC entries Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate	56.54 Mpps
Packet Buffer Memory	1.5 MB per device
MTBF	882,152 hours
Physical & Environment
AC Input	100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption	20.3 W
Standby Power Consumption	12.2 W
Smart Fan Quantity	1 x smart fan
Acoustics	43.8 dB(A)
Heat Dissipation	41.602 BTU/hr
Operation Temperature	-5 to 50 ˚C (23 to 122 ˚F)
Storage Temperature	-20 to 70˚C (-4 to 158 ˚F)
Operation Humidity	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing
Dimensions	280 x 180 x 44 mm
Weight	1.24 kg
Diagnostic LEDs	Power/Stacking ID/Fan (per device), Link/Activity/Speed (per 10/100/1000 Mbps port), Link/ Activity/Speed (per Gigabit SFP port), Link/Activity/Speed (per 10G SFP+ port)
Certifications	CE, FCC, C-Tick, VCCI, BSMI, CCC, IPv6 Ready Logo Phase 2
Safety	cUL, CB

[/specifications] [accesories] [/accesories]

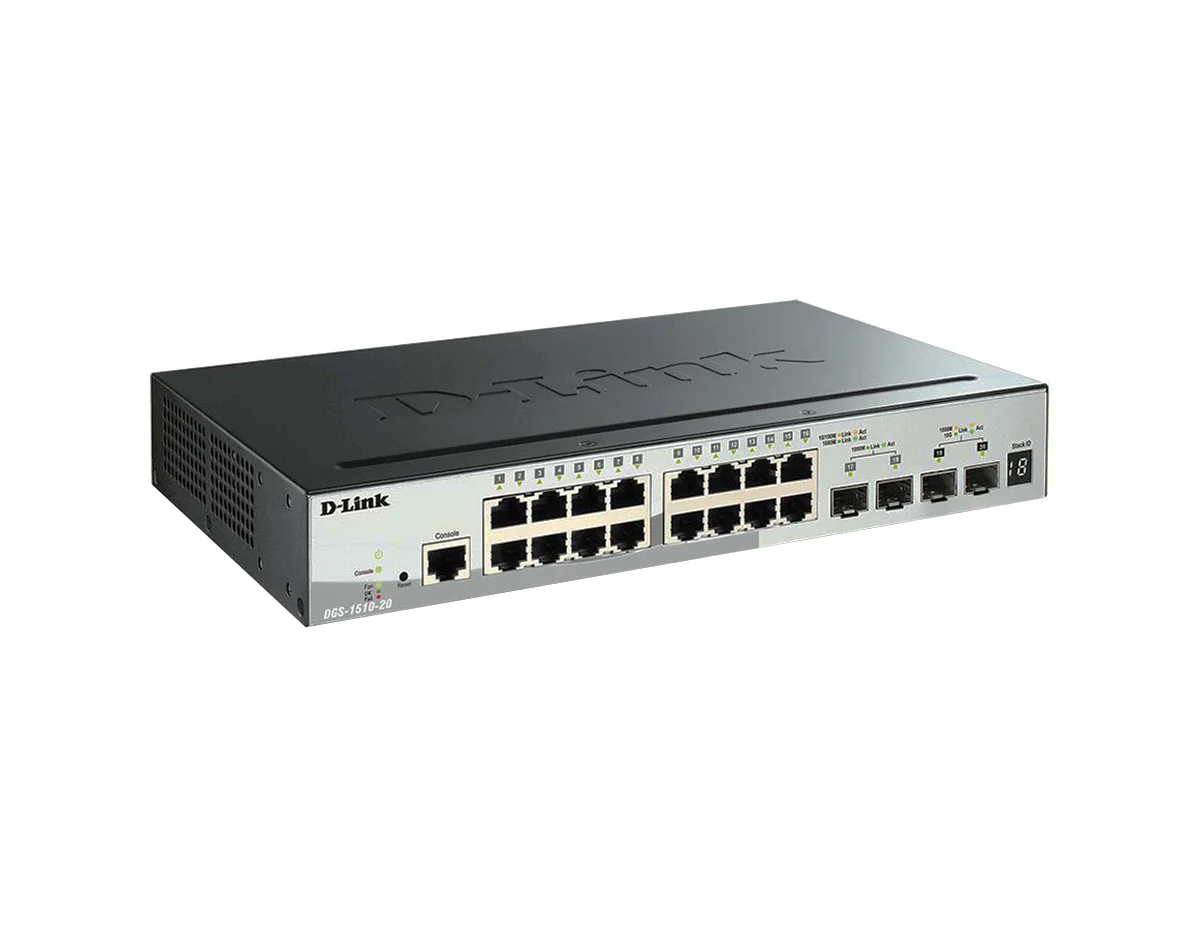

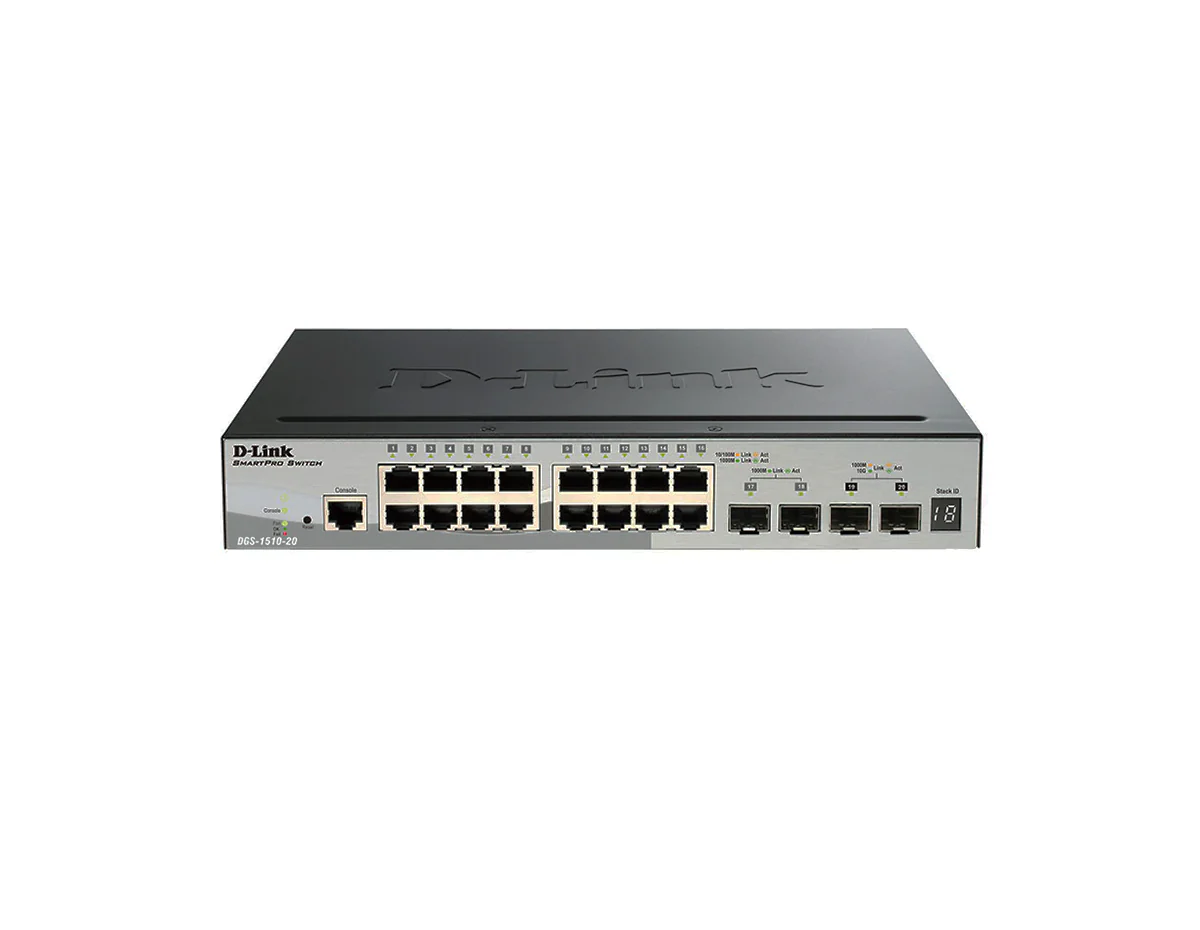

D-Link DGS-1510-20 Switch

The D-Link DGS-1510-20 is a 20-port Web Smart switch designed for small and medium-sized businesses, offering advanced functionality and high performance. It is equipped with 16 Gigabit Ethernet ports and 4 Gigabit SFP ports, this switch ensures rapid and dependable network connectivity. Its Web Smart management interface facilitates network setup and administration, incorporating capabilities like Port Mirroring, Spanning Tree Protocol (STP), and support for IPv6. Additionally, the DGS-1510-20 includes L2/L3/L4 ACL to bolster security and integrates D-Link Green Technology to optimize energy efficiency.

Quick Specs:

• 16x 10/100/1000 Mbps ports
• 2x Gigabit SFP ports uplink
• 2x 10G SFP+ ports uplink
• Switching capacity: 76 Gbps
• Static Routing and MSTP

Please see the related tabs for the DGS-1510-20 datasheet and compatible accessories.
