[shortdesc]

• Ports: 1 USB-C, 2 USB-A 3.1 Gen 2, 1 HDMI 2.0, 1 DisplayPort, 1 VGA, 1 RJ45, Offers 4K resolution at 60Hz through HDMI and DisplayPort, and 4K at 30Hz via USB-C with HDR support, Supports power pass-through of up to 90W via USB-C, enabling charging while in use.

[/shortdesc]

[properties]

Product: Dell USB-C Mobile Adapter – DA310

Connectivity technology: Wired

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Ethernet LAN data rates: 10/100/1000 Mbit/s

Product colour: Silver

Maximum digital resolution: 3840 x 2160 pixels

Maximum analog resolution: 1920 x 1080 pixels

Power supply: 90 W

Power cable length: 0.12 m

Operating systems supported: Apple MacOS, Red Hat Enterprise Linux, Ubuntu, Google Chrome OS, Windows 10 (64-bit), Windows 11 64-bit

 [/properties]

[specifications]

Ports & Slots

RJ-45

USB-A 3.1 Gen2

USB-A 3.1 Gen2

USB-C (Multifunctional with up to 90W power pass through, 4K@30Hz, USB 3.1 Gen2)

HDMI 2.0 (up to 4K@60Hz)

VGA

DisplayPort (up to 4K@60Hz)

Please note: Only one video output is supported at a time.

Operating systems supported: Apple MacOS, Red Hat Enterprise Linux, Ubuntu, Google Chrome OS, Windows 10 (64-bit), Windows 11 64-bit

[/specifications]

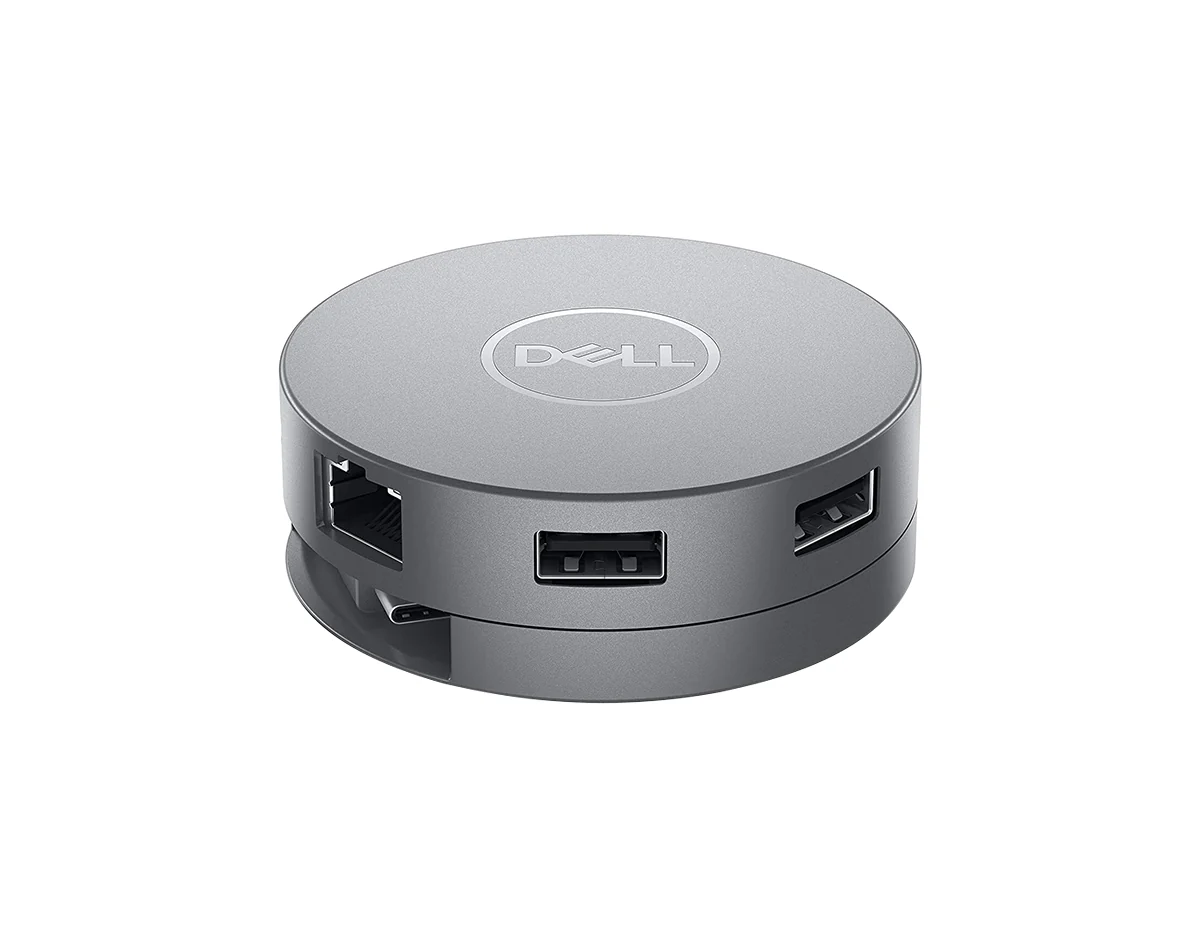

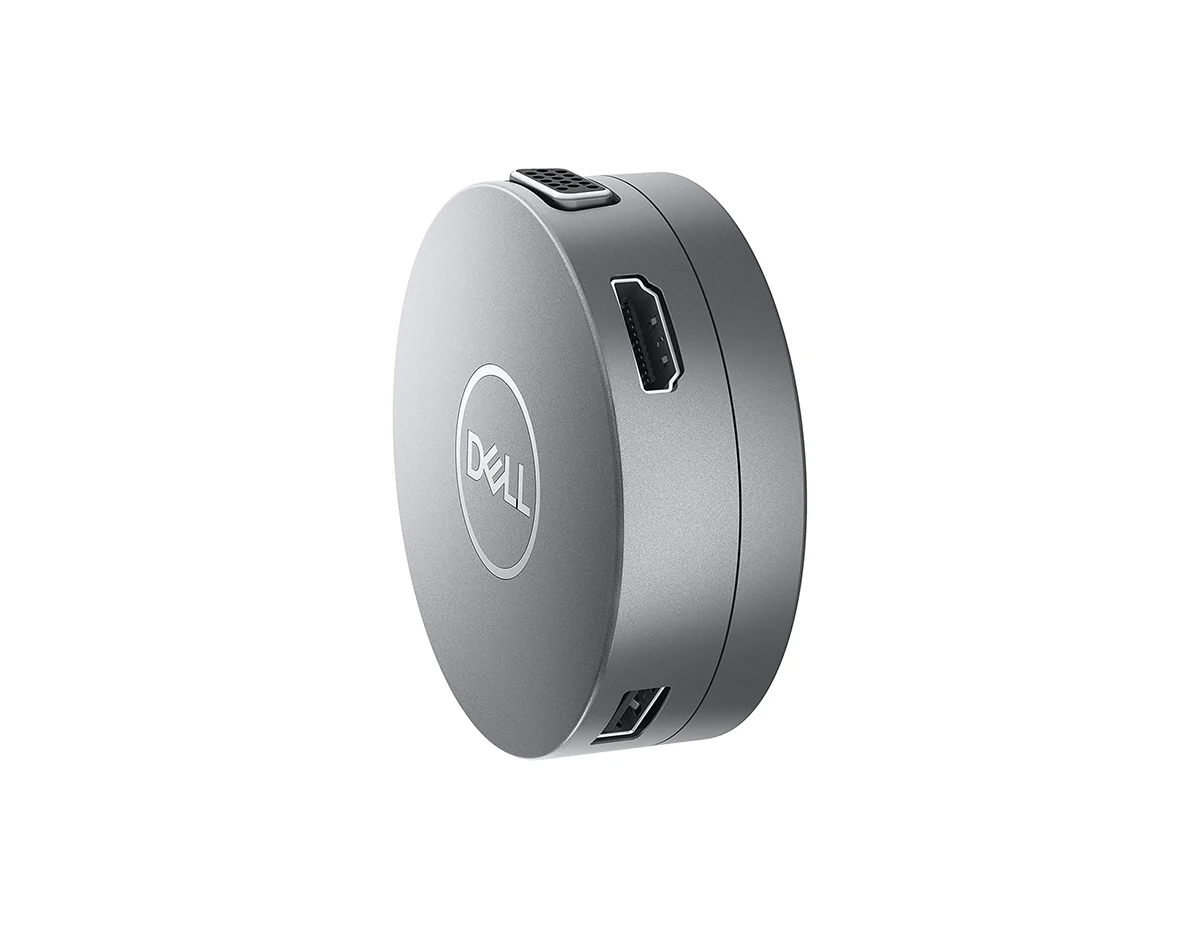

Dell USB-C Mobile Adapter - DA310

The Dell USB-C Mobile Adapter - DA310 is a versatile 7-in-1 multiport adapter designed for enhanced connectivity on the go. It features a multifunctional USB-C port that supports data transfer, display, and power pass-through of up to 90W, allowing seamless connection to a wide range of devices. The adapter supports 4K resolution at 60Hz via HDMI or DisplayPort and offers super-speed data transfers of up to 10Gbps through two USB-A and one USB-C downstream ports. With its compact and portable design, the DA310 is ideal for professionals who require connectivity and portability in a single solution.

Key Features:

• 7-in-1 Connectivity: Provides a variety of ports including 1 USB-C, 2 USB-A, 1 HDMI, 1 DisplayPort, 1 VGA, and 1 RJ45.
• Power Pass-Through: Supports power pass-through of up to 90W via USB-C, enabling charging while in use.
• 4K Video Support: Offers 4K resolution at 60Hz through HDMI and DisplayPort, and 4K at 30Hz via USB-C with HDR support.
• Compact and Portable: Features a patented retractable USB-C cable for easy storage and transport, making it highly portable.
• Enterprise Features: Includes MAC address pass-through, PXE Boot, and Wake-On-LAN for advanced enterprise use with Dell PCs.

Technical Specifications:

• Dimensions: 69.8 mm x 24.5 mm (2.75 in x 0.96 in)
• Weight: 80g (0.18 lbs)
• Ports: 1 USB-C, 2 USB-A 3.1 Gen 2, 1 HDMI 2.0, 1 DisplayPort, 1 VGA, 1 RJ45
• Data Transfer: USB-A 3.1 Gen 2 and USB-C 3.1 Gen 2 support up to 10Gbps
• Video Output: 4K@60Hz via HDMI/DisplayPort, 4K@30Hz via USB-C
• Network: Gigabit Ethernet (RJ45)
• Operating Systems: Windows 10 64-bit, MAC, Ubuntu, Chrome, RHEL
