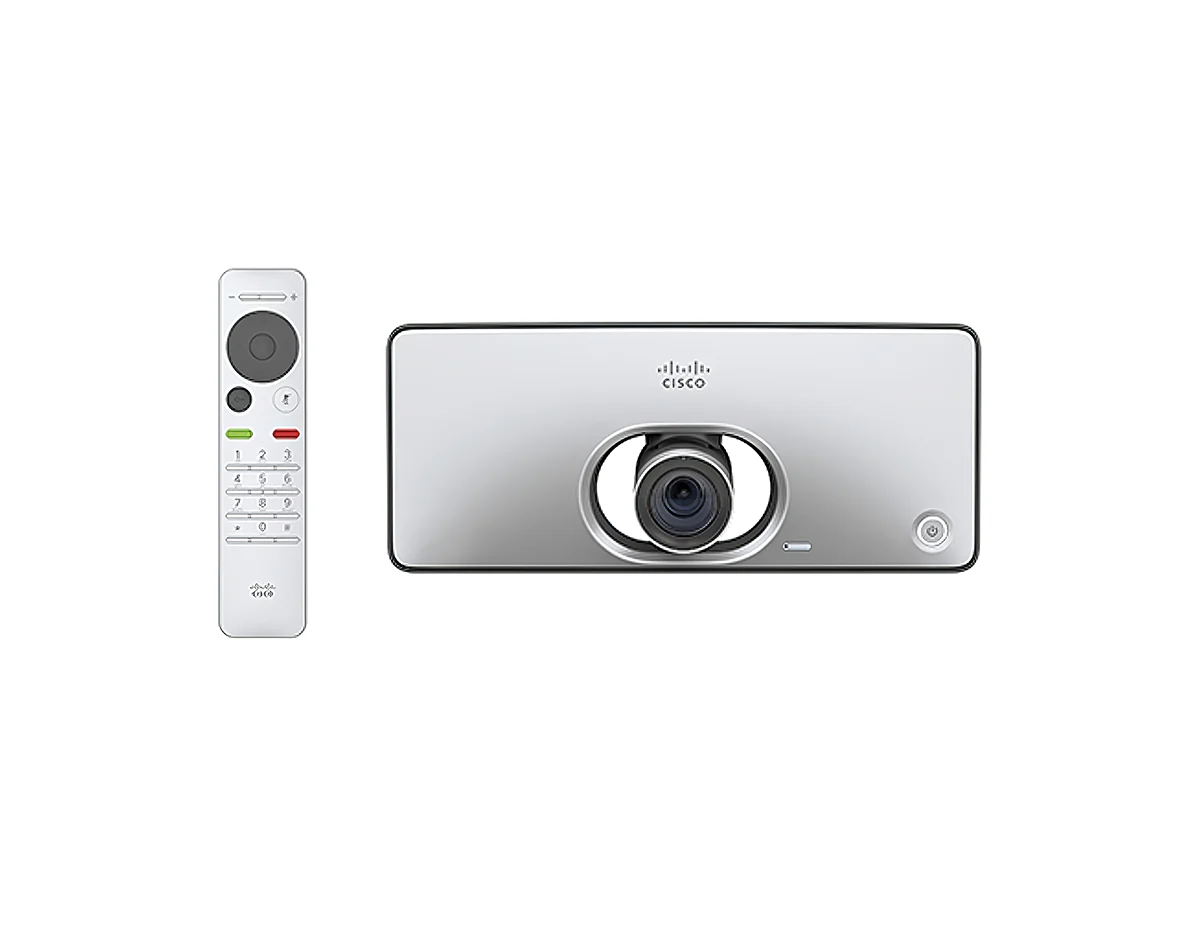

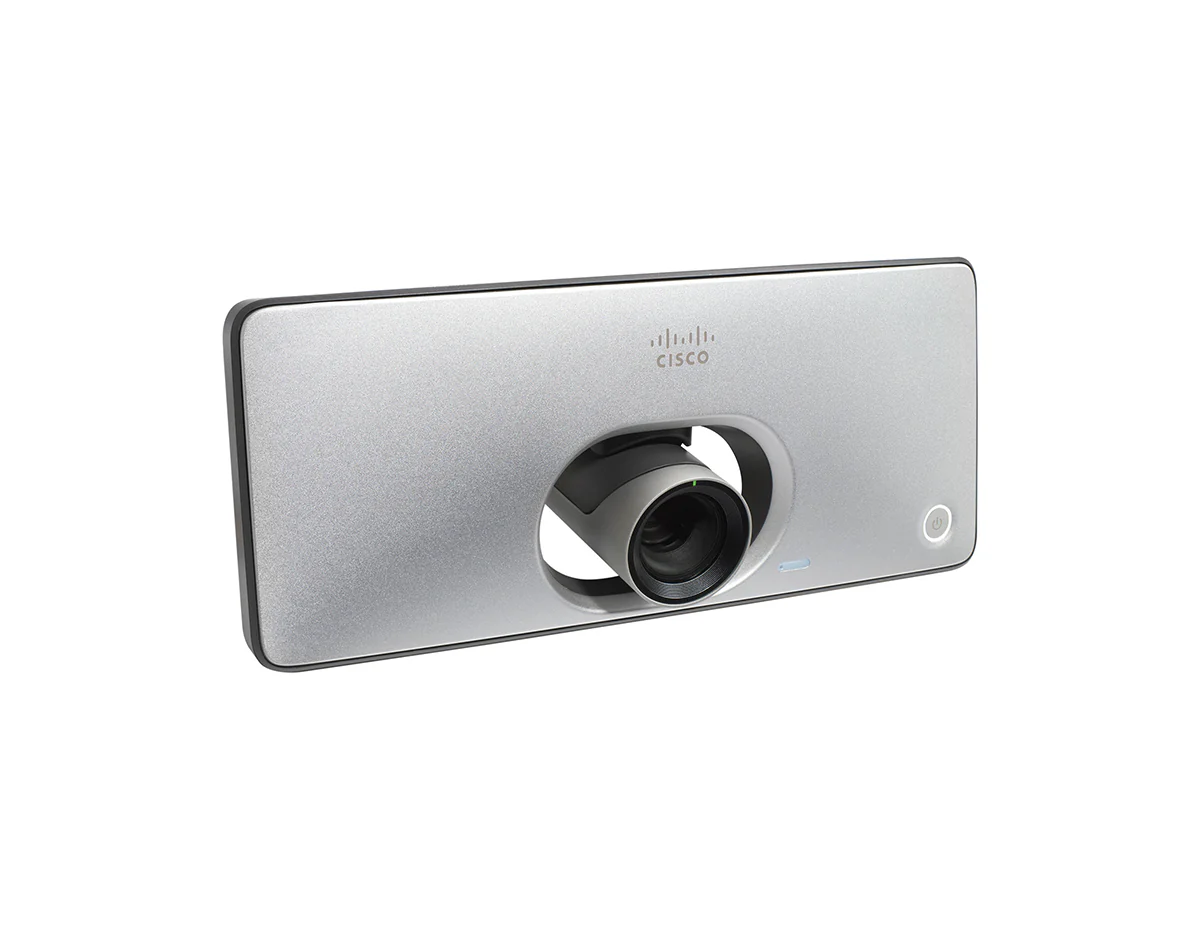

Cisco CTS-SX10N-K9 Video Conferencing Device
[shortdesc]
- Video conferencing device
[properties]
| Properties | CTS-SX10N-K9 |
| Description |
The Cisco SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with video conferencing.
|
| Product Family | Catalyst 9800-L Series |
| Product Type | Wireless Controller |
| Interfaces | ● One PoE-enabled LAN connector (RJ-45) 100-Mbit ● One USB port for future usage ● One Micro USB port for debugging ● TRC6 remote control and on-screen Graphical User Interface ● Optional Cisco Touch 10 control unit |
| Integrated HD camera | ● 5x zoom (2.65 optical and digital zoom) ● +5°/-25° tilt, +/-30° pan ● 51.5° vertical field of view ● 83° horizontal field of view ● F-value from 2.1 ● 1920 x 1080 pixels progressive @ 30 fps ● Automatic or manual focus, brightness, and white balance ● Far-end camera control ● Automatic flipping of picture when upside down |
| Power | ● PoE enabled ● Auto-sensing power supply ● 100 - 240 VAC, 50/60 Hz ● Maximum 12 watts in normal operation |
| Software compatibility | ● Cisco TelePresence Software Version TC 7.1 or later ● Cisco Collaboration Endpoint Software Version 8.0 or later |
| Language support |
English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish; depends on software version
|
| Video standards | ● H.263, H.263+, and H.264 |
| Video inputs | Two video inputs (HDMI or VGA selectable through user interface) Supported Formats: ● 640x480 (VGA) ● 720x480 ● 704x576 (4CIF) ● 800x600 (SVGA) ● 848x480 ● 1024x768 (XGA) ● 1152x864 (XGA+) ● 1280x720 (720p) ● 1280x768 (WXGA) ● 1920 x 1080@30 (HD1080p) Extended Display Identification Data (EDID) |
| Video output | HDMI Output Supported Formats: ● 1920 x 1080@60 fps (1080p60) VESA Monitor Power Management Extended Display Identification Data (EDID) |
| Live video resolutions | Live Video Resolutions (Encode and Decode): ● 176 x 144@30 (QCIF) (Decode only) ● 352 x 288@30 (CIF) ● 512 x 288@30 (w288p) ● 576 x 448@30 (448p) ● 768 x 448@30 (w448p) ● 704 x 576@30 (4CIF) ● 1024 x 576@30 (w576p) ● 640 x 480@30 (VGA) ● 800 x 600@30 (SVGA) ● 1024 x 768@30 (XGA) ● 1280 x 768@30 (WXGA) ● 1280 x 720@30 (HD720p) ● 1920 x 1080@30 (HD1080p) |
| Audio standards | ● 64 kbps MPEG4 AAC-LD, OPUS, G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729 |
| Audio features | ● High-quality 20-kHz mono ● Two acoustic echo cancellers ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization |
| Audio inputs | ● One internal microphone ● One external microphone, 4-pin mini-jack (Table Microphone 20 or Cisco Ceiling Microphone) ● One HDMI audio-in |
| Audio outputs | ● One line out, mini-jack ● One HDMI, (digital main audio) |
| Dual stream | ● H.239 (H.323) dual stream (CE8.2 or later) ● BFCP (SIP) dual stream ● Resolution up to 1080p5 (CE8.0 or later) |
| Dimensions in. | 10.8 x4.6 x 3.6 |
| Operating temperature | ● 0° to 40°C (32° to 95°F) |
[/properties][specifications]
| Bandwidth | ● Up to 3 Mbps |
| Minimum bandwidth for resolution/frame rate | ● 720p30 from 768 kbps ● 1080p30 from 1472 kbps |
| Firewall traversal |
● Cisco TelePresence Expressway Technology
|
| System management |
● Total management using embedded Telnet, SSH, XML, and SOAP
● Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS ● Remote control and on-screen menu system |
| Directory services |
● Support for local directories (My Contacts)
● Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS]) ● Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite) ● Call History with received, placed, and missed calls with date and time |
| Protocols | ● H.323, SIP ● H.323 (CE8.2 or later) |
| Multipoint support |
● Cisco Ad-Hoc Conferencing (requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor)
|
| Embedded encryption |
● SIP/H.323 point-to-point (H.323 with CE8.2 or later)
● Standards-based: Advanced Encryption Standard (AES) ● Automatic key generation and exchange ● Supported in dual stream |
| IP network features |
● DNS lookup for service configuration
● Differentiated Services (QoS) ● IP adaptive bandwidth management (including flow control) ● Dynamic playout and lip-sync buffering ● Date and Time support via NTP ● Packet Loss based downspeeding ● URI Dialing ● TCP/IP ● DHCP ● 802.1x Network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and class of service [CoS]) ● ClearPath |
| Call control |
● Cisco Unified Communications Manager (CUCM)
◦ Native registration with CUCM ◦ Requires CUCM Version 8.6(2) or later with device pack for SX10 Quick Set ◦ Basic CUCM provisioning ◦ Firmware upgrade from CUCM ◦ Cisco Discovery Protocol and DHCP option 150 support ◦ Basic telephony features such as hold, resume, transfer, and corporate directory lookup ● Cisco Video Communication Server (VCS) ◦ Native registration with VCS ● Cisco Webex ● Third-party H.323 Gatekeepers and standards-based SIP proxies |
| IPv6 network support |
● Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
● Support for both static and autoconfiguration (stateless address autoconfiguration) |
| Security features | ● Management through HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection |
| Certificate management |
● Certificate Authority Proxy Function (CAPF) support for additional security
● Manufacturer-Installed Certificates (MIC) ● Locally Significant Certificates (LSC) ● X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported |
| Approvals and compliance |
● Directive 2006/95/EC (Low-Voltage Directive) - Standard IEC/EN 60950-1
● Directive 2004/108/EC (EMC Directive) - Standard EN 55022, Class B - Standard EN 55024 - Standard EN 61000-3-2/-3-3 ● Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07 ● Complies with FCC CFR 47 Part 15 Class A |
[/specifications][accesories]
| Product delivered with |
● SX10 Codec with integrated HD camera and microphone
● Wall mount ● TRC6 remote control ● Network and HDMI cables ● Audio transmitter in the base unit |
[/accesories]
Cisco CTS-SX10N-K9 Video Conferencing Device
The Cisco SX10 Quick Set is an affordable all-in-one unit designed for video conferencing in small collaboration spaces. The CTS-SX10N-K9 combines camera and codec into a single device that mounts over a standard flat-panel display. The device connects through a discreet single-cable system for Power over Ethernet (PoE), and features a dedicated audio transmitter in the base unit for seamless performance with Cisco Intelligent Proximity.
Key Features:
- Cisco Webex
- 1080p
- Cisco Unified Communications Manager (UCM)
For detailed specifications, refer to the Cisco CTS-SX10N-K9 datasheet in the tabs.
