[properties]

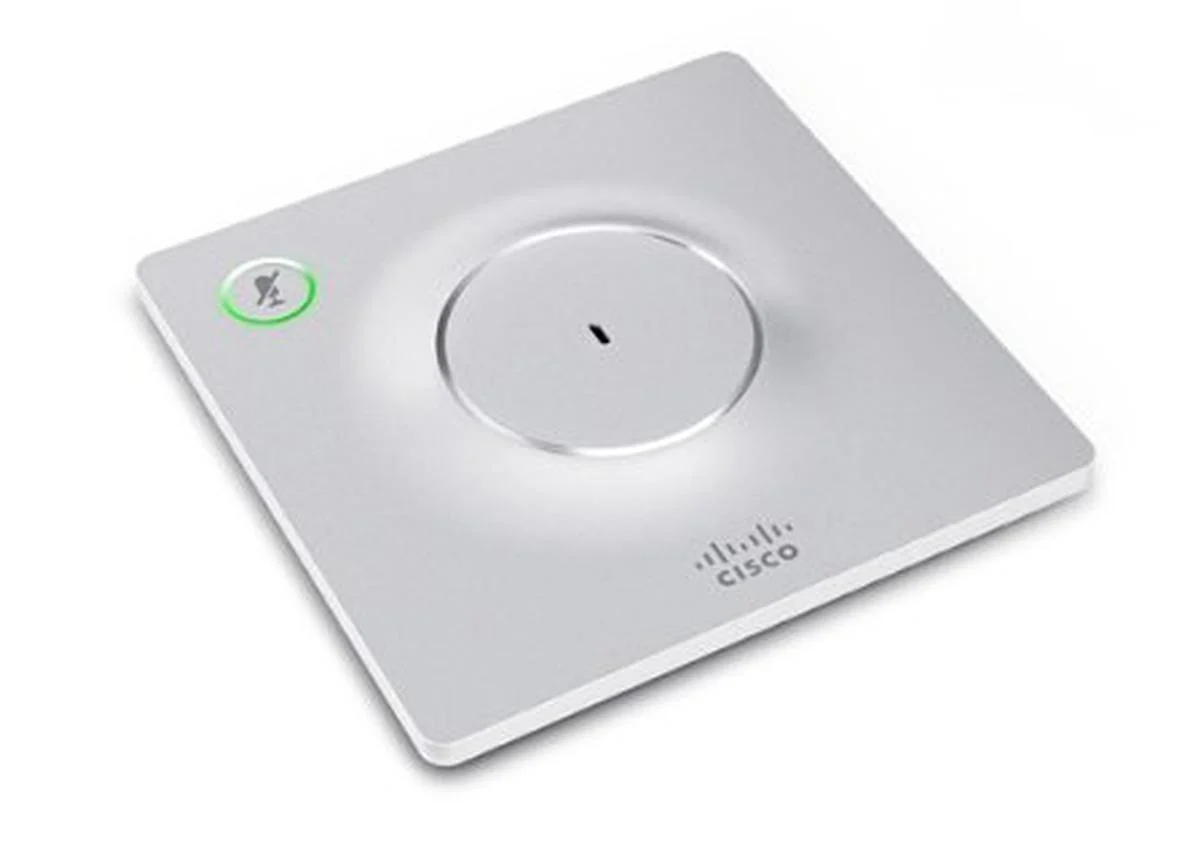

Properties	Cisco CTS-MIC-TABL20 Table Microphone
Description	Balanced omnidirectional table microphone with boundary layer type design for Cisco video systems
Product Type	Analog Table Microphone
Compatibility	Room Bar, Room Kit Series, SX Series, MX Series, Board Pro, Room Panorama
Mount Type	Tabletop (magnetic plate or recessed installation)

[/properties] [specifications]

Frequency Range	80 Hz to 20 kHz, ±6 dB
Free Field Sensitivity	-34 dB ±3 dB (1V/Pa at 1 kHz)
Signal-to-Noise Ratio	Minimum 70 dB
Phantom Power	9V / 52V
Mute Functionality	LED indicator and mute/unmute button
Pickup Range	1.5 m radius (360° coverage)
Dimensions (Diameter x Height)	6.39 cm x 1.09 cm (2.52 in x 0.43 in)
Weight	0.28 lb (0.126 kg)
Color	White
Connector Options	4-pin mini jack or 4-pin Euroblock

[/specifications] [accesories]

Included Items	Cisco Table Microphone with selected connector (included in the box)
Optional Accessories	Tabletop metal plate, extension cables, spare Euroblock or mini jack cables
Compatible Products	Room Bar, SX10, SX20, SX80, MX700, MX800, Board Pro Series

[/accesories] The Cisco Omni-Directional Microphone is designed for Cisco Telepresence Systems. It provides audio and coverage solutions for integrated video systems and custom video deployments.
