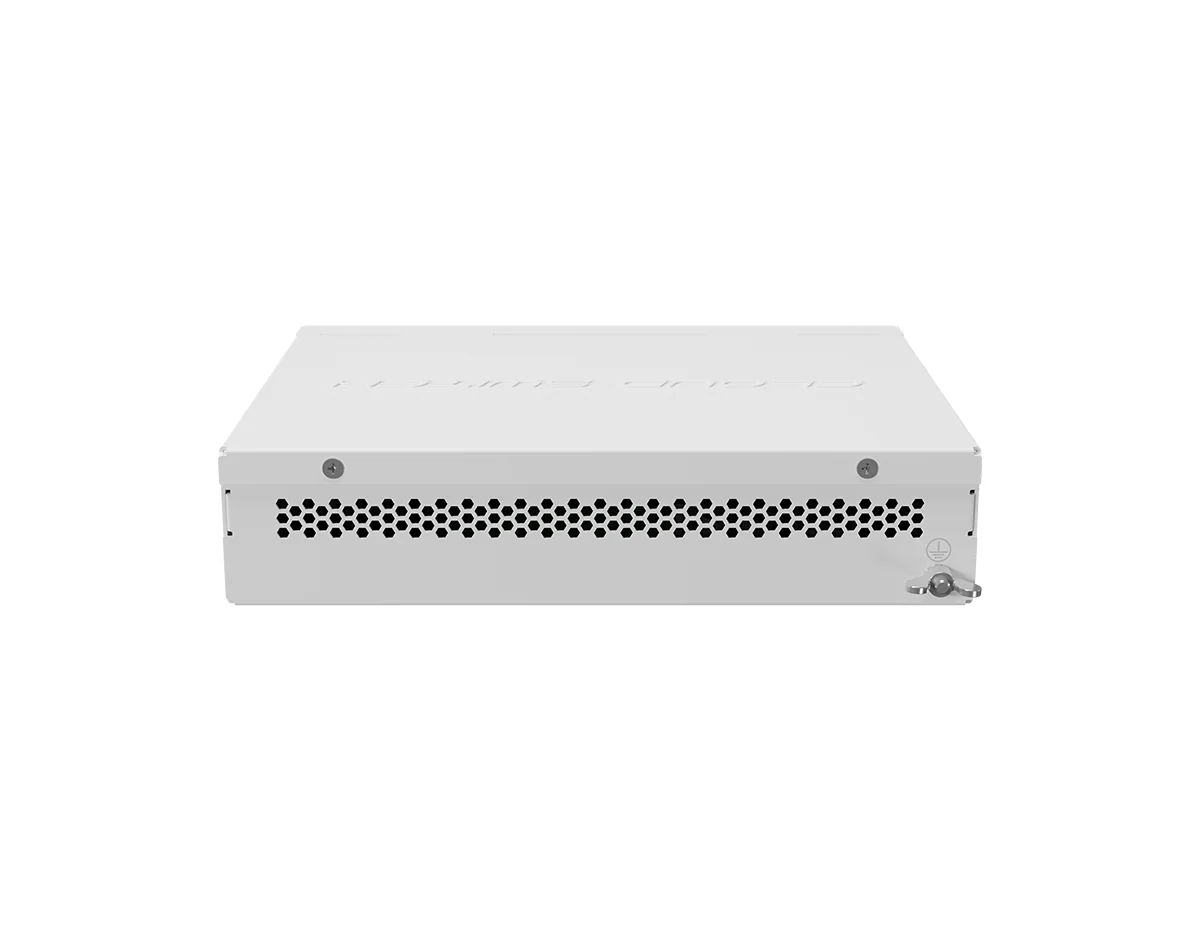

Mikrotik CSS610-8G-2S+IN Switch
- Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective this switch is an instant classic!
[properties]
| Properties | MikroTik CSS610-8G-2S+IN |
| Description | Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective this switch is an instant classic! |
| Product Family | CSS Series |
| Product Type | Ethernet Switch |
| Ports | |
| 10/100/1000 Ethernet ports | 8 |
| SFP+ | 2 |
| Dimensions | 200 x 164 x 44 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 11 W |
| Max power consumption without attachments | 5 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
[/properties][specifications]
| Specifications | CSS610-8G-2S+IN |
| Flash Storage size | 64 KB |
| Switch chip model | 88E6193X |
| OS | SwitchOS Lite |
| Non-Blocking throughput | 28 Gbps |
| Switching capacity | 56 Gbps |
| Forwarding rate | 41.7 Mpps |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -20°C to 60°C tested |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
[/specifications][accesories]
| Accessories |
| Rack ears for CSS610-8G-2S+IN |
| K-48 fastening set |
| 24V 0.8A power adapter |
[/accesories]
MikroTik CSS610-8G-2S+IN Switch
The CSS610-8G-2S+IN is a multifunctional network switch that provides a remarkable blend of mobility, capability, and affordability. The CSS610-8G-2S+IN has eight Gigabit Ethernet ports and can transfer data at speeds of up to 1 gigabit per second. This product operates on SwOS (SwitchOS), a streamlined and user-friendly operating system. SwOS streamlines network management, providing an intuitive web browser interface for easy configuration and monitoring of the network.
Quick Specs:
- 8x 10/100/1000 Ethernet Ports
- 2x 10G SFP+ ports uplink
- 41.7 Mpps forwarding rate
- PoE-in: Passive PoE
Please see the related tabs for the CSS610-8G-2S+IN datasheet and compatible accessories.
