[shortdesc] Network Switch, Mikrotik CSS610-1Gi-7R-2S+OUT, 7x Gigabit Ethernet, 2x SFP+, SwOS, Outdoor [/shortdesc]

[properties]

Properties	MikroTik CSS610-1Gi-7R-2S+OUT
Description	An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
Product Family	CSS Series
Product Type	Ethernet Switch
Ports
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 1G Ethernet ports with PoE-out	1
SFP+ ports	2
Dimensions	304 x 212 x 71 mm
Number of DC inputs	3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage	12-57 V
2-pin terminal input Voltage	12-57 V
Max power consumption	29 W
Max power consumption without attachments	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-57 V
PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	450 mA

[/properties][specifications]

Specifications	CSS610-1Gi-7R-2S+OUT
Flash Storage size	64 KB
Switch chip model	88E6193X
OS	SwitchOS Lite
Non-Blocking throughput	28 Gbps
Switching capacity	56 Gbps
Forwarding rate	41.7 Mpps
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP54

[/specifications][accesories]

Accessories
Hose clamp 2
K-66 fastening set

[/accesories]

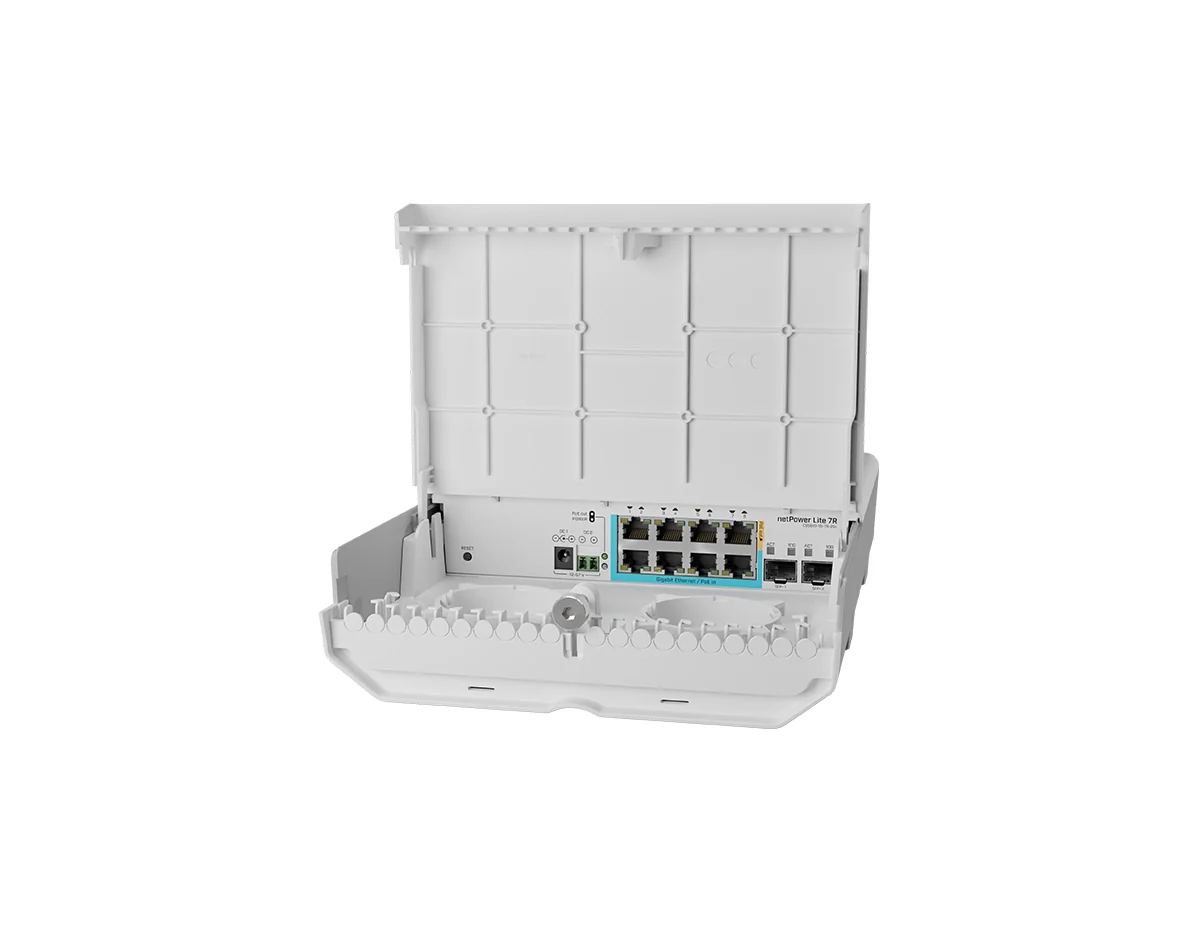

MikroTik CSS610-1GI-7R-2S+OUT Switch

The CSS610-1Gi-7R-2S+OUT SwOS Powered Switch is specifically engineered for outdoor deployment, providing a flexible and robust networking solution. It is equipped with 7 Gigabit Ethernet ports and 2 SFP+ ports, this switch delivers high-speed connectivity for a wide range of network devices.

Quick Specs:

• 8x 1G Ethernet ports (7x 1G Reverse PoE / 1x 1G Ethernet port with PoE-out)
• 2x 10G SFP+ ports uplink
• PoE in: Passive PoE
• PoE-out ports: Ether8

Please see the related tabs for the CSS610-1Gi-7R-2S+OUT datasheet and compatible accessories.
