Properties	MikroTik CSS106-1G-4P-1S
Description	5x Gigabit PoE out Ethernet Smart Switch, SFP cage, plastic case, SwOS
Product Family	CSS Series
Product Type	Ethernet Switch
Ports
Ethernet ports	5 10/100/1000 Ethernet ports, Atheros switch AR8327
SFP	1 fixed Gigabit Ethernet SFP cage with DDMI support (Mini-GBIC; SFP module not included)
Extras	Hardware watchdog
Dimensions	113x139x28mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	11-30 V
Max power consumption	53 W
Max power consumption without attachments	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	11-30 V
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max total out (A)	2 A

[/properties][specifications]

Specifications	CSS106-1G-4P-1S
Flash Storage size	128 KB
Switch chip model	QCA8337
OS	MikroTik SwOS
MTBF	Approximately 100.000 hours at 25C
Temperature	-20°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

Accessories

24V 2.5A power adapter

IEC cord

[/accesories]

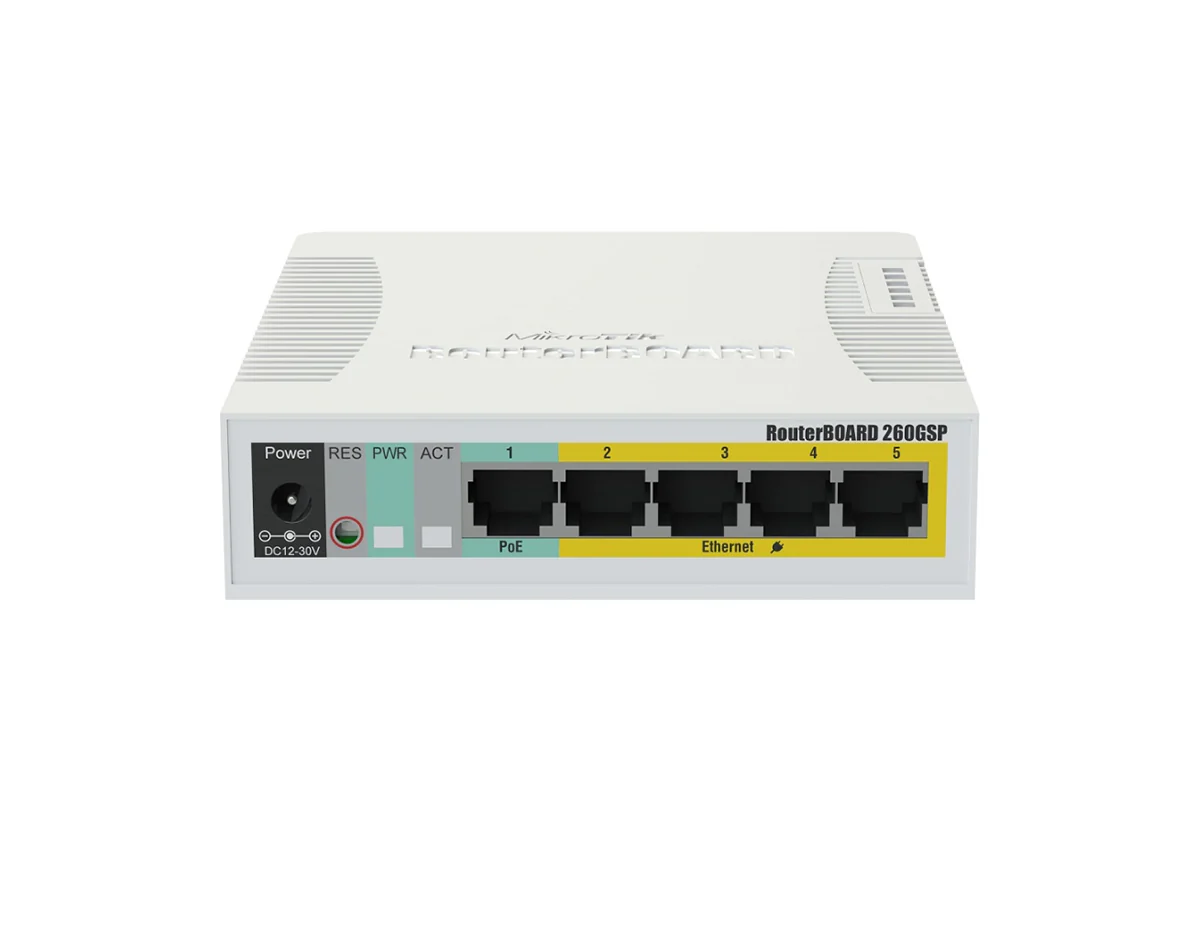

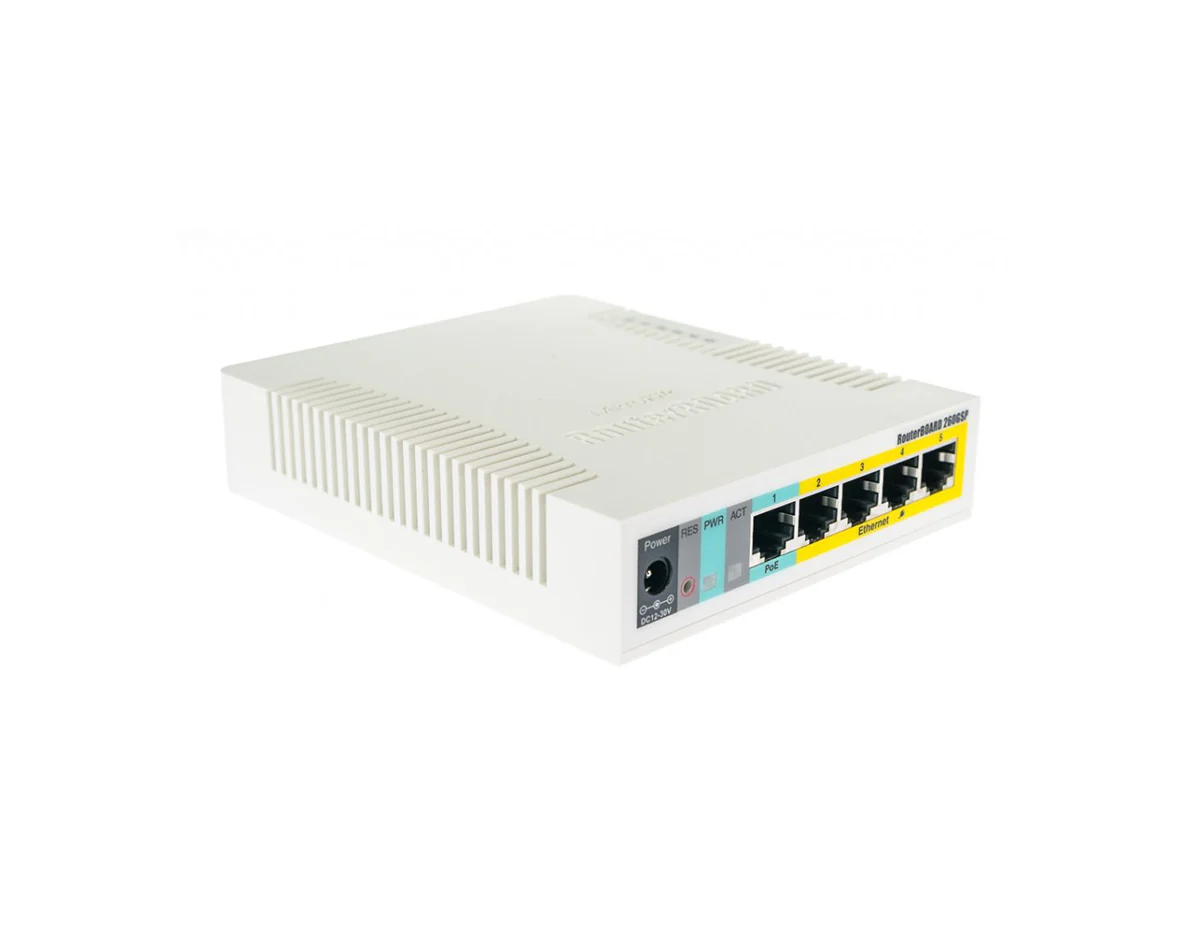

MikroTik CSS106-1G-4P-1S Switch

The CSS106-1G-4P-1S is a compact switch designed for small office/home office (SOHO) environments. It is equipped with power output functionality on its Ethernet ports, allowing ports 2-5 to supply power to other PoE-capable devices at the same voltage as the unit (utilizing passive PoE over data lines only). This switch features five Gigabit Ethernet ports and one SFP cage, with switching capabilities facilitated by an Atheros Switch Chip. The device operates on a specialized operating system tailored for MikroTik Switch products, known as SwOS.

Quick Specs:

• 5x 10/100/1000 Ethernet Ports
• PoE-out: Passive PoE
• PoE-out ports: Ether2-Ether5
• QCA8337 Switch Chip Model

Please see the related tabs for the CSS106-1G-4P-1S datasheet and compatible accessories.
