[shortdesc]2x 100G QSFP28 ports and 16x 25G SFP28 ports [/shortdesc]

[properties]

Properties	MikroTik CRS518-16XS-2XQ
Description	A 100 Gigabit switch for enterprise networks and data centers. Hot-swappable parts and insane port density with 1.2 Tbps switching capacity!
Product Family	CRS Series
Product Type	Ethernet Switch
Ports
10/100 Ethernet ports	1
Number of 25G SFP28 ports	16
Number of 100G QSFP28 ports	2
Number of USB ports	1 USB type A
Serial console port	1 RJ45
Extras	CPU temperature monitor PCB temperature monitor Voltage Monitor
Dimensions	320 x 185 x 44 mm
Number of AC inputs	2
AC input range	100-240
Frequency (Hz)	47-63
Max power consumption	95 W
Max power consumption without attachments	45 W
Cooling type	4 fans

[/properties][specifications]

Specifications	CRS518-16XS-2XQ
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9531 650 MHz
CPU core count	1
Switch chip model	98DX8525
OS	RouterOS (v7 only), level 6 license
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

Accessories
IEC cord
K-54 kit
Rack ears for CRS518-16XS-2XQ

[/accesories]

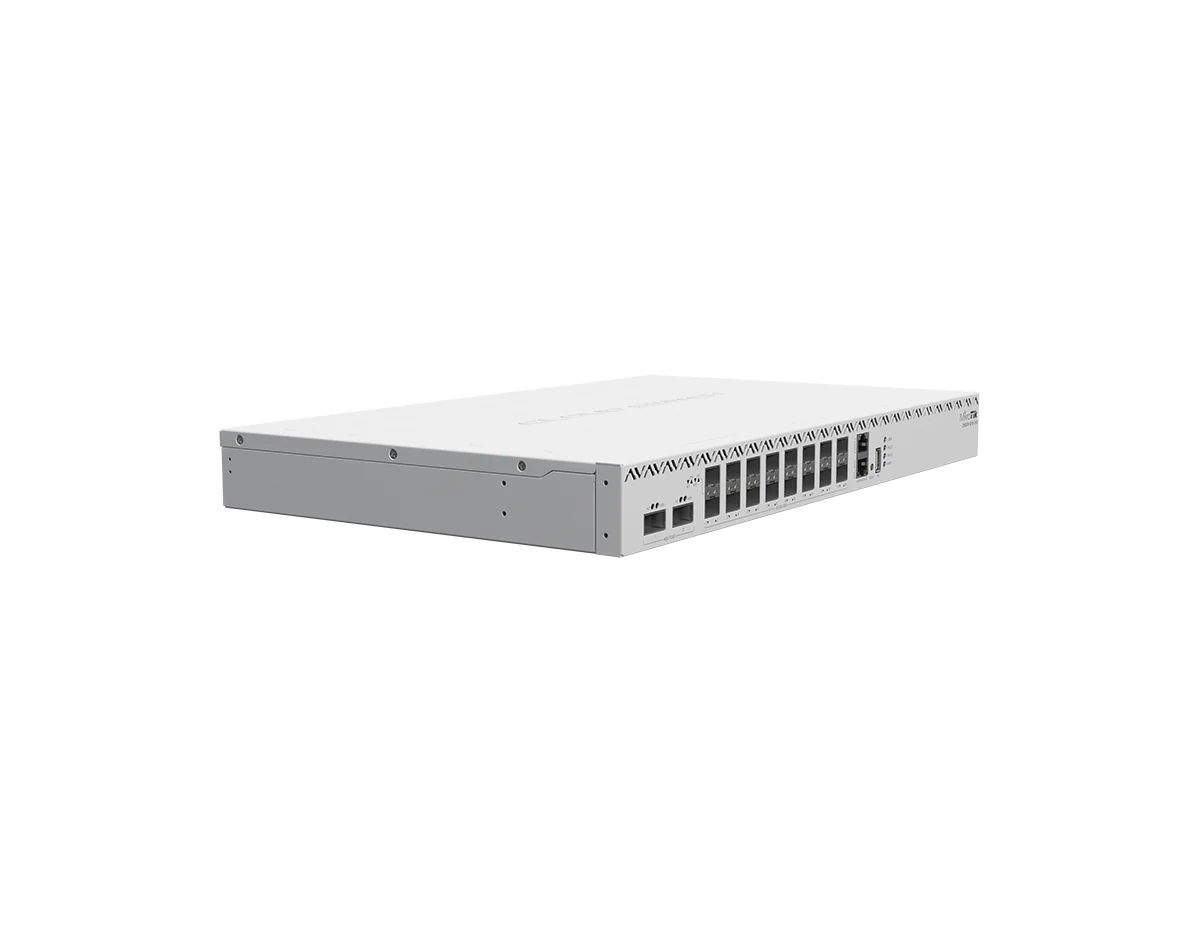

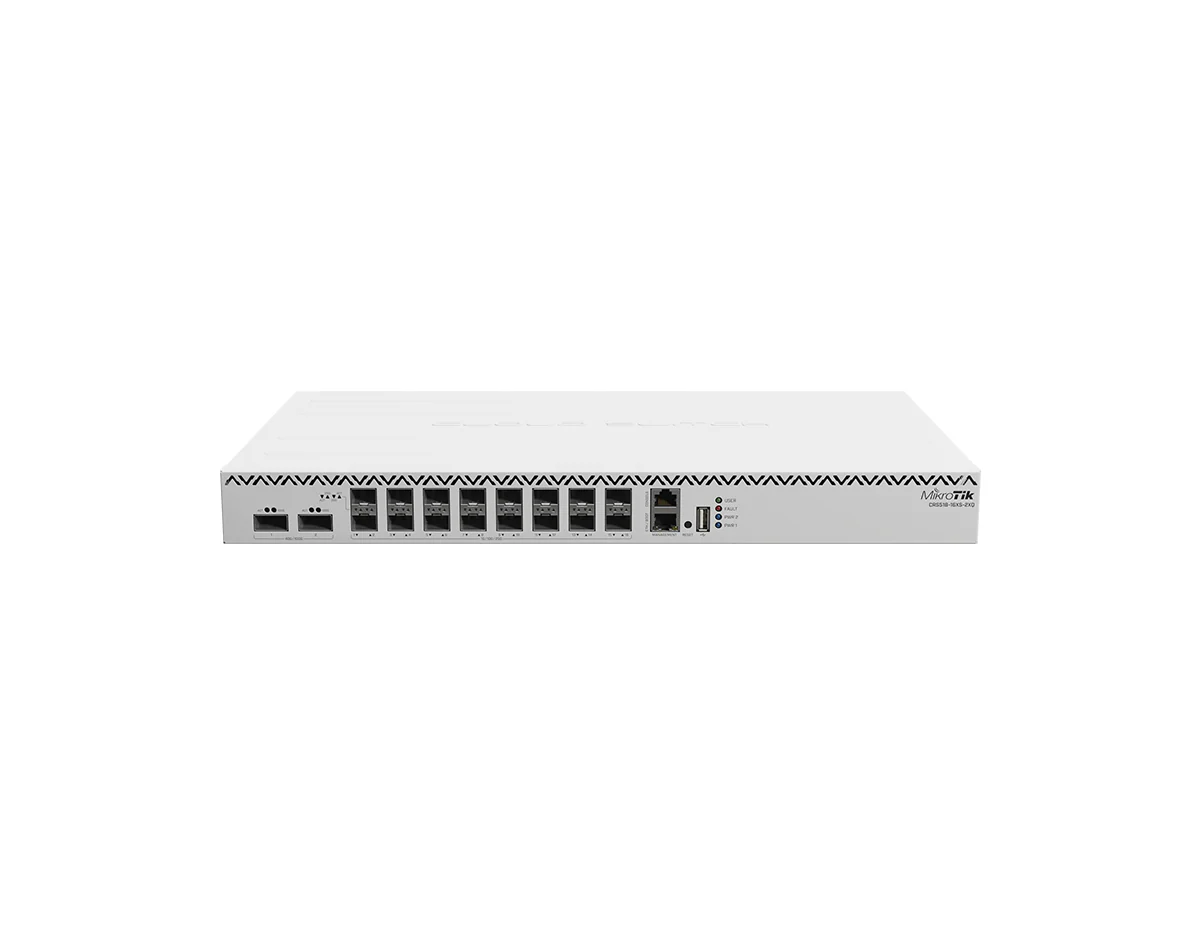

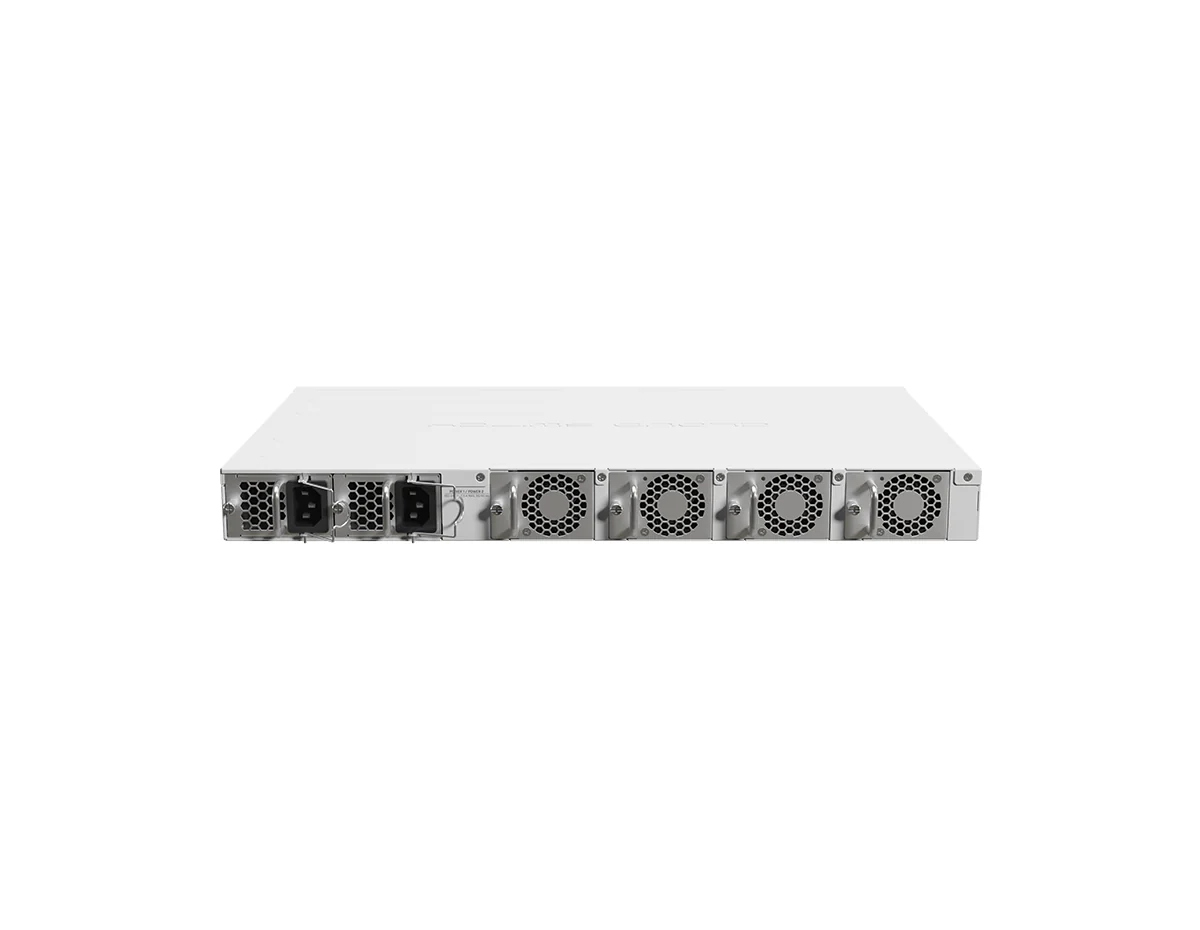

MikroTik CRS518-16XS-2XQ-RM Switch

The CRS518-16XS-2XQ-RM is a modern networking tool designed for large data centers and enterprises. It provides a range of benefits beyond fast connectivity, including enhanced flexibility for network configurations and 1.2 Tbps switching capacity. Notably, its backward compatibility feature enables seamless connections between the 25 Gigabit ports and 10 Gigabit and 1 Gigabit SFP devices.

Quick Specs:

• 16x 25G SFP28 Ports
• 2x 100G QSFP28 Ports
• 1x 10/100 Ethernet Port
• Hot-Swap Cooling

Please see the related tabs for the CRS518-16XS-2XQ-RM datasheet and compatible accessories.
