• Ultra-fast 100 Gigabit QSFP28 Ports
• IP66 Weatherproof Enclosure
• Silent, Fanless Operation
• Dual Boot System (RouterOS or SwOS)
• Power Redundancy (DC jack, 2-pin terminal, 802.3bt PoE-in)
• Outdoor

[/shortdesc]

[properties]

Properties	MikroTik CRS504-4XQ-OUT
Description	Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies
Product Family	CRS Series
Product Type	Ethernet Switch
Ports
10/100 Ethernet ports	1
100G QSFP+	4
Serial console port	1 RJ45
Extras	CPU temperature monitor PCB temperature monitor Voltage Monitor
Dimensions	320 x 185 x 44 mm
Number of AC inputs	2
AC input range	100-240
Number of DC inputs	3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage	36-57 V
2-pin terminal input Voltage	36-57 V
Frequency (Hz)	47-63
Max power consumption	41 W
Max power consumption without attachments	25 W
Cooling type	2 fans
PoE in input Voltage	43-57 V Passive poe or 802.3bt Class 6

[/properties][specifications]

Specifications	CRS504-4XQ-OUT
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9531 650 MHz
CPU core count	1
Switch chip model	98DX4310
OS	RouterOS (v7 only)
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP66

[/specifications][accesories]

Accessories
48 V 0.95 A power adapter
Hose clamp 2
Screw set
Gigabit PoE injector
Fastening set

[/accesories]

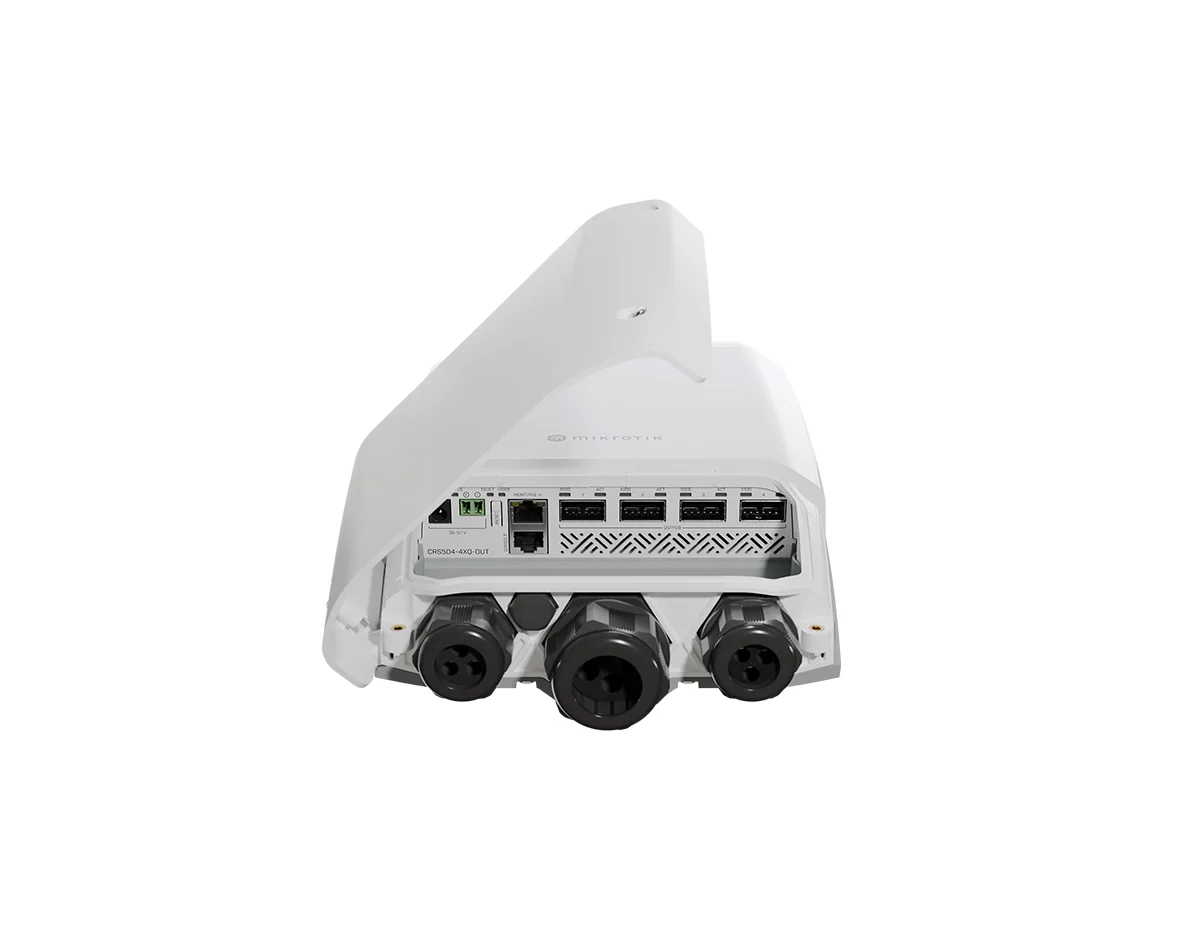

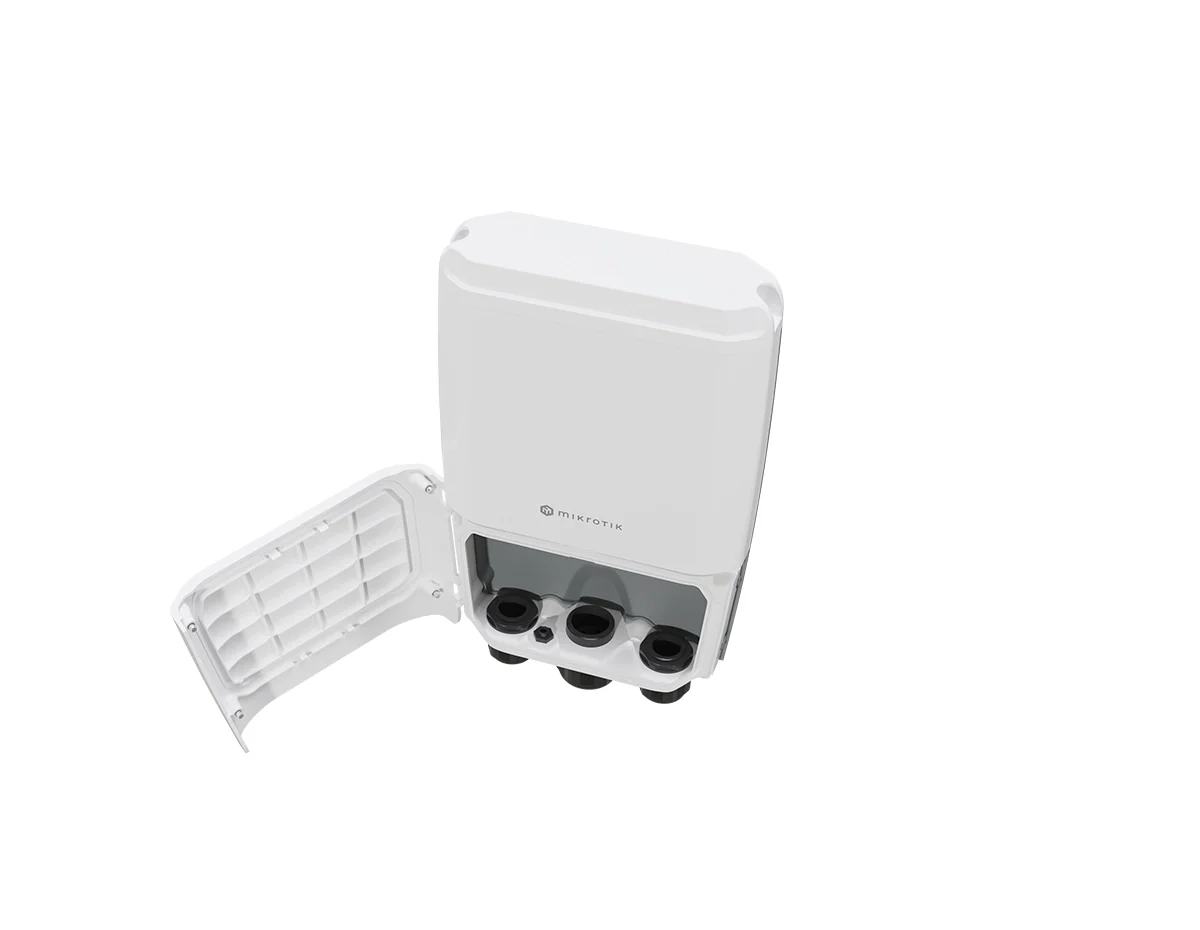

MikroTik CRS504-4XQ-OUT Switch

The MikroTik CRS504-4XQ-OUT switch offers 100 Gigabit connectivity suitable for outdoor environments, catering to both remote and urban settings. This high-speed connectivity is essential for industries requiring fast data transfers for real-time monitoring and video conferencing.  It is housed in a durable IP66-rated weatherproof enclosure, the switch is impervious to dust and capable of withstanding strong jets of water from any direction. It is well-suited for use in extreme heat or heavy rain, ensuring a stable connection.

Quick Specs:

• 1x 10/100/1000 Ethernet Port
• 4x 100G QSFP28 uplink ports
• QCA9531, 1 core, 650MHz
• 128MB RAM

Please see the related tabs for the CRS504-4XQ-OUT datasheet and compatible accessories.
