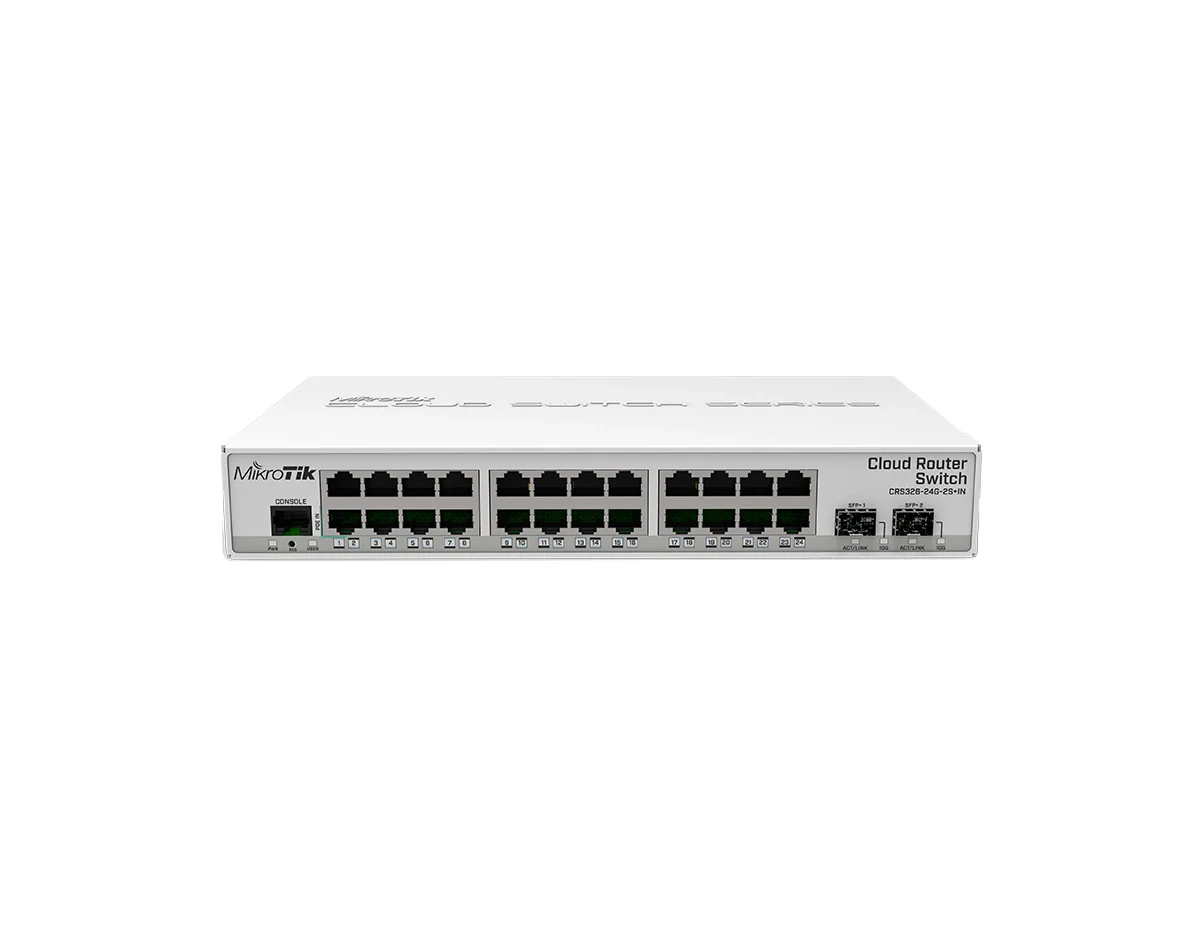

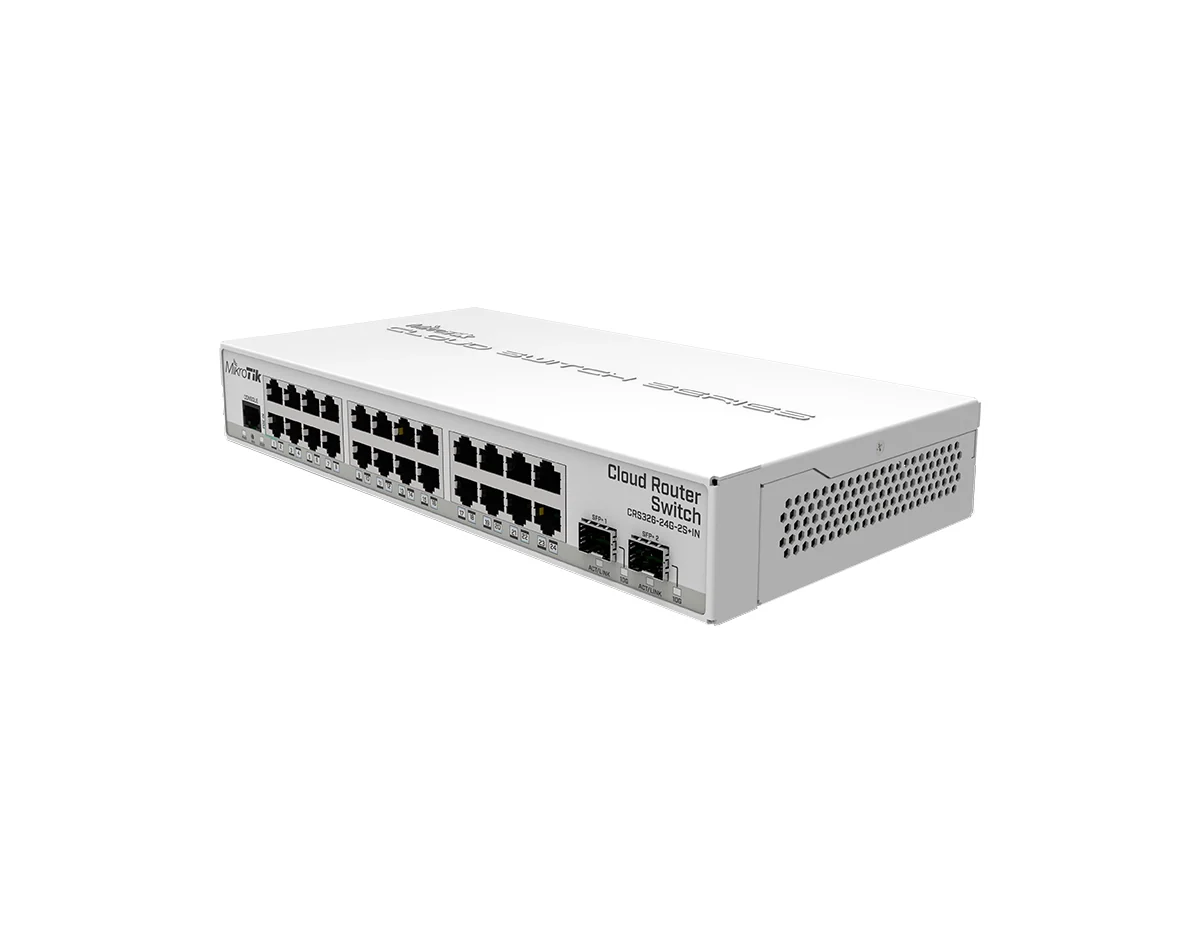

Mikrotik CRS326-24G-2S+IN Switch

[shortdesc]

24 Gigabit ports, 2 SFP+ cages, and a desktop case - server room power for your home!

[/shortdesc]

[properties]

Properties	MikroTik CRS326-24G-2S+IN
Description	24 Gigabit ports, 2 SFP+ cages, and a desktop case - server room power for your home!
Product Family	CRS Series
Product Type	Ethernet Switch
Ports
10/100/1000 Ethernet ports	24
SFP+	2
Serial console port	1 RJ45
Dimensions	285 x 144 x 44 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-30 V
Max power consumption	21 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

[/properties][specifications]

Specifications	CRS326-24G-2S+IN
Memory	512 MB
Flash Storage size	16 MB
CPU	98DX3236 800 MHz
CPU core count	1
Switch chip model	98DX3236
OS	RouterOS / SwitchOS
Ethernet test results
Bridging
64 byte
none (fast path)	kpps: 449 Mbps: 229.9
25 bridge filter rules	kpps: 104,5 Mbps: 53.5
512 byte
none (fast path)	kpps: 273,5 Mbps: 1120.3
25 bridge filter rules	kpps: 104.6 Mbps: 428.4
1518 byte
none (fast path)	kpps: 104,3 Mbps: 1266.6
25 bridge filter rules	kpps: 104 Mbps: 1263.0
Routing
64 byte
none (fast path)	kpps: 343.5 Mbps: 175.9
25 simple queues	kpps: 137,4 Mbps: 70.3
25 ip filter rules	kpps: 65,8 Mbps: 33.7
512 byte
none (fast path)	kpps: 273,9 Mbps: 1121.9
25 simple queues	kpps: 136,9 Mbps: 560.7
25 ip filter rules	kpps: 65,9 Mbps: 269.9
1518 byte
none (fast path)	kpps: 104,3 Mbps: 1266.6
25 simple queues	kpps: 104,3 Mbps: 1266.6
25 ip filter rules	kpps: 64,8 Mbps: 786.9
Switching results
64 byte
Non blocking Layer 2 throughput	kpps: 65,476.2 Mbps: 33,523.8
Non blocking Layer 2 capacity	kpps: 65,476.2 Mbps: 67,047.6
Non blocking Layer 1 throughput	kpps: 65,476.2 Mbps: 44,000.0
Non blocking Layer 1 capacity	kpps: 65,476.2 Mbps: 88,000.0
512 byte
Non blocking Layer 2 throughput	kpps: 10,338.3 Mbps: 42,345.9
Non blocking Layer 2 capacity	kpps: 10,338.3 Mbps: 84,691.7
Non blocking Layer 1 throughput	kpps: 10,338.3 Mbps: 44,000.0
Non blocking Layer 1 capacity	kpps: 10,338.3 Mbps: 88,000.0
1518 byte
Non blocking Layer 2 throughput	kpps: 3,576.1 Mbps: 43,427.8
Non blocking Layer 2 capacity	kpps: 3,576.1 Mbps: 86,855.7
Non blocking Layer 1 throughput	kpps: 3,576.1 Mbps: 44,000.0
Non blocking Layer 1 capacity	kpps: 3,576.1 Mbps: 88,000.0
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 60°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

Accessories

24 V 1.2 A power adapter

[/accesories]

MikroTik CRS326-24G-2S+IN Switch

The CRS326-24G-2S+IN features 24 Gigabit Ethernet ports, two 10G SFP+ cages, 512 MB of RAM, and a capable built-in CPU suitable for managing fundamental home user requirements, including firewall, NAT, and limited VPN functionality. The CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS.

Quick Specs:

24x 10/100/1000 Ethernet Ports
2x 10G SFP+ ports uplink
512 MB DDR3 RAM
RouterOS / SwitchOS

Please see the related tabs for the CRS326-24G-2S+IN datasheet and compatible accessories.
