Mikrotik CRS305-1G-4S+OUT Switch
- Silent
- Speed
- Compact
- Outdoor
[properties]
| Properties | MikroTik CRS305-1G-4S+OUT |
| Description | Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports |
| Product Family | CRS Series |
| Product Type | Ethernet Switch |
| Quick specifications | 4 SFP+ ports 1 Gigabit Ethernet ports Non-Blocking throughput: 41 Gbps Switching capacity: 82 Gbps Forwarding rate: 61 Mpps 2 DC jack for redundancy Maximum power consumption: 12 W (with attachments 18 W) Supports PoE+ IEEE 802.3at/af and passive PoE 12-57 V Metal enclosure Fanless |
| Ports | |
| 10/100/1000 Ethernet ports | 1 |
| SFP+ cages | 4 |
| PoE in | 802.3af/at |
| Extras | CPU temperature monitor |
| Dimensions | 141 x 115 x 28 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Cooling type | Passive |
| Max power consumption | 12 W |
| PoE in input Voltage | 12-57 V |
| Power options | 8-28V, 24V 1.2A PSU included |
[/properties]
[specifications]
| Specifications | CRS305-1G-4S+OUT |
| Memory | 512 MB |
| Flash Storage size | 16 MB |
| CPU | 98DX3236 800 MHz |
| CPU core count | 1 |
| Switch chip model | 98DX3236 |
| OS | SwOS / RouterOS (Dual boot) |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP66 |
[/specifications]
[accesories]
| Accessories | |
| 24V 0.8A power adapter | |
| K-41 fastening set | |
| K-72 fastening set | |
| Gigabit PoE injector | |
| Hose clamp 1 | |
[/accesories]

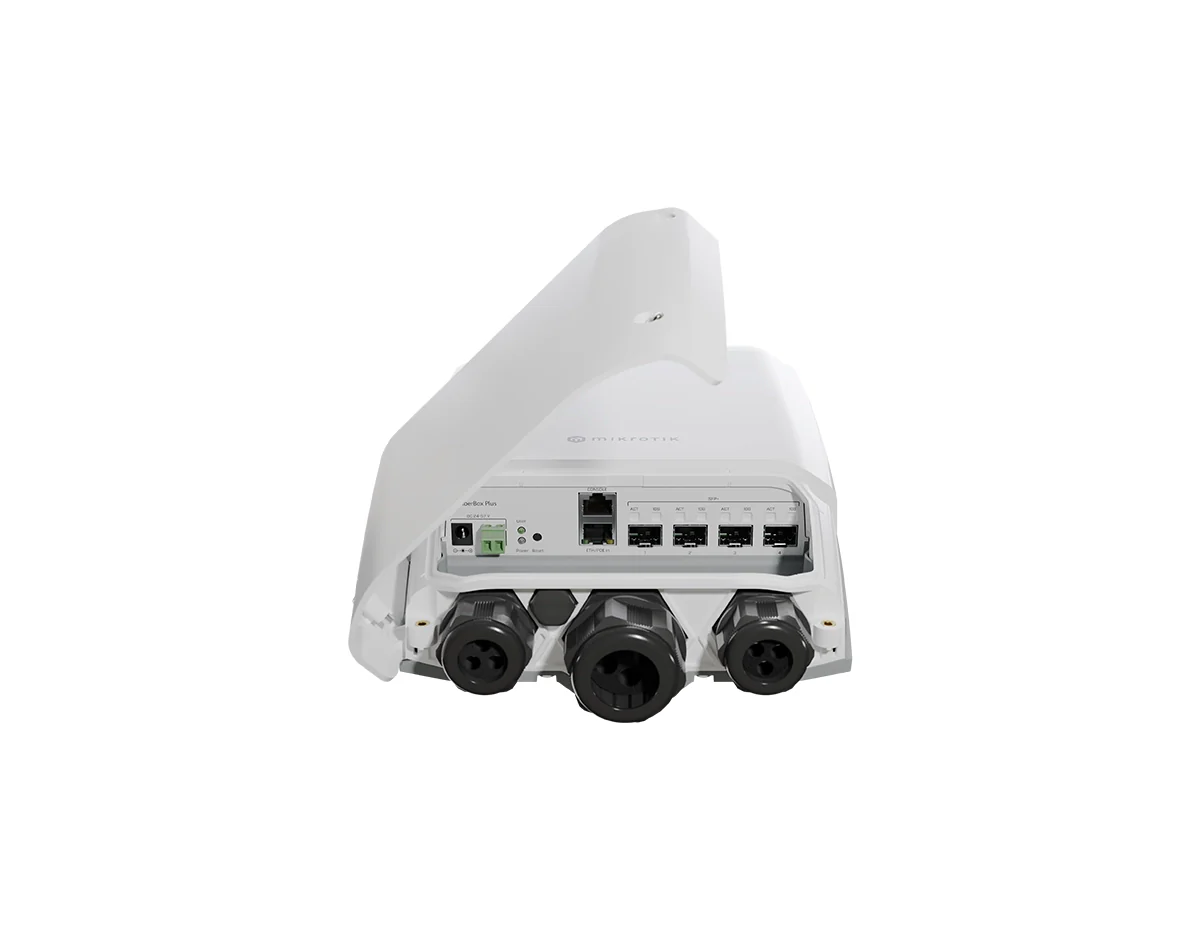

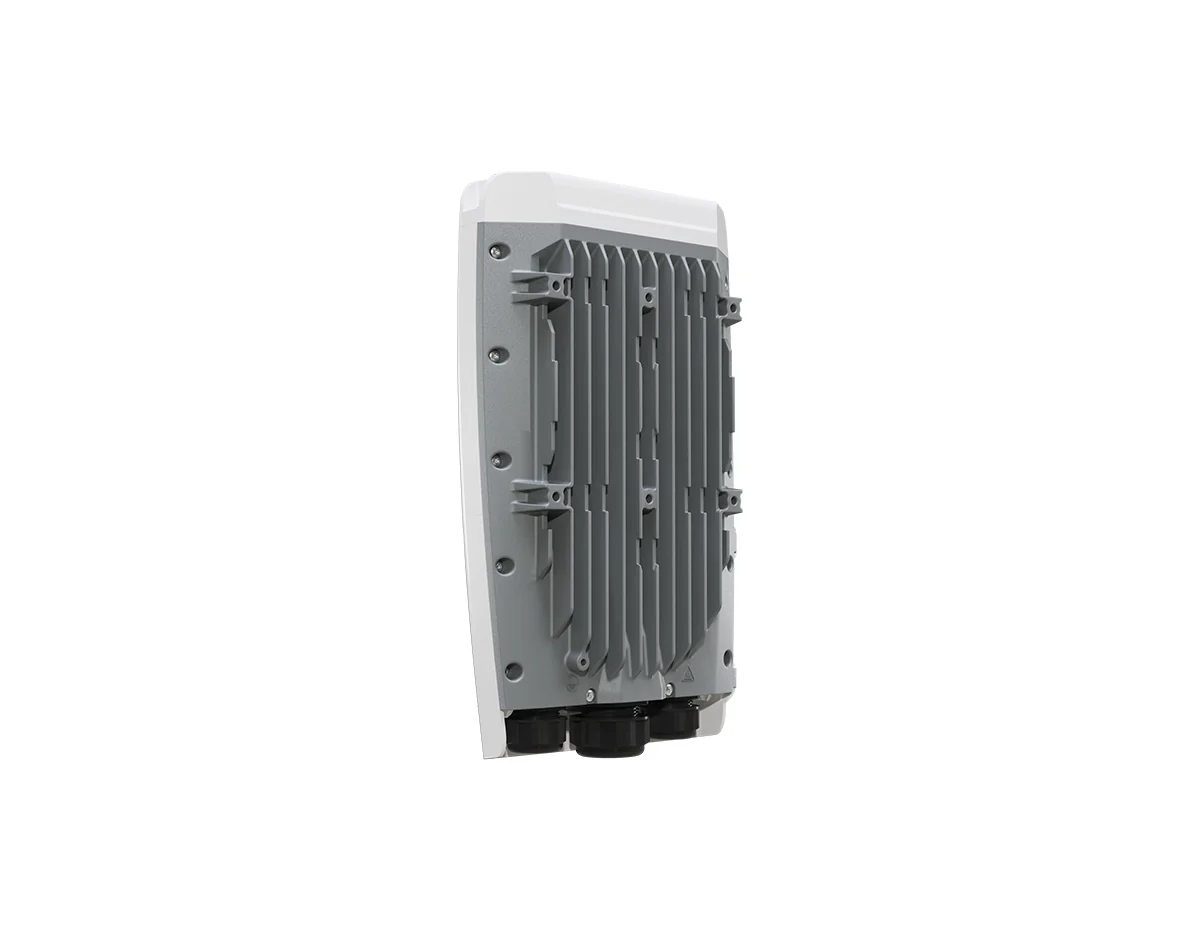

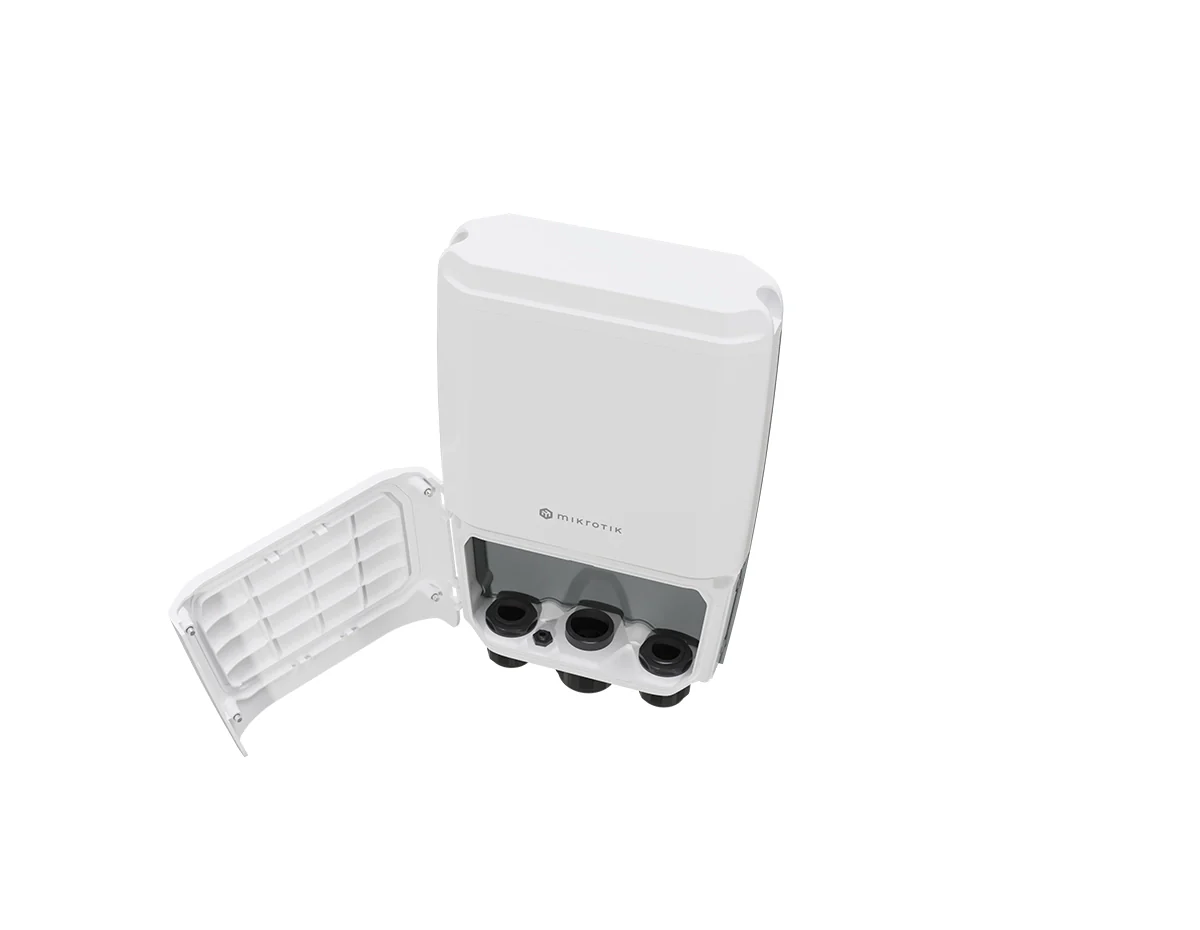

MikroTik CRS305-1G-4S+OUT Switch
The CRS305-1G-4S+OUT is a robust outdoor switch that is equipped with a modern ARM CPU, 256 MB RAM, four 10-Gigabit SFP+ ports, and a Gigabit Ethernet port for management or PoE-in power. This product offers three different power options: PoE-in, a 2-pin terminal, and a standard DC jack. It supports a wide input voltage range of 24-57V and is highly efficient, with a maximum power consumption of only 7W without attachments.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- 4x 10G SFP+ ports uplink
- 98DX226S,1 core, 800 MHz CPU
- 256 MB RAM
Please see the related tabs for the CRS305-1G-4S+OUT datasheet and compatible accessories.
