[properties]

Properties	MikroTik LHG XL HP5 Antenna RBLHG-5HPND-XL-US
Description	Dual chain eXtra Large High Power 27dBi 5GHz CPE/Point-to-Point Integrated Antenna
Product Family	LHG Series
Product Type	Antenna
10/100 Ethernet ports	1
Dimensions	Ø 550 x 245 mm; package 585 x 595 x 138 mm
Weight	Unit: 945 g; package: 2.99 kg
Number of DC inputs	1 (PoE-IN)
Max power consumption	7 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-28 V

[/properties][specifications]

Specifications	RBLHG-5HPND-XL-US
Memory	64 MB
Flash Storage size	16 MB
CPU	AR9344 600 MHz
CPU core count	1
OS	RouterOS level 3 license
LTE antenna gain	27 +/- 0.5 dBi
Antenna beam width	6,4°
Wind loading	186N @ 205 km/h
Operating frequency	5170 - 5250 MHz; 5725 - 5835 MHz
Wireless 5 GHz Max data rate	300 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n
Antenna gain dBi for 5 GHz	27
Wireless 5 GHz chip model	AR9344
Wireless 5 GHz generation	Wi-Fi 4
Wireless specifications
5 GHz
6MBit/s	Transmit (dBm): 28 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 25 Receive Sensitivity: -80
MCS0	Transmit (dBm): 28 Receive Sensitivity: -96
MCS7	Transmit (dBm): 24 Receive Sensitivity: -75
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification	CE, EAC, ROHS
Shock and vibration	ETSI300-019-1.4
ETSI specification	EN 302 326 DN2
IP	IP54
Supported Bands
2G Category	Class12
2G bands	2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink) R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands	1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

[/specifications][accesories]

24V 0.38A power adapter

2x metal ring

PoE injector

K-LHG kit

[/accesories]

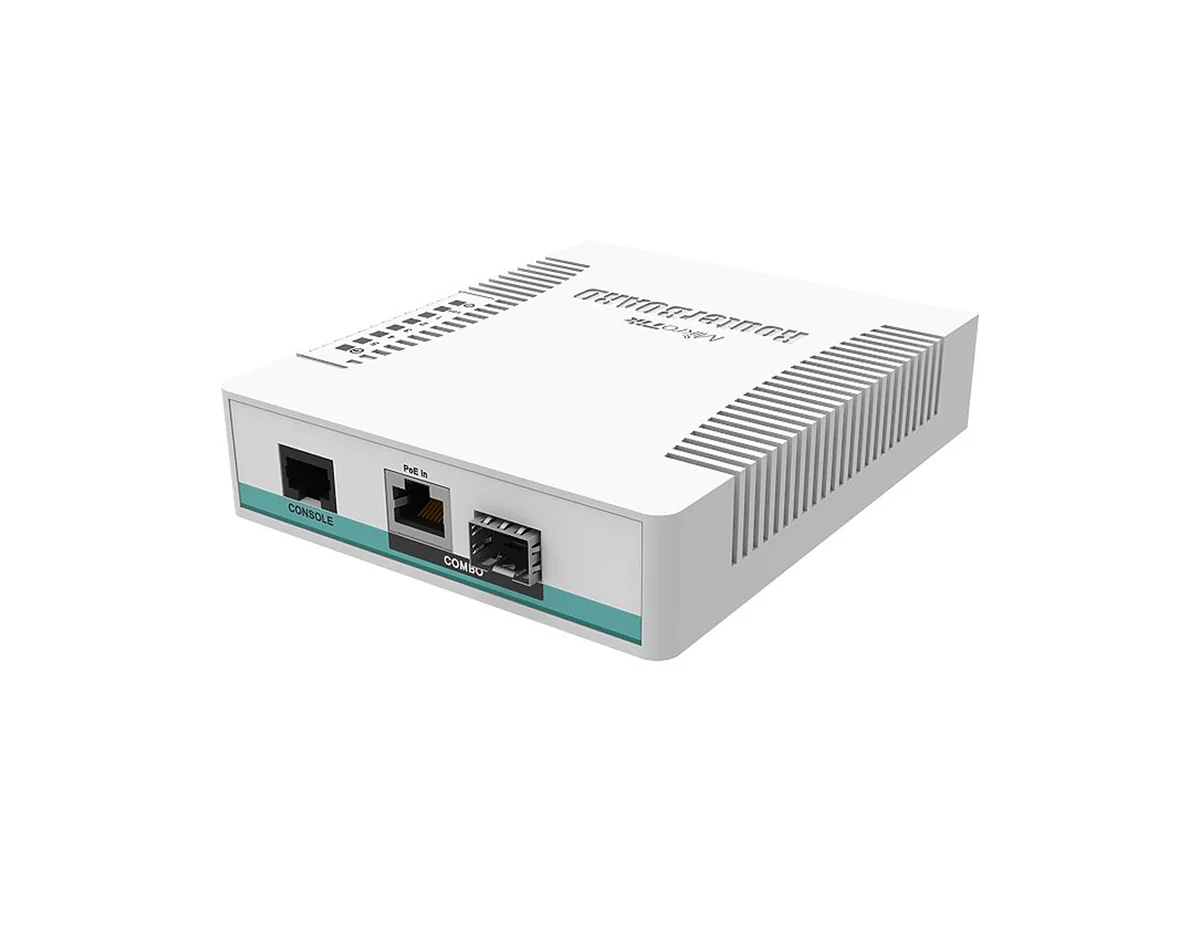

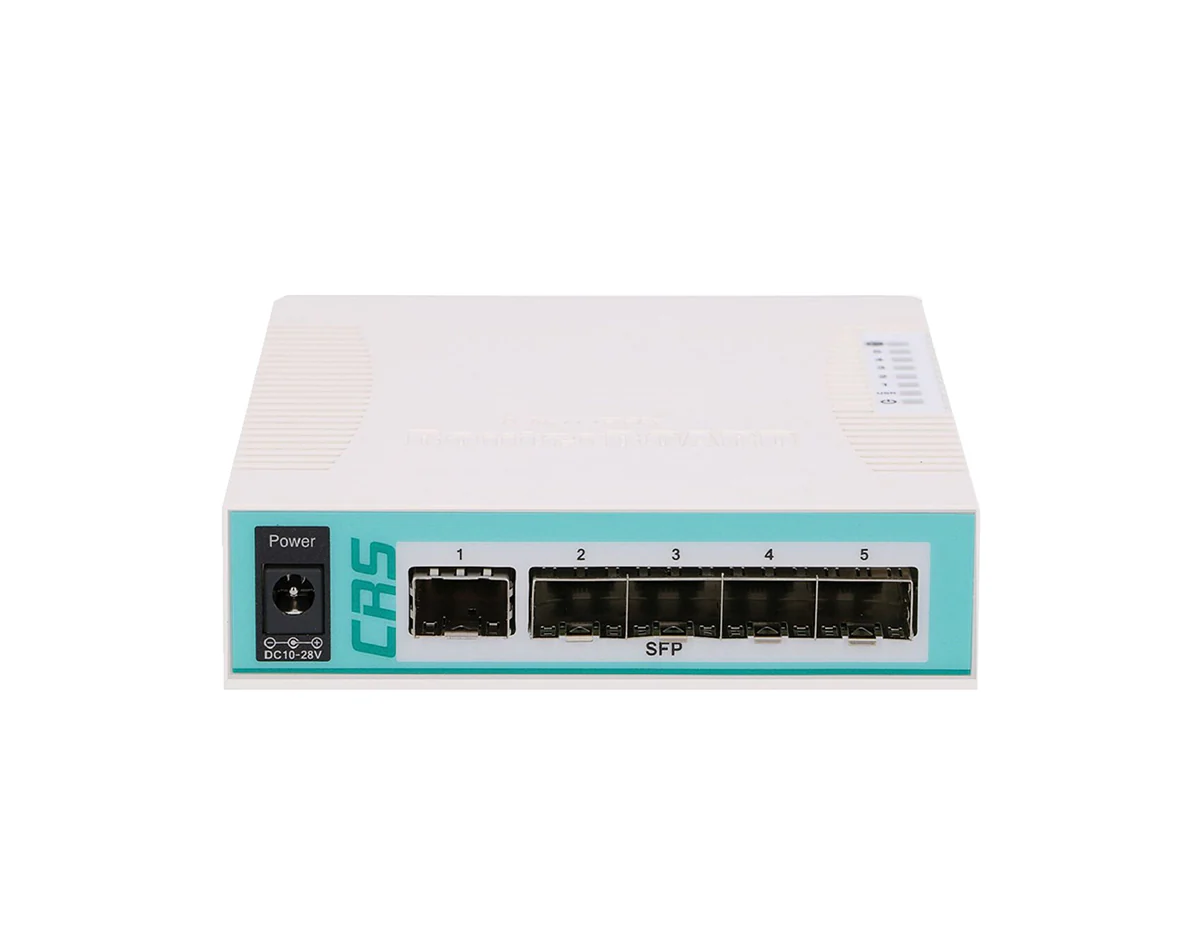

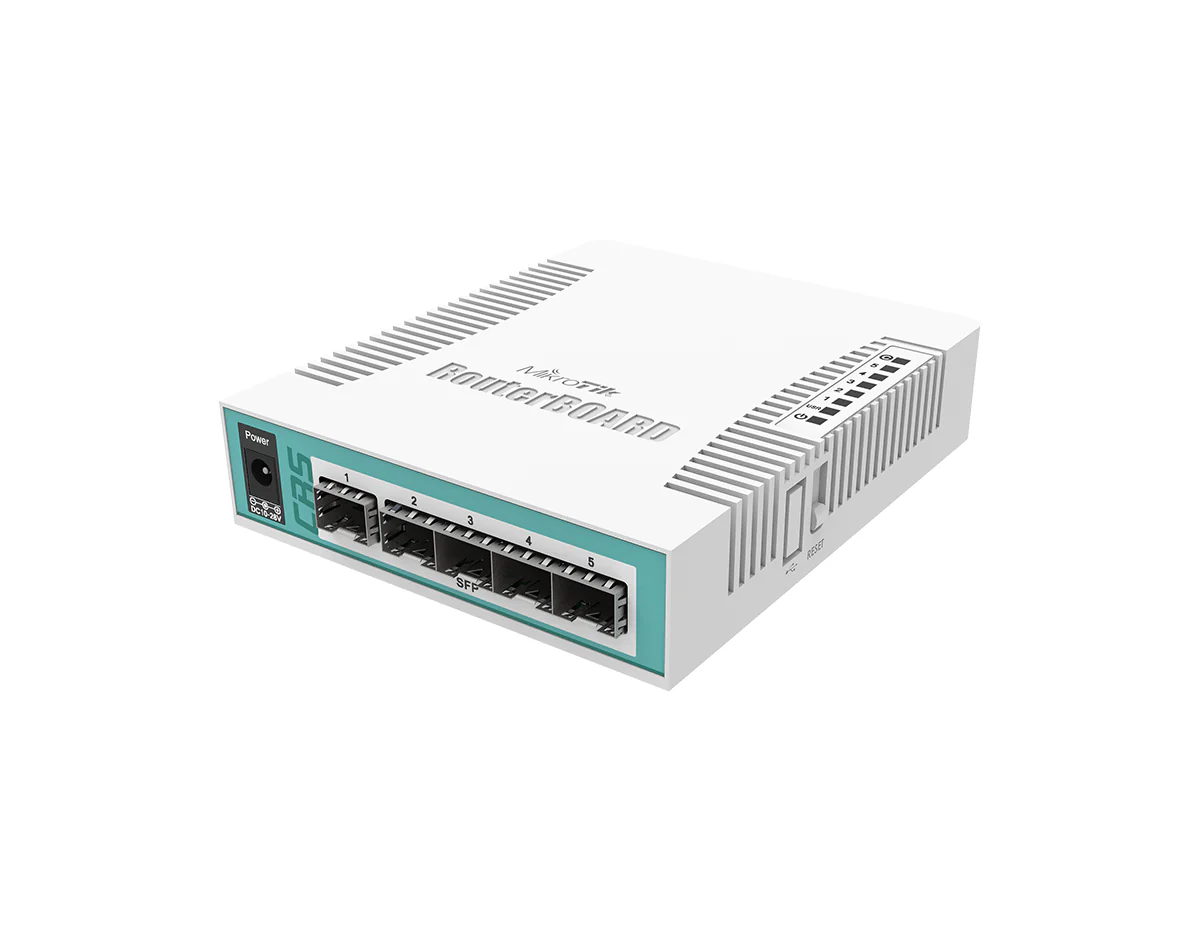

MikroTik CRS106-1C-5S Switch

The CRS106-1C-5S is a compact and intelligent switch designed for desktop use. It features one Gigabit Ethernet / SFP combo port and five 1.25 Gbps SFP cages and comes with a power supply. This device is powered by a 400 MHz CPU and 128 MB RAM and operates on RouterOS with an L5 license. It is compatible with an 11-30 V power supply.

Quick Specs:

• 1 Ethernet Combo Port (GE / SFP)
• 5x 1.25G SFP ports uplink
• QCA8511, 1 core, 400 MHz CPU
• 128 MB RAM

Please see the related tabs for the CRS106-1C-5S datasheet and compatible accessories.
