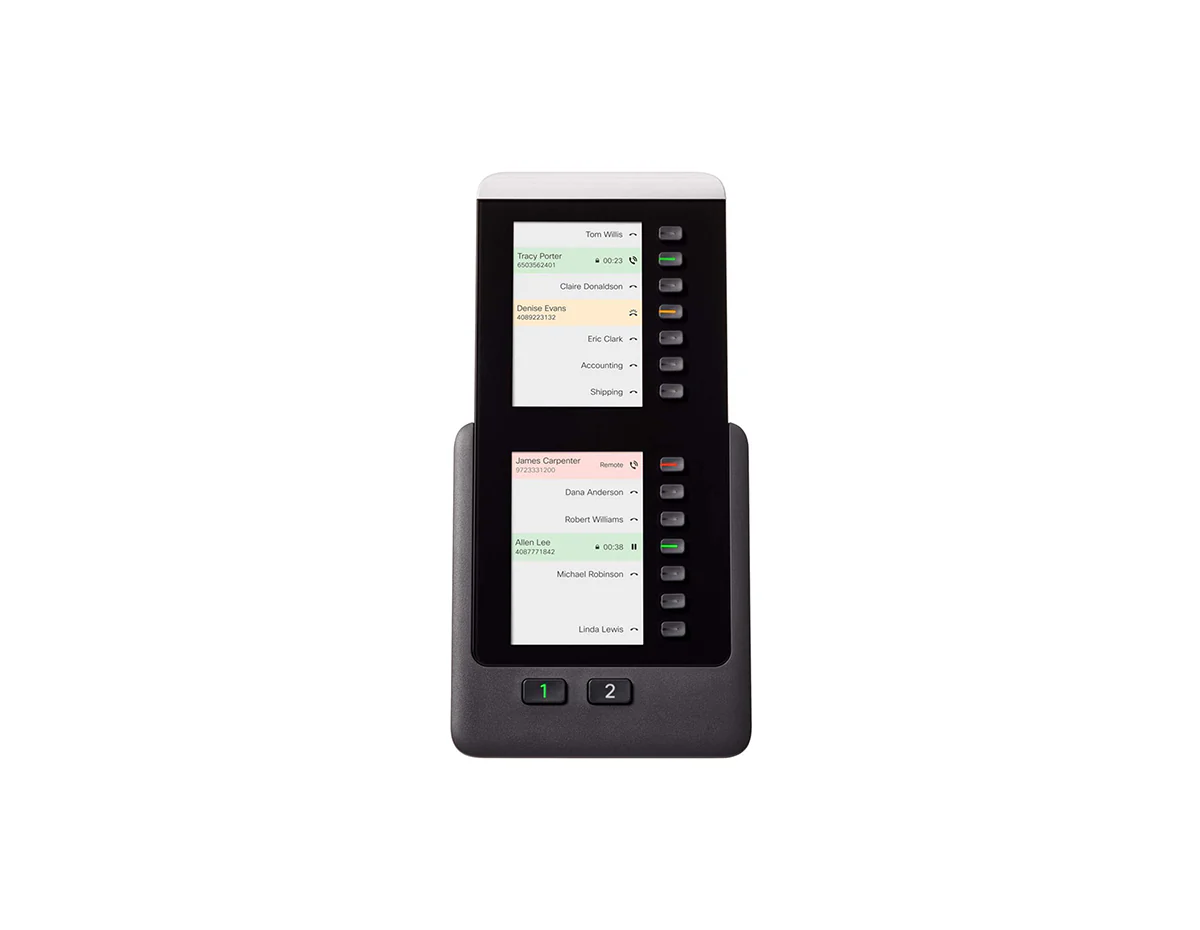

Cisco CP-8800-A-KEM IP Phone Key Expansion Module
- Key expansion module
- For 8851, 8861 IP Phone
[specifications]
| Specifications | CP-8800-A-KEM |
| Description | The 8800 KEM provides additional keys for directory numbers, speed dial, or programmable feature keys to the IP Phone 8851, 8861, and 8865 models |
| Product Type | Key Expansion Module |
| Graphical display | The 4.3-inch graphical (TFT) color display provides 16-bit color depth and 480 x 272 effective pixel resolution, with backlight |
| Directory-number and feature buttons | 18 physical buttons (36 using page keys) |
| Power | 48 VDC, 117 mA maximum |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Dimensions | 9.02 x 5.15 x 1.58 in. |
| (229.14 x 130.78 x 40.2 mm) | |
| Compatibility | 8800 Series – 8811, 8841, 8845, 8851, 8851NR, 8861, 8865 IP Phones |
| 8900 Series – 8961 IP Phone | |
| 9900 Series – 9951, 9971 IP Phones |
[/specifications]
Cisco CP-8800-A-KEM IP Phone Key Expansion Module
The Cisco CP-8800-A-KEM IP Phone 8800 Key Expansion Module adds 18 physical keys (36 using page keys) to the Cisco IP Phone 8851, 8861, and 8865 models. You can connect up to three 8800 KEMs to the IP Phone 8861 and 8865, and up to two 8800 KEMs to the IP Phone 8851, giving the user access to a total of 36 additional keys. The 8800 KEM includes a foot stand and all necessary hardware to connect it directly to a traditional base.
Key Features:
- 4.3 inch
- 16-bit color depth
The tabs contain the CP-8800-A-KEM datasheet with all the specifics you need.
