[shortdesc]

• Managed, Rack-mountable, 6 x 1G PoE+ ports + 2 x 2.5G PoE+ ports, 2 x Multigigabit/SFP+ combo Uplinks, PoE+ (124W), Layer 3

[/shortdesc]

[properties]

Product Name	Cisco CBS350-8MGP-2X Managed Switch
Product Description	High-performance, multi-gigabit managed switch with PoE+ support, designed for small to medium-sized businesses needing advanced network capabilities.
Compatibility	Cisco Business 350 Series Managed Switches
Ports	6 x 10/100/1000 PoE+, 2 x 2.5G PoE+, 2 x Multigigabit/SFP+ combo
Total PoE Power Budget	124W
Data Transfer Rate	Up to 2.5 Gbps on selected ports
Layer Support	Layer 2 and Layer 3
Switching Capacity	62 Gbps
Forwarding Rate	46.13 Mpps
Rackmountable	Yes, 1U
Energy Efficiency	IEEE 802.3az Energy Efficient Ethernet compliant
Security Features	802.1X authentication, IP Source Guard, ACLs

[/properties]

[specifications]

Device Type	Managed Switch
Dimensions (W x D x H)	13.5 x 10.0 x 1.73 inches (343 x 254 x 44 mm)
Weight	5.5 lbs (2.5 kg)
Power Supply	Internal, 100-240V AC, 50-60 Hz
Power Consumption (Max)	167W (including PoE)
PoE Standards Supported	IEEE 802.3af/at
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Storage Temperature Range	-20°C to 70°C (-4°F to 158°F)
Humidity Range	10% to 90% (non-condensing)
Management Interfaces	Web-based GUI, CLI, SNMP, Cisco Business Dashboard
Layer 2/3 Features	VLAN, QoS, static routing, IGMP snooping
Uplink Speeds	Up to 10 Gbps on Multigigabit/SFP+ ports
Compliance	CE, FCC Part 15 (CFR 47) Class A, UL 60950-1

[/specifications]

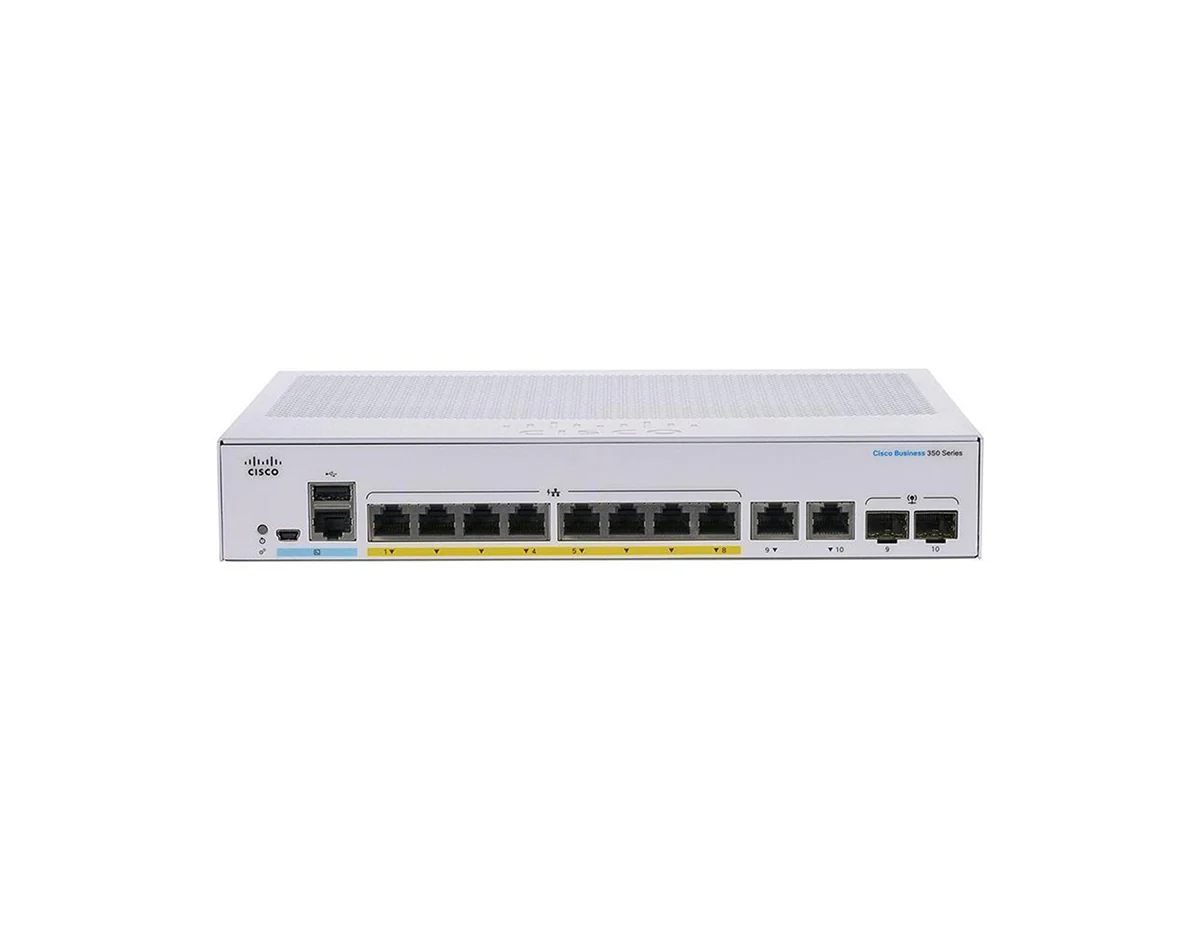

Cisco CBS350-8MGP-2X Switch

The Cisco CBS350-8MGP-2X is a powerful multi-gigabit managed switch designed for small businesses that need high performance, flexibility, and advanced network capabilities. With 6 Gigabit Ethernet PoE+ ports, 2 2.5G PoE+ ports, and 2 combo Multigigabit/SFP+ uplink ports, it delivers a total PoE power budget of 124W, making it ideal for powering devices like wireless access points, cameras, and VoIP phones. This switch ensures scalable, future-proof networking with its multi-gigabit capabilities and high-speed uplink options.

Key Features:

• 6 x Gigabit Ethernet PoE+ Ports and 2 x 2.5G PoE+ Ports: Offers 124W of total PoE power, supporting a variety of high-performance devices such as IP cameras and access points.
• 2 x Multigigabit/SFP+ Combo Ports: Provides high-speed uplink options with flexibility for both fiber and copper connections, ensuring network scalability.
• Advanced Layer 2 and Layer 3 Features: Includes VLANs, QoS, and static routing for efficient traffic management and segmentation.
• Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption during low traffic periods.
• Comprehensive Security: Protects against unauthorized access with 802.1X authentication, ACLs, and IP Source Guard.

Technical Overview:

• Recommended for: Small to medium-sized businesses and high-performance networking environments.
• Ports: 6 x 10/100/1000 PoE+ ports, 2 x 2.5G PoE+ ports, 2 x Multigigabit/SFP+ combo uplink ports.
• Switching Capacity: 62 Gbps.
• Forwarding Rate: 46.13 Mpps.
• Layer 2/3 Features: VLAN, QoS, static routing, and IGMP snooping for optimized traffic management.
• Management: Web-based GUI, CLI, SNMP, and Cisco Business Dashboard for easy network control.
• Security: 802.1X authentication, ACLs, and IP Source Guard for enhanced security.
• Energy Efficiency: Supports IEEE 802.3az standards for reduced energy consumption.

You can check the related tab for the CBS350-8MGP-2X datasheet.
