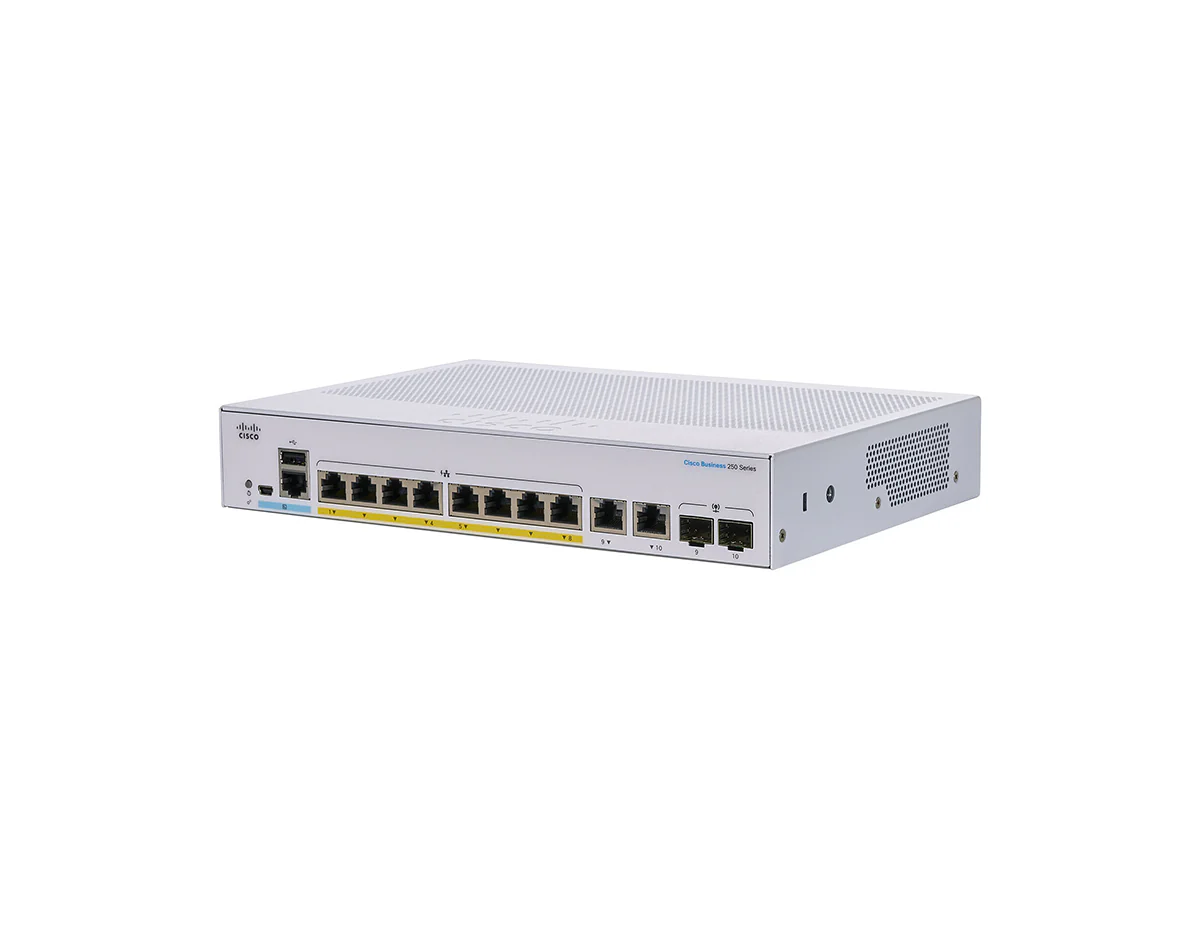

Cisco CBS250-8FP-E-2G Switch
[shortdesc]
- Managed, Rack-mountable, 8 x 1G PoE+ ports, 2 x 1G copper/SFP combo Uplinks, PoE+ (120W), Layer 3
[properties]
| Properties | CBS250-8FP-E-2G |
| Description | ā 8 10/100/1000 ports PoE+ ports with 120W power budget ā 2 Gigabit copper/SFP combo ports |
| Product Family | CBS 250 Series |
| Product Type | Small Business Switch |
| Number of Ports | 10 |
| RJ-45 ports | 8 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 8 |
| Power dedicated to PoE | 120W |
| Number of ports that support PoE | 8 |
| Power | 100 to 240V 50 to 60 Hz, external |
| Fans | Fanless |
| Unit dimensions in. (W x D x H) | 10.56 x 7.28 x 1.73 |
| Rack-mountable | Yes |
[/properties]
[specifications]
| Specifications | CBS250-8FP-E-2G |
| Capacity in millions of packets | 14.88 mpps |
| Switching capacity | 20.0 Gbps |
| Flash Memory | 16 MB |
| DRAM | 512 MB |
| CPU | 400 MHz ARM |
| CPU Memory | 128 MB |
| Packet Buffer | 1.5 MB |
| MAC addresses | 8K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Operating Temperature | 23Ā° to 122Ā°F (-5Ā° to 50Ā°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
[/specifications]
[accesories]
| Hardware | |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package . |
| Supported SFP modules | SKU |
| MGBSX1 | Multimode fiber |
| MGBLX1 | Single-mode fiber |
| MGBLH1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
| Package contents | |
| Cisco Business 110 Series switch | |
| Power cord or adapter | |
| Quick start guide | |
| Mounting kit | |
| Minimum requirements | |
| Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet | |
| Cat5e or better Ethernet cable | |
| Network interface card for each computer | |
[/accesories]
Cisco CBS250-8FP-E-2G Switch
The Cisco CBS250-8FP-E-2G is a reliable managed switch that provides flexible network management and Power over Ethernet (PoE) capabilities, making it an ideal solution for small businesses. With 8 Gigabit Ethernet PoE+ ports and 2 combo Gigabit Ethernet/SFP uplink ports, the switch delivers a total PoE power budget of 120W, making it suitable for powering IP phones, cameras, and access points.
Key Features:
- 8 x Gigabit Ethernet PoE+ Ports: Provides up to 120W total PoE power for IP devices such as phones, cameras, and access points.
- 2 x Gigabit Ethernet/SFP Combo Uplink Ports: Offers flexible fiber and copper uplink options to accommodate network growth.
- Layer 2/3 Switching Features: Includes VLANs, static routing, and QoS for optimized traffic management and network segmentation.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, reducing power consumption during idle times.
- Security Features: Includes ACLs, 802.1X authentication, and IP Source Guard to protect against unauthorized access.
Technical Overview:
- Recommended for: Small businesses, branch offices, and secure network environments.
- Ports: 8 x 10/100/1000 PoE+ ports with 120W PoE budget, 2 x Gigabit Ethernet/SFP combo uplink ports.
- Switching Capacity: 20 Gbps.
- Forwarding Rate: 14.88 Mpps.
- Layer 2/3 Features: VLAN, static routing, QoS, and IGMP snooping for efficient traffic management.
- Management: Cisco Business Dashboard, Web-based GUI, CLI, and SNMP for comprehensive network management.
- Security: ACLs, port security, and 802.1X authentication for secure operations.
- Energy Efficiency: Designed to meet IEEE 802.3az standards for reduced power consumption.
You can check the related tab for the CBS250-8FP-E-2G datasheet.
