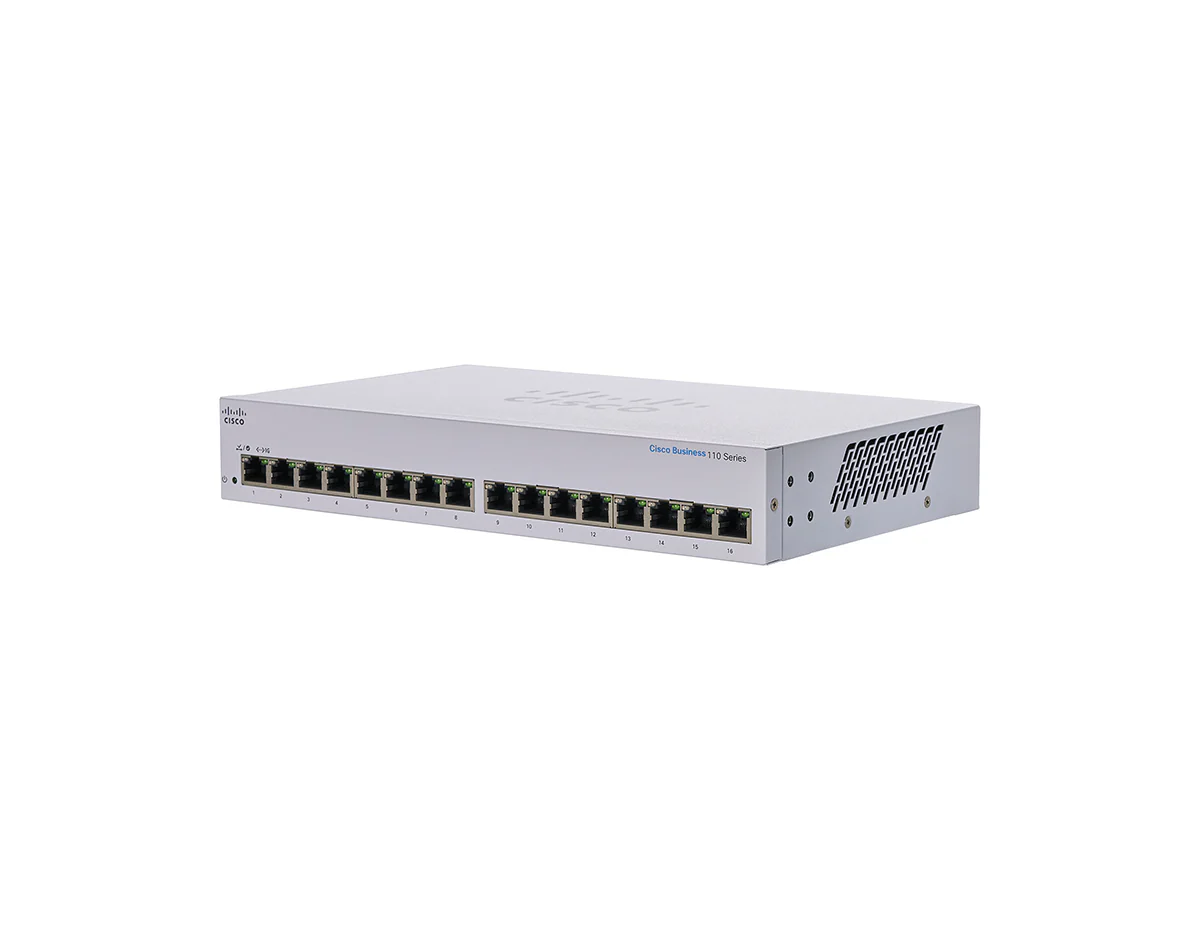

Cisco CBS110-16T Switch
[shortdesc]
- Unmanaged, Rack-mountable, 16 x 1G ports, No Uplinks, No PoE (Data Only), Layer 2
[properties]
| Properties | CBS110-16T |
| Description | 16 10/100/1000 ports |
| Product Family | CBS 110 Series |
| Product Type | Small Business Switch |
| Number of Ports | 16 |
| RJ-45 ports | 16 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 16 |
| Power dedicated to PoE | - |
| Number of ports that support PoE | - |
| Power | 100 to 240V, 50 to 60 Hz, internal, universal |
| Fans | Fanless |
| Unit dimensions in. (W x D x H) | 11 x 6.7 x 1.73 |
| Rack-mountable | Yes |
[/properties]
[specifications]
| Specifications | CBS110-16T |
| Capacity in millions of packets | 23.8 mpps |
| Switching capacity | 32 Gbps |
| Flash Memory | 16 MB |
| CPU | 400 MHz ARM |
| CPU Memory | 128 MB |
| Packet Buffer | 2 Mbit |
| MAC addresses | 8K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models |
[/specifications]
[accesories]
| Hardware | |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package . |
| Supported SFP modules | SKU |
| MGBSX1 | Multimode fiber |
| MGBLX1 | Single-mode fiber |
| MGBLH1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
| Package contents | |
| Cisco Business 110 Series switch | |
| Power cord or adapter | |
| Quick start guide | |
| Mounting kit | |
| Minimum requirements | |
| Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet | |
| Cat5e or better Ethernet cable | |
| Network interface card for each computer | |
[/accesories]
Cisco CBS110-16T Switch
The Cisco CBS110-16T is a 16-port Gigabit Ethernet switch that delivers fast, reliable networking for small businesses. Designed for plug-and-play simplicity, this unmanaged switch requires no configuration and provides high-performance connectivity for computers, printers, and other devices. With its fanless design and energy-efficient operation, it is perfect for offices and noise-sensitive environments.
Key Features:
- 16 x Gigabit Ethernet Ports: Provides high-speed connections for various devices, including computers, printers, and IP phones.
- Fanless Operation: Silent, making it ideal for noise-sensitive environments such as offices.
- Plug-and-Play: No configuration required, offering immediate setup and use.
- Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce power consumption when network traffic is low.
- High Performance: Supports up to 32 Gbps of switching capacity for smooth data transfers.
Technical Overview:
- Recommended for: Small businesses, retail environments, and offices.
- Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Switching Capacity: 32 Gbps.
- Forwarding Rate: 23.8 Mpps.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-saving operation.
You can check the related tab for the CBS110-16T datasheet.
