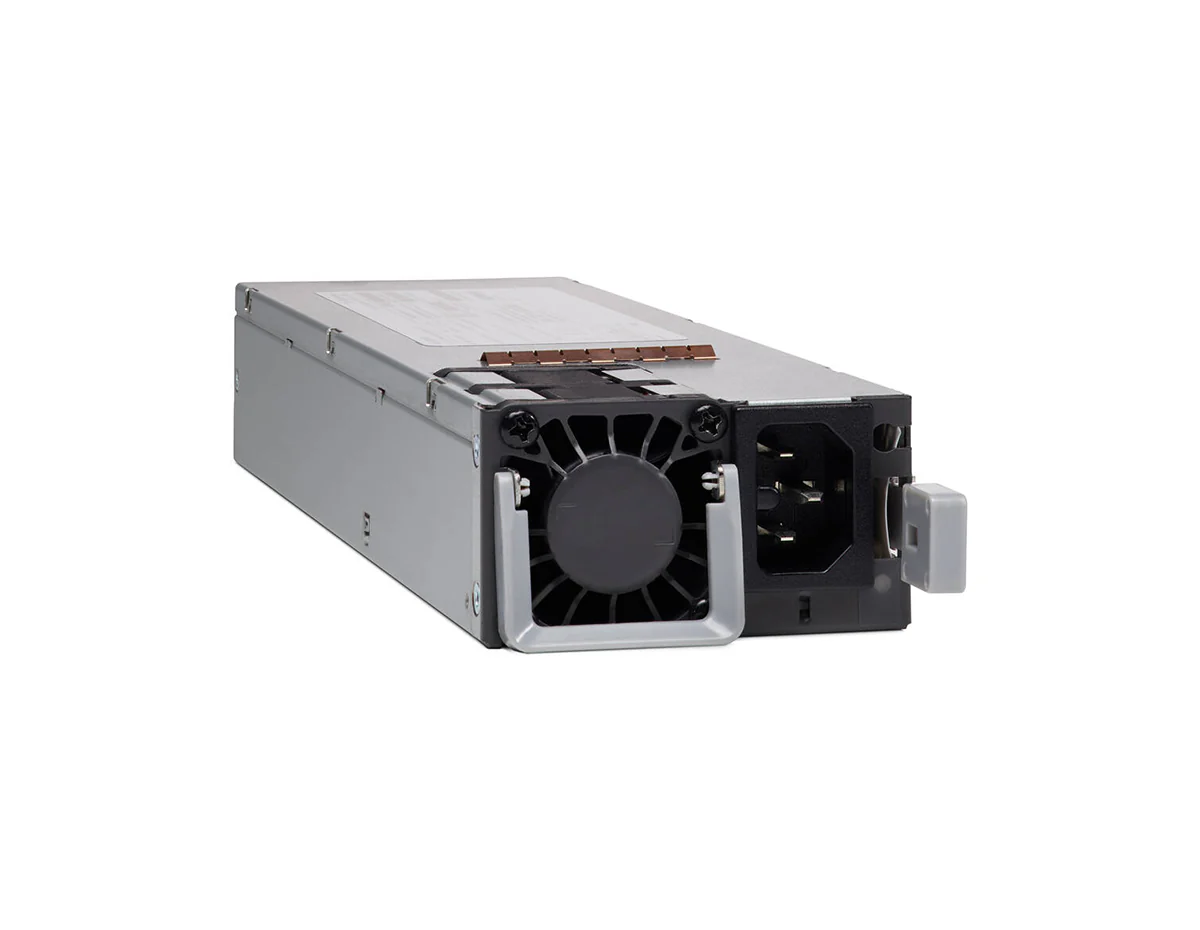

Cisco C9K-PWR-1600WAC-R Power Supply
[shortdesc]
- Power supply
- hot-plug / redundant (plug-in module)
- AC 90-264 V
- 1600 Watt
- for P/N: C9500-32C-A
- C9500-32C-E
[/shortdesc]
[specifications]
| Properties | Cisco C9K-PWR-1600WAC-R |
| Description | 1600W AC Power Supply |
| Product Family | Catalyst 9500 |
| Product Type | Power Supply |
| Power max rating | 1600W |
| Input-voltage range and frequency | AC 90VAC to 140VAC and 180VAC to 264VAC 47 to 63 Hz |
| Power supply efficiency | 94% (Typ) |
| Input current | AC 10.5A Max at 115VAC (1050W), 7.8 A Max at 230VAC (1600W) |
| Output ratings | 12Vmain at 133A, 12Vsb at 3A |
| Output holdup time | AC = 20 ms minimum for system |
| Power-supply input receptacles | AC IEC 60320 C16 |
| Power cord rating | AC 15A |
| Total output BTU for C9500-32C (Note: 1000 BTU/hr = 293W) |
3,631 |
| Supported models | C9500-32C |
| MTBF (hours) | 1,718,780 |
[/specifications]
