Cisco Wireless Controller C9800-L-C-K9
[shortdesc]Wireless Controller, Enterprise, Cloud Management, Scalable, High-Performance, Modular, 802.11ac and ax (Wi-Fi 6), Multigigabit Ethernet. [/shortdesc]
[properties]
| Properties | C9800-L-C-K9-NEW |
| Description |
Cisco Catalyst 9800-L (Copper Uplink) Wireless Controller.Secure the air, devices, and users.
|
| Product Family | Catalyst 9800-L Series |
| Product Type | Wireless Controller |
| Includes |
1x RJ-45 console port
1x Micro USB console port 1x USB 3.0 port 1x RJ-45 management port 1x RJ-45 redundancy port 4x 2.5G/1G and 2x 10G copper ports 4x 2.5G/1G copper and 2x 10G SFP+ fiber ports |
| AC input frequency range | 47 to 63 Hz |
| AC input range | 90 to 264 VAC |
| Input power | 100 to 240 VAC; 50/60 Hz |
| Max power | 86.9W (with 4.5W USB load) |
| Dimensions in. | 8.5 x 9.06 x 1.58 |
[/properties][specifications]
| Maximum number of access points | 250, 500 (with Performance license) |
| Maximum number of clients | 5000, 10,000 (with Performance license) |
| Maximum throughput | 5 Gbps, 10 Gbps **(with Performance license) |
| Maximum WLANs | 4096 |
| Maximum VLANs | 4096 |
| Fixed uplinks |
2x 10G/Multigigabit copper or 2x 10G/Multigigabit fiber
|
| Power supply | 110W, 12V DC, AC/DC adapter |
| Maximum power consumption |
9800-L-C: 86.9W (with 4.5W USB load)
9800-L-F: 84.5W (assumes 2pc 2.5W SFP and with 4.5W USB load) |
| Deployment modes | Centralized, Cisco FlexConnect, and fabric |
| Form factor |
1RU; half-width chassis allows side-by-side installation in standard 19-in. rack
|
| License | Smart License enabled |
| Software | Cisco IOS XE |
| Management |
Cisco DNA Center, Cisco Prime Infrastructure, and third party (open standards APIs)
|
| Interoperability | AireOS-based controllers |
| Access points |
Cisco Aironet 802.11ac Wave 1 and Wave 2 access points, Cisco Catalyst 9100 802.11ax access points
|
| Operating temperature: | ● 32° to 104°F (0° to 40°C) |
| Regulatory compliance |
Safety:
● UL/CSA 60950-1 ● IEC/EN 60950-1 ● AS/NZS 60950.1 ● CAN/CSA-C22.2 No. 60950-1 EMC - Emissions: Class A ● FCC 47CFR15 ● AS/NZS CISPR 22 ● CISPR 22 ● EN55022/EN55032 (EMI-1) ● ICES-003 ● VCCI ● KN 32 (EMI-2) ● CNS-13438 "EMC – Emissions: ● EN61000-3-2 Power Line Harmonics (EMI-3) ● EN61000-3-3 Voltage Changes, Fluctuations, and Flicker (EMI-3) |
[/specifications][accesories]
| Supported SFPs |
| GLC-BX-D |
| GLC-BX-U |
| GLC-LH-SMD |
| GLC-SX-MMD |
| GLC-T |
| GLC-TE |
| GLC-ZX-SMD |
[/accesories]

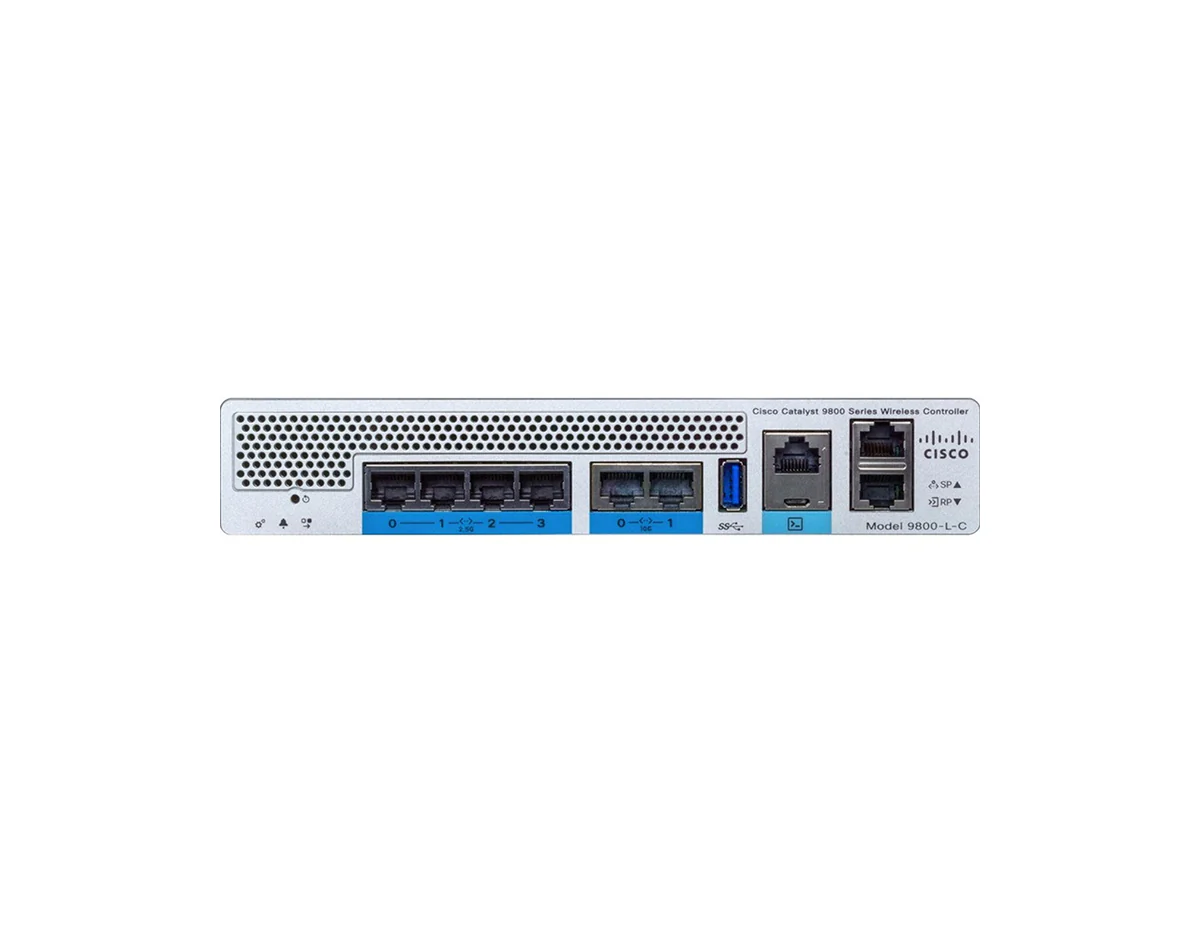

Cisco C9800-L-C Wireless Controller
The Cisco Catalyst 9800-L-C Wireless Controller is a compact and secure solution for small to midsize enterprises. With advanced functionalities like Cisco CleanAir technology and Cisco Adaptive WLAN Assurance, it delivers superior wireless performance. The C9800-L-C provides up to 500 access points and 10,000 clients with high-efficiency wireless networking. The controller integrates seamlessly with the Cisco Identity Services Engine (ISE) to enhance security.
Key Features:
- 2x 10G/Multigigabit copper uplink
- Cisco RF
- Wi-Fi 6 standard
Please check the The C9800-L-C datasheet from the tabs for detailed specifications.
