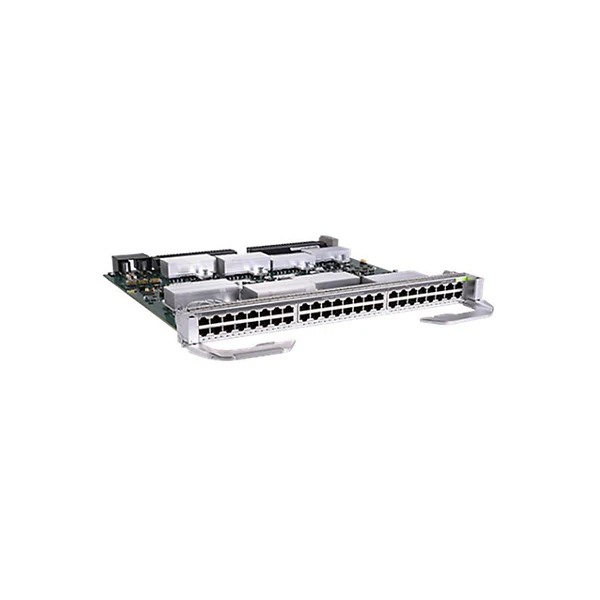

Cisco C9600-LC-48TX Line Card
[shortdesc]
[properties]
- Switch
- 48 x 100/1000/2.5G/5G/10GBase-T
- Plug-in module
| Properties | Cisco C9600-LC-48TX |
| Description | Cisco Catalyst 9600 Series 48-port RJ45 Copper 10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card |
| Product Family | Catalyst 9600 |
| Product Type | Switch Line Card |
| Ports for LC-48TX | |
| Port Speed | Maximum Ports |
| 10GE, 5GE, 2.5GE, 1GE, 100M, 10M | C9600X-SUP-2: 192* C9600-SUP-1: 192 *Speeds below 10GE not supported on C9600X-SUP-2 |
| Physical dimensions | 1.7 x 15.0 x 13.41¢‚¬ (to faceplate) (4.32 x 38.1 x 34.06 cm) 1.7 x 15.0 x 15.7 (to ejector) (4.32 x 38.1 x 39.88 cm) |
| Weight | 4.03 kg (8.88 lbs) |
| Max rated power C9600X-SUP-2 | 315 W |
| Max rated power C9600-SUP-1 | 315 W |
[specifications]
| Specifications | C9600-LC-48TX |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab |
| Highlights | 48 ports nonblocking 10GE, 5GE, 2.5GE, 1GE, 100Mbps, 10Mbps multigigabit RJ45 Copper ports (Only 10 GE supported on C9600X-SUP-2) IPv6 support on the UADP Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec-256 encryption algorithm is available on the UADP ASIC (UADP ASIC is part of the Cisco Catalyst 9600 Series Supervisor Engine 1. This line card does not support MACsec with C9600X-SUP-2) |
| Bandwidth | |
| C9600-SUP-1 | 960 Gbps |
| C9600X-SUP-2 | 960 Gbps |
| Minimum SW requirement | |
| C9600-SUP-1 | 17.1.1 |
| C9600X-SUP-2 | 17.7.1 |
| Operating temperature | -5° to 45° C (23° to 113° F) up to 6,000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
| Storage temperature | -40° to 75° C (40° to 167° F) |
| Relative Humidity, Operating and Non- operating, Non-condensing | 10% to 95%, noncondensing |
| Operating altitude | -60 to 3000 m (-197 to 9843 feet) |
| Rated MTBF (hours) | 543,000 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | ‚ UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic emissions certifications | ‚ ‚ EN55032:2015 ‚ EN61000-3-2:2014 ‚ EN55032:2012 ‚ NM EN 55032:2015 ‚ QCVN 118:2018/BTTTT ‚ ICES-003:2016:Iss:6 ‚ NM EN 61000-3-3:2015 ‚ NM EN 61000-3-2:2015 ‚ 47 CFR Part 15:2016 ‚ KN61000-3-3:2014 ‚ CISPR32:2012:Ed:1 ‚ EN300 386:2012:V1.6.1 ‚ KN61000-3-2:2014 ‚ CNS13438:2006 ‚ CISPR32:2015:Ed:2 ‚ KN32:2015 ‚ VCCI-CISPR 32:2016 ‚ EN61000-3-3:2013 ‚ CISPR24:2010+A1:2015 ‚ CISPR35:2016:Ed:1 ‚ EN55024:2010 ‚ EN55024:2010:A1 ‚ EN55035:2017 ‚ EN61000-6-1:2007 ‚ EN61000-6-2:2005 ‚ IEC61000-6-1:2016:Ed:3 ‚ IEC61000-6-2:2016:Ed:3 ‚ KN35:2015 ‚ NM EN 55024:2018 ‚ TCVN 7317:2003 |
| ROHS compliance | ROHS5 |
Cisco C9600-LC-48TX Line Card
The C9600 Series is designed for enterprise campus, combining excellent table scale and buffering for demanding enterprise applications. The line cards are designed with modular architecture, allowing you to invest in high-performance line cards. The C9600-LC-48TX benefits from advanced features of the supervisor engine, such as QoS, Layer 2, 3, and 4 routing. If you combine it with C9600X-SUP-2, you can use hardware-based IPv6.
Quick Specs:
- 48 ports (10GE/5GE/2.5GE/1GE/100Mbps/10Mbps multigigabit RJ45)
- Nonblocking
- MACsec-256 encryption with the C9600-SUP-1
Please check the related tabs for the C9600-LC-48YTX datasheet and detailed specifications.
