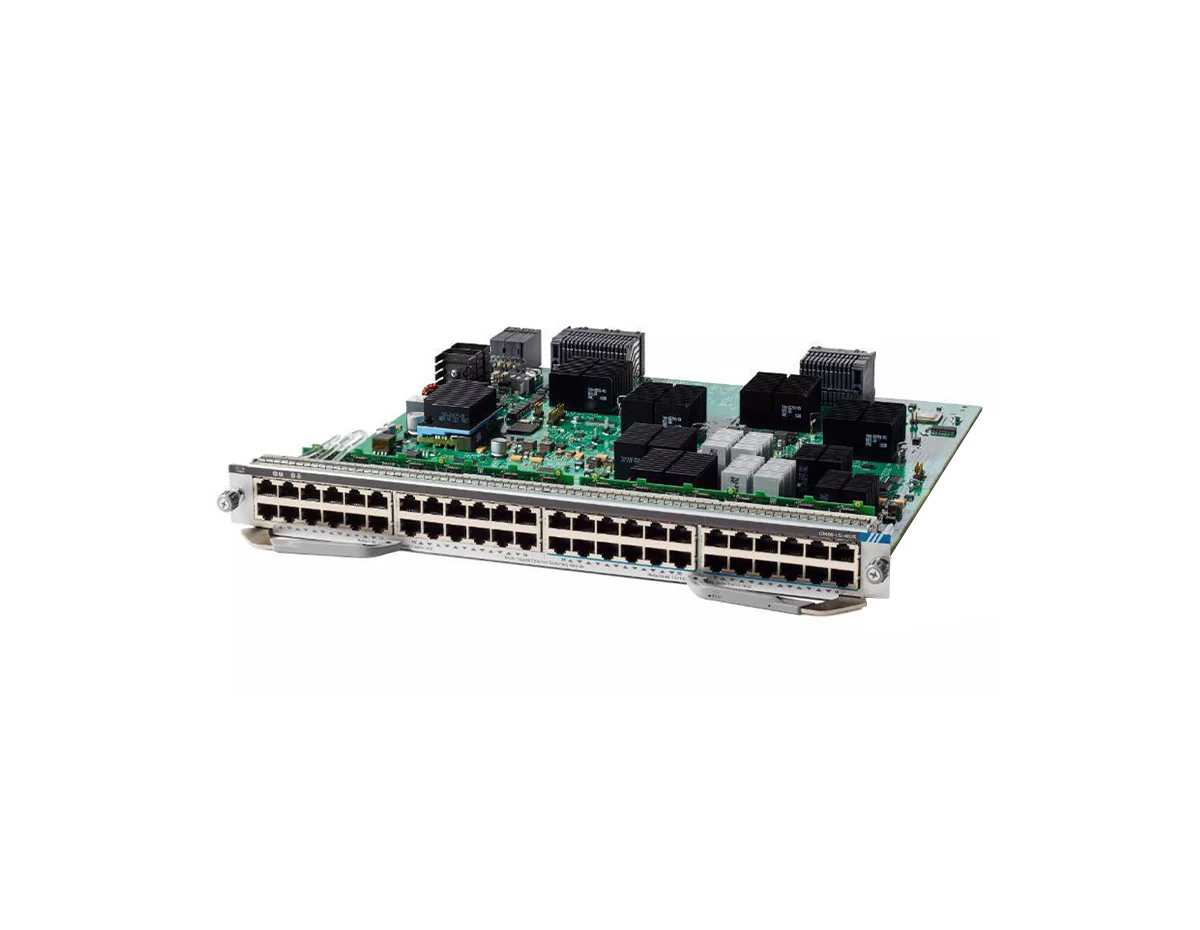

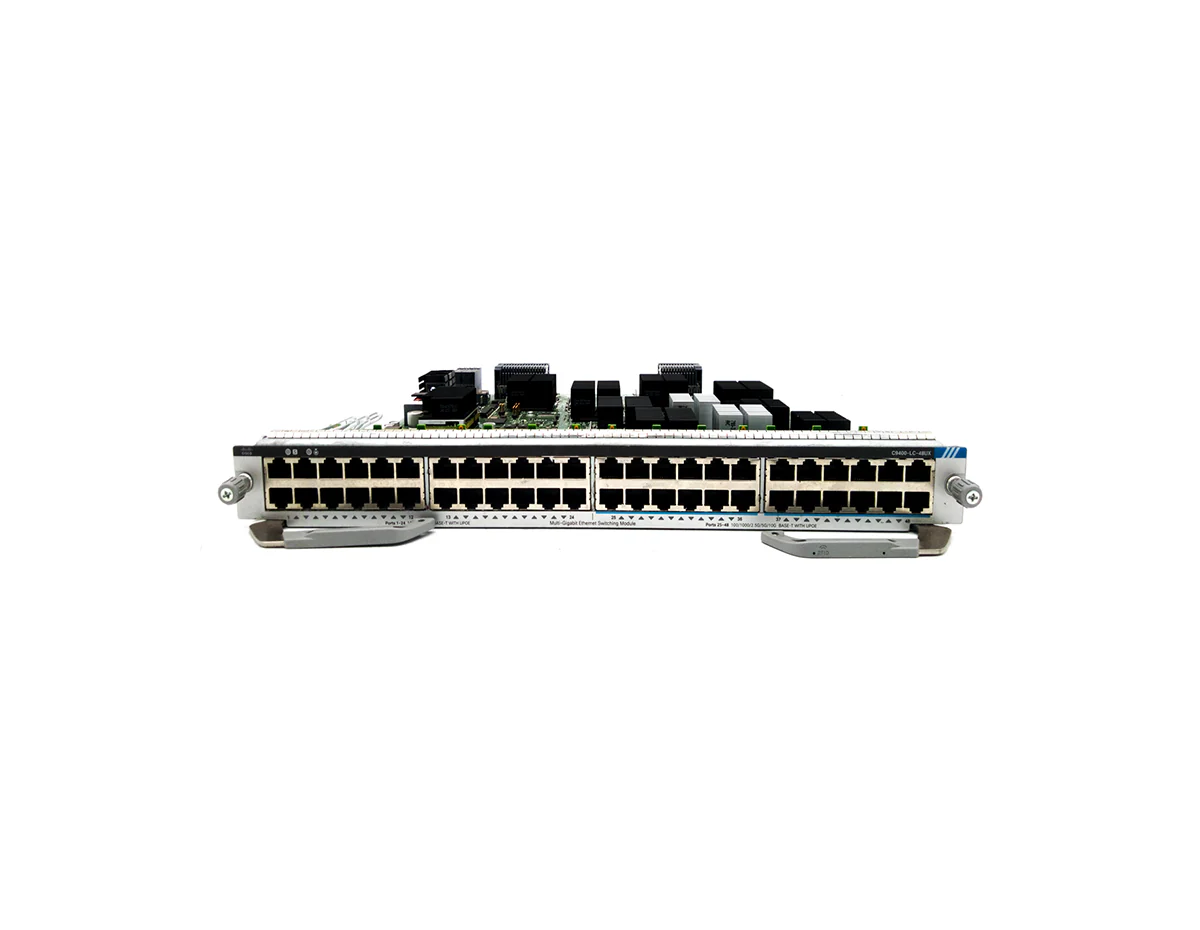

Cisco C9400-LC-48UX Line Card
[shortdesc]
- Line Card, 24 x 100/1000/2.5G/5G/10GBase-T (UPOE) + 24 x 10/100/1000 (UPOE), Plug-in module, UPOE, For 9400 Chassis
[properties]
| Properties | Cisco C9400-LC-48UX |
| Description | Cisco Catalyst 9400 Series 48-Port UPOE w/ 24p mGig 24p RJ-45 |
| Product Family | Catalyst 9400 |
| Product Type | Switch Line Card |
| Number of ports | 48 |
| Port speed | 24 Multigigabit 100/1000 Mbps 2.5/5 Gbps 10GBASE-T ports and 24 10/100/1000 ports |
| Port type | RJ-45 UPOE IEEE 802.3at, IEEE 802.3af, Cisco pre-standard |
| Cisco Catalyst 9400 Series switch min/max ports | |
| C9404R | 48/96 |
| C9407R | 48/240 |
| C9410R | 48/384 |
| Physical dimensions | Occupies one slot in Cisco Catalyst 9400 Series switches Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Max rated power (W) | 240 |
[/properties]
[specifications]
| Specifications | C9400-LC-48UX |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an |
| Features | Ββ β β β β 48 ports with 24 Multigigabit ports and 24 10/100/1000 Mbps ports Ββ β β β β Speeds of 100/1000 Mbps, 2.5/5 Gbps, and 10GBASE-T on the Multigigabit ports and 10/100/1000 Mbps on the other ports Ββ β β β β Nonblocking up to 1000 Mbps on all ports Ββ β β β β RJ-45 interface on all ports Ββ β β β β Supported on Cisco IOS XE Software Release 16.6.2 or later Ββ β β β β Cisco UPOE: Capable of up to 60W on all ports in the line card Ββ β β β β Energy Efficient Ethernet 802.3az on all 10/100/1000 ports Ββ β β β β IEEE 802.3bz, 802.3an Multigigabit Ethernet standard on the Multigigabit ports Ββ β β β β IEEE 802.3af/at and Cisco pre-standard PoE Ββ β β β β IEEE 802.1ae (MACsec-256) capability in hardware Ββ β β β β Layer 2 to Layer 4 Jumbo Frame support (up to 9216 bytes) Ββ β β β β Enterprise and commercial: Designed to power next-generation IP phones, wireless access points, wireless base stations, video cameras, virtual desktop clients, and other PoE/Cisco UPOE devices Ββ β β β β Support for campus and branch applications requiring enhanced performance for large file transfers and network backups |
| Bandwidth per slot by chassis | |
| Supervisor | β |
| C9400 Supervisor Engine-1 (C9400-SUP-1) | Bandwidth per slot Chassis C9404R: 80 Gbps Chassis C9407R: 80 Gbps Chassis C9410R: 80 Gbps Oversubscription: 3:3:1 |
| C9400 Supervisor Engine-1XL (C9400-SUP-1XL) | Bandwidth per slot Chassis C9404R: 240 Gbps Oversubscription: 1:1:1 Chassis C9407R: 120 Gbps Oversubscription: 2:2:1 Chassis C9410R: 80 Gbps Oversubscription: 3:3:1 |
| C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) | Bandwidth per slot Chassis C9404R: 240 Gbps Oversubscription: 1:1:1 Chassis C9407R: 120 Gbps Oversubscription: 2:2:1 Chassis C9410R: 80 Gbps Oversubscription: 3:3:1 |
| C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) *Supervisor 2 provides 480 Gbps per slot, but this LC can only make use of 240 Gbps |
Bandwidth per slot Chassis C9404R: 480 Gbps Chassis C9407R: 480 Gbps Chassis C9410R: 480 Gbps Oversubscription: 1:1:1 |
| C9400 Supervisor Engine-2 (C9400X-SUP-2) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 240 Gbps Chassis C9410R: 240 Gbps Oversubscription: 1:1:1 |
| Operating temperature | Ββ Normal Operating * Temperature and Altitudes: β β β Β¦β β β 23Β° to 113Β°F (-5 to +45Β°C), up to 6,000 feet (1800 m) β β β Β¦β β β 23Β° to 104Β°F (-5 to +40Β°C), up to 10,000 feet (3000 m) β β β Β¦β β β *Minimum ambient temperature for cold startup is 0Β°C Ββ Short-Term ** Exceptional Conditions: β β β Β¦β β β 23Β° to 131Β°F (-5 to +55Β°C), up to 6,000 feet (1800 m) β β β Β¦β β β 23Β° to 122Β°F (-5 to +50Β°C), up to 10,000 feet (3000 m) β β β Β¦β β β **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | -40Β° to 158Β° F (-40Β° to 70Β°C) |
| Relative humidity | 10 to 95%, noncondensing |
| Operating altitude | -60 to 3000m |
| Rated MTBF (hours) | 469,550 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | Ββ UL 60950-1 Ββ CAN/CSA-C222.2 No. 60950-1 Ββ EN 60950-1 Ββ IEC 60950-1 Ββ AS/NZS 60950.1 Ββ IEEE 802.3 |
| Electromagnetic emissions certifications | Ββ 47 CFR Part 15 Ββ CISPR22 Class A Ββ EN 300 386 V1.6.1 Ββ EN 55022 Class A Ββ EN 55032 Class A Ββ CISPR 32 Class A Ββ EN61000-3-2 Ββ EN61000-3-3 Ββ ICES-003 Class A Ββ TCVN 7189 Class A Ββ V-3 Class A Ββ CISPR24 Ββ EN 300 386 Ββ EN55024 Ββ TCVN 7317 |
| ROHS compliance | ROHS5 |
[/specifications]
Cisco Catalyst C9400-LC-48UX Line Card
The Cisco Catalyst C9400-LC-48UX Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, offering advanced connectivity and power options for enterprise networks. This line card provides 48 ports, including both Multigigabit Ethernet and UPOE+ (Universal Power Over Ethernet) capabilities, making it ideal for powering a wide range of devices while delivering fast and reliable data transfer. The C9400-LC-48UX is engineered to meet the demanding needs of modern enterprise environments, providing flexibility, scalability, and energy efficiency for growing network infrastructures.
Key Features:
- 48 x Multigigabit Ethernet and UPOE+ Ports: Delivers high-speed connectivity and power for a variety of network devices, including wireless access points, IP phones, and more.
- Advanced Power Capabilities: Supports UPOE+ to deliver up to 60W per port, ensuring sufficient power for high-demand devices.
- Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion.
- Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
- Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.
Technical Overview:
- Recommended for: Large enterprise networks requiring scalable, high-performance connectivity with advanced power options.
- Ports: 48 x Multigigabit Ethernet ports with UPOE+ support (up to 60W per port).
- Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
- Management: Managed through Cisco DNA Center and other Cisco network management tools.
- Security: Integrated with advanced security features, including network segmentation and access control.
You can check the related tab for the C9400-LC-48UX datasheet.
