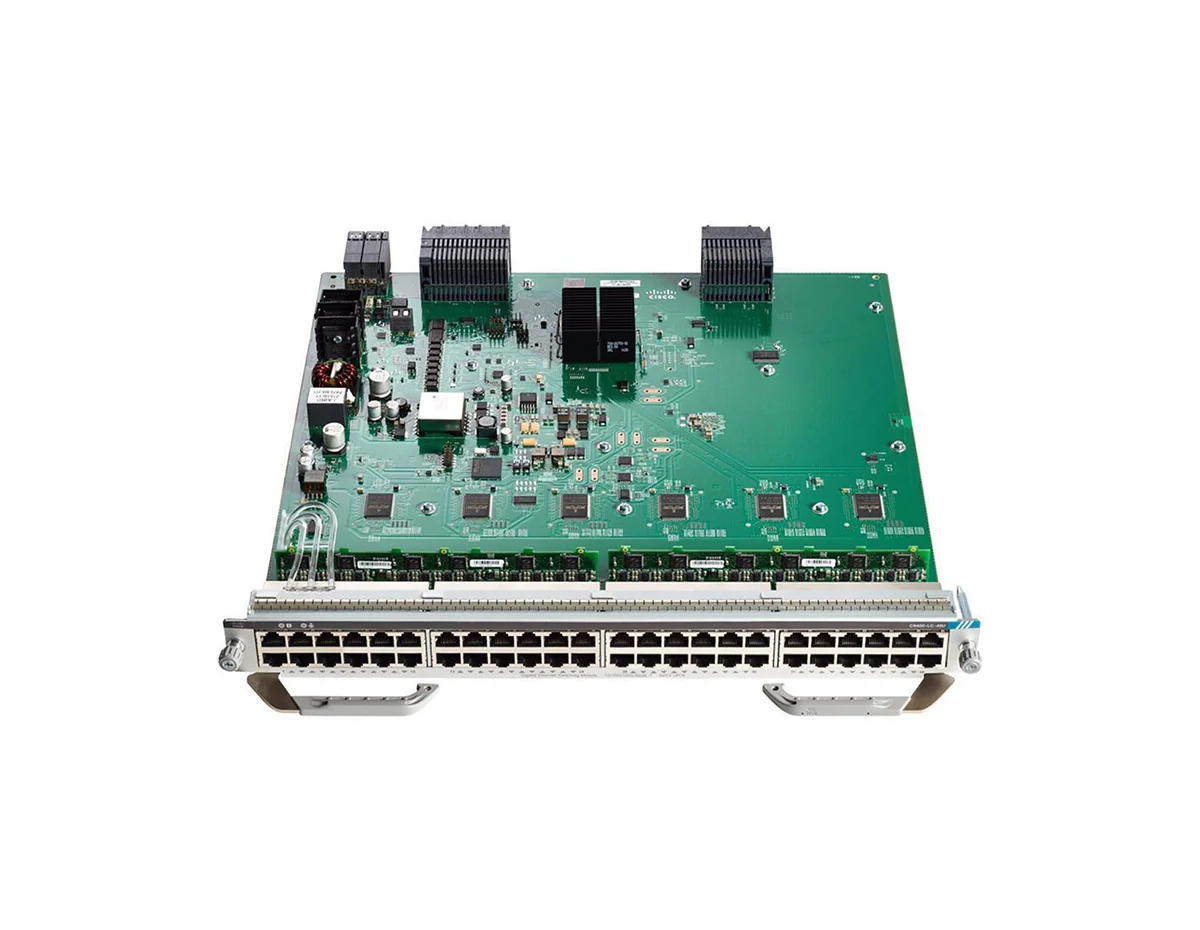

Cisco C9400-LC-48U Switch Line Card
[shortdesc]
- Switch, 48 x 10/100/1000, Plug-in module, UPOE (60 W)
[properties]
| Properties | Cisco C9400-LC-48U |
| Description | Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) |
| Product Family | Catalyst 9400 |
| Product Type | Switch Line Card |
| Number of ports | 48 |
| Port speed | 10/100/1000M |
| Port type | RJ-45 UPOE IEEE 802.3at, IEEE 802.3af, Cisco pre-standard |
| Cisco Catalyst 9400 Series switch min/max ports | |
| C9404R | 48/96 |
| C9407R | 48/240 |
| C9410R | 48/384 |
| Physical dimensions | Occupies one slot in Cisco Catalyst 9400 Series switches Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Max rated power (W) | 65 |
[/properties]
[specifications]
| Specifications | C9400-LC-48U |
| Standards | Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an |
| Features | Ββ β β β β 48 ports nonblocking Ββ β β β β 10/100/1000 module (RJ-45) Ββ β β β β Supported on Cisco IOS XE Software Release 16.6.1 or later Ββ β β β β Cisco UPOE is enabled, capable of up to 60W on all ports in the line card Ββ β β β β Energy Efficient Ethernet 802.3az Ββ β β β β IEEE 802.3af/at and Cisco pre-standard PoE Ββ β β β β IEEE 802.1AE (MACsec-256) capability in hardware Ββ β β β β Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes Ββ β β β β Enterprise and commercial design to power next-generation IP phones, wireless base stations, video cameras, virtual desktop clients, and other PoE and Cisco UPOE devices Ββ β β β β Ideal for campus and branch applications requiring enhanced performance for large file transfers and network backups |
| Bandwidth per slot by chassis | |
| Supervisor | β |
| C9400 Supervisor Engine-1 (C9400-SUP-1) | Bandwidth per slot Chassis C9404R: 80 Gbps Chassis C9407R: 80 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL (C9400-SUP-1XL) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 120 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 120 Gbps Chassis C9410R: 80 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) | Bandwidth per slot Chassis C9404R: 480 Gbps Chassis C9407R: 480 Gbps Chassis C9410R: 480 Gbps Oversubscription: 1:1 |
| C9400 Supervisor Engine-2 (C9400X-SUP-2) | Bandwidth per slot Chassis C9404R: 240 Gbps Chassis C9407R: 240 Gbps Chassis C9410R: 240 Gbps Oversubscription: 1:1 |
| Operating temperature | Ββ Normal Operating * Temperature and Altitudes: β β β Β¦β β β 23Β° to 113Β°F (-5 to +45Β°C), up to 6,000 feet (1800 m) β β β Β¦β β β 23Β° to 104Β°F (-5 to +40Β°C), up to 10,000 feet (3000 m) β β β Β¦β β β *Minimum ambient temperature for cold startup is 0Β°C Ββ Short-Term ** Exceptional Conditions: β β β Β¦β β β 23Β° to 131Β°F (-5 to +55Β°C), up to 6,000 feet (1800 m) β β β Β¦β β β 23Β° to 122Β°F (-5 to +50Β°C), up to 10,000 feet (3000 m) β β β Β¦β β β **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | -40Β° to 158Β° F (-40Β° to 70Β°C) |
| Relative humidity | 10 to 95%, noncondensing |
| Operating altitude | -60 to 3000m |
| Rated MTBF (hours) | 915,150 |
| Safety conditions | Fiber optic lasers: Class 1 laser products |
| Safety certifications | Ββ UL 60950-1 Ββ CAN/CSA-C222.2 No. 60950-1 Ββ EN 60950-1 Ββ IEC 60950-1 Ββ AS/NZS 60950.1 Ββ IEEE 802.3 |
| Electromagnetic emissions certifications | Ββ 47 CFR Part 15 Ββ CISPR22 Class A Ββ EN 300 386 V1.6.1 Ββ EN 55022 Class A Ββ EN 55032 Class A Ββ CISPR 32 Class A Ββ EN61000-3-2 Ββ EN61000-3-3 Ββ ICES-003 Class A Ββ TCVN 7189 Class A Ββ V-3 Class A Ββ CISPR24 Ββ EN 300 386 Ββ EN55024 Ββ TCVN 7317 |
| ROHS compliance | ROHS5 |
[/specifications]
Cisco Catalyst C9400-LC-48U Line Card
The Cisco Catalyst C9400-LC-48U Line Card is a high-performance module designed for the Cisco Catalyst 9400 Series modular switches, providing advanced connectivity and power options for enterprise networks. This line card features 48 Universal Power Over Ethernet (UPOE) ports, making it ideal for delivering both power and data to a wide range of network devices, including IP phones, wireless access points, and more. The C9400-LC-48U is engineered to meet the demands of modern enterprise environments, offering flexibility, scalability, and energy efficiency to support growing network infrastructures.
Key Features:
- 48 x UPOE Ports: Provides high-speed data connectivity and up to 60W of power per port, supporting a variety of network devices, including high-power equipment.
- Advanced Power Delivery: Supports Universal Power Over Ethernet (UPOE) to deliver sufficient power for devices such as IP cameras, phones, and wireless access points.
- Scalable Architecture: Seamlessly integrates with the Cisco Catalyst 9400 Series chassis, allowing for easy network expansion as your business grows.
- Enterprise-Grade Security: Includes advanced security features to protect your network from threats and unauthorized access.
- Energy Efficient: Designed to reduce power consumption while maintaining high performance, contributing to lower operational costs.
Technical Overview:
- Recommended for: Large enterprise networks requiring scalable, high-performance connectivity with advanced power options.
- Ports: 48 x UPOE ports (up to 60W per port).
- Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
- Management: Managed through Cisco DNA Center and other Cisco network management tools.
- Security: Integrated with advanced security features, including network segmentation and access control.
You can check the related tab for the C9400-LC-48U datasheet.
